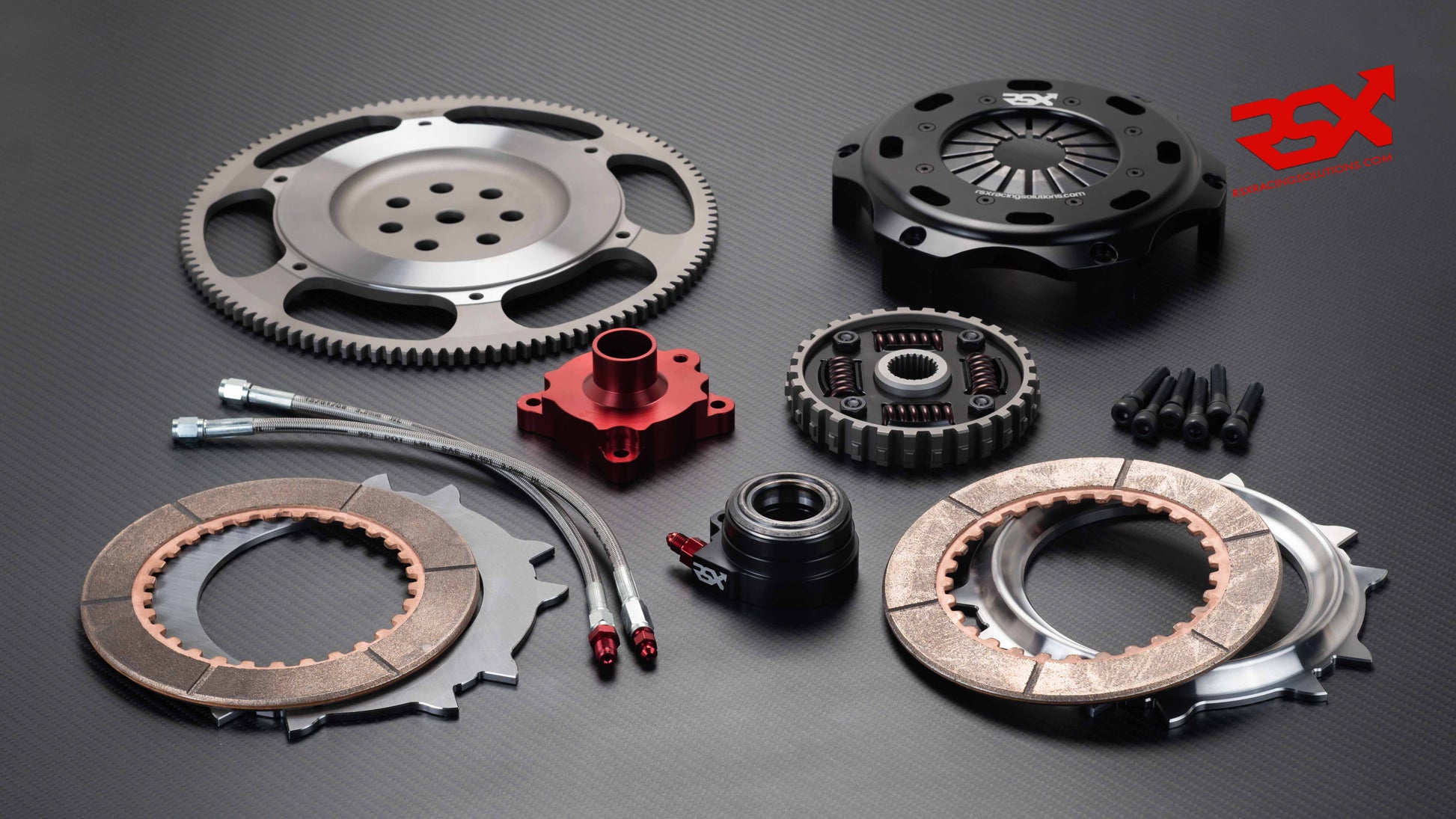

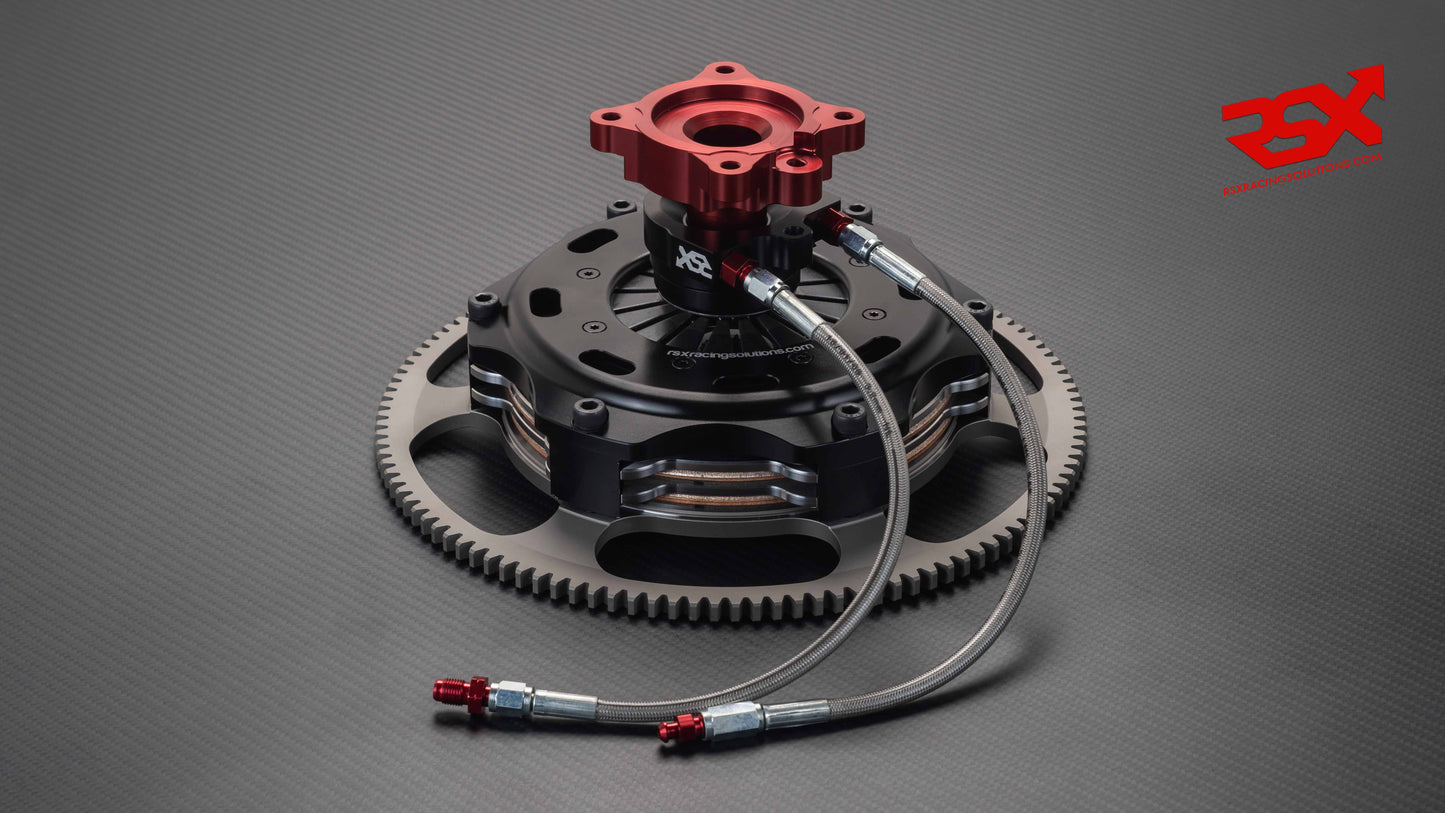

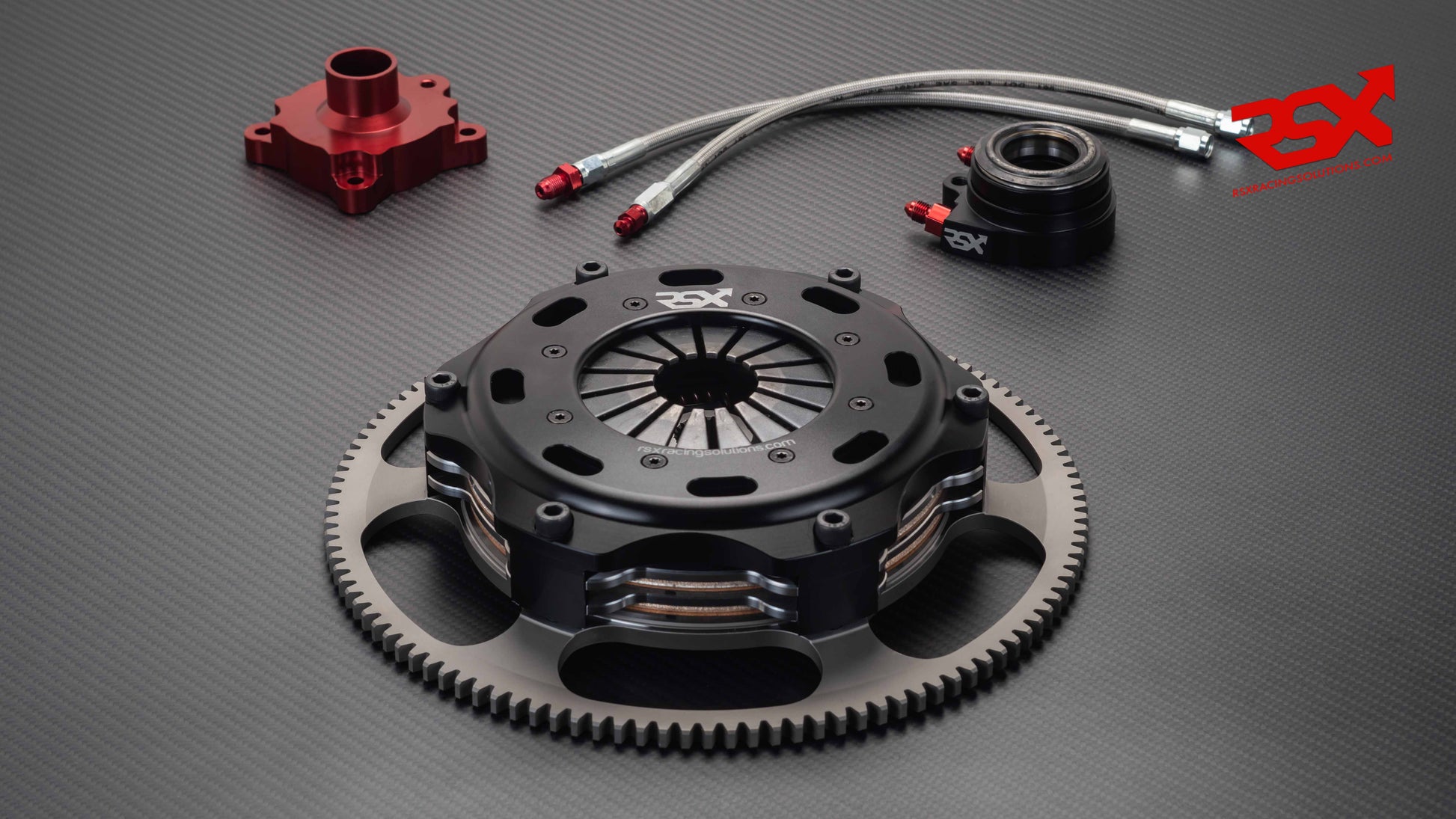

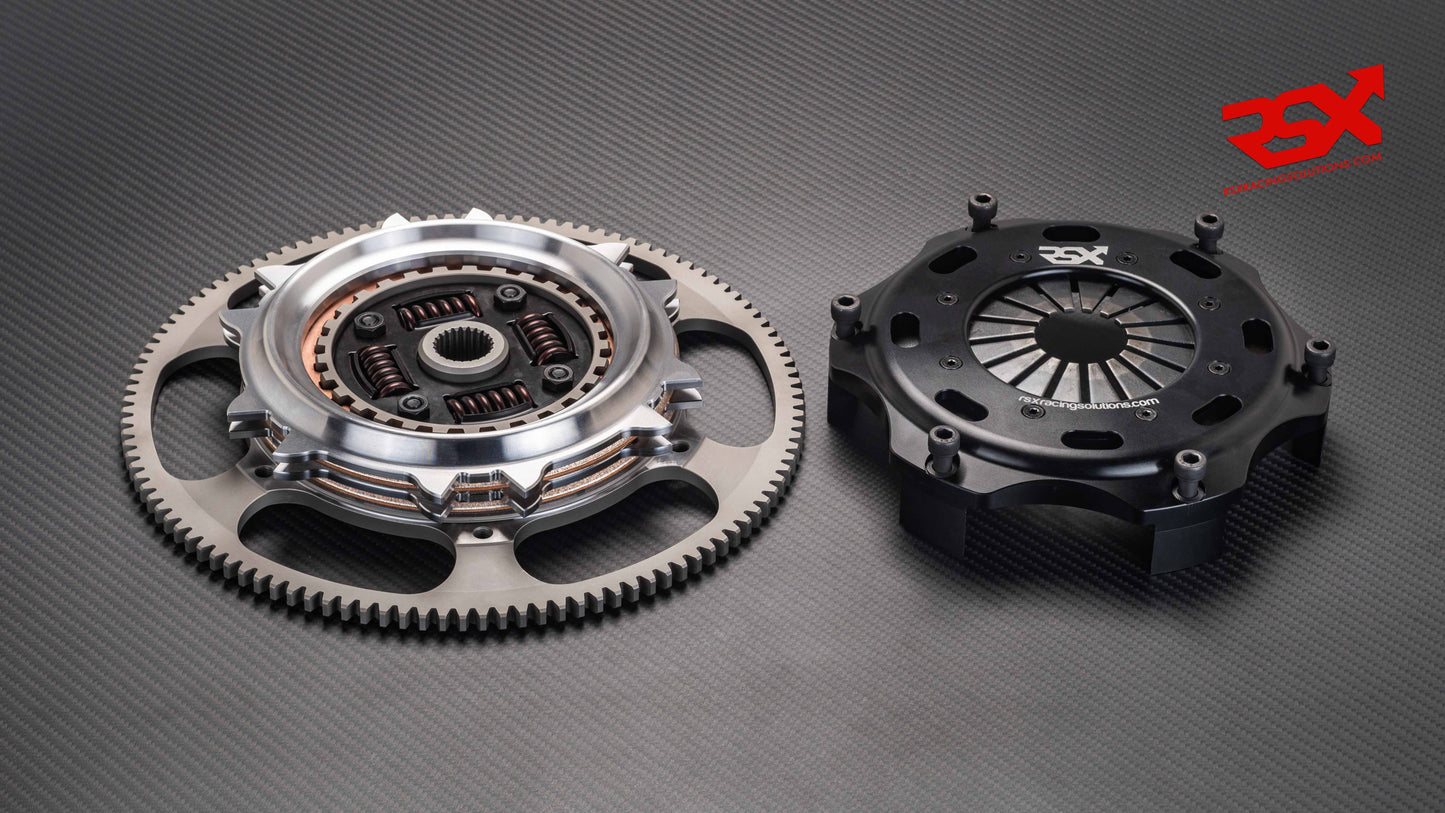

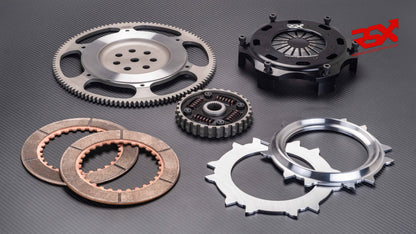

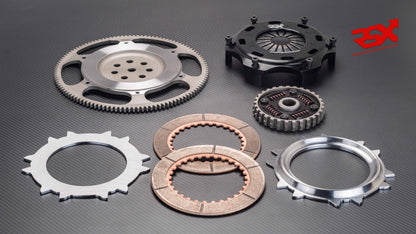

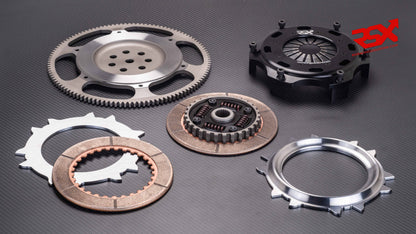

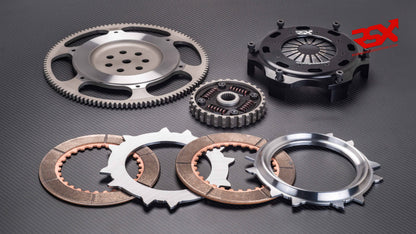

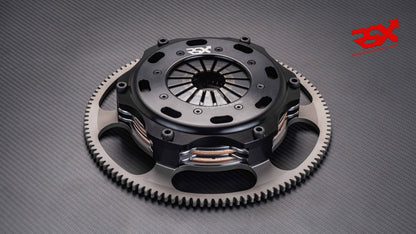

184mm Twin Disc “sprung hub” clutch kit Mitsubishi Lancer EVO 5/6/7/8/9

184mm Twin Disc “sprung hub” clutch kit Mitsubishi Lancer EVO 5/6/7/8/9

Weight - 6.9 kg

Regular price €1.485,00
Regular price €0,00 Sale price €1.485,00
Sale Sold out
Shipping calculated at checkout.
Clutch release type

APPLICATIONS:

• Mitsubishi Lancer EVO V - 5
• Mitsubishi Lancer EVO VI - 6
• Mitsubishi Lancer EVO VII - 7
• Mitsubishi Lancer EVO VIII - 8
• Mitsubishi Lancer EVO IX - 9

COMPONENT FEATURES:

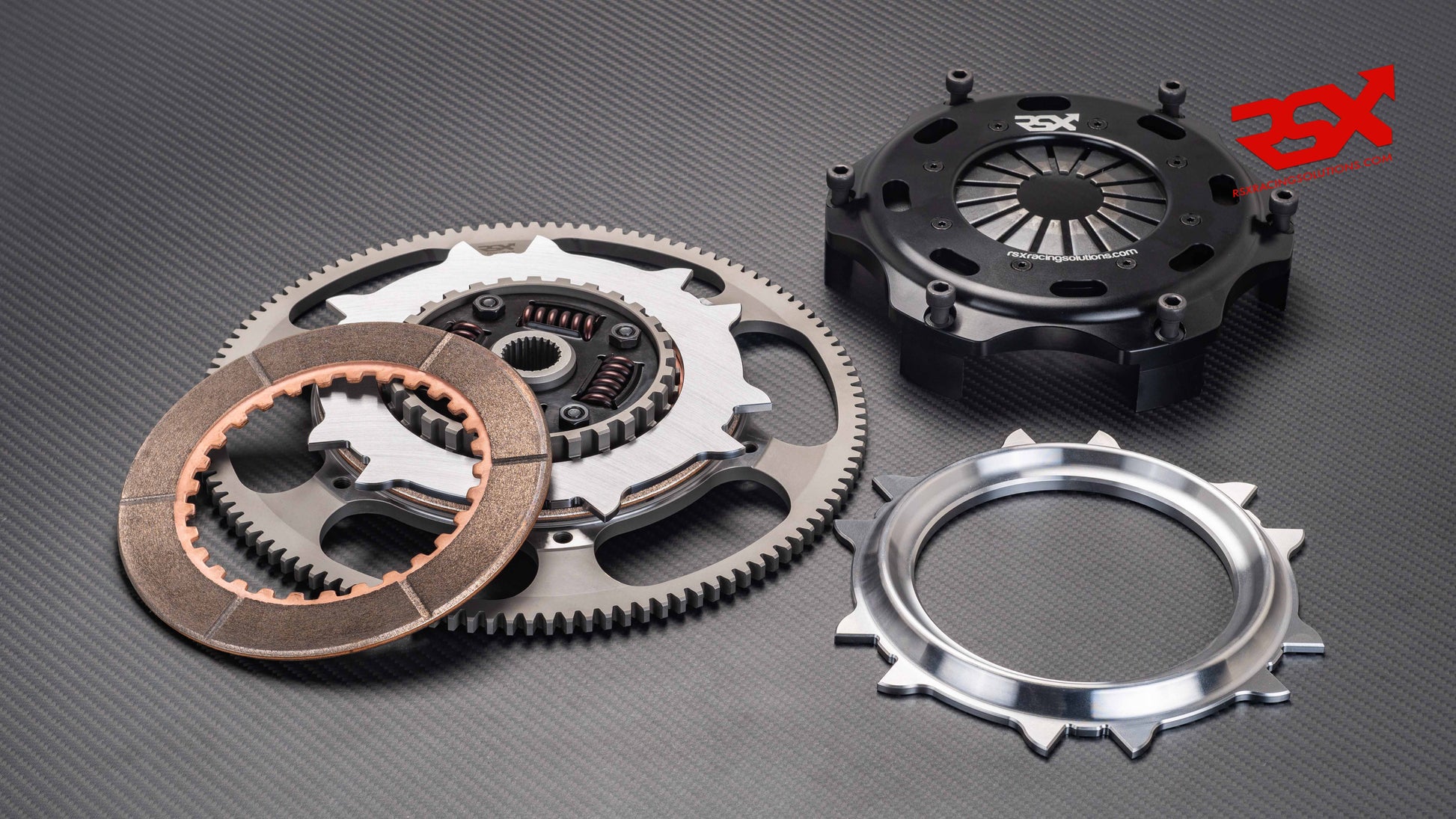

• This ultralight weight 2.70kg flywheel is made of forged CrMo steel and special heat treatment (Nitriding), offering a surface hardness of 60 HRC which is twice the HRC value of those flywheels with a polished/machined appearance and that is why they wear very quickly, especially in high compression engines.

• The higher the HRC value, the more resistant the flywheel is and therefore the longer the service life and reliability.

• The clutch cover is made from forged 6061T6 aluminum and treated with hard anodizing. We add steel rivets to the legs, for almost lifetime durability.

• The top/pressure and floating plates are made from forged chromoly steel for superior performance and durability.

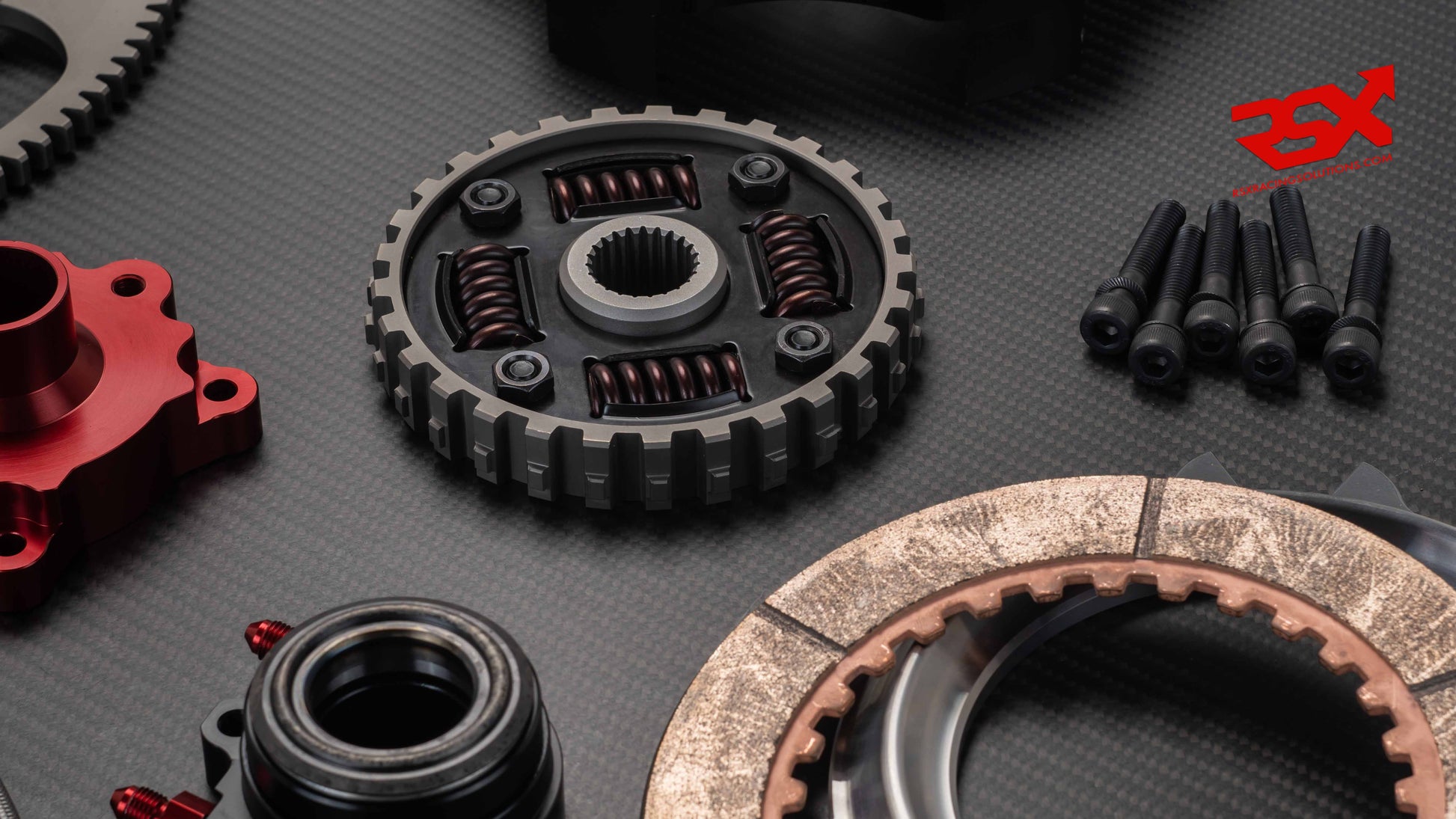

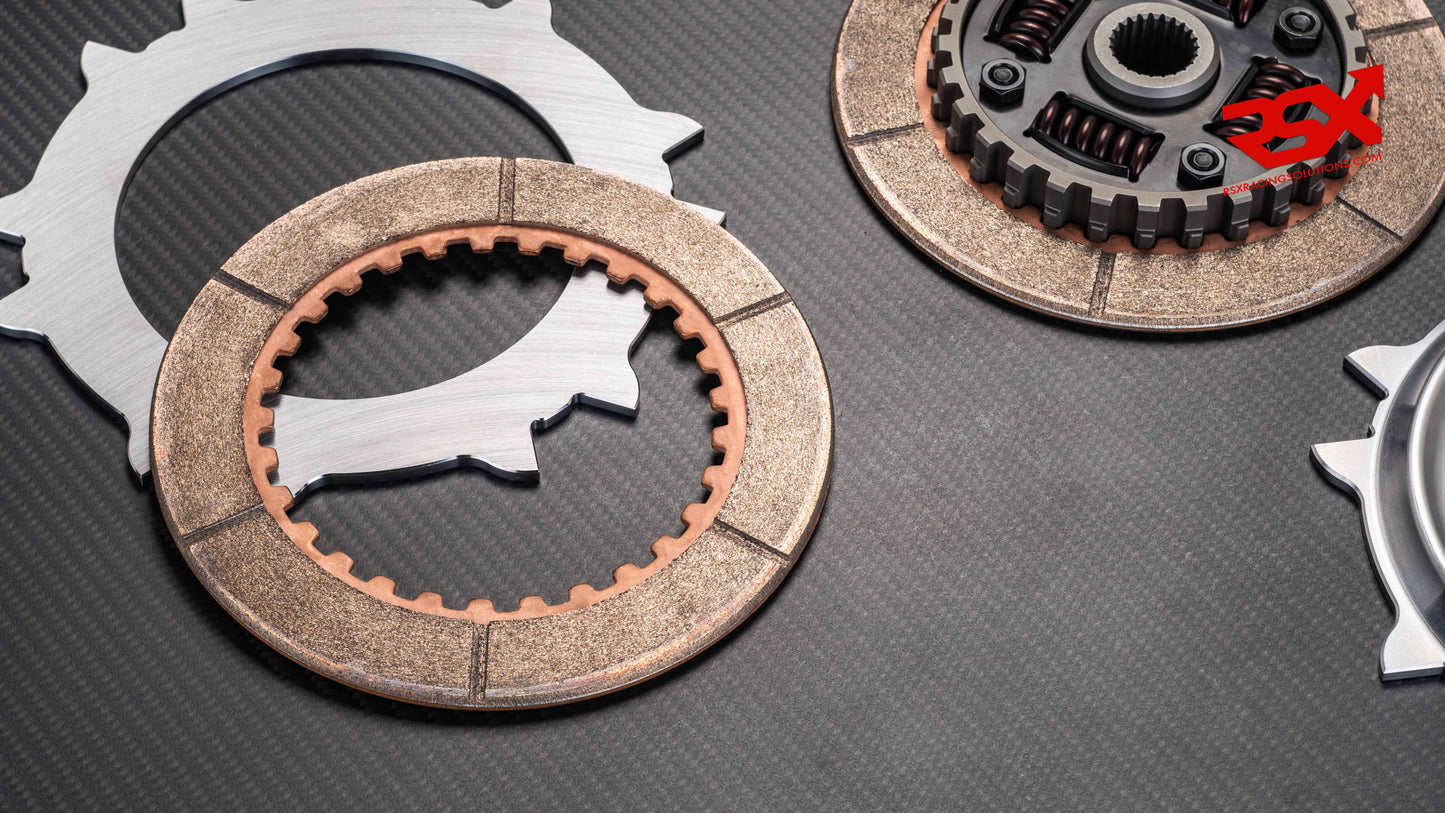

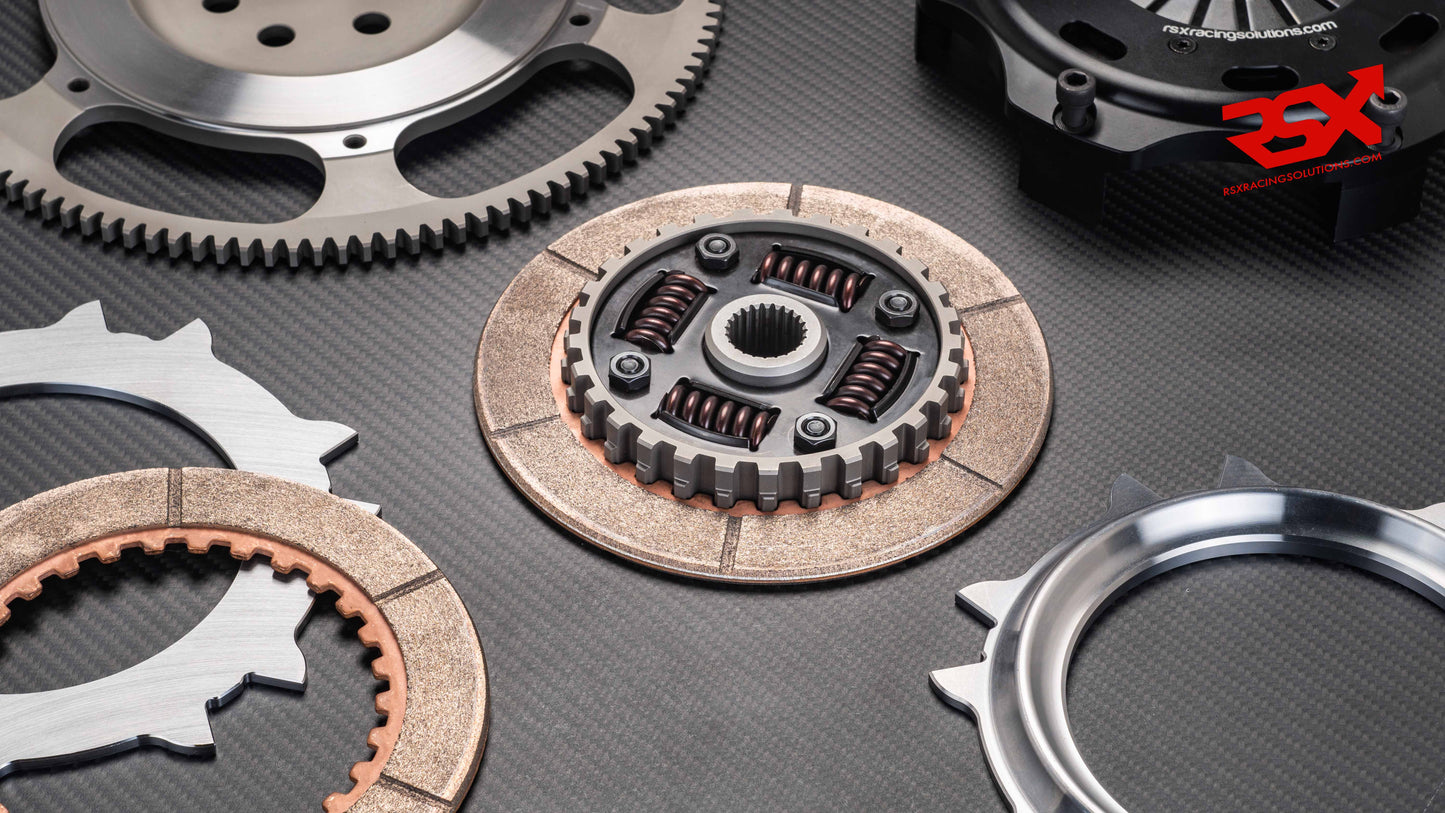

• The clutch discs are made from sintered material and the sprung hub system offers a smoother clutch pedal release for those track day cars who are driven some times in the public roads. Other splines different to the OEM 25.4mm x 23T, are also available on order.

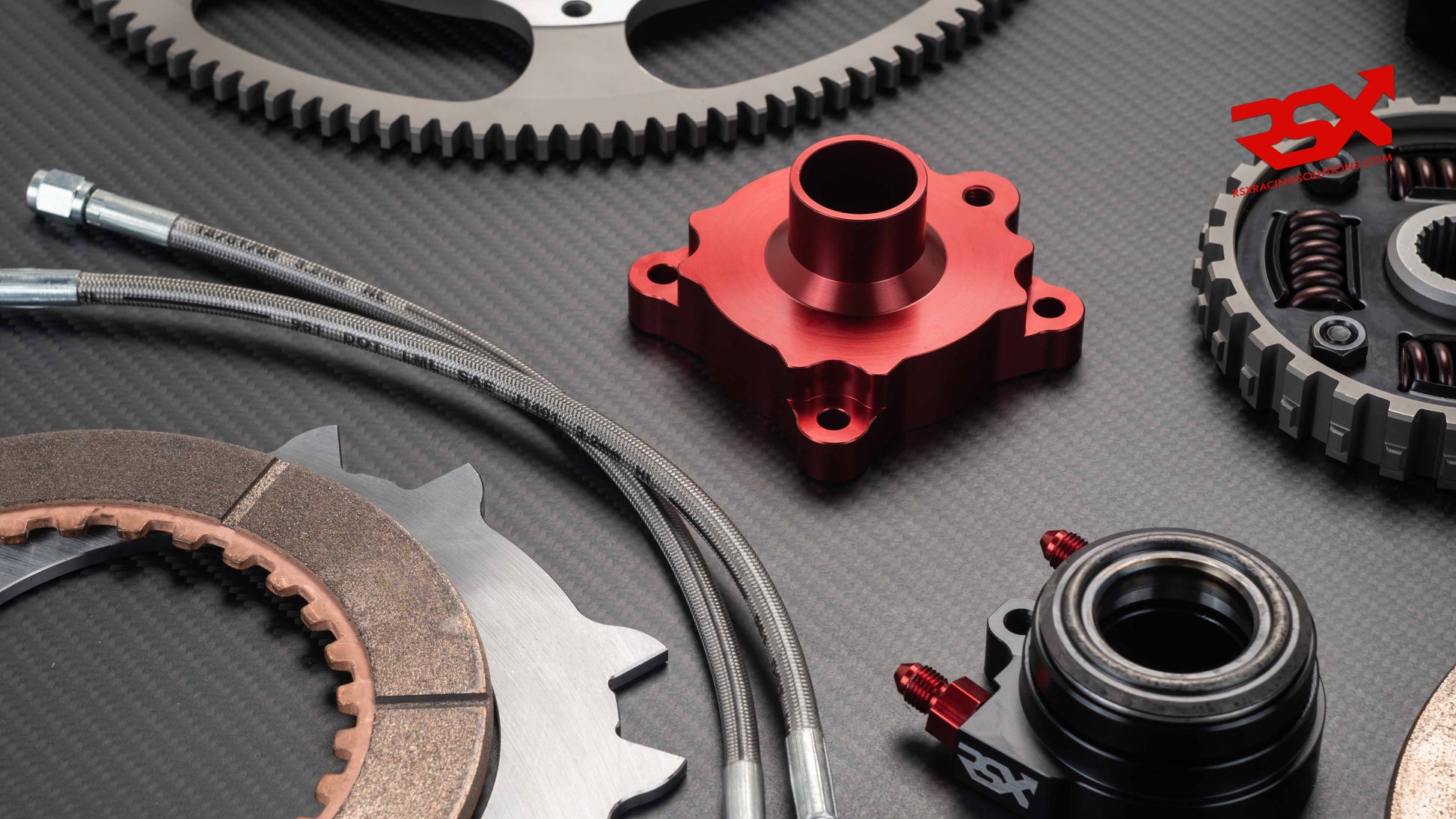

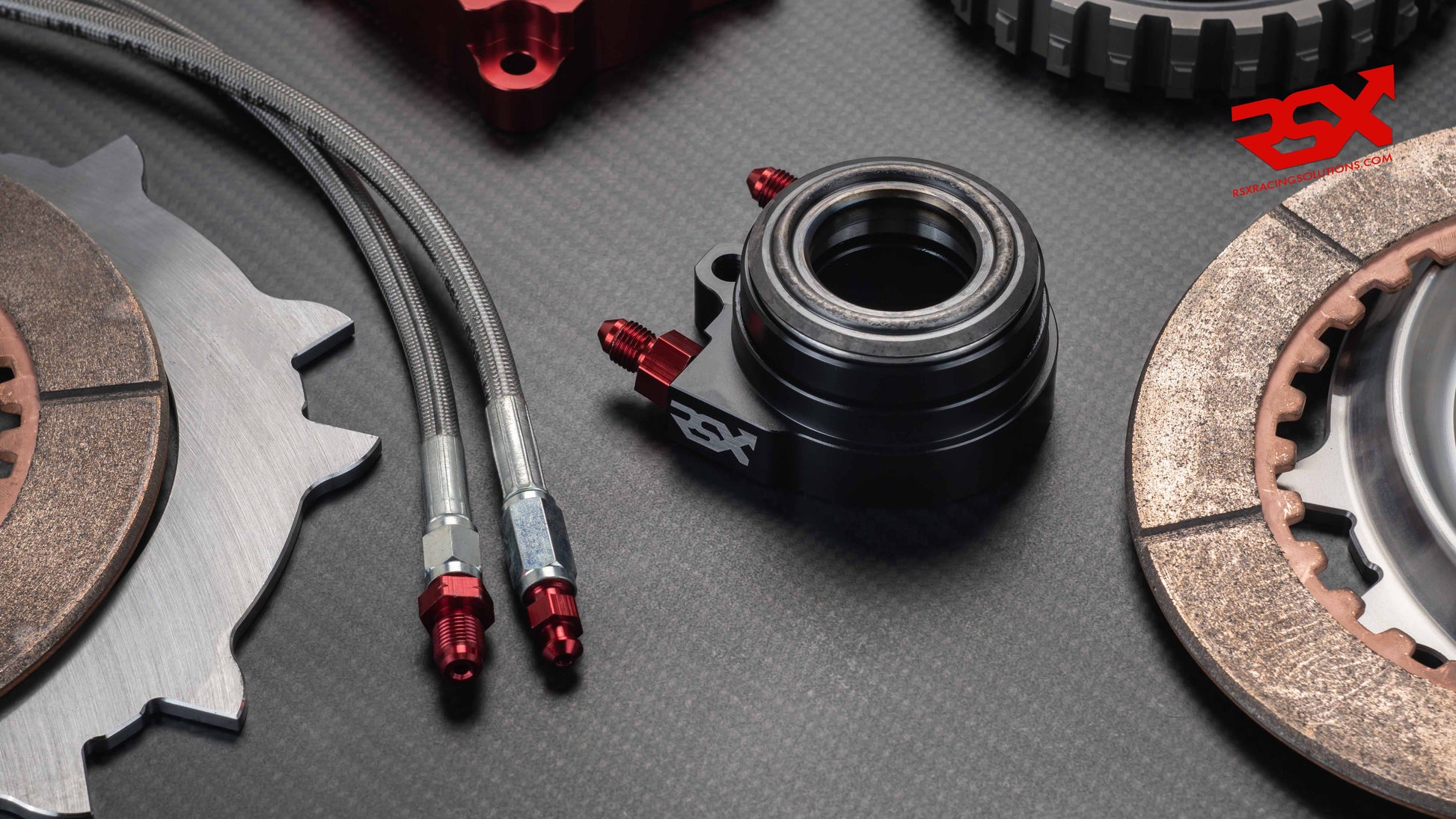

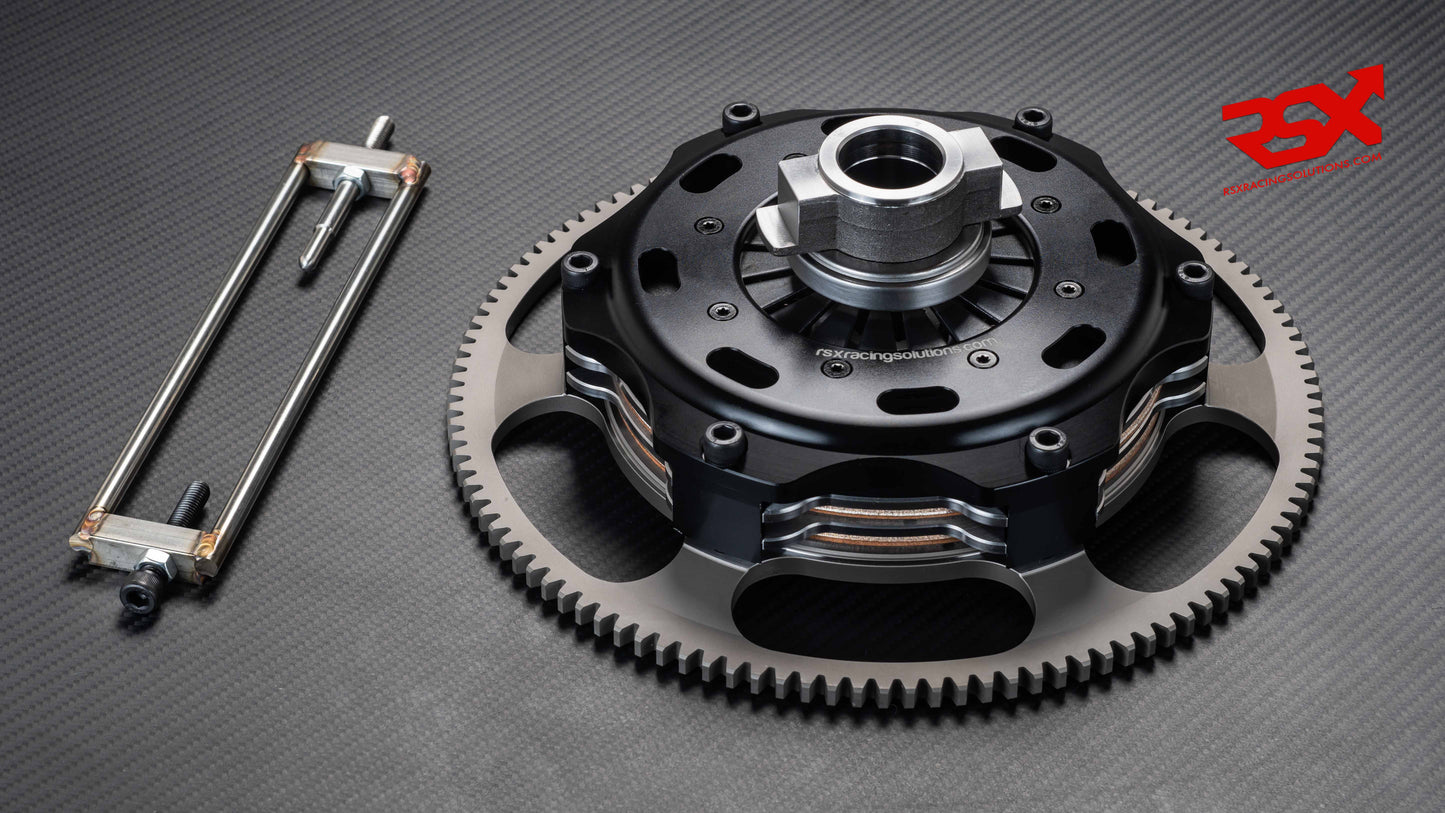

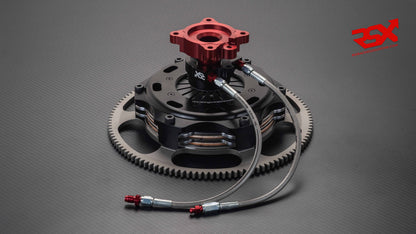

• For a full plug and play solution, we offer a racing clutch bearing set with specific support for Evo 5>9 RS along with a converter from OEM pull system to a Race push system, or a full Racing system that includes our Racing hydraulic release bearing set with a specific aluminum support for Evo 5>9 RS with OE gearboxes.

KEY FEATURES AND BENEFITS:

• Holds over 800Hp and 1.000Nm according to the specifications of the clutch disc and diaphragm hardness.

• Huge weight saving compared to the original flywheel and clutch kit which results in greater acceleration and quicker engine response.

• This weight saving also improves the car´s handling and braking.

• Improved gear shifting at high rpm.

• Very long lasting of the friction elements and low cost of these.

• Full system and Plug & Play solution with no modifications required.

Depending on the modifications already made, an adjustment may be necessary.
