184mm Twin-Disc Sprung Hub Clutch Kit for Renault Megane 3 RS | Track-Day Spec
184mm Twin-Disc Sprung Hub Clutch Kit for Renault Megane 3 RS | Track-Day Spec
SKU:210601737
Weight - 9.05kg
In stock
Couldn't load pickup availability
184mm Twin-Plate Sprung Hub Clutch Kit for Renault Megane 3 RS | Track-Day Spec
Born from countless hours and km of testing in track-day cars and endurance racing, this clutch kit is the result of carefully evaluating and refining every single component until reaching the perfect balance between performance and usability.
Designed to cope with high torque levels, it delivers exceptional reliability and an extremely long service life, even under repeated hard use. At the same time, it offers a smoother clutch pedal feel, improved modulation, and a noticeably quieter operation compared to most racing clutches, making it especially well suited for track-day enthusiasts who also value comfort and drivability off the track.
This is not just a racing clutch — it’s a complete solution for drivers who demand performance without compromise.
Applications
- Renault Megane 3 RS – 6-speed PK4 gearbox
- Renault Megane 2 RS – 6-speed PK4 gearbox

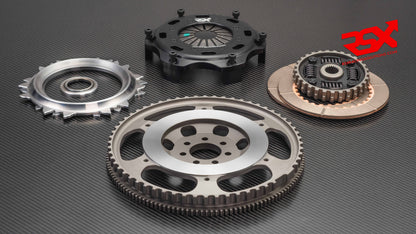

KIT INCLUDES

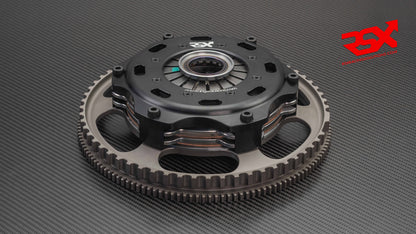

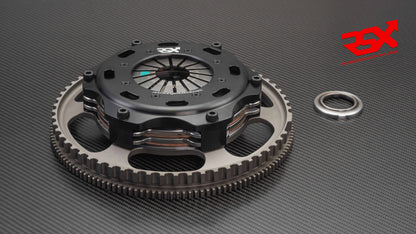

✔ 184 mm / 7.25" Twin-Disc Clutch with sprung hub system — 4.75kg.
✔ 184 mm / 7.25" Lightweight Flywheel – Weighing only 4.3kg.
✔ Racing Clutch Release Bearing Assembly – Heavy-duty metal racing bearing with a dedicated hard-anodised AL6061-T6 aluminium support.
COMPONENTS & FEATURES

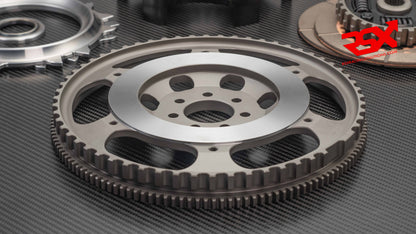

Flywheel
✅ Weight: 4.75kg.
✅ High-Strength Forged Chromoly Steel (CrMo) – Unlike conventional racing flywheels manufactured from standard machined steel, our flywheels are made from high-strength forged chromoly steel and undergo a specialised nitriding heat treatment, achieving an exceptional 58–62 HRC surface hardness. This combination delivers superior mechanical strength, increased resistance to wear and deformation, and outstanding long-term durability, even under the most demanding motorsport conditions.
Why does this matter?
⚠️ Many conventional racing flywheels suffer from premature starter ring gear tooth wear, especially in high-compression engines.
Note: Our flywheels are virtually unbreakable, and come with a 1-year warranty for motorsport use against material or manufacturing defects—with no mileage limit!

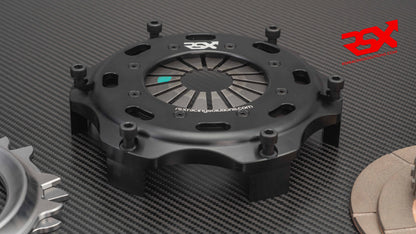

CLUTCH COVER:
✅Material: Forged 6061-T6 aluminum with Electroless Plating Coating for:
- Enhanced hardness & wear resistance
-
Improved corrosion resistance
✅ The legs are equipped with metal rivets for increased durability.
✅ The tightening torque for the clutch cover to flywheel screws (M8x1.25 grade 12.9) is 41Nm.
TOP/PRESSURE PLATE:
✅ Material: Forged chromoly steel, ensuring maximum performance and longevity.

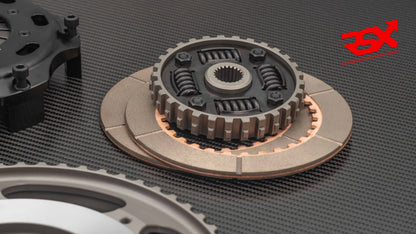

SINTERED CLUTCH DISC — Ø184 mm (7.25")
✅ Sintered friction material, manufactured using our proprietary blend of sintered metal compounds and engineered to tight manufacturing tolerances.
✅ Optimised for:
- Exceptional durability and heat resistance
- High torque capacity
✅ Forged chromoly steel hubs, featuring induction hardening for enhanced strength and durability.
✅ Standard clutch disc spline: 15/16" × 21T
Additional spline options available upon request

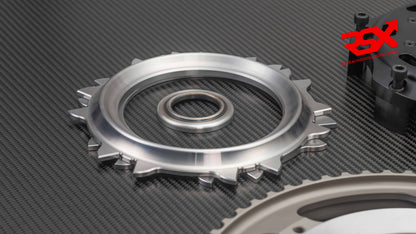

CLUTCH RELEASE BEARING + SPECIFIC ALUMINUM SUPPORT
✅ Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
✅ Aluminum support: AL6061-T6 with hard anodize finish for a lightweight yet strong component.
KEY FEATURES & BENEFITS
✔ Rated for 1000 hp / 1200 Nm in single-disc configuration, depending on clutch setup (diaphragm spring pressure and clutch disc friction material).
✔ Significant weight reduction compared to OEM
→ Faster acceleration
→ Improved throttle response
→ Enhanced handling and braking performance
✔ Improved gear shifting at high RPM
✔ Extended friction component lifespan → Lower replacement costs
✔ Excellent clutch pedal feel and modulation
IMPORTANT NOTE:
Due to the nature of motorsport applications and potential variations between vehicles, minor modifications or adjustments may occasionally be required to ensure proper fitment and installation.
