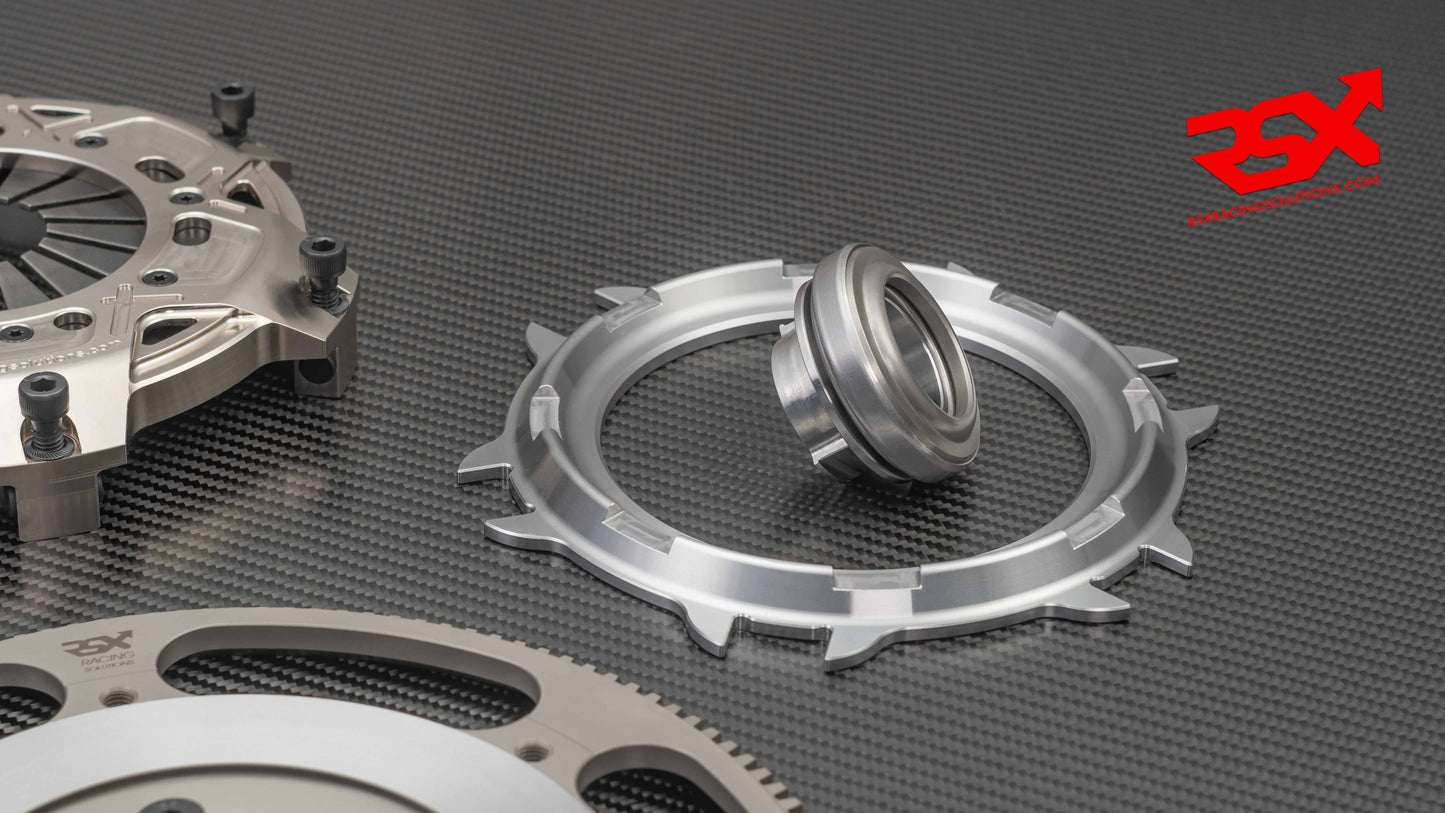

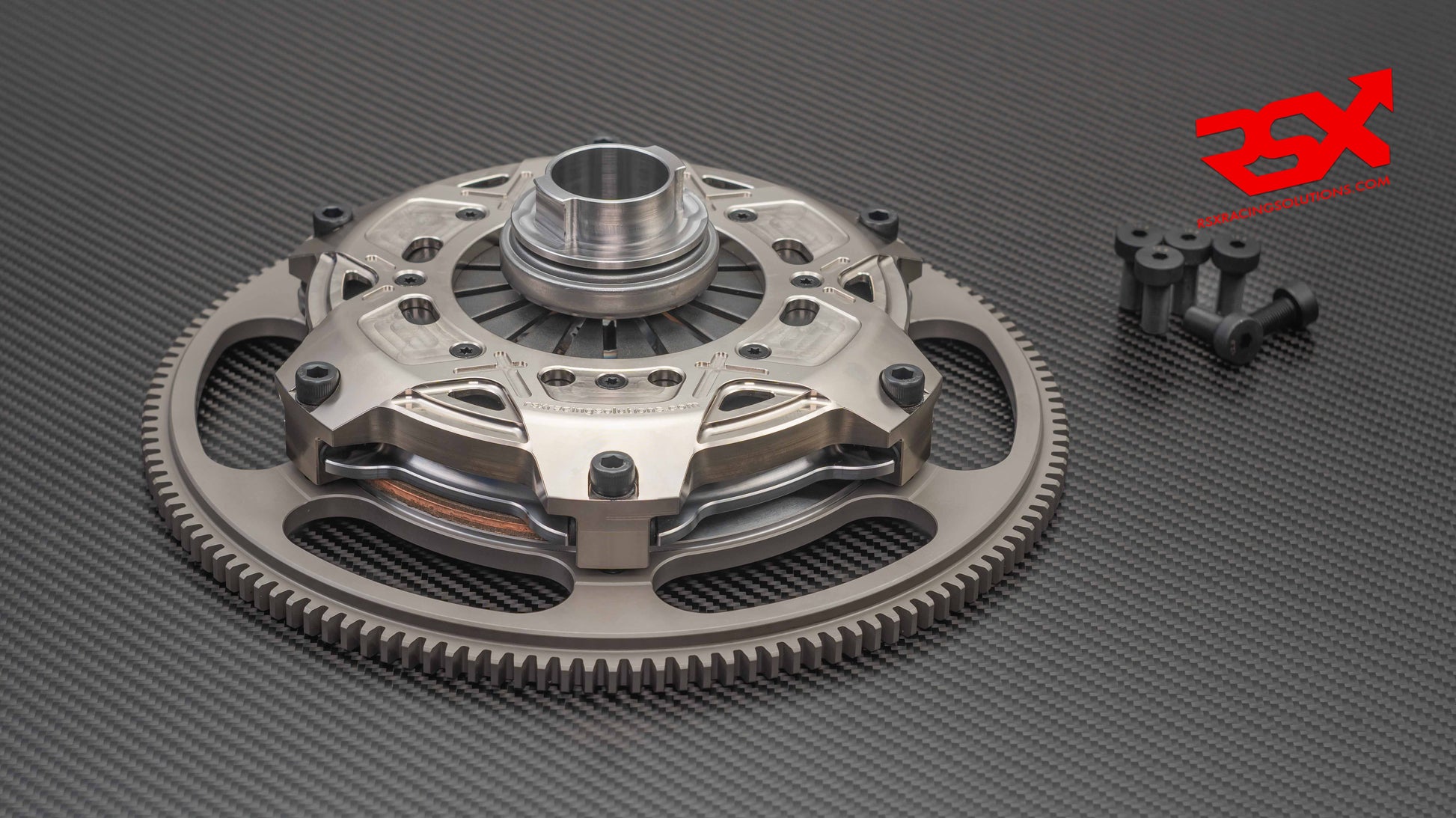

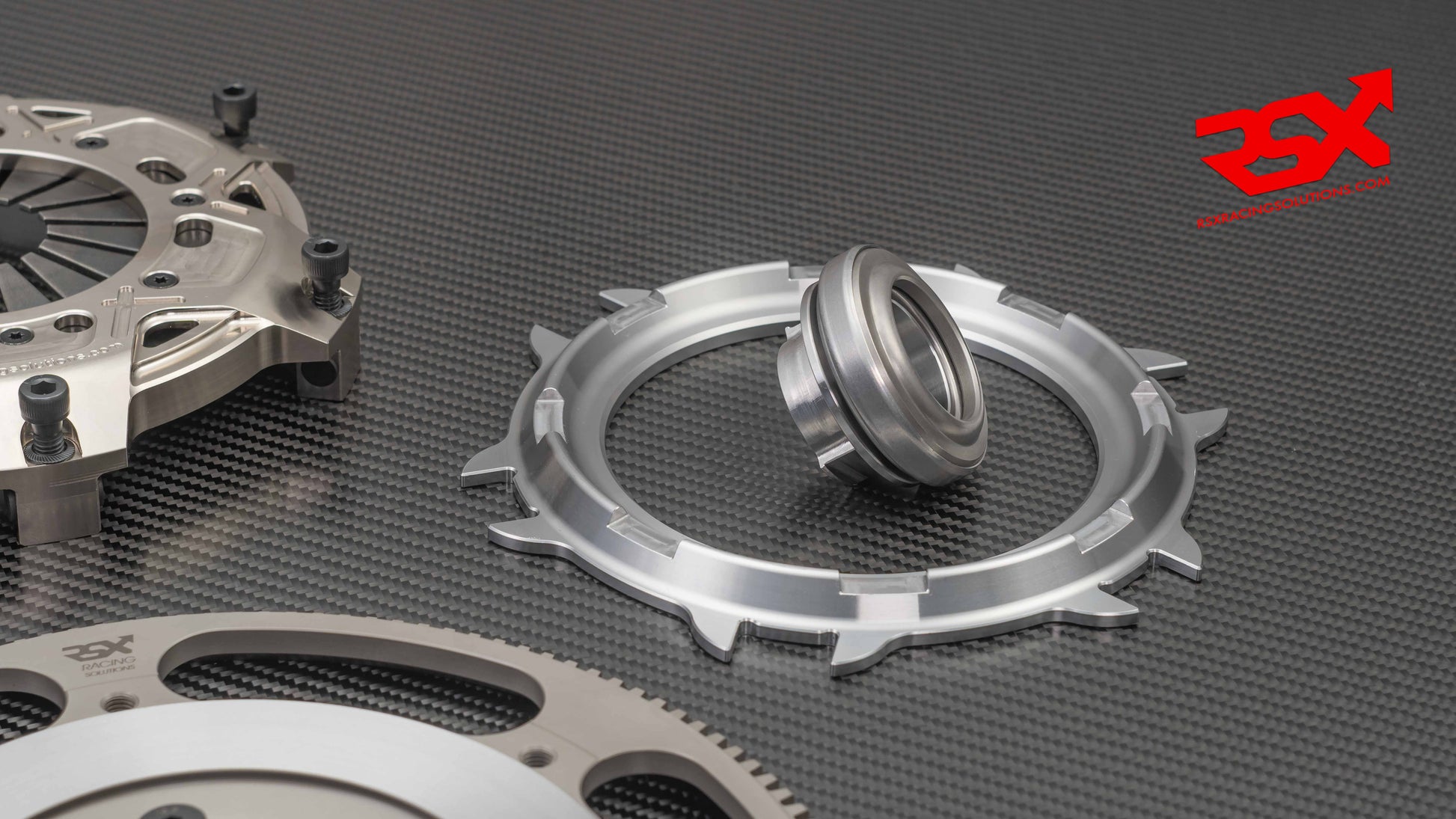

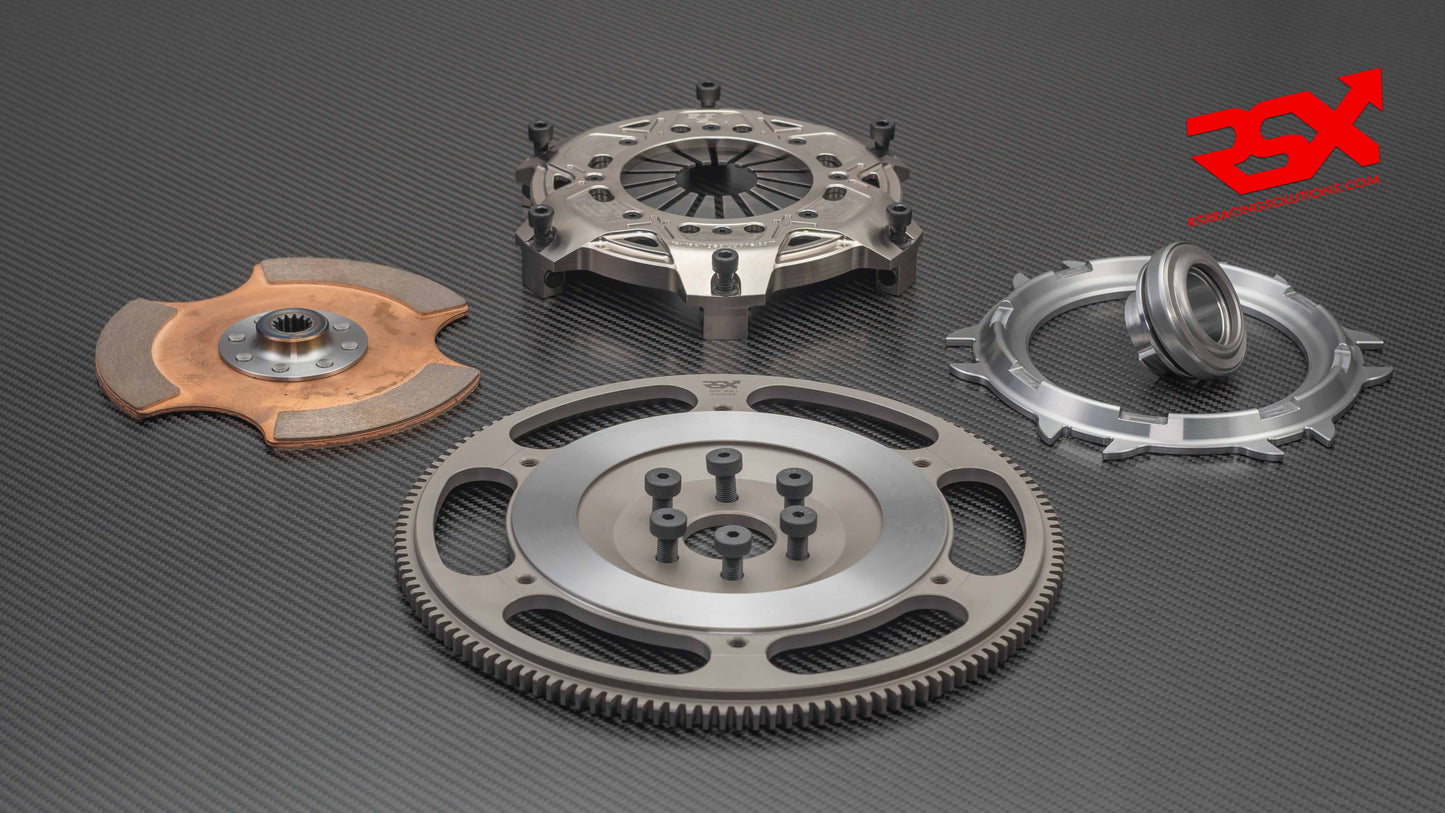

184mm Single-Plate Clutch Kit for PSA THP 1.6T Engine

Applications:

• Peugeot 207RC with BE4 gearbox
• Peugeot 208 1.2T PureTech with BE4 gearbox

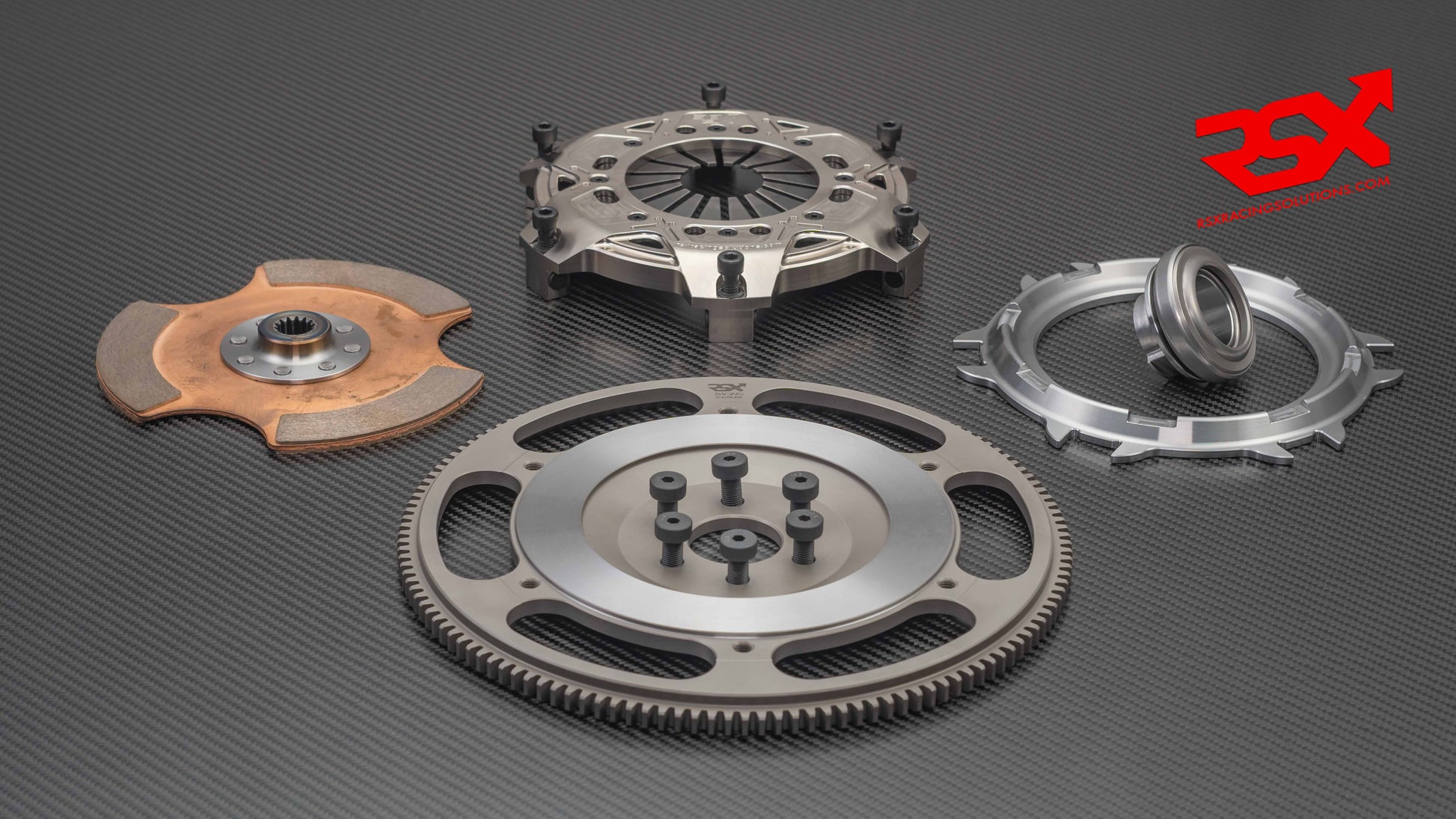

Kit Includes

✔ 184mm / 7.25" Single-Disc Clutch Kit (lightweight, only 2.85 kg)
✔ 184mm / 7.25" Lightweight Flywheel (3.70 kg)

Component Features

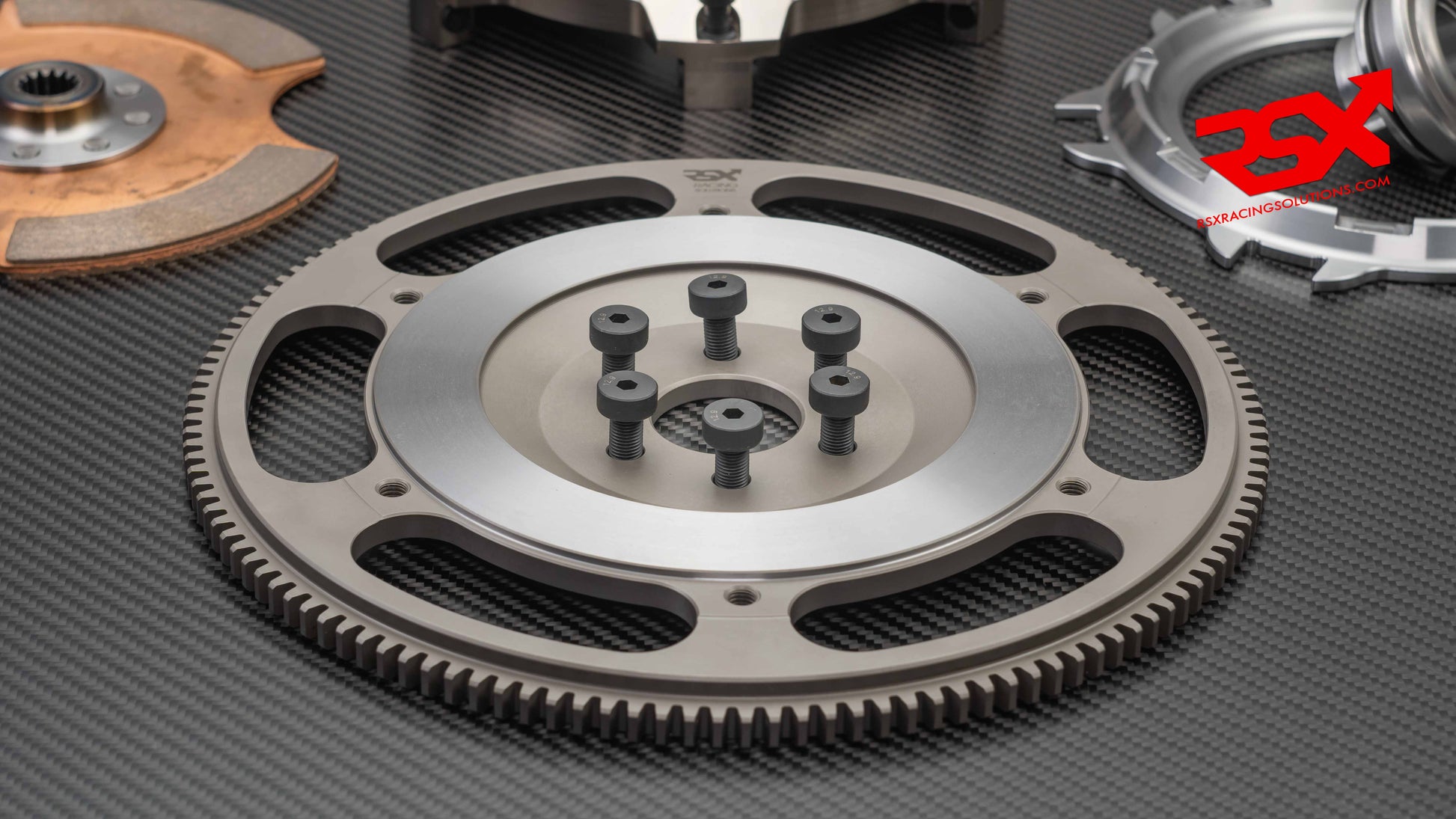

Flywheel

• Weight: only 3.70 kg
• Material: Forged CrMo steel, nitriding heat-treated
• Hardness: HRC 58–62 → over twice as hard as standard flywheels
  → Prevents wear on starter ring gear in high-compression engines
• Longevity: High surface hardness = extended service life & reliability

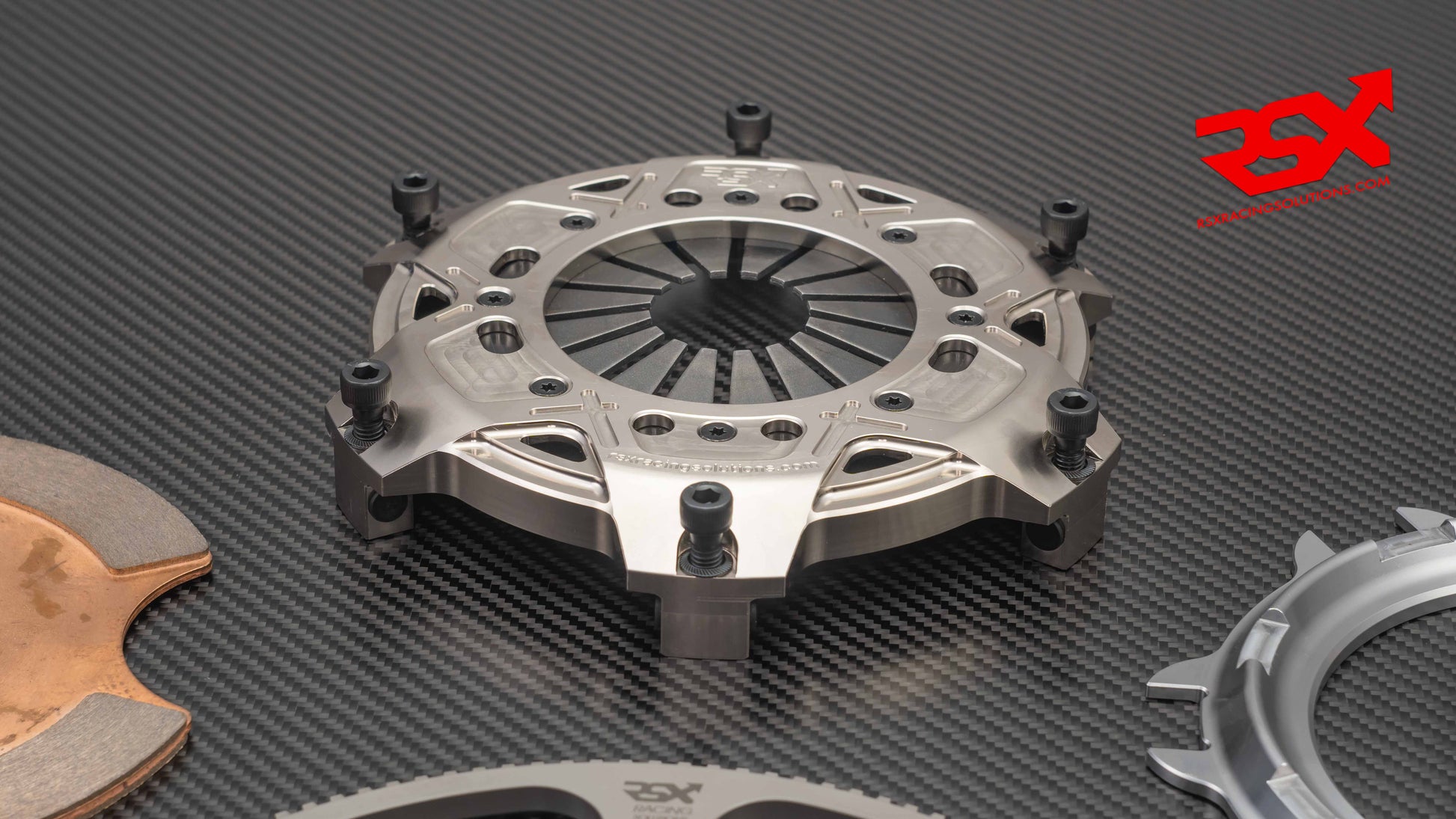

Clutch Cover

• Material: Forged 6061-T6 aluminum, hard anodized
• Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and durable surface for the clutch cover legs, pressure, and floating plates.
• The tightening torque for the cover-to-flywheel bolts (M8x1.25, grade 12.9) is 41 Nm.

Top/Pressure Plate

• Material: Forged chromoly steel, cryogenically treated (in some applications)

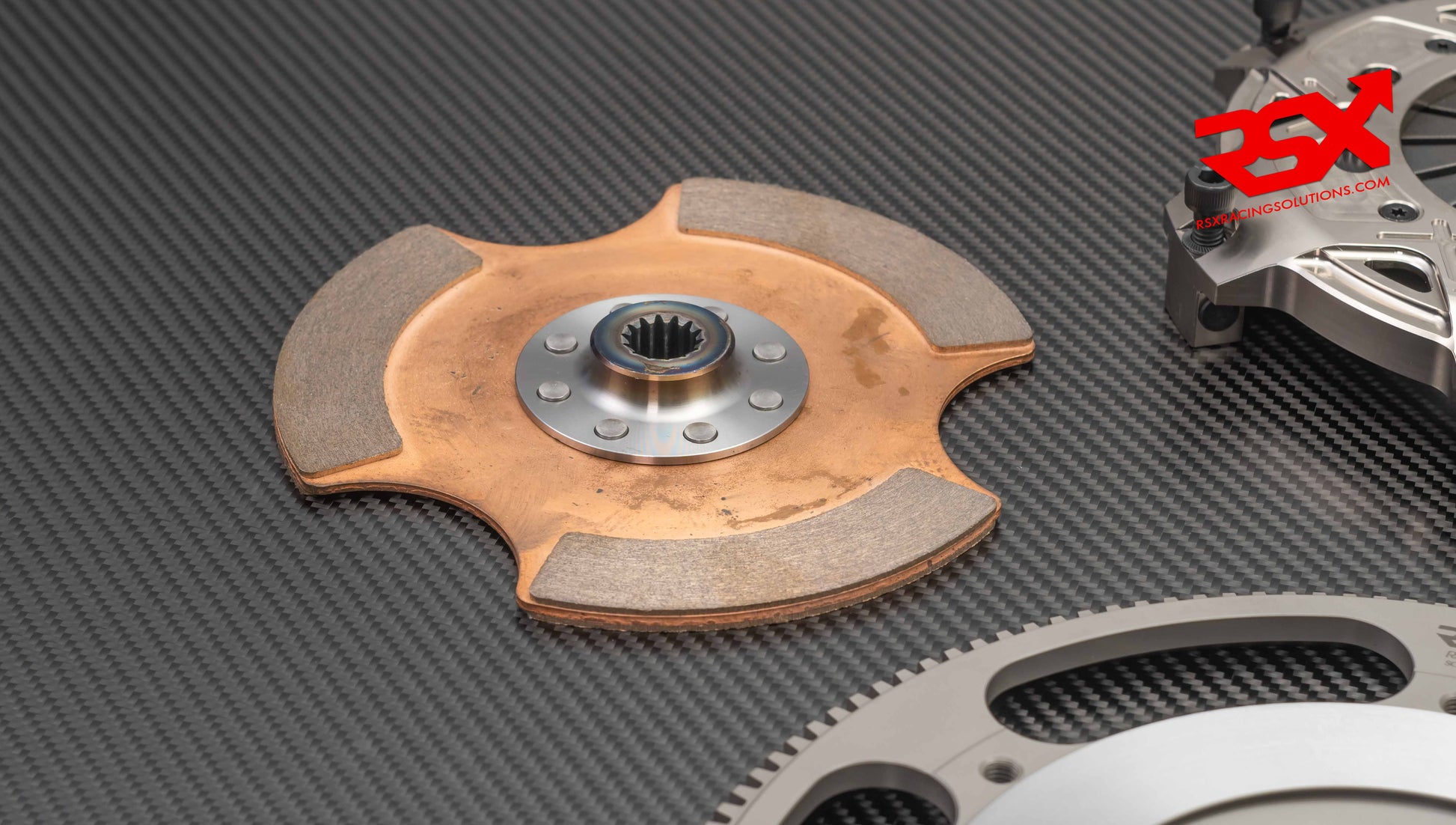

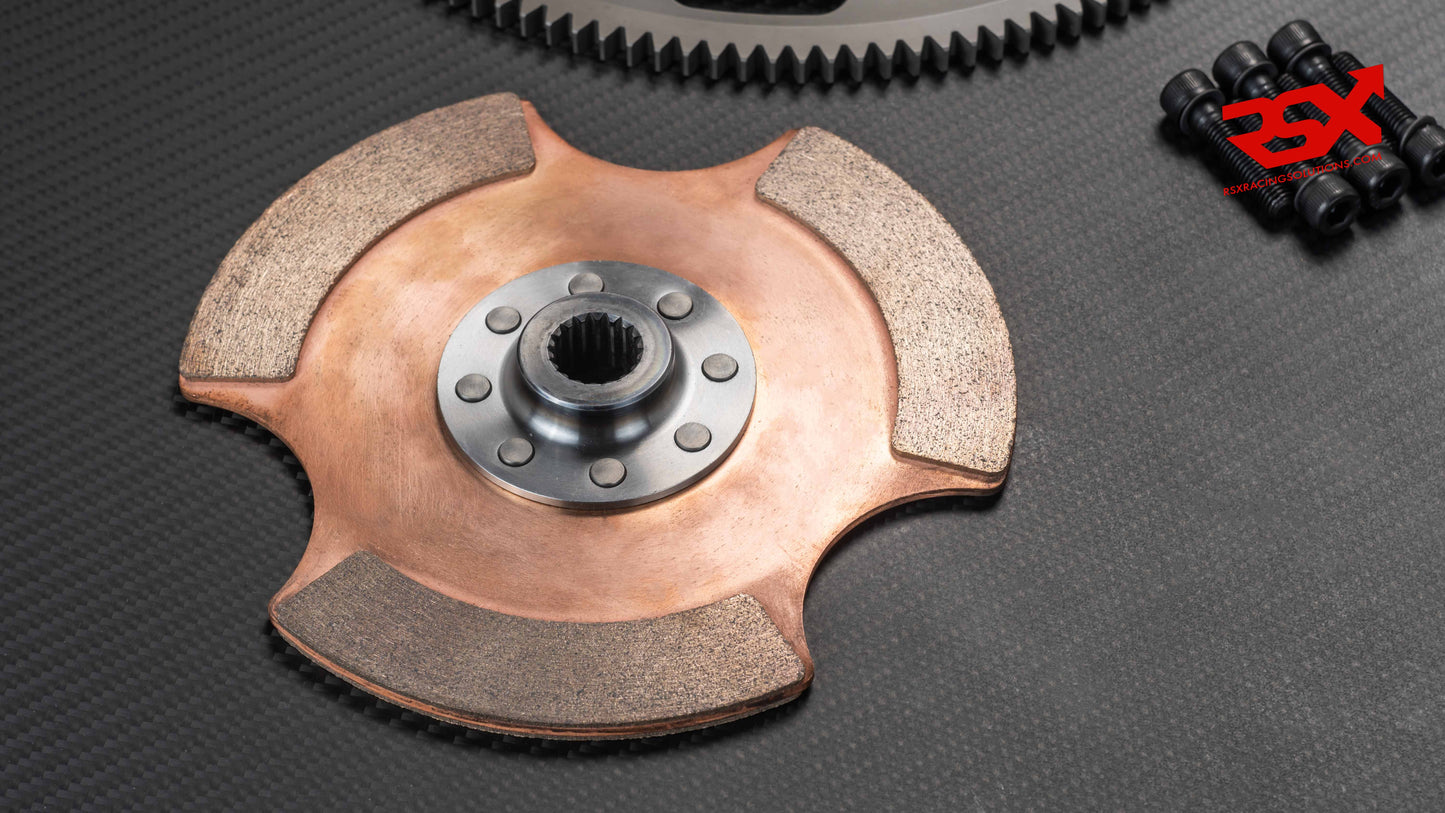

Sintered Clutch Disc — Ø184 mm (7.25")

• Material: Proprietary blend of sintered metal compounds, engineered with precise manufacturing tolerances
• Standard version design: Three large friction pads for optimal engagement and reliability.
• Hub: Machined from forged chromoly steel and induction hardened for maximum strength and wear resistance
• Customization: Available on request (e.g. custom spline)

 Key Features & Benefits

✔ Rated for 400+ hp / 450+ Nm in single-disc configuration, depending on clutch setup (diaphragm spring pressure and clutch disc friction material).

✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking

✔ Improved shifting at high RPM

✔ Long lifespan of friction components → low replacement cost

✔ Excellent Pedal Feel & Modulation

Depending on the modifications already made, an adjustment may be necessary.
