184 mm Single-Disc Clutch Kit for Renault Clio 2 RS (F4R 172 hp / 182 hp) with JC5 Gearboxes

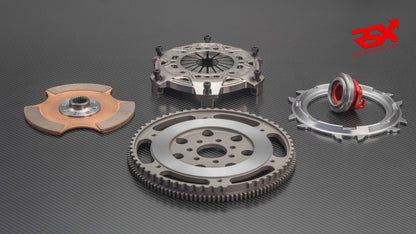

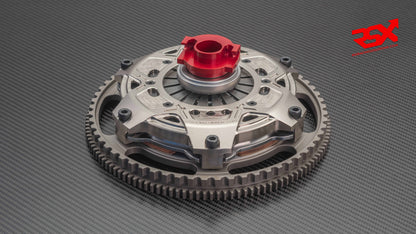

Kit Includes:
✔ 184 mm / 7.25" Single-Plate Lightweight Clutch Kit (2.85 kg)
✔ 184 mm / 7.25" Lightweight Flywheel (3.0 kg)
Component Features

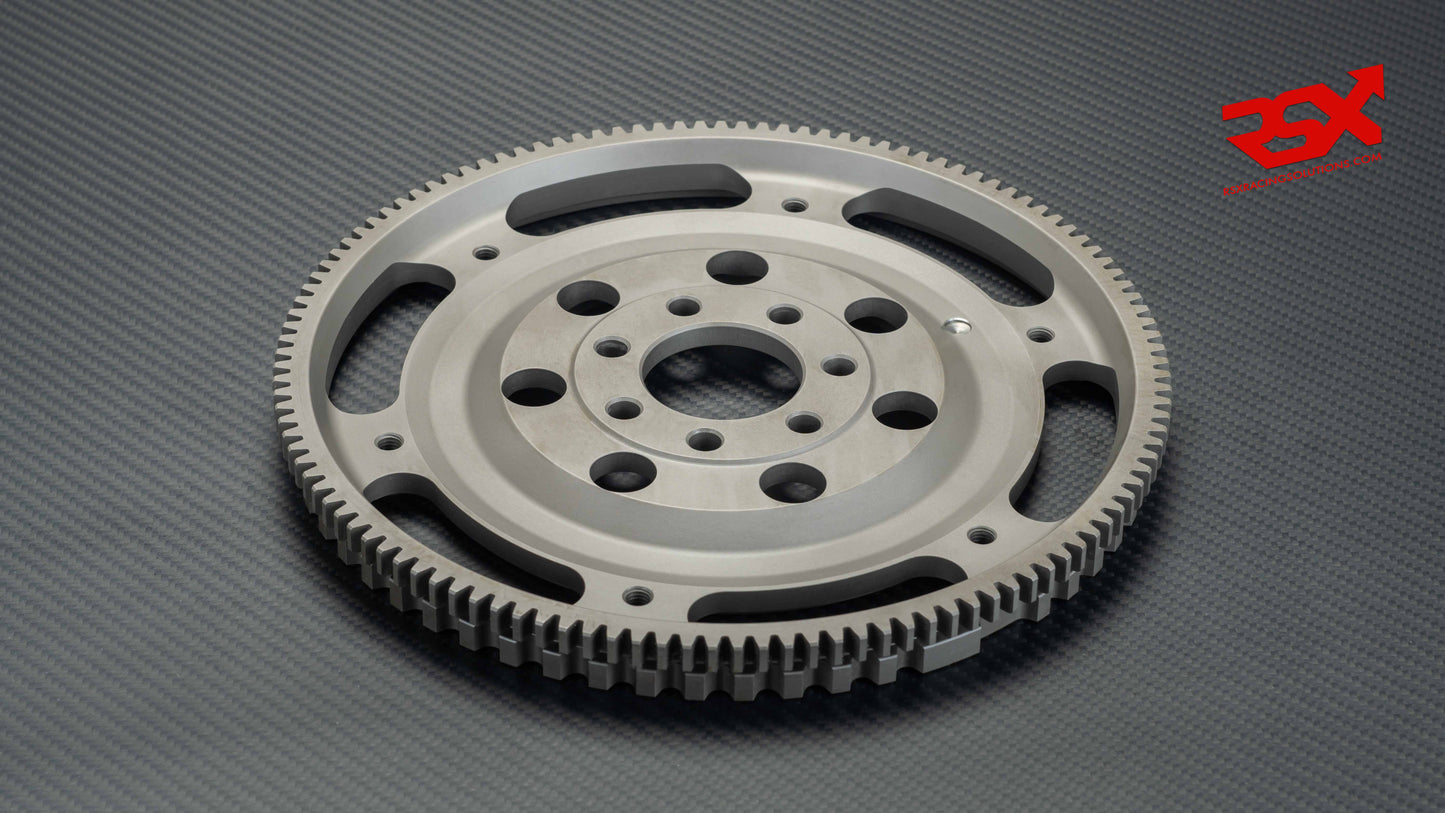

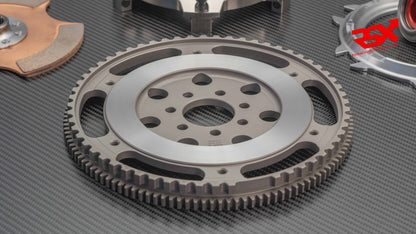

Flywheel
-
Weight: Only 3.0 kg
-
Material: Forged CrMo steel, nitriding heat-treated
-
Hardness: HRC 58–62 → more than twice as hard as standard flywheels
→ Prevents wear on the starter ring gear in high-compression engines
-
Longevity: High surface hardness = extended service life and reliability
The flywheels are available in two versions: with the original pulse ring or with 60-2 gearing for programmable/racing ECUs.

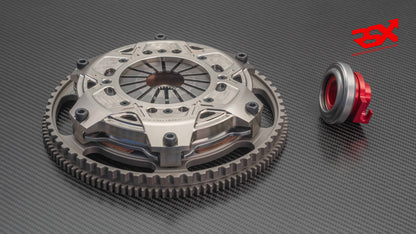

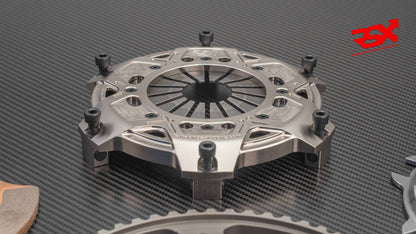

Clutch Cover
-
Material: Forged 6061-T6 aluminum with ultralight-weight design and Electroless Nickel Plating (ENP) coating.
This advanced metallic treatment provides superior wear resistance, excellent heat transfer and dimensional stability, and outstanding resistance to oils, fuels, and high temperatures, ensuring a clean and durable appearance over time.
-
Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and wear-resistant surface for the clutch cover legs, pressure plate, and floater plate.
-
Tightening Torque: Cover-to-flywheel bolts (M8 × 1.25, grade 12.9): 40 Nm
Top / Pressure & Floating Plates
-
Material: Forged chromoly steel, cryogenically treated (in some applications)

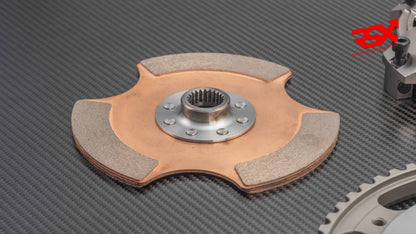

Clutch Disc
-
Material: 6.4mm thick sintered material with three large-pad design
-
Spline: Ø22 mm × 26 teeth
-
Customization: Available on request (e.g., custom spline)
Key Features & Benefits
✔ Single-disc supports 400+ hp / 450+ Nm (depending on configuration)
✔ Twin-disc version also available and rated for over 1,000 hp / 1,200 Nm (depending on configuration)
✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking
✔ Improved high-RPM shifting
✔ Long lifespan of friction components → lower replacement costs
✔ Plug & Play — no modifications required
✔ Better Pedal Feel & Modulation

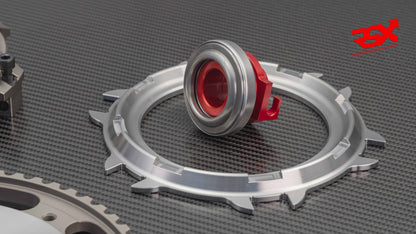

The stick-up adapter ensures proper alignment of the release bearing for consistent feedback.
Depending on the modifications already made, some adjustment may be necessary.
Other Available Options
We also manufacture flywheels for OEM clutch and pulse ring setups:
👉 Flywheel Renault Clio II RS for OEM type clutch kit"
