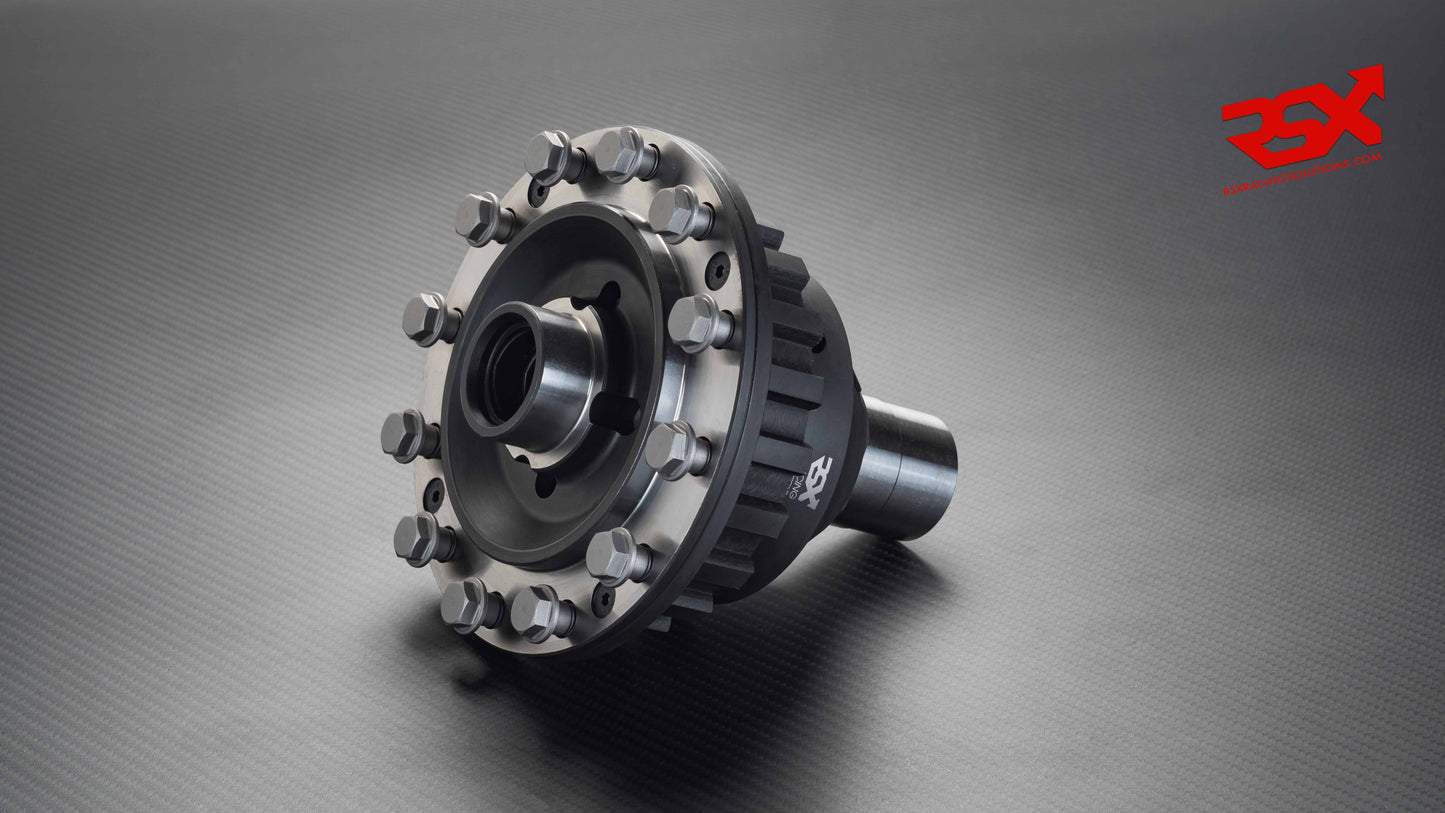

VAG 02E (DQ250) DSG – 6-Speed Gearbox
Plate-Type LSD | Plated Limited-Slip Differential
Applications
This plate-type limited-slip differential is compatible with vehicles equipped with the VAG 02E (DQ250) 6-speed DSG transmission, including (but not limited to):
- Audi A3
- SEAT Leon
- Škoda Octavia
- VW Caddy
- VW Golf Mk5 / Mk6
- VW Jetta
- VW Passat B6
- VW Touran
Design & Manufacturing
Our plate-type LSDs are manufactured from FORGED Nickel-Chromoly steel and subjected to advanced heat treatments such as Super Sub-Zero / Cryogenic treatment.
Additionally, all critical components undergo shot peening and WPC treatment, significantly improving:
- Core and surface strength
- Wear resistance
- Fatigue life
The use of high-strength forged material, combined with an optimized internal design featuring large windows and multiple oil holes, results in:
- Reduced internal friction
- Improved internal lubrication
- Lower overall weight
- Enhanced thermal stability
As a result, our LSDs deliver stable and predictable performance with exceptional durability, typically requiring no servicing during the first ~2,000 km of special stages under normal competition use.
Technical Specifications
-
Plate-type LSD with 16 friction plates
→ Unique configuration on the market
-
Ultra-lightweight design: approx. 5.6 kg (lightest in its class)
-
Stable preload values, even during long endurance races
All our plated LSDs feature dual ramp bodies.
Factory ramp configuration for this application:
Other ramp angles are available upon request.
Included Components (Free of Charge)
-
Ring gear / crown wheel bolts made from high-tensile steel grade 12.9
-
Extra thicker Belleville / conical washer, allowing experimentation with higher preload values
Installation Notes
Bolt tightening torque: 85–90 Nm
Recommended threadlocker:
- Loctite 271 (red)
- For maximum security: Loctite 270 / 2701 (green)
Warranty
As proof of our quality and reliability, we offer a 1-year motorsport warranty covering material or manufacturing defects across our full range of plate-type LSDs.
Important Reminder – DSG Gear Oil
For DSG transmissions, we recommend:
- Retaining the OEM-specified DSG gear oil
- Adding a Limited-Slip (LS) additive to ensure full compatibility with the dual-clutch system while providing proper lubrication for the plate-type LSD
It is also advisable to pre-lubricate the LSD with gear oil during installation.
⚠️ Note: Although an anti-corrosion oil is applied during factory assembly, it does not provide lubrication.
