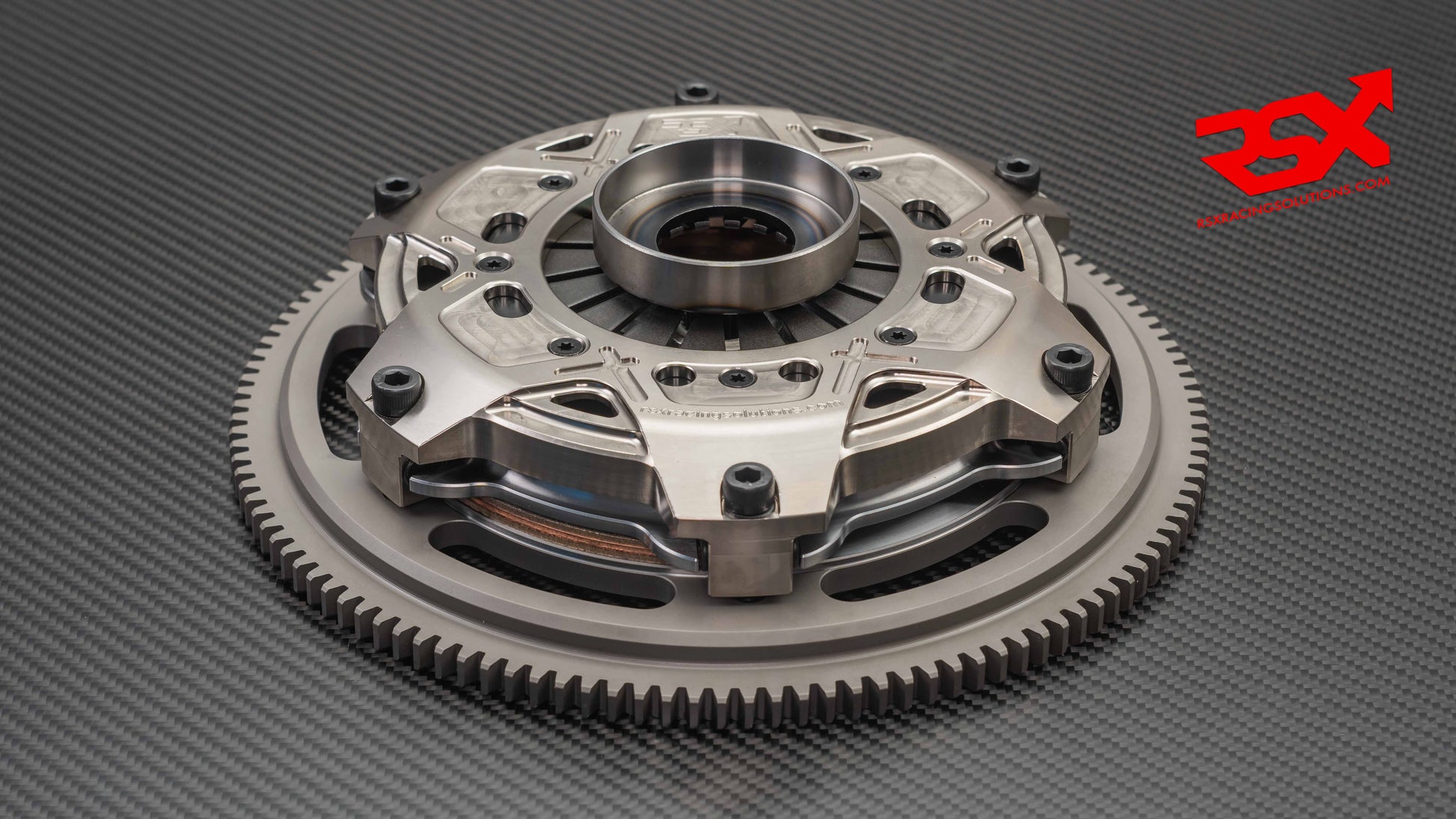

Ø184mm (7.25") Racing Clutch Kit for Nissan Micra / March SR160 – K12 / K13 (HR16DE)

Nissan Micra K12 SR160 – 184mm / 7.25" Single-Plate Clutch Kit

Specially developed for the Nissan Micra / March SR160 – K12 / K13 1.6 16v engine with code HR16DE

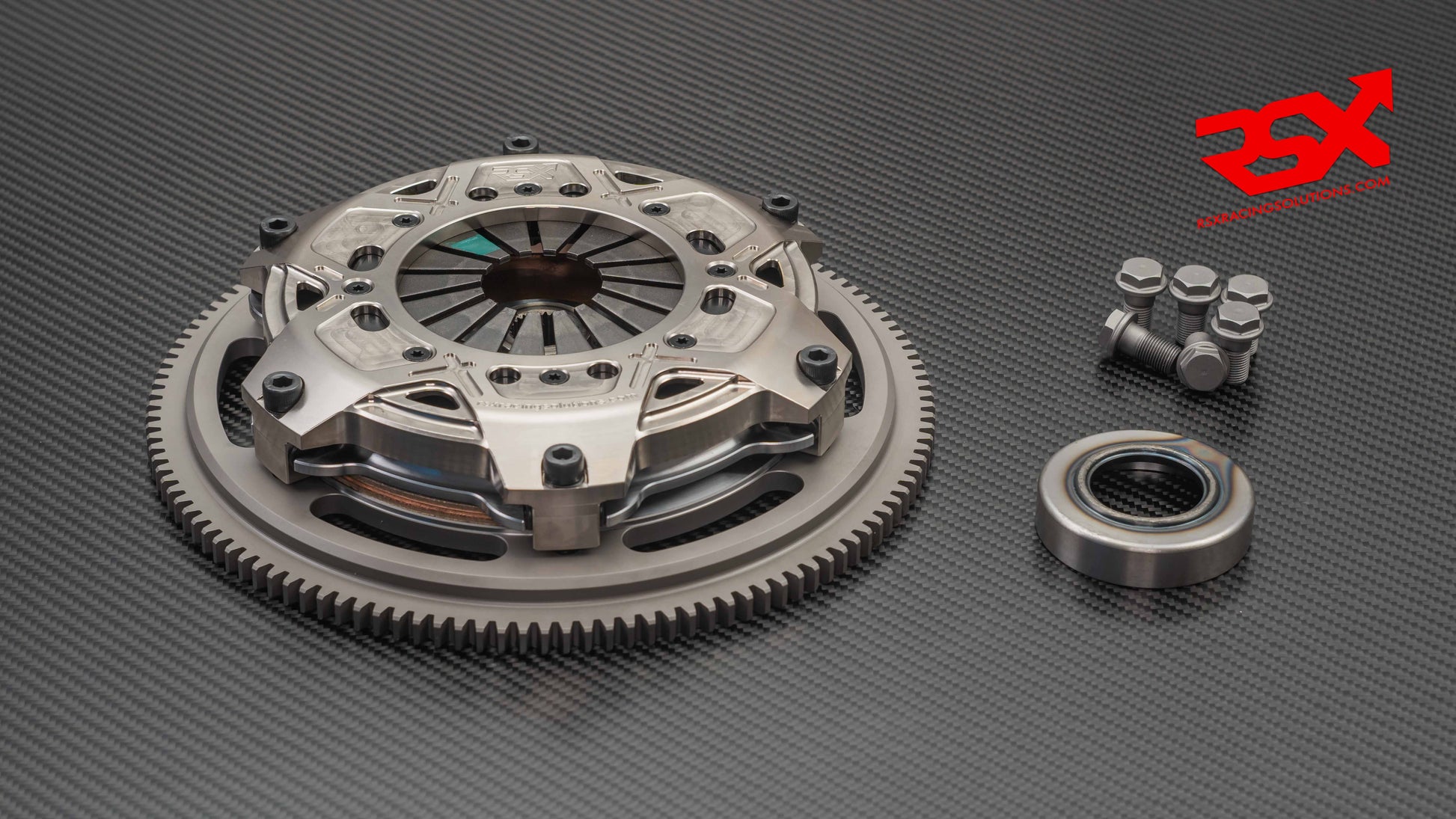

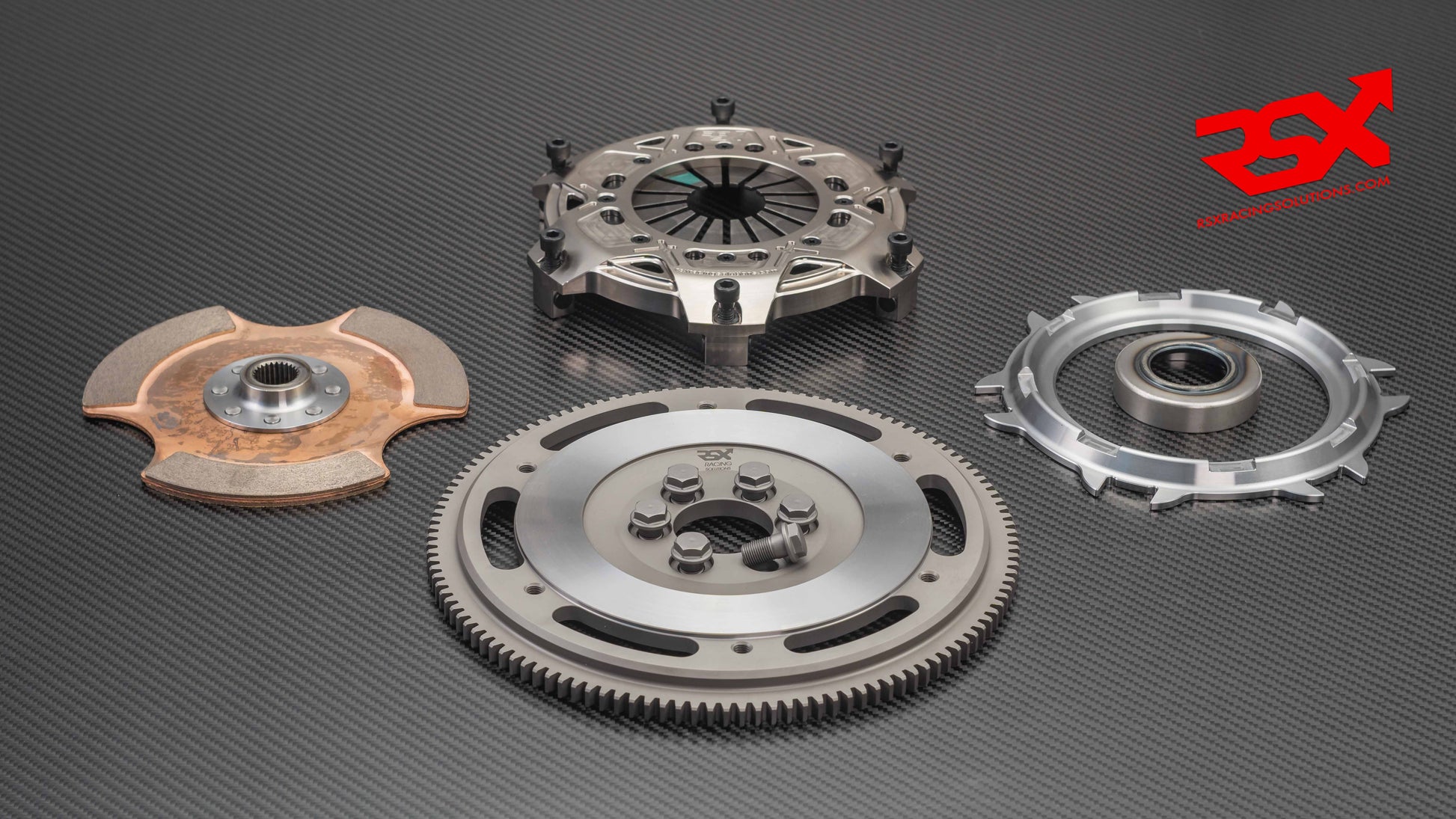

Kit Includes

✔ 184mm / 7.25" Single-Disc Clutch (ultra-lightweight, only 2.85 kg)

✔ 184mm / 7.25" Lightweight Flywheel (3.50 kg)

✔ Set of 6 High-Tensile Bolts (M11×1.00, Grade 12.9) for crankshaft-to-flywheel mounting

✔ Stick-Up Adapter for OE release bearing
Made from high-strength steel, induction hardened for extended durability

Component Features

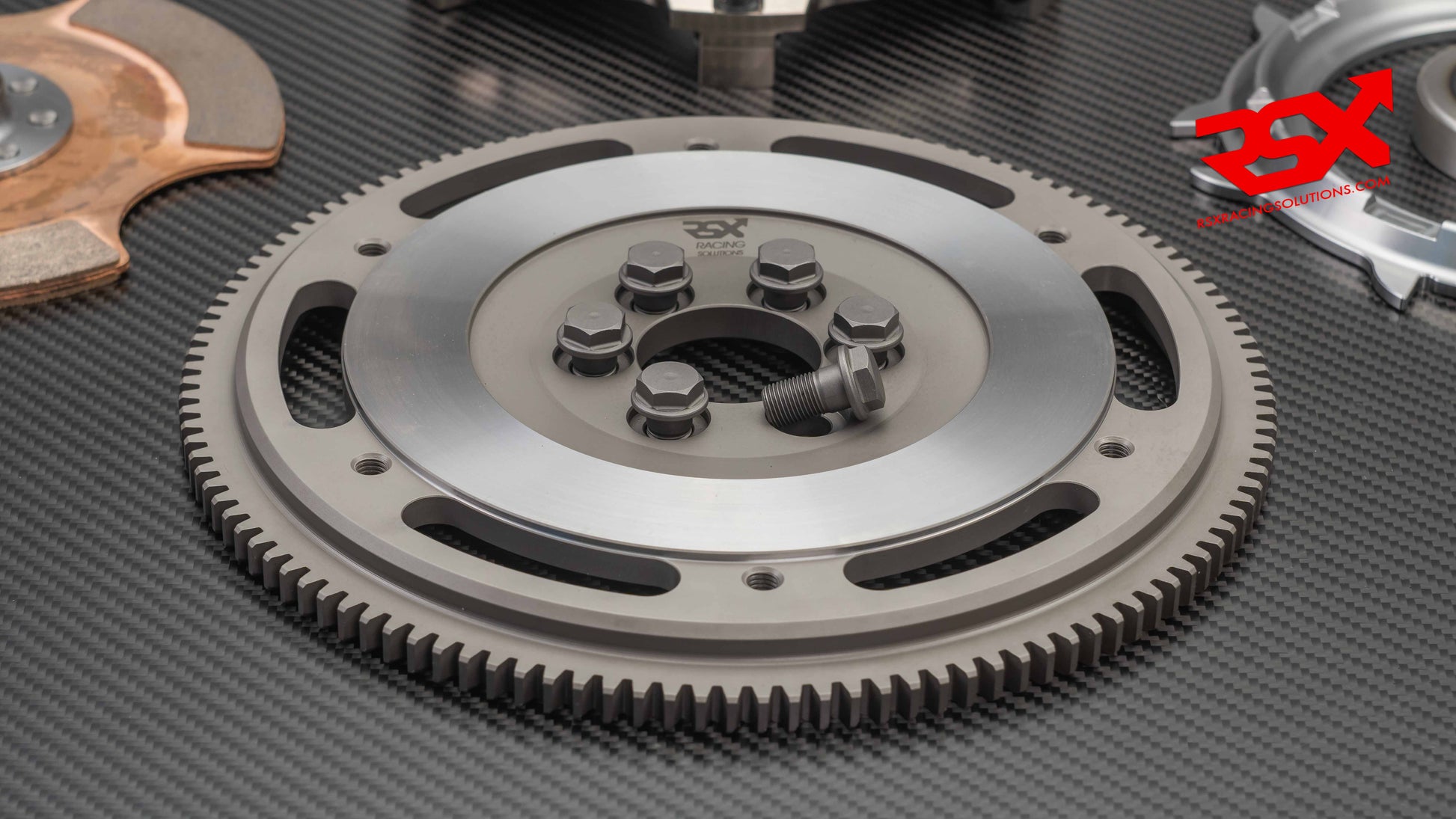

Flywheel

• Weight: only 3.50 kg
• Material: Forged CrMo steel, nitriding heat-treated
• Hardness: HRC 58–62 → over twice as hard as standard flywheels
  → Prevents wear on starter ring gear in high-compression engines
• Longevity: High surface hardness = extended service life & reliability

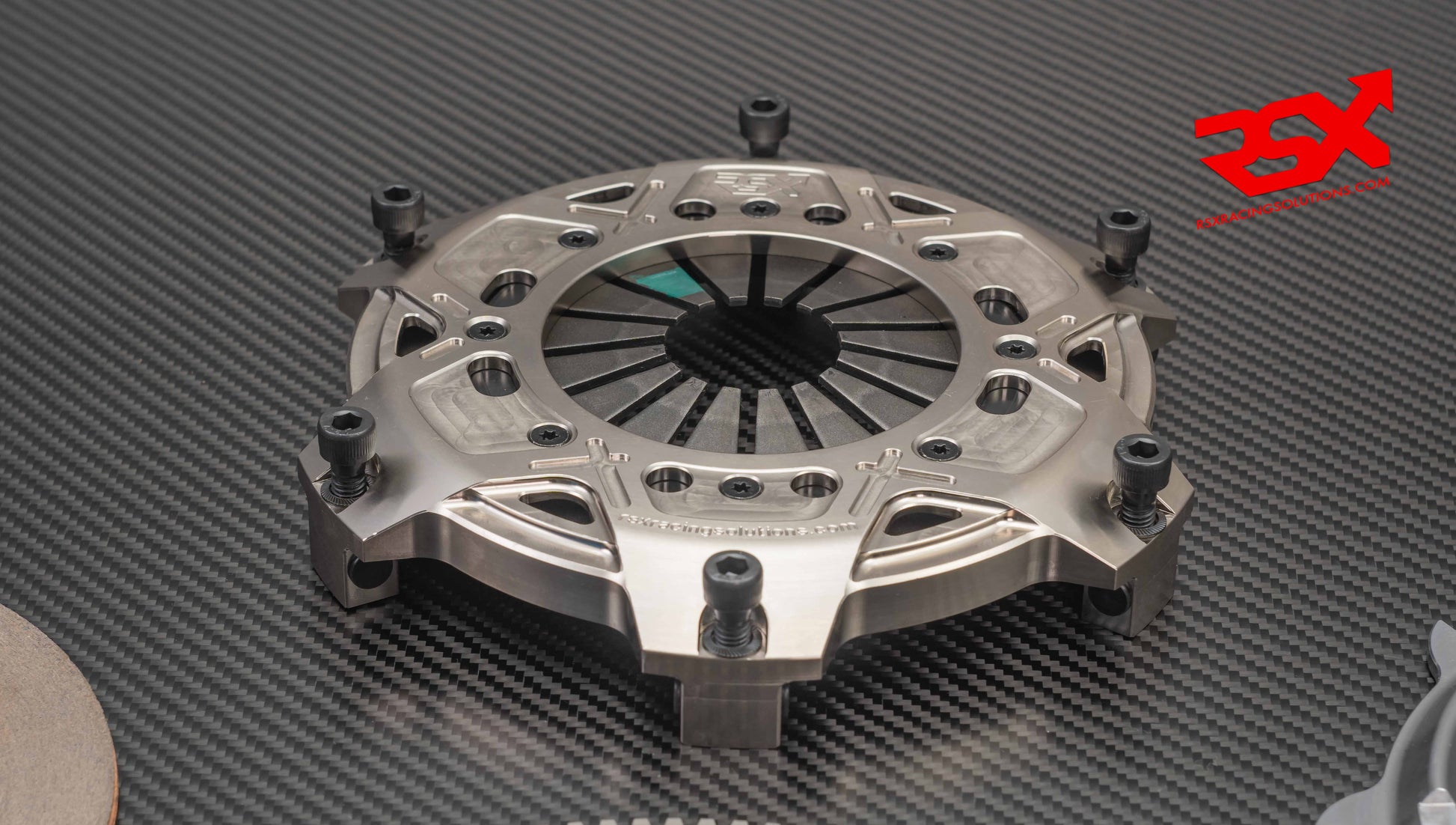

Clutch Cover

• Material: Forged 6061-T6 aluminum, hard anodized
• Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and durable surface for the clutch cover legs, pressure, and floater plates.
• The tightening torque for the clutch plate screws is 4.5Nm, both for single-disc and twin-disc clutches.

Top/Pressure & Floating Plates

• Material: Forged chromoly steel, cryogenically treated (in some applications)

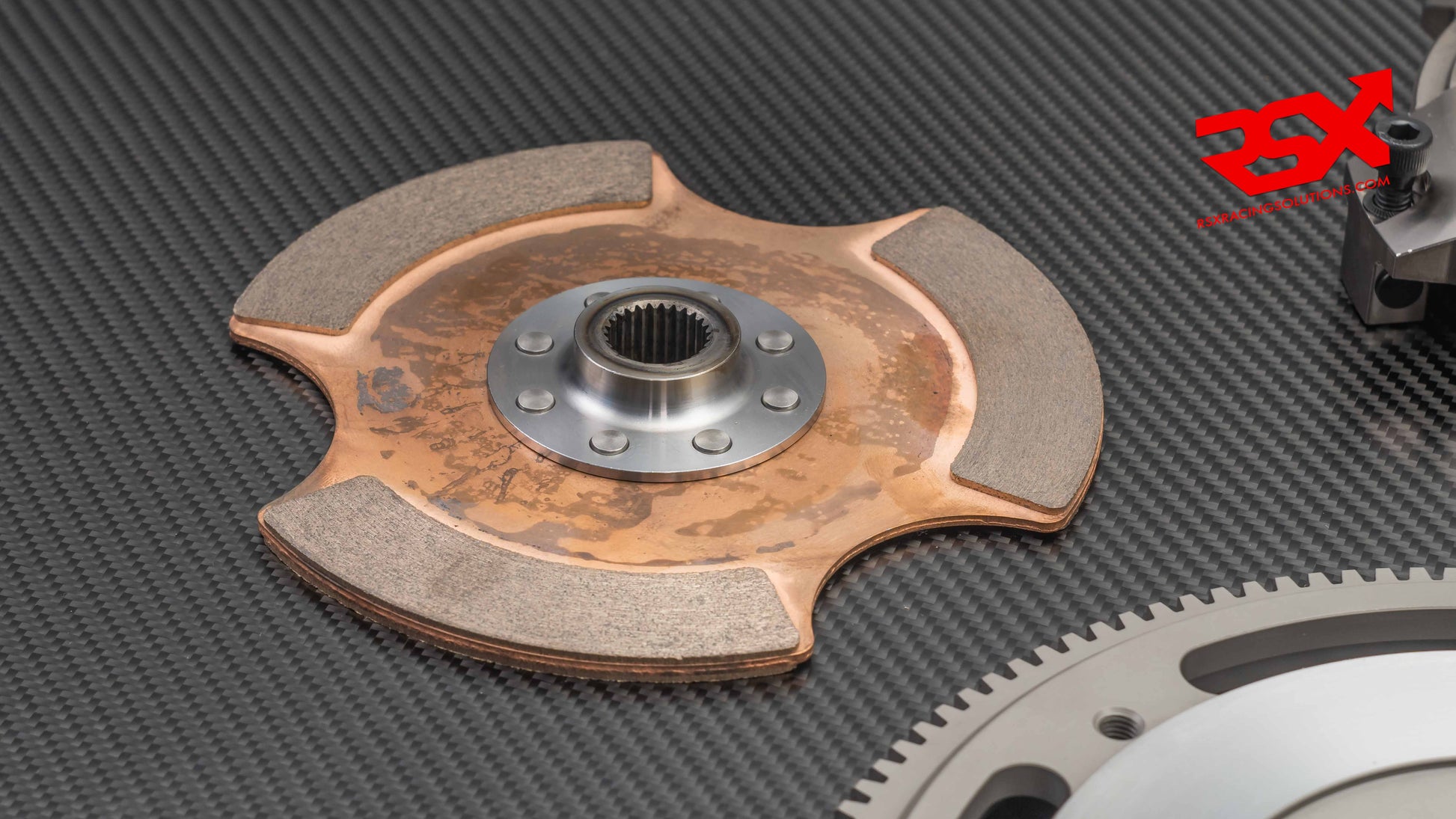

Clutch Disc

• Material: Sintered friction with multiple design options
• Standard version: Three large pads
• Customization: Available on request (e.g. custom spline)

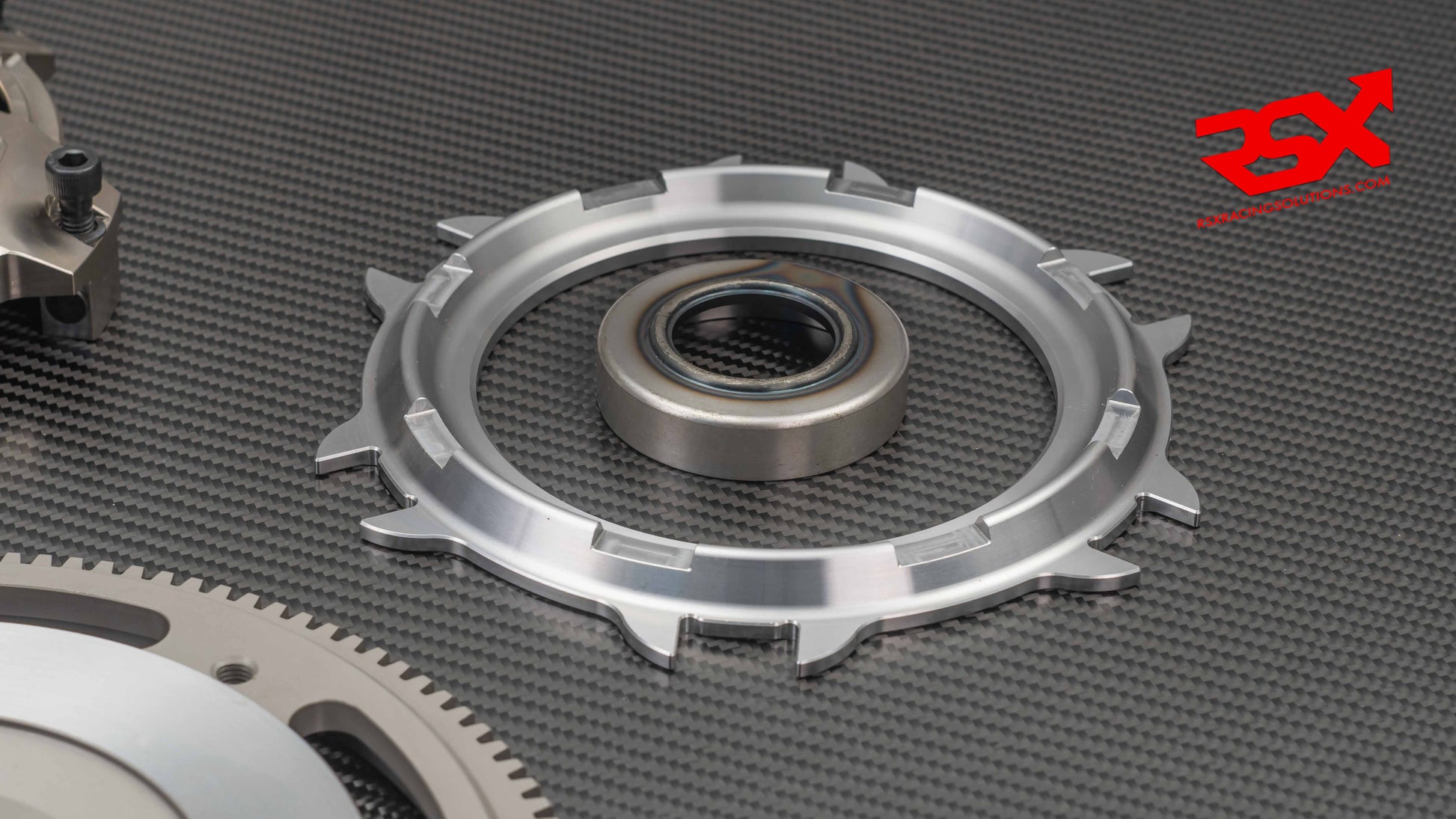

Stick-Up Adapter

• Material: Induction-hardened steel (50–55 HRC)
  → Minimal wear and long-lasting performance

Key Features & Benefits

✔ Rated for 400+ hp / 450+ Nm in single-disc configuration, depending on clutch setup (diaphragm spring pressure and clutch disc friction material).

✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking

✔ Improved shifting at high RPM

✔ Long lifespan of friction components → low replacement cost

✔ Plug & Play → No modifications required

✔ Better Pedal Feel & Modulation
Stick-up adapter ensures proper alignment of the release bearing for consistent feedback
