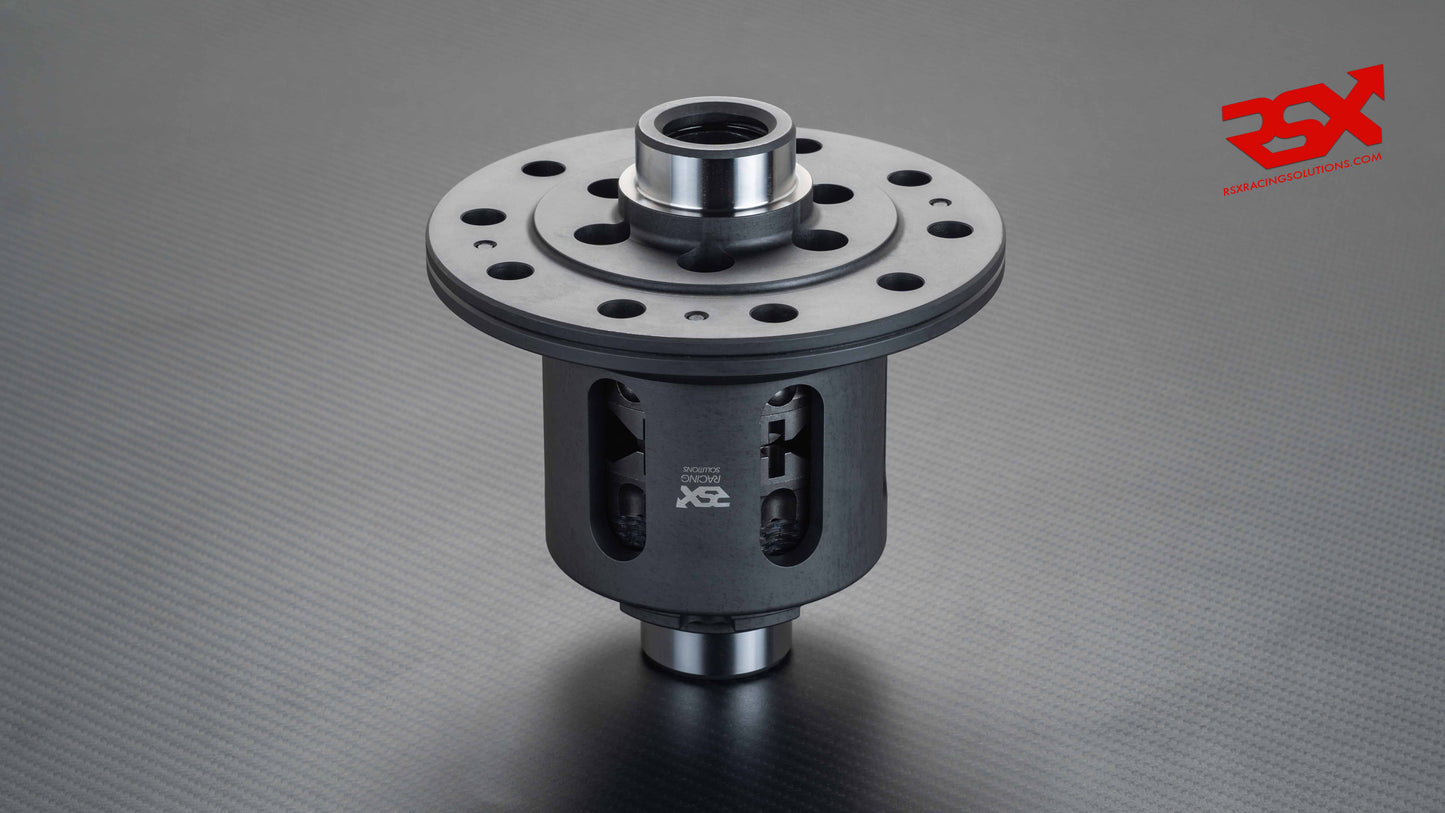

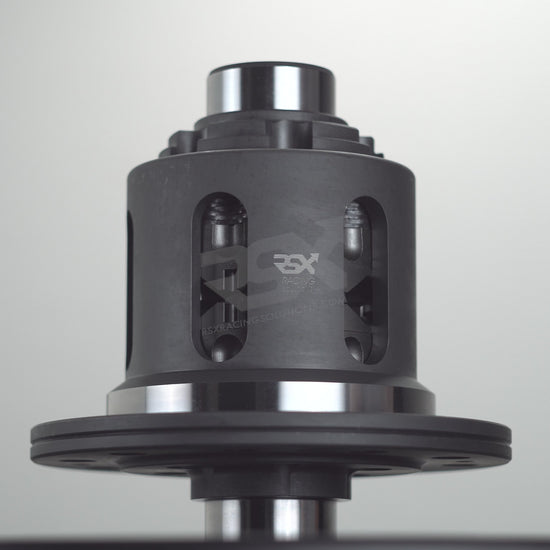

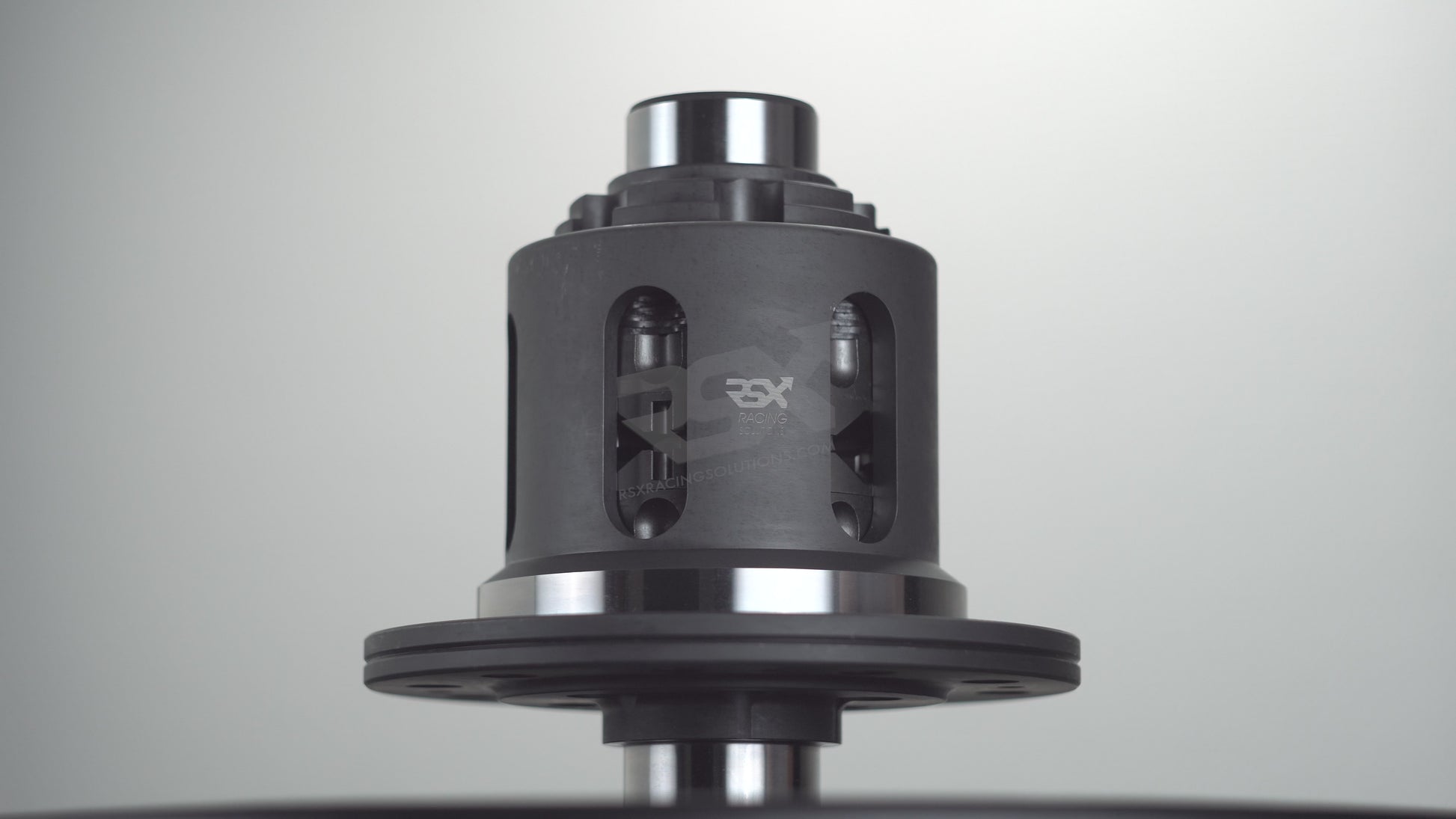

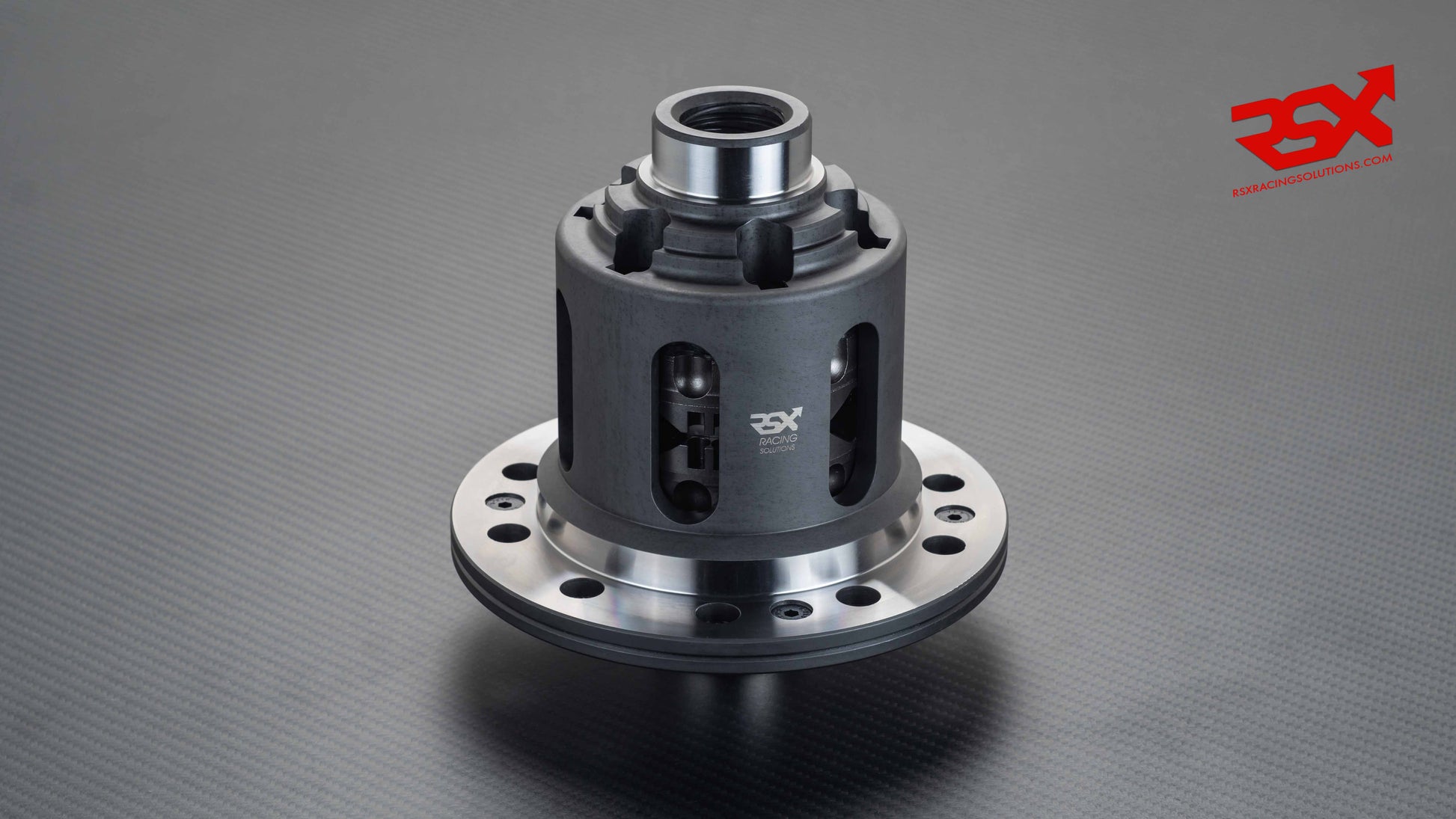

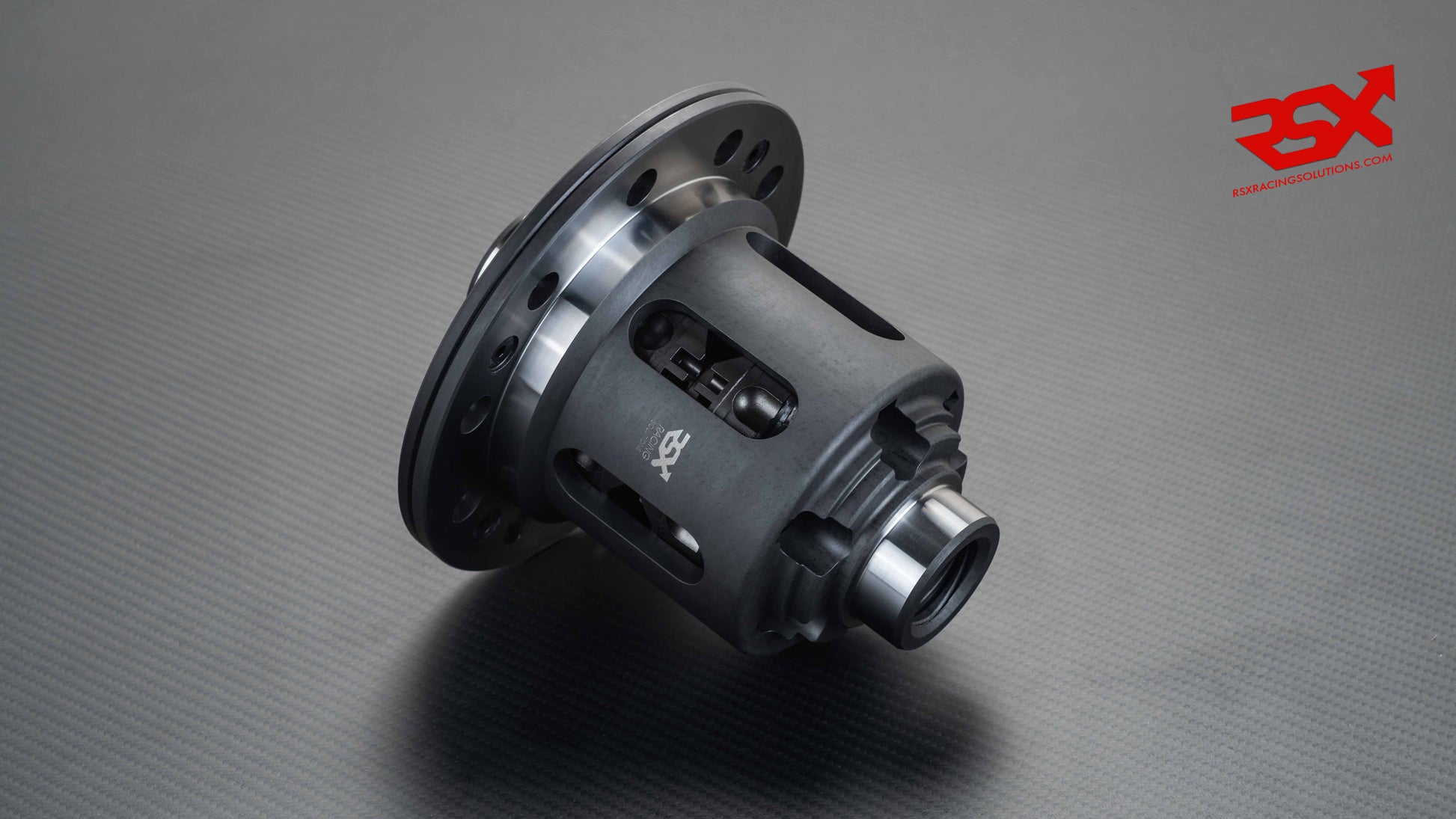

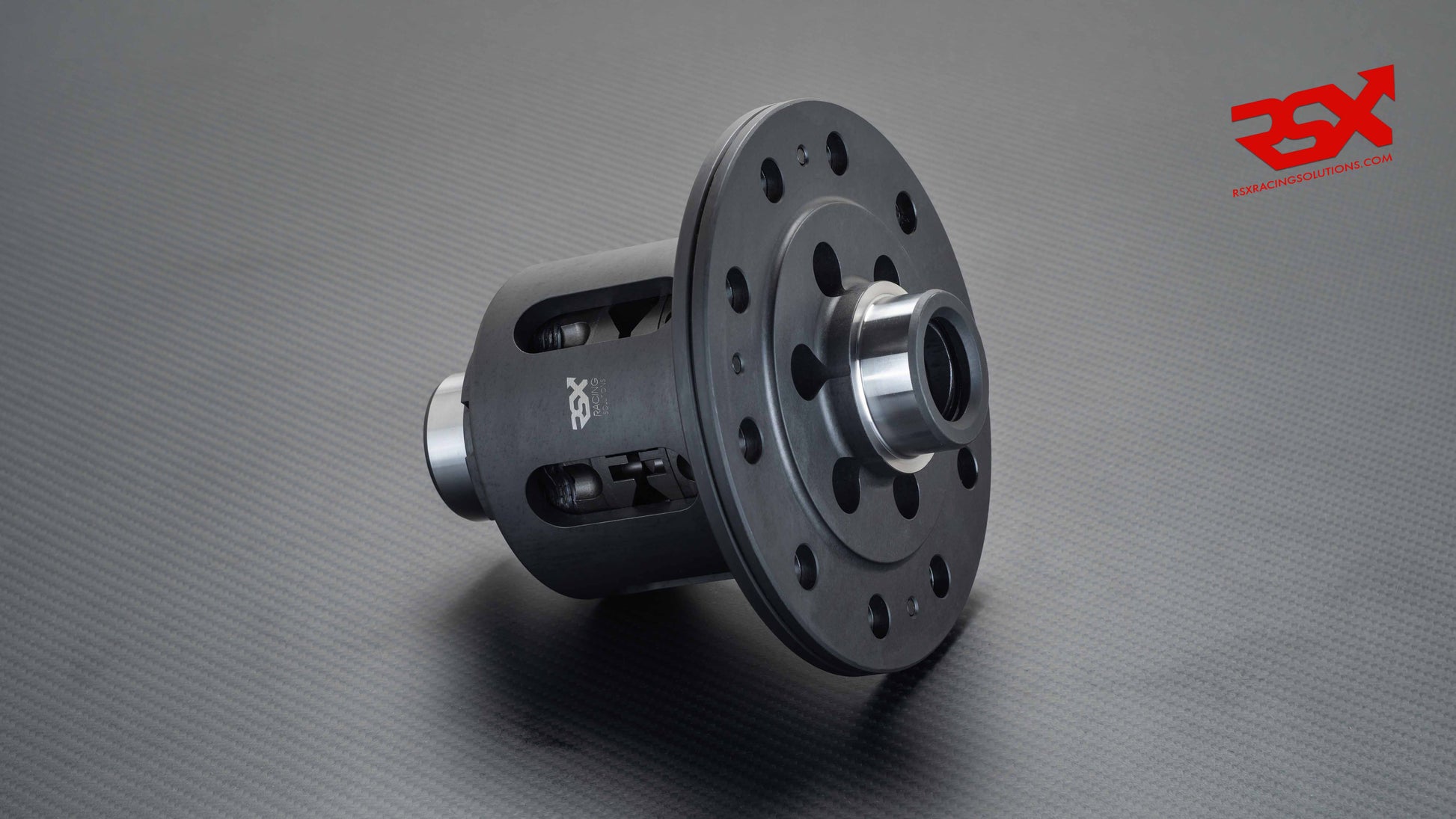

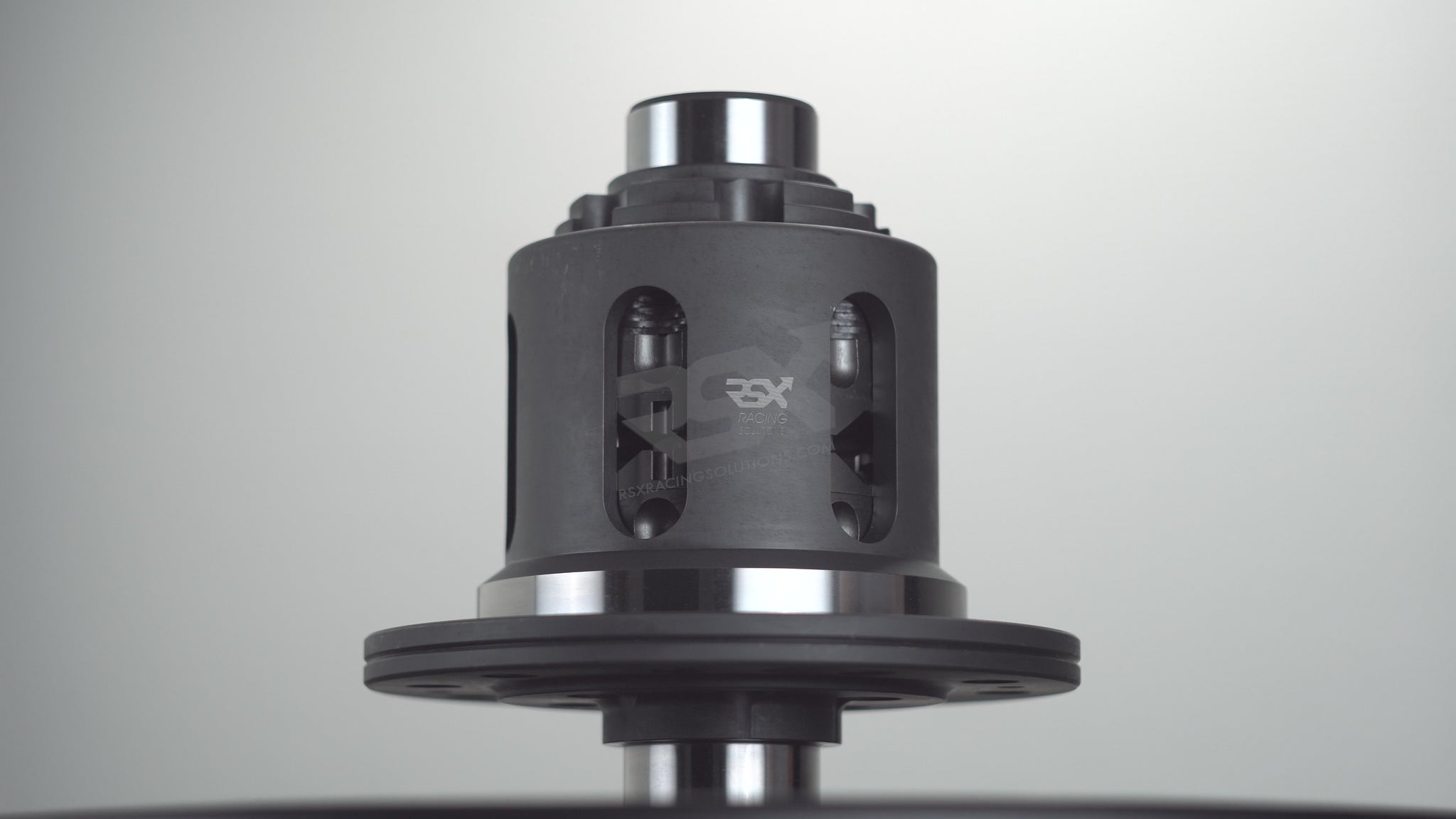

BMW E30 / E36 / Z3 / E28 – 188 mm Rear Differential
Plate Type LSD | Limited-Slip Differential
Applications
BMW 3 Series
E30 (1982–1994)
320i (manual & automatic)
323i
325i / 325is / 325ix (AWD versions use 188 mm front & rear differentials) Engines: M20
325e / 325es
M3 E30 – S14 engine
E36 (1990–2000)
318ti Compact (selected variants) – M42 / M44
320i / 323i / 325i / 328i – M50 / M52
M3 3.0 – S50B30 engine (Europe, 188 mm LSD)
Z3
1.9 / 2.0 / 2.2 / 2.8 / 3.0
BMW 5 Series
E28 (1981–1988)
520i / 525i / 528e / 528i – M30 engines
Design & Manufacturing
Our plate-type limited-slip differentials are manufactured from FORGED Nickel-Chromoly steel and subjected to advanced heat treatments such as Super Sub-Zero / Cryogenic treatment.
Additionally, all critical components undergo shot peening and WPC treatment, significantly improving:
Core and surface strength
Wear resistance
Fatigue life
The combination of high-strength forged material and an optimized internal design featuring large windows and multiple oil holes results in:
Reduced internal friction
Improved internal lubrication
Lower overall weight
Enhanced thermal stability
As a result, our LSDs deliver stable and predictable performance with exceptional durability, typically requiring no servicing during the first ~2,000 km of special stages under normal competition use.
Technical Specifications
Plate-type LSD with 20 friction plates → The only product on the market with this configuration
Ultra-lightweight design: approx. 6.65 kg (lightest in its class)
Stable preload values, even during long endurance races
All our plated LSDs feature dual ramp bodies. Factory ramp configuration for this application: 35 / 67.5 & 35 / 90
Other ramp angles are available upon request.
Included Components (Free of Charge)
✔ Two additional thicker Belleville / conical washers Each washer provides approximately +20 Nm of additional preload, allowing users to experiment with higher preload settings.
Warranty & Intended Use
1-year motorsport warranty covering material or manufacturing defects
Recommended for competition use only
Important Reminder – Gear Oil
For correct operation and maximum service life, we strongly recommend the use of LS (Limited Slip) gear oils specifically formulated for plate-type LSDs.
Typical recommended viscosity: SAE 75W-140 LS
Only oils with LS specification must be used
It is also recommended to pre-lubricate the LSD with gear oil during installation.
⚠️ Note: Although an anti-corrosion oil is applied during factory assembly, it does not provide lubrication.
