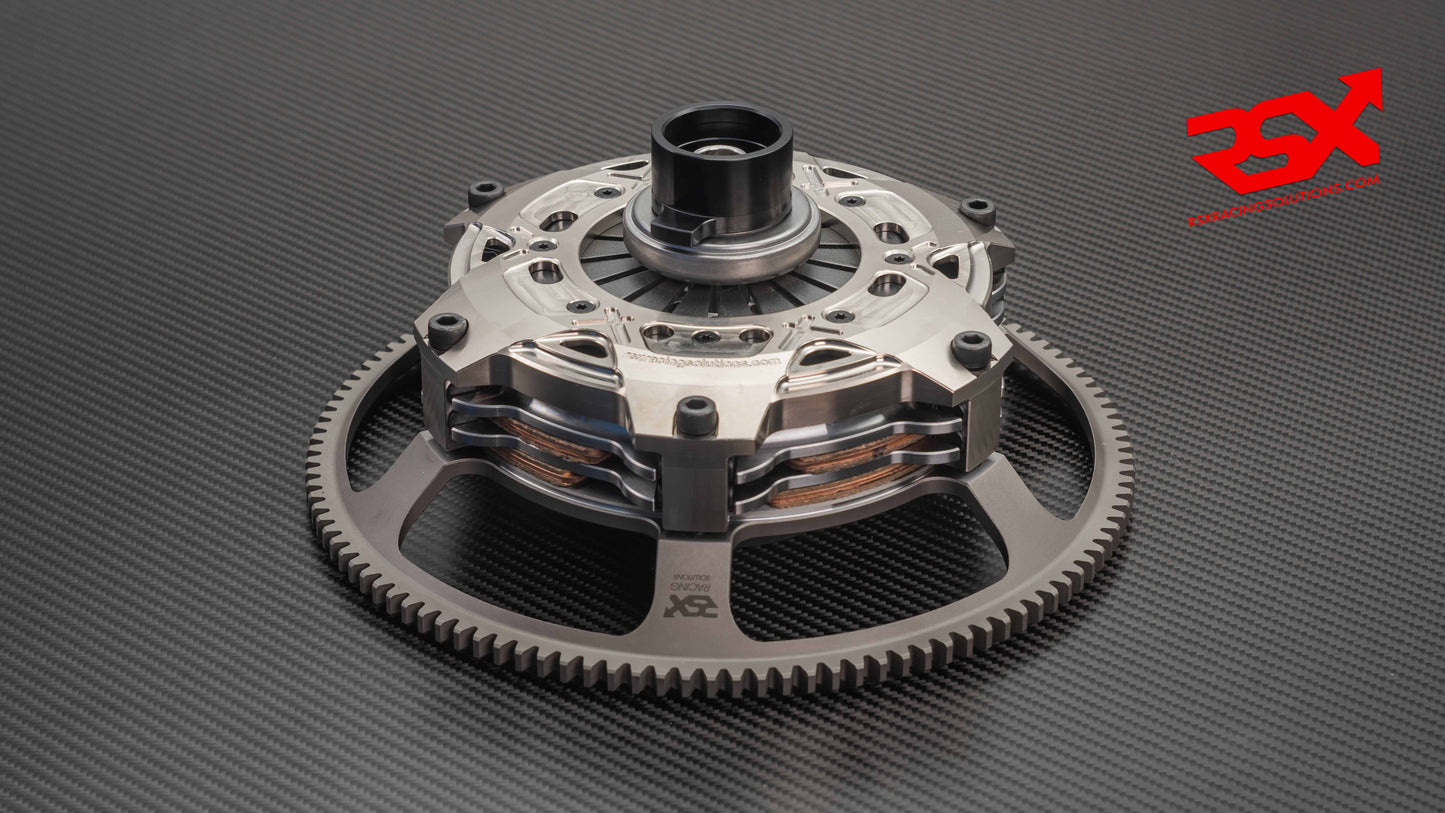

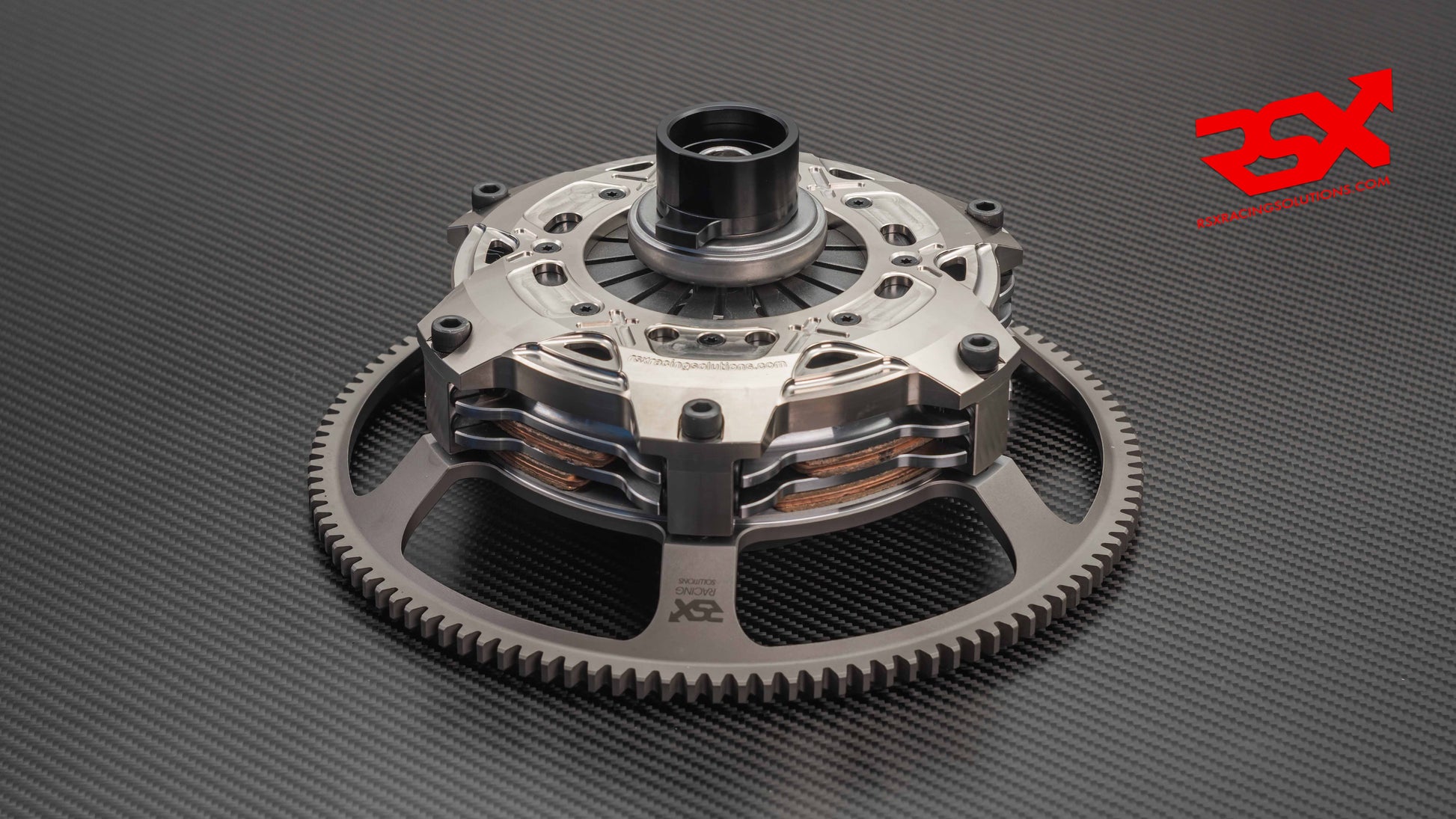

Ø184 mm (7.25") Lightweight Twin-Plate Clutch Kit for BMW M3 E36 & M3 E46
Ø184 mm (7.25") Lightweight Twin-Plate Clutch Kit for BMW M3 E36 & M3 E46
SKU:210600805
Weight - 7.10kg
In stock
Couldn't load pickup availability

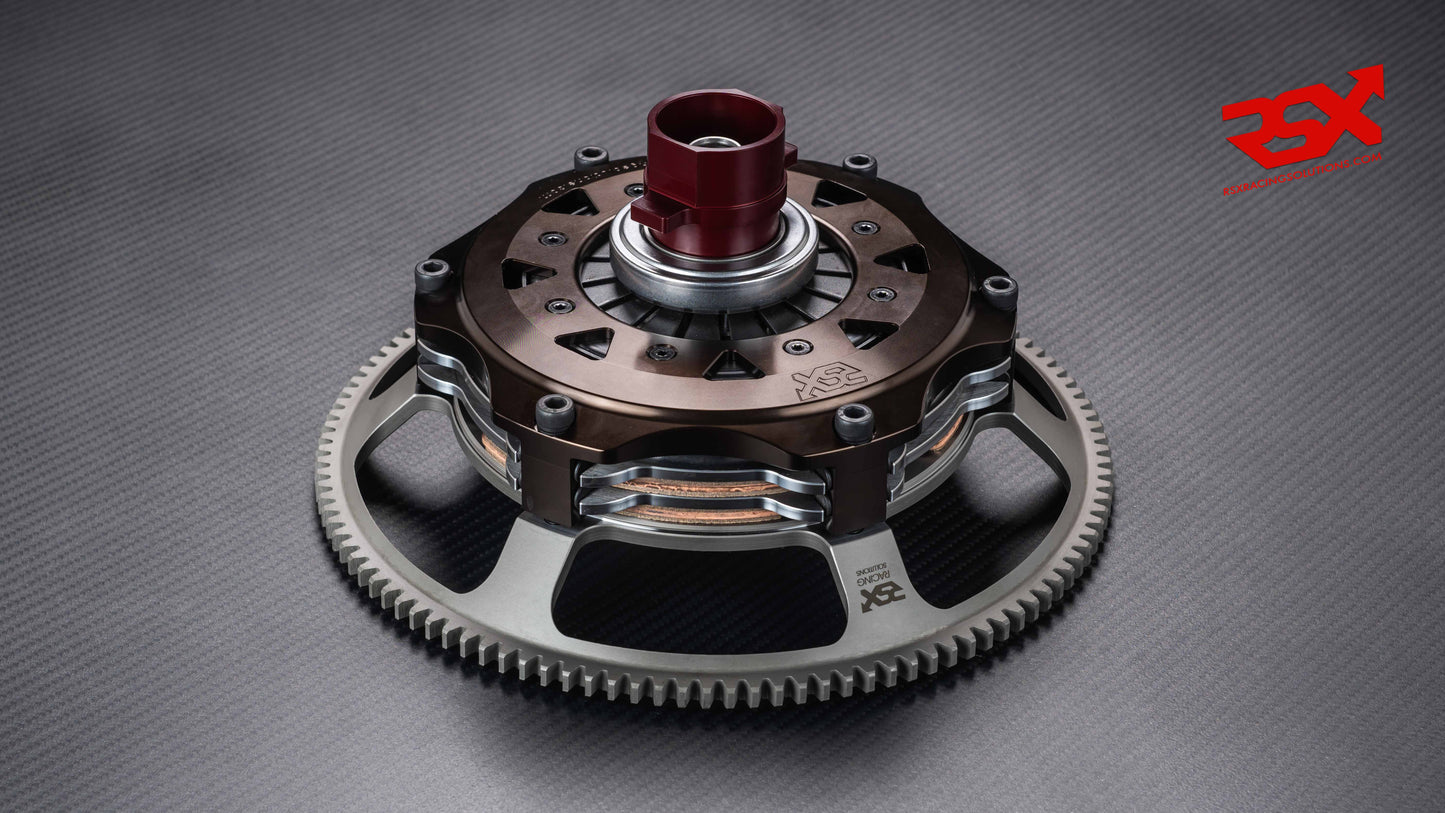

Ø184 mm (7.25") Lightweight Twin Disc Clutch Kit for BMW E36 M3 3.0L & 3.2L and E46 M3 3.2L
APPLICATIONS:
This clutch kit was specifically developed for:
- BMW E36 M3 3.0L – Engine code S50B30
- BMW E36 M3 3.2L – Engine code S50B32
- BMW E46 M3 3.2L – Engine code S54B32
However, it is also compatible with M4X and M5X family engines:
- M40B16
- M43B16
- M43TUB19
- M40B18
- M43B18
- M44B19
- M50B20
- M52B20
- M50B25
- M50TUB25
- M52B28
- M43TUB19
- N42B18
- M43TUB19
- N42B20
- M52TUB20
- M54TUB25
- M54B25
- M52TUB28
- M54B30

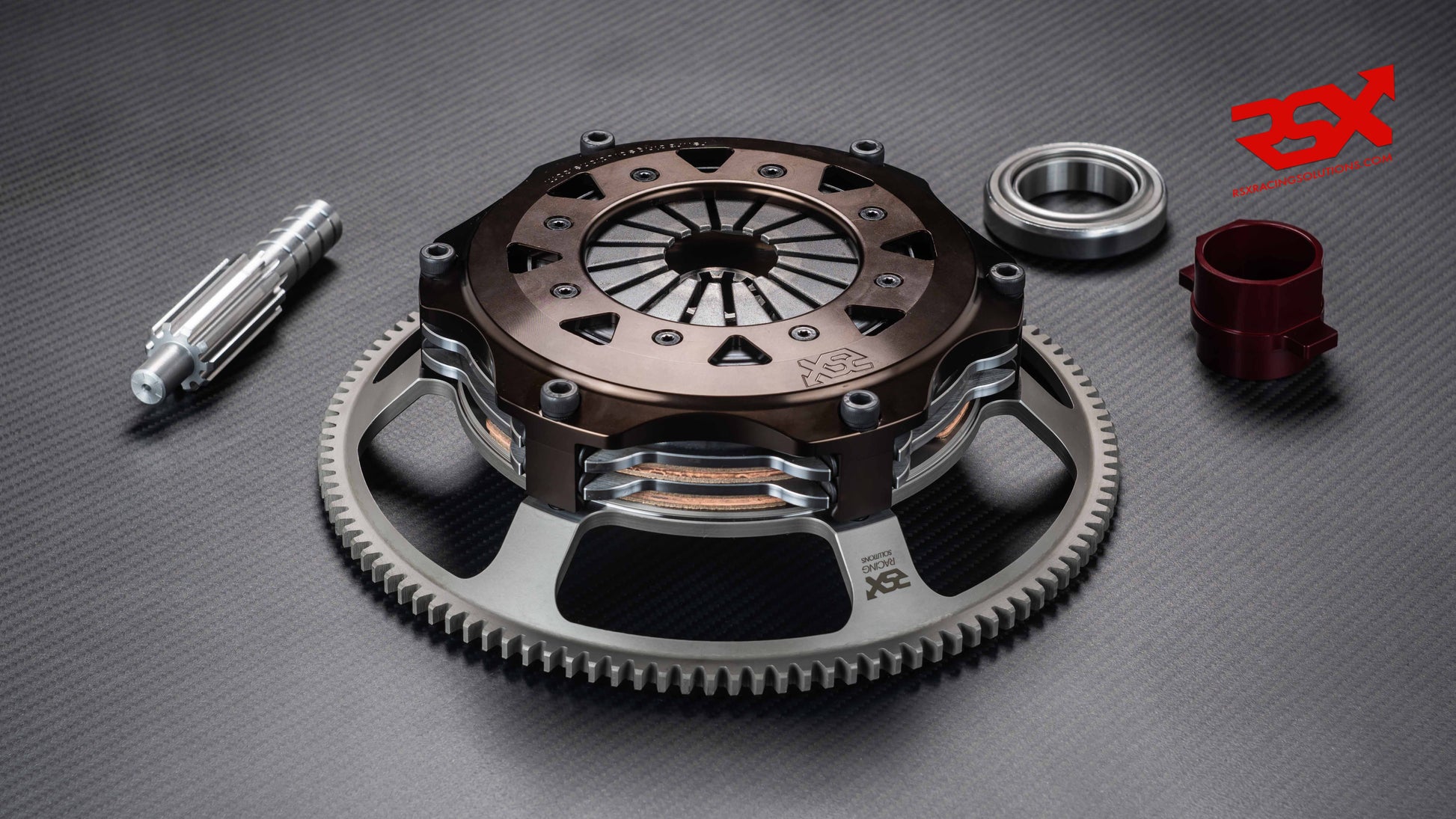

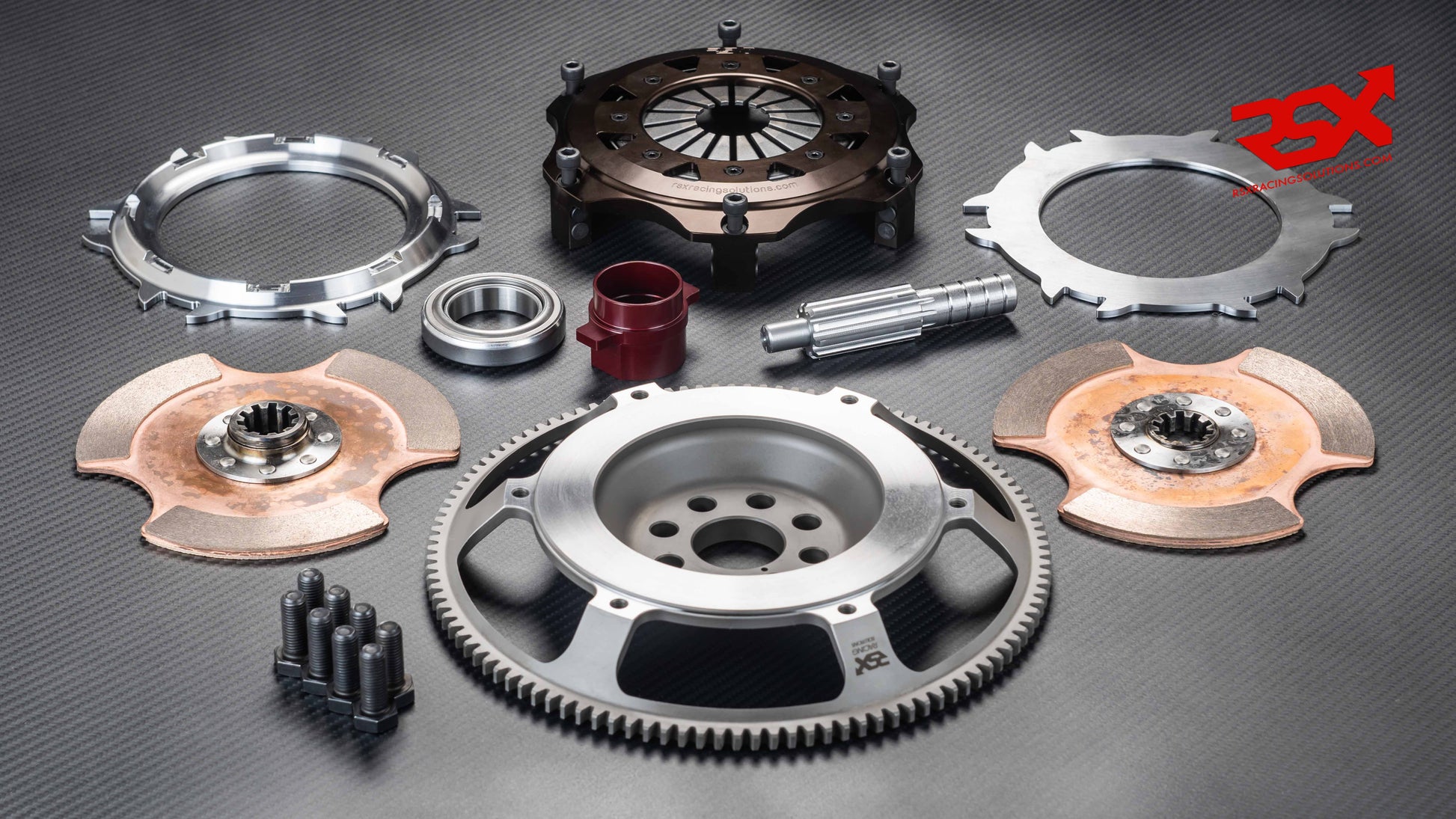

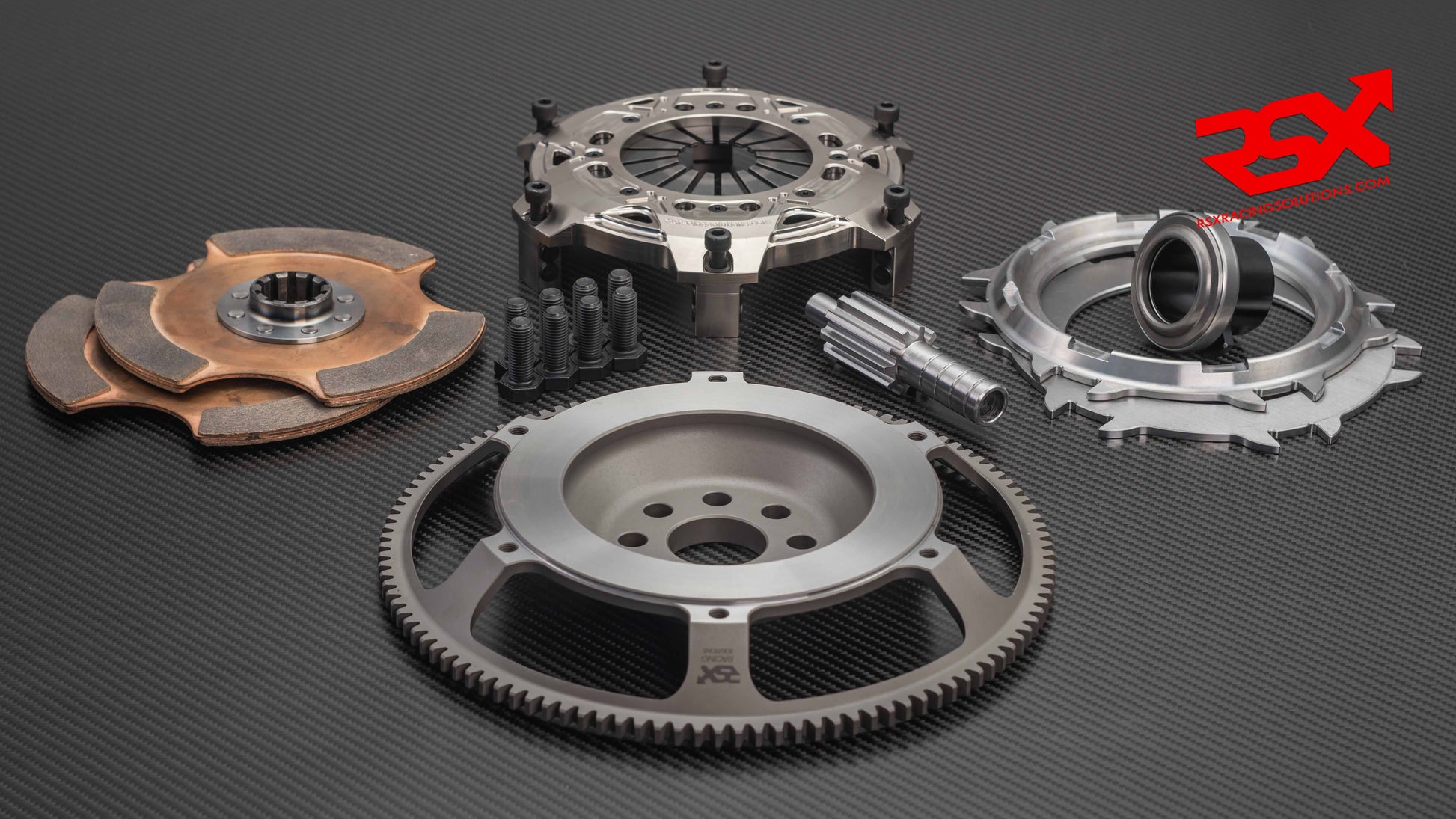

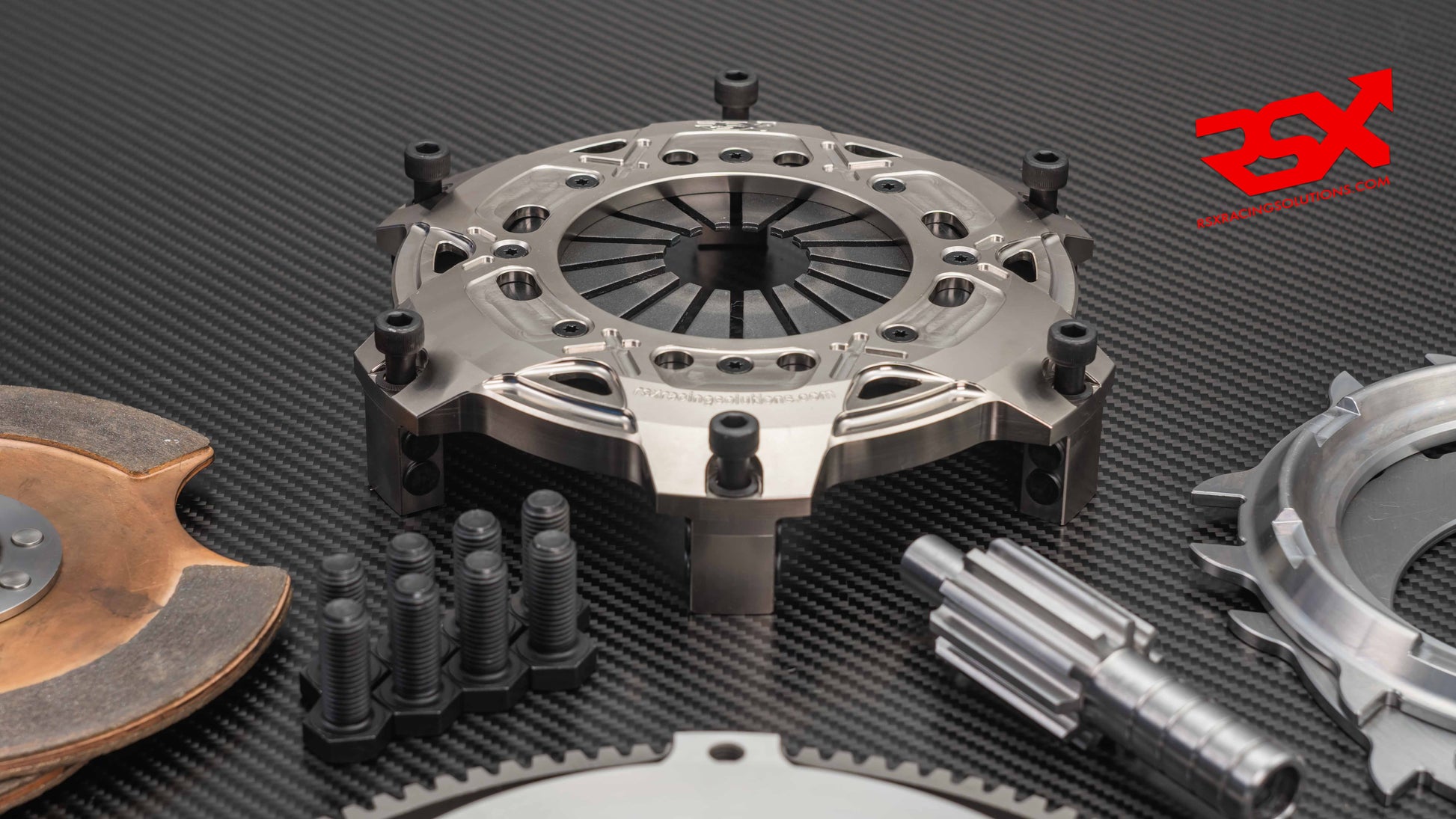

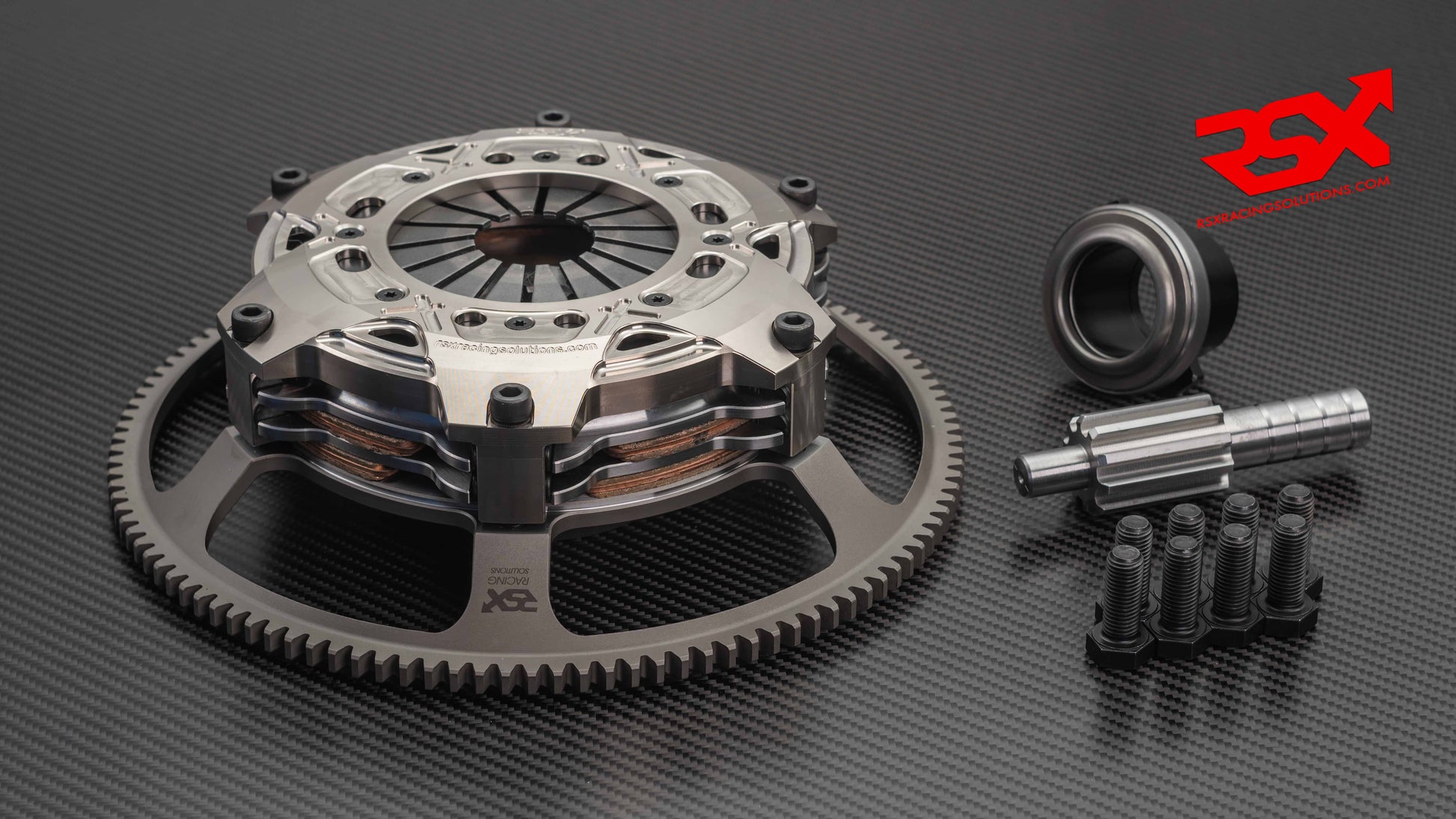

KIT INCLUDES
✔ 184 mm / 7.25" Twin-Disc Racing Clutch Kit – Lightweight design, weighing only 4.20kg.
✔ 184 mm / 7.25" Ultra-Lightweight Flywheel – Weighing only 2.96 kg.
✔ Racing Clutch Release Bearing Assembly – Heavy-duty metal racing bearing with a dedicated hard-anodised AL6061-T6 aluminium support.
✔ Flywheel-to-Crankshaft Mounting Bolts.
✔ Clutch disc alignment tool
COMPONENTS & FEATURES

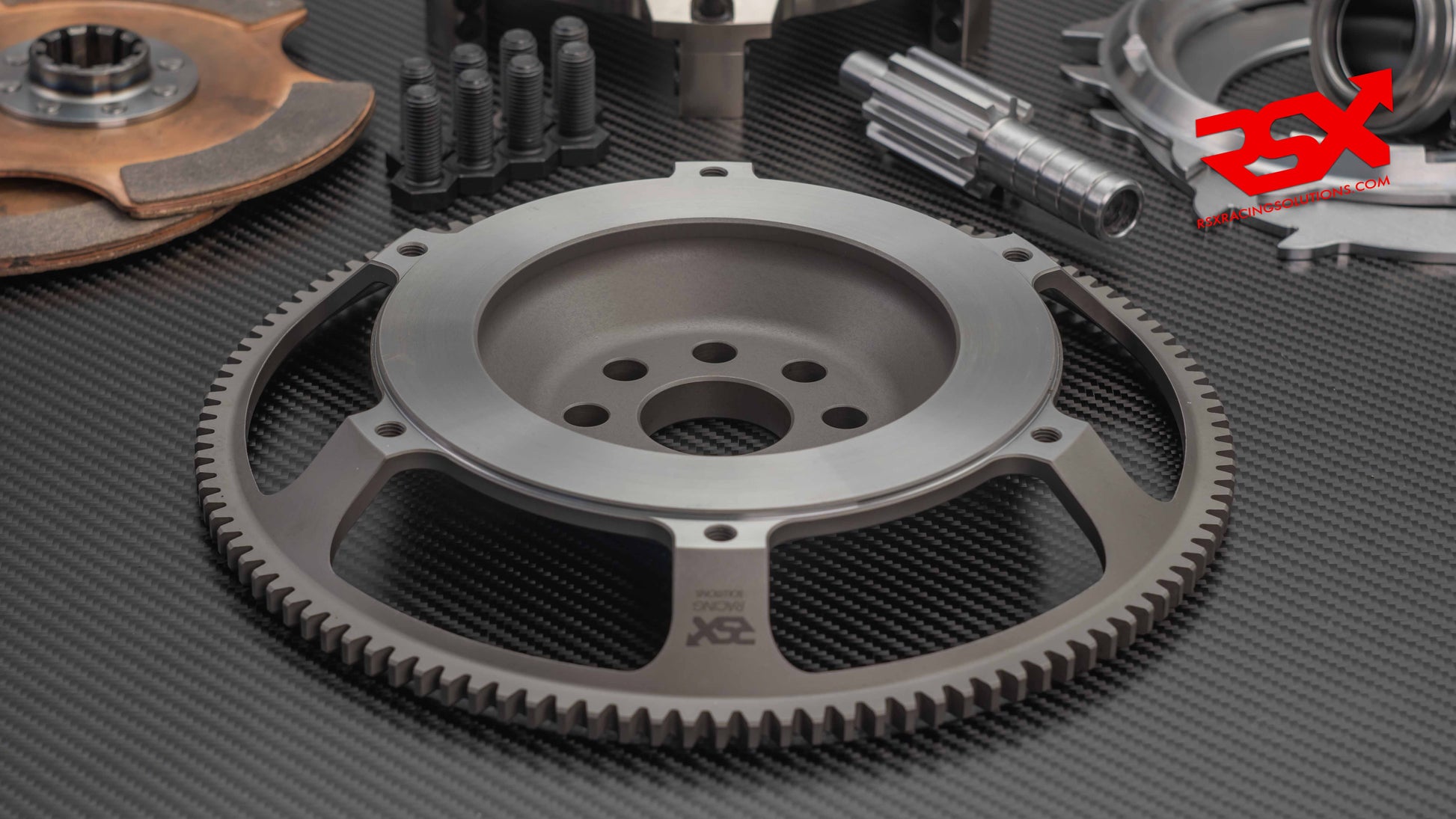

Flywheel
✅ Weight: 2.96kg
✅ High-Strength Forged Chromoly Steel (CrMo) – Unlike conventional racing flywheels manufactured from standard machined steel, our flywheels are made from high-strength forged chromoly steel and undergo a specialised nitriding heat treatment, achieving an exceptional 58–62 HRC surface hardness. This combination delivers superior mechanical strength, increased resistance to wear and deformation, and outstanding long-term durability, even under the most demanding motorsport conditions.
Why does this matter?
⚠️ Many conventional racing flywheels suffer from premature starter ring gear tooth wear, especially in high-compression engines.
Note: Our flywheels are virtually unbreakable, and come with a 1-year warranty for motorsport use against material or manufacturing defects—with no mileage limit!
CLUTCH COVER:
✅Material: Forged 6061-T6 aluminum with Electroless Plating Coating for:
- Enhanced hardness & wear resistance
-
Improved corrosion resistance
✅ The legs are equipped with metal rivets for increased durability.
✅ The tightening torque for the clutch cover to flywheel screws (M8x1.25 grade 12.9) is 40Nm.
TOP/PRESSURE PLATE:
✅ Material: Forged chromoly steel, ensuring maximum performance and longevity.

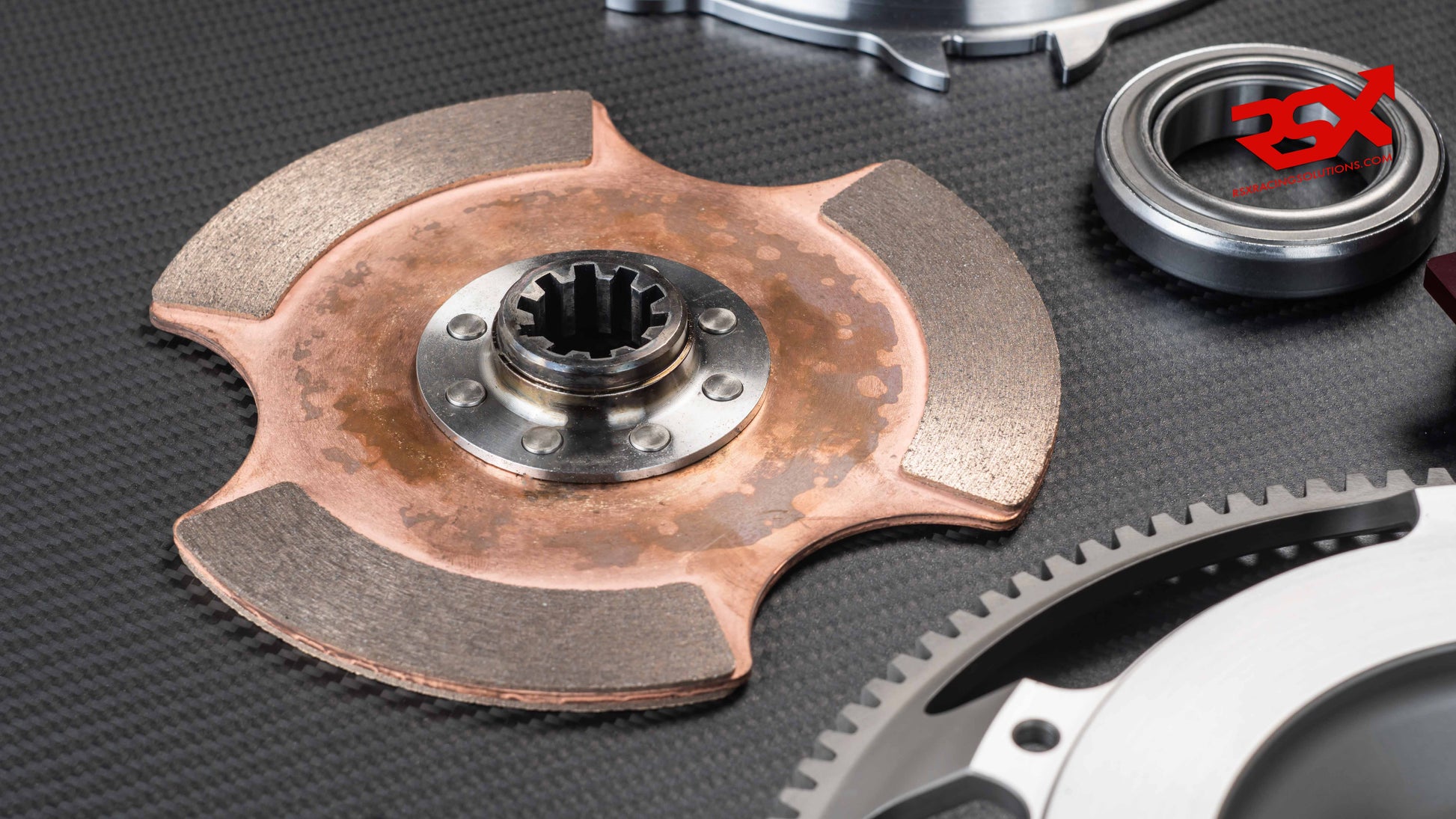

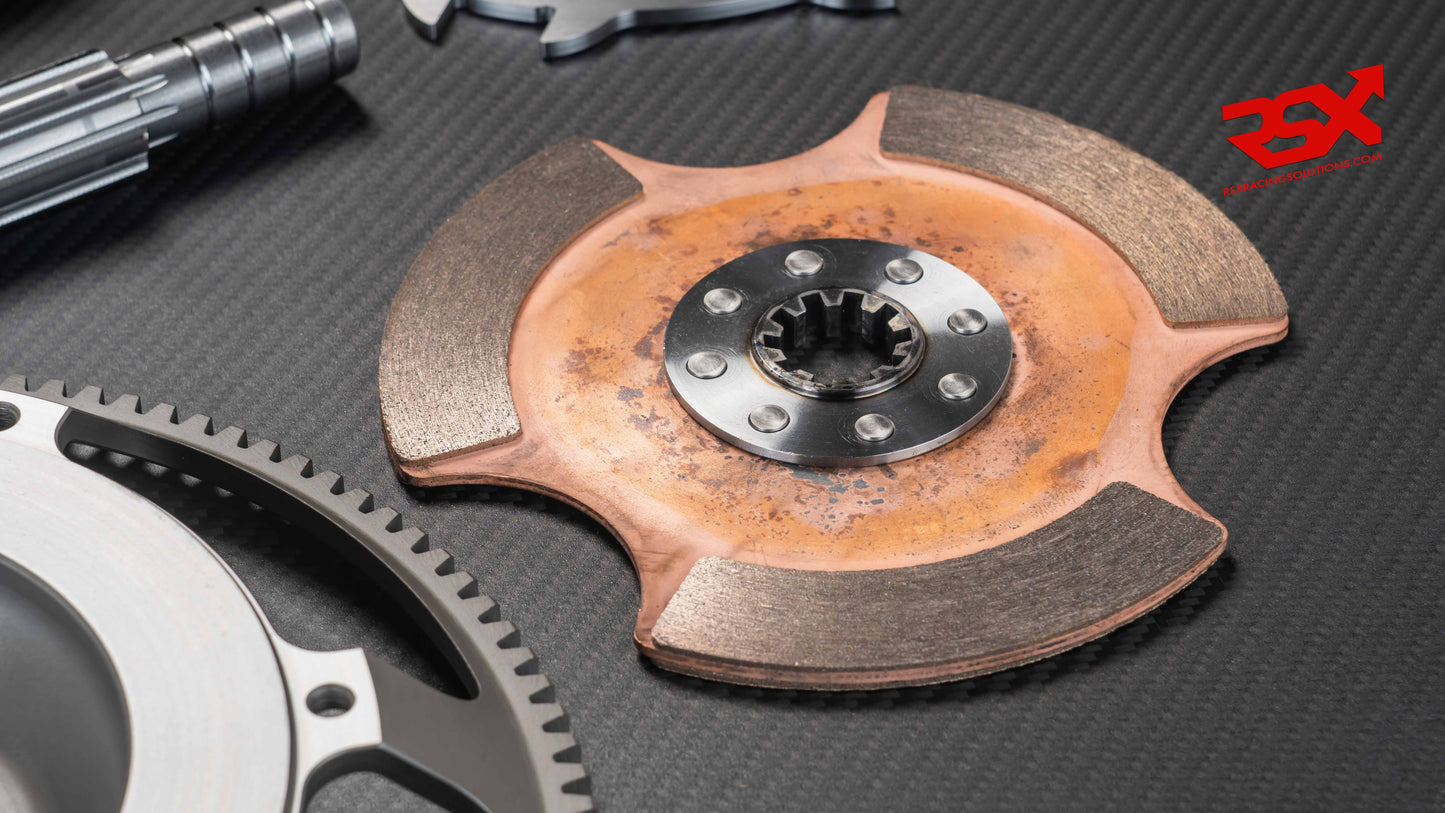

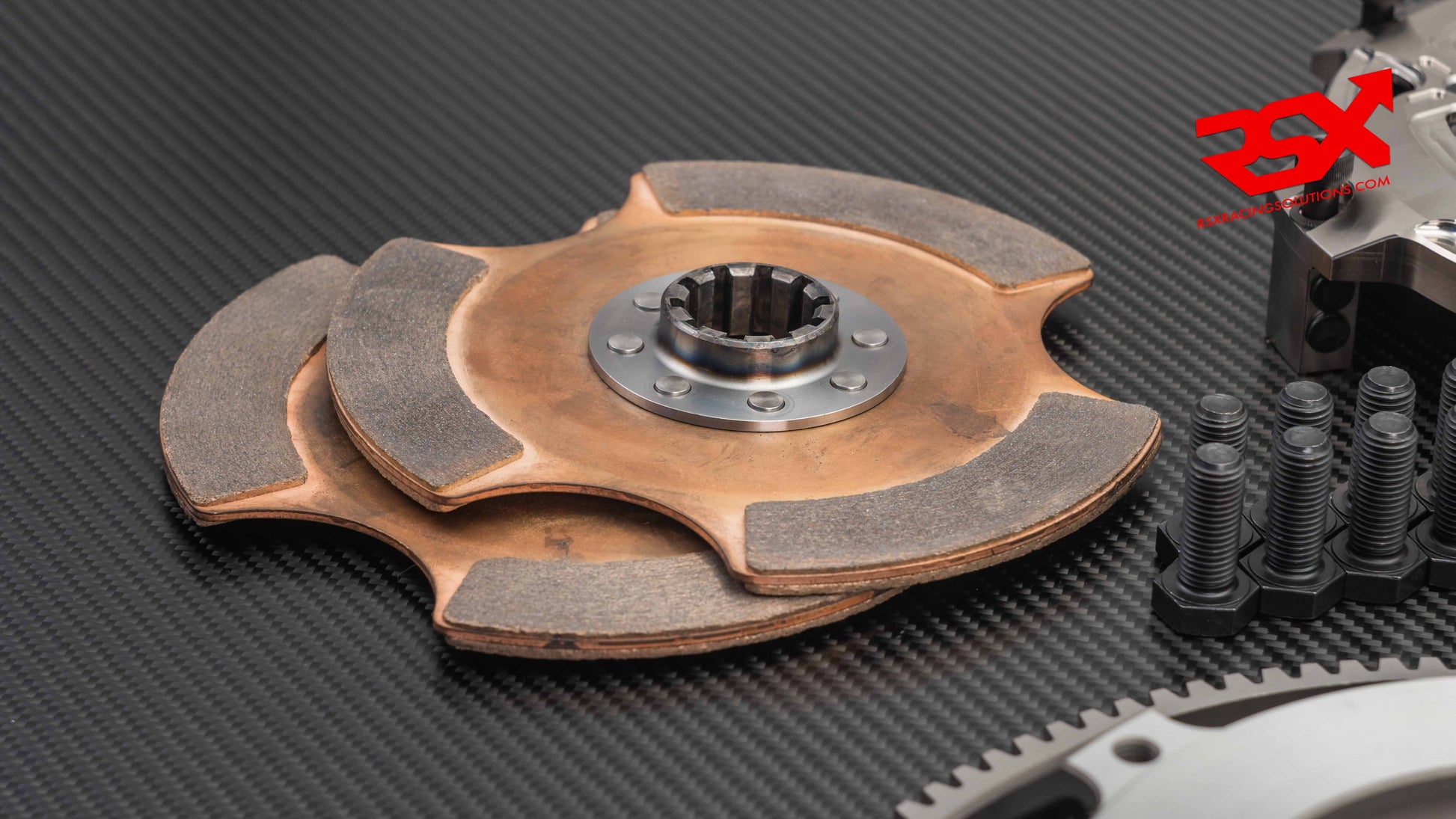

SINTERED CLUTCH DISC — Ø184 mm (7.25")
✅ Sintered friction material, manufactured using our proprietary blend of sintered metal compounds and engineered to tight manufacturing tolerances.
✅ Optimised for:
- Exceptional durability and heat resistance
- High torque capacity
✅ Forged chromoly steel hubs, featuring induction hardening for enhanced strength and durability.
✅ Standard clutch disc spline: 35 mm × 10T
- Custom spline configurations available upon request

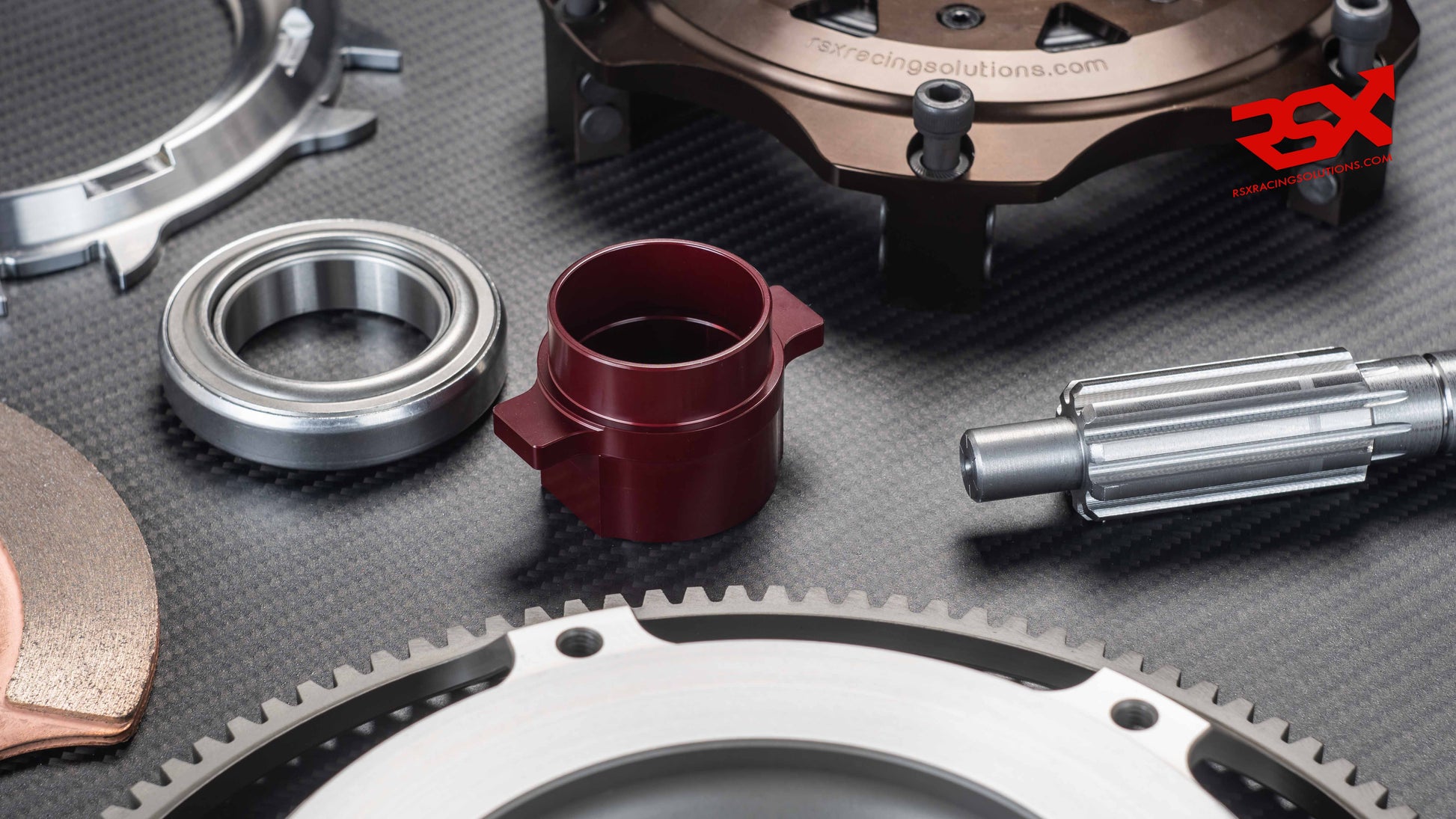

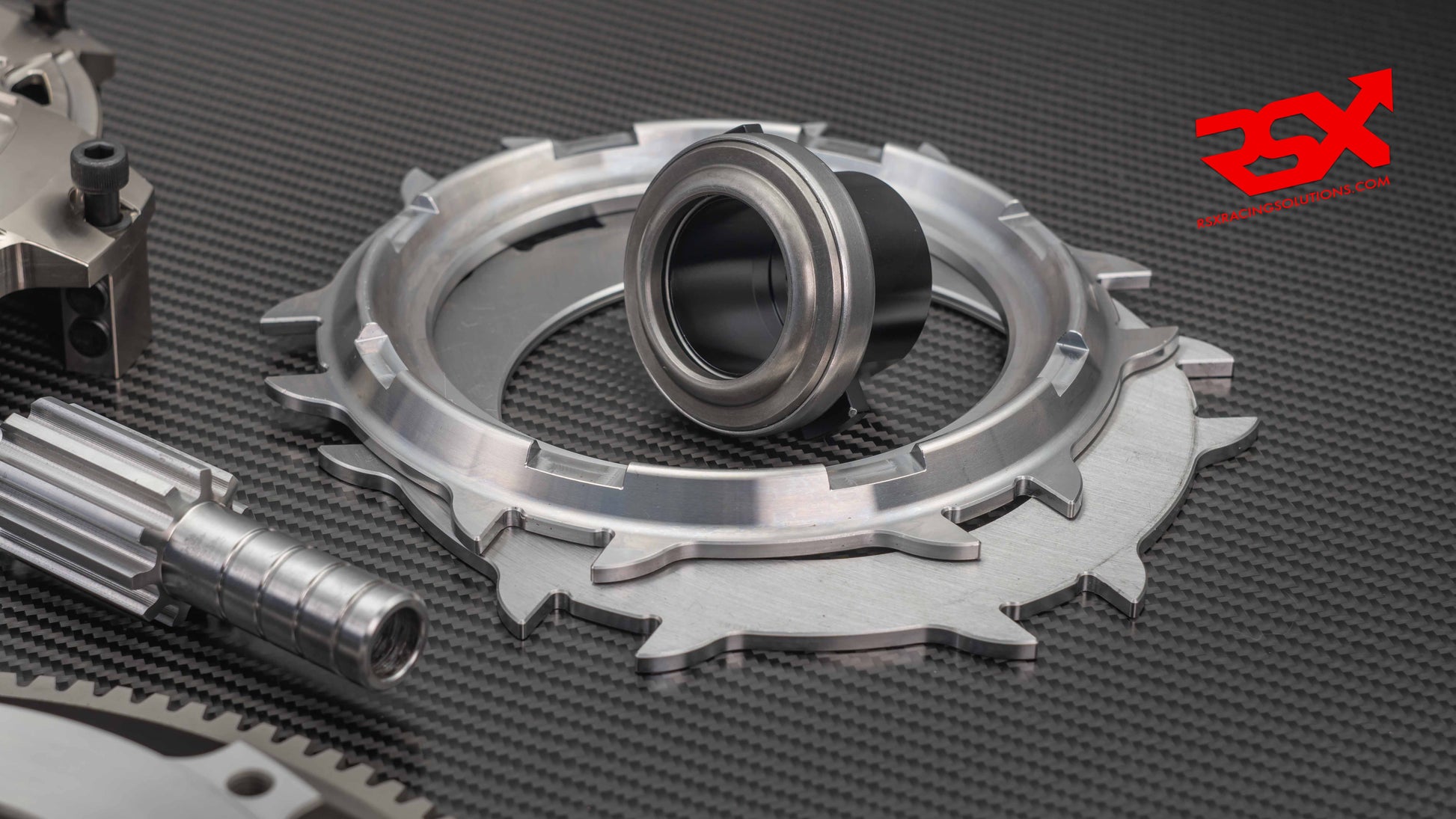

CLUTCH RELEASE BEARING + SPECIFIC ALUMINUM SUPPORT
✅ Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
✅ Aluminum support: AL6061-T6 with hard anodize finish for a lightweight yet strong component.

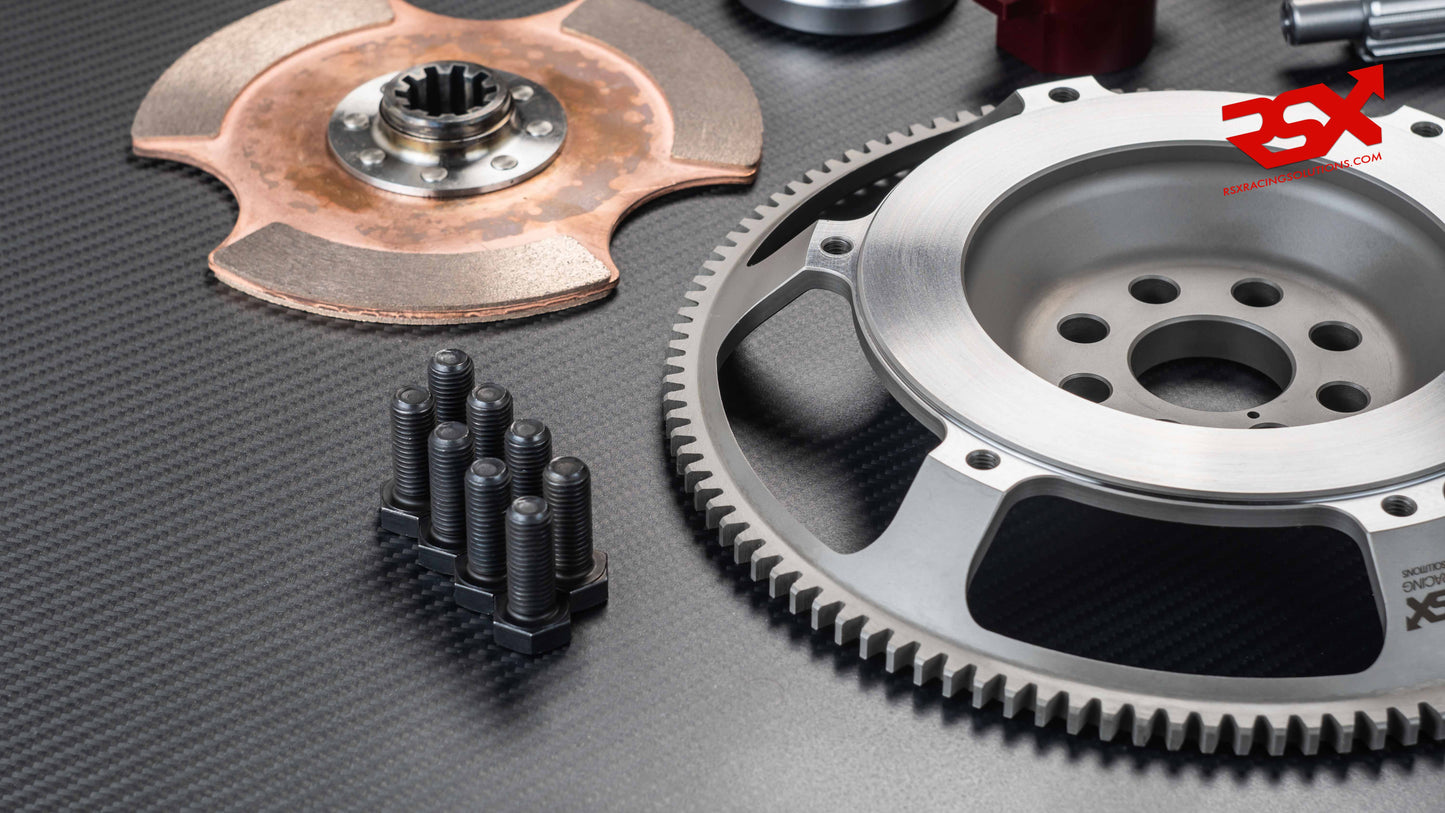

FLYWHEEL TO CRANKSHAFT BOLTS (set of 8 pcs)
✅ Specification: Bolts are manufactured from Grade 12.9 hardened steel, offering superior tensile strength and performance under extreme loads
KEY FEATURES & BENEFITS
✔ Rated for 1000hp / 1200 Nm in single-disc configuration, depending on clutch setup (diaphragm spring pressure and clutch disc friction material).
✔ Significant weight reduction compared to OEM
→ Faster acceleration
→ Improved throttle response
→ Enhanced handling and braking performance
✔ Improved gear shifting at high RPM
✔ Extended friction component lifespan → Lower replacement costs
✔ Excellent clutch pedal feel and modulation
IMPORTANT NOTE:
Due to the nature of motorsport applications and potential variations between vehicles, minor modifications or adjustments may occasionally be required to ensure proper fitment and installation.
