Ø184 mm (7.25") Lightweight Twin-Plate Clutch Kit for BMW M3 E36 & M3 E46

Ø184 mm (7.25") Lightweight Twin Disc Clutch Kit for BMW E36 M3 3.0L & 3.2L and E46 M3 3.2L

APPLICATIONS:

This clutch kit was specifically developed for:

• BMW E36 M3 3.0L – Engine code S50B30
• BMW E36 M3 3.2L – Engine code S50B32
• BMW E46 M3 3.2L – Engine code S54B32

However, it is also compatible with M4X engines:

• M40B16
• M43B16
• M43TUB19
• M40B18
• M43B18
• M44B19
• M50B20
• M52B20
• M50B25
• M50TUB25
• M52B28
• M43TUB19
• N42B18
• M43TUB19
• N42B20
• M52TUB20
• M54TUB25
• M54B25
• M52TUB28
• M54B30

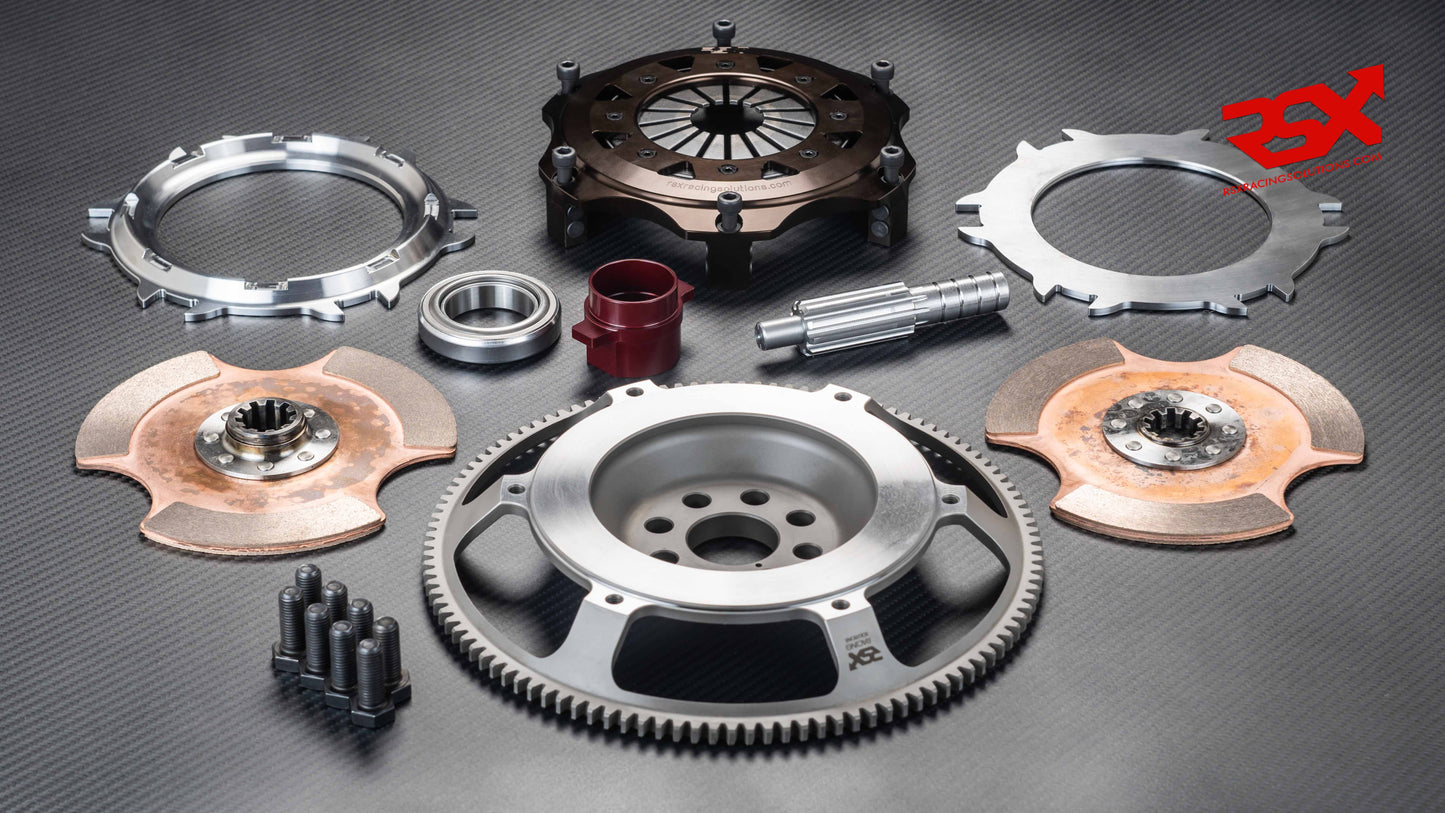

Kit Includes:

✔ 184mm / 7.25" Twin-Disc Clutch (4.20 kg)

✔ 184mm / 7.25" Ultra-lightweight Flywheel (2.90 kg)

✔ Clutch release bearing set

✔ Flywheel to crankshaft bolts

✔ Clutch disc alignment tool

 Component Features

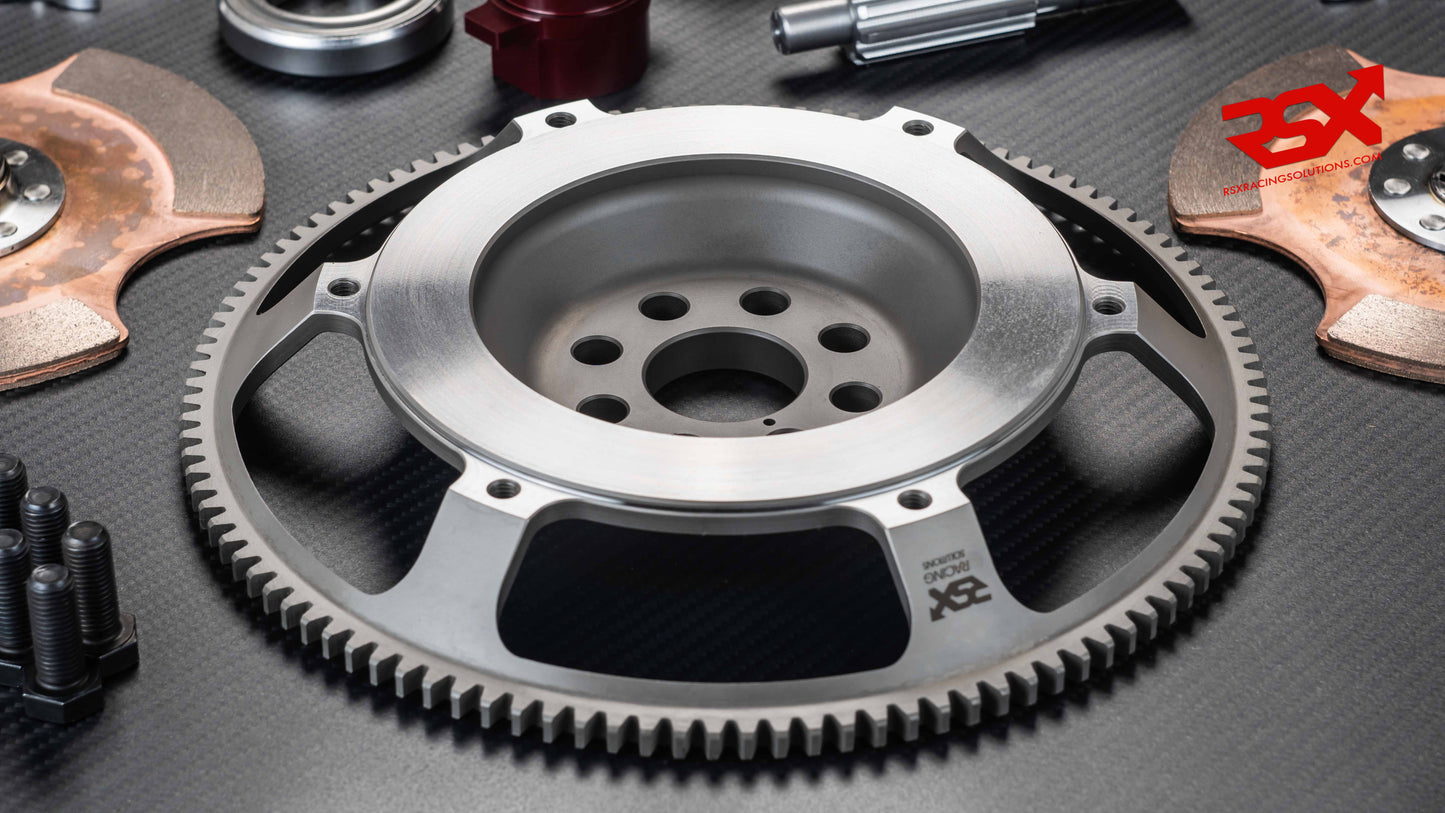

Flywheel

• Weight: only 2.96 kg
• Material: Forged CrMo steel, nitriding heat-treated
• Hardness: HRC 58–62 → over twice as hard as standard flywheels
  → Prevents wear on starter ring gear in high-compression engines
• Longevity: High surface hardness = extended service life & reliability

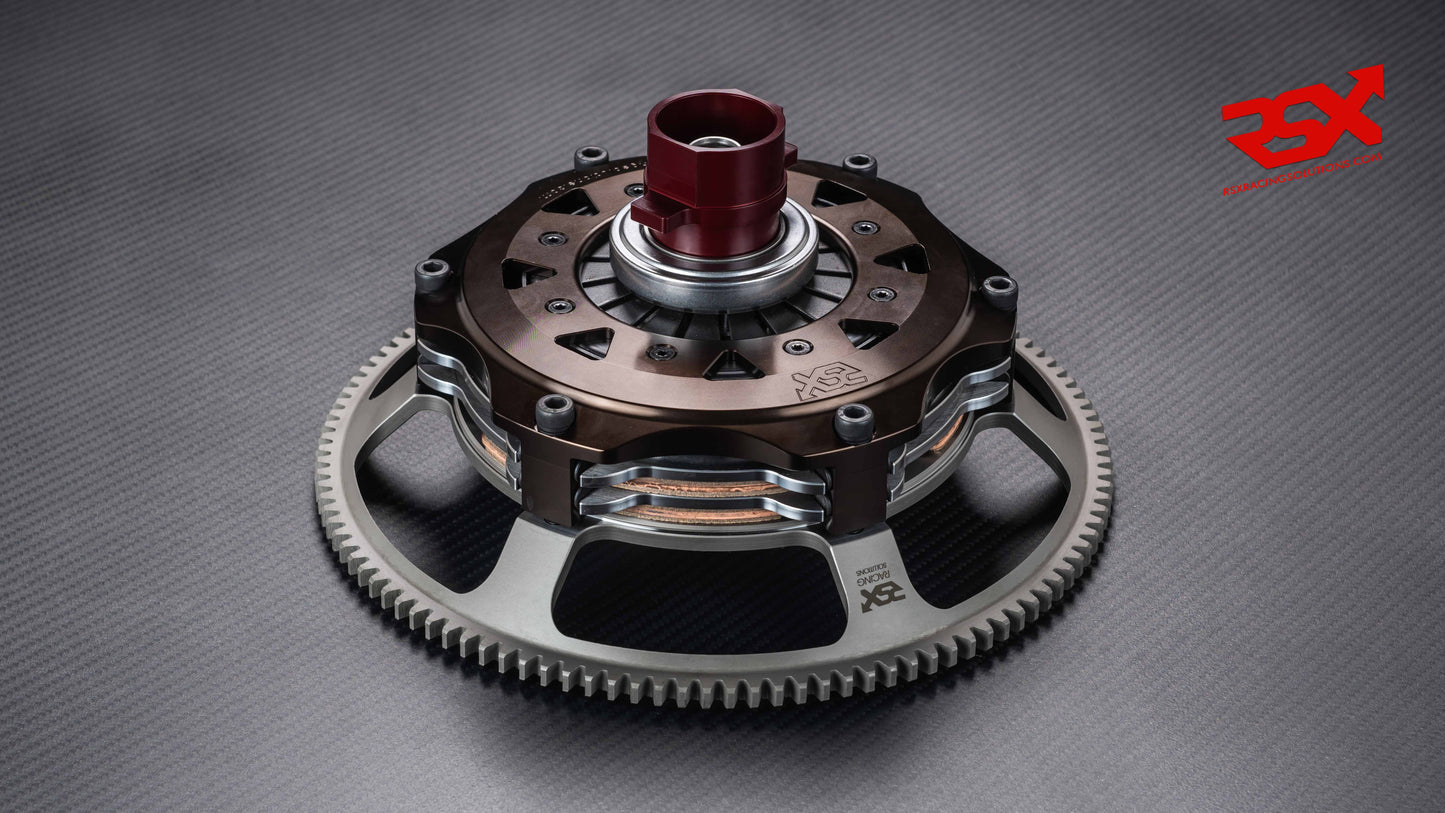

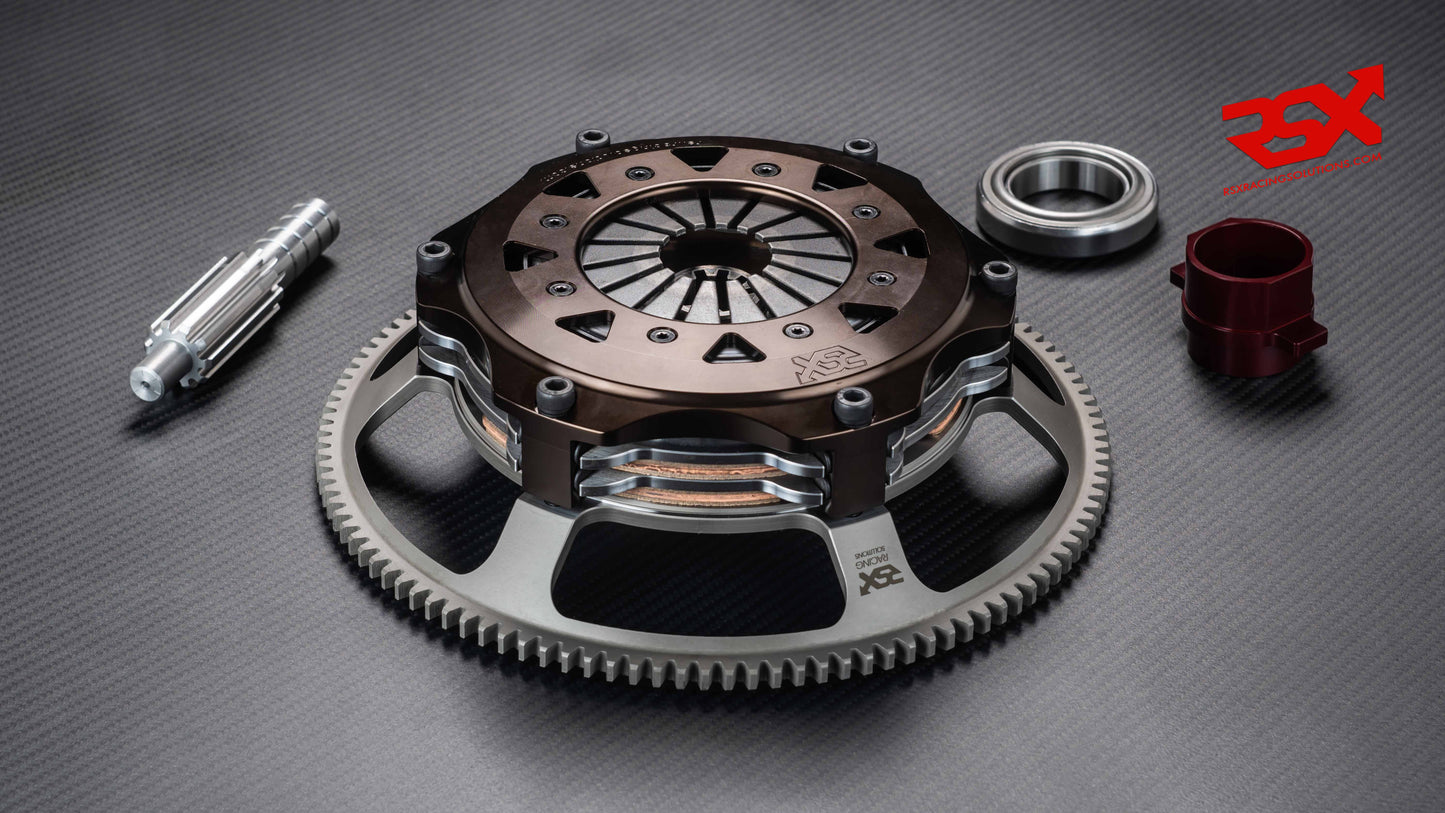

Clutch Cover

• Material: Forged 6061-T6 aluminum, hard anodized
• Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and durable surface for the clutch cover legs, pressure, and floating plates.
• The tightening torque for the cover-to-flywheel bolts (M8x1.25, grade 12.9) is 41 Nm.

Top/Pressure & Floating Plates

• Material: Forged chromoly steel, cryogenically treated (in some applications)

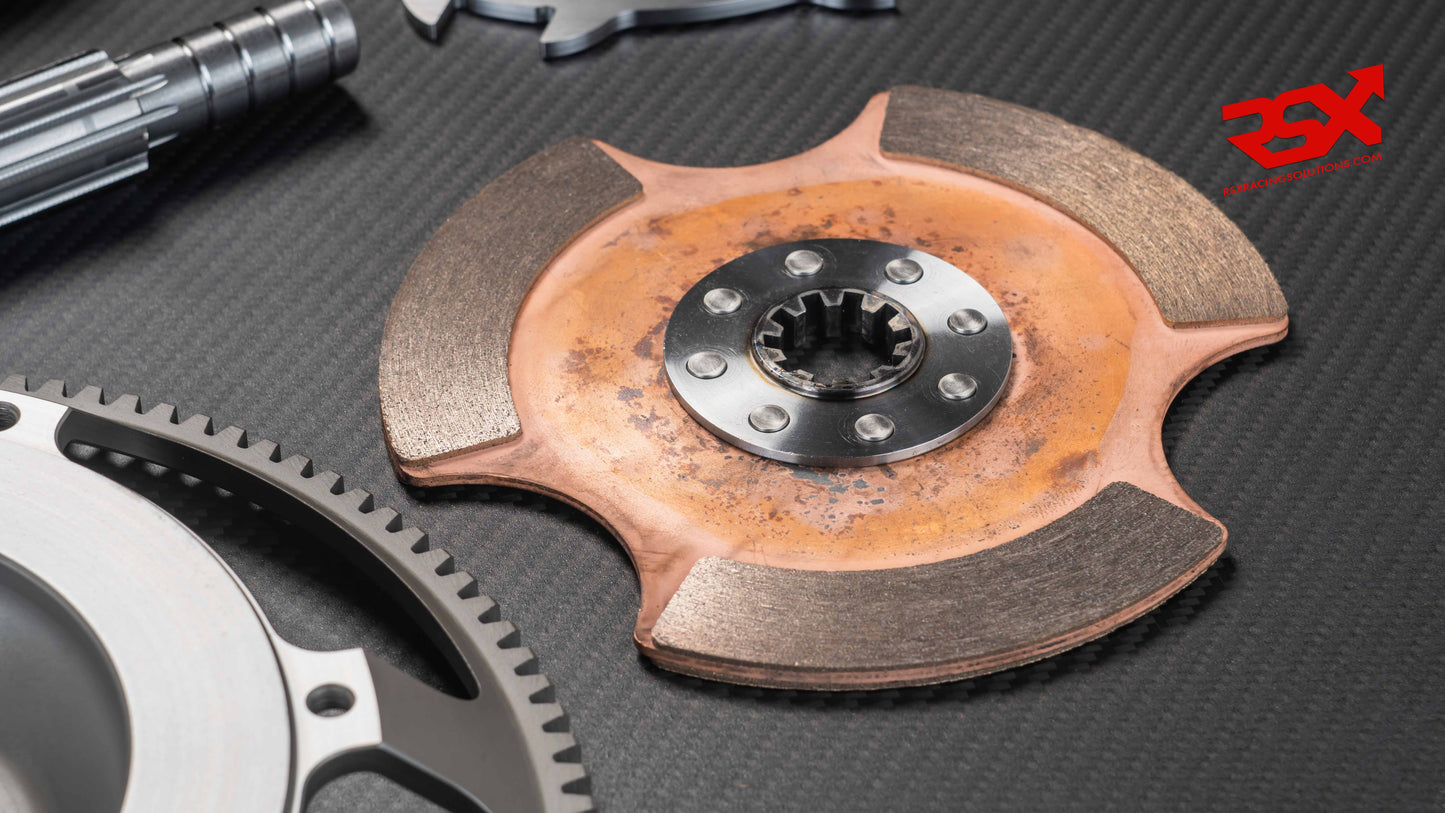

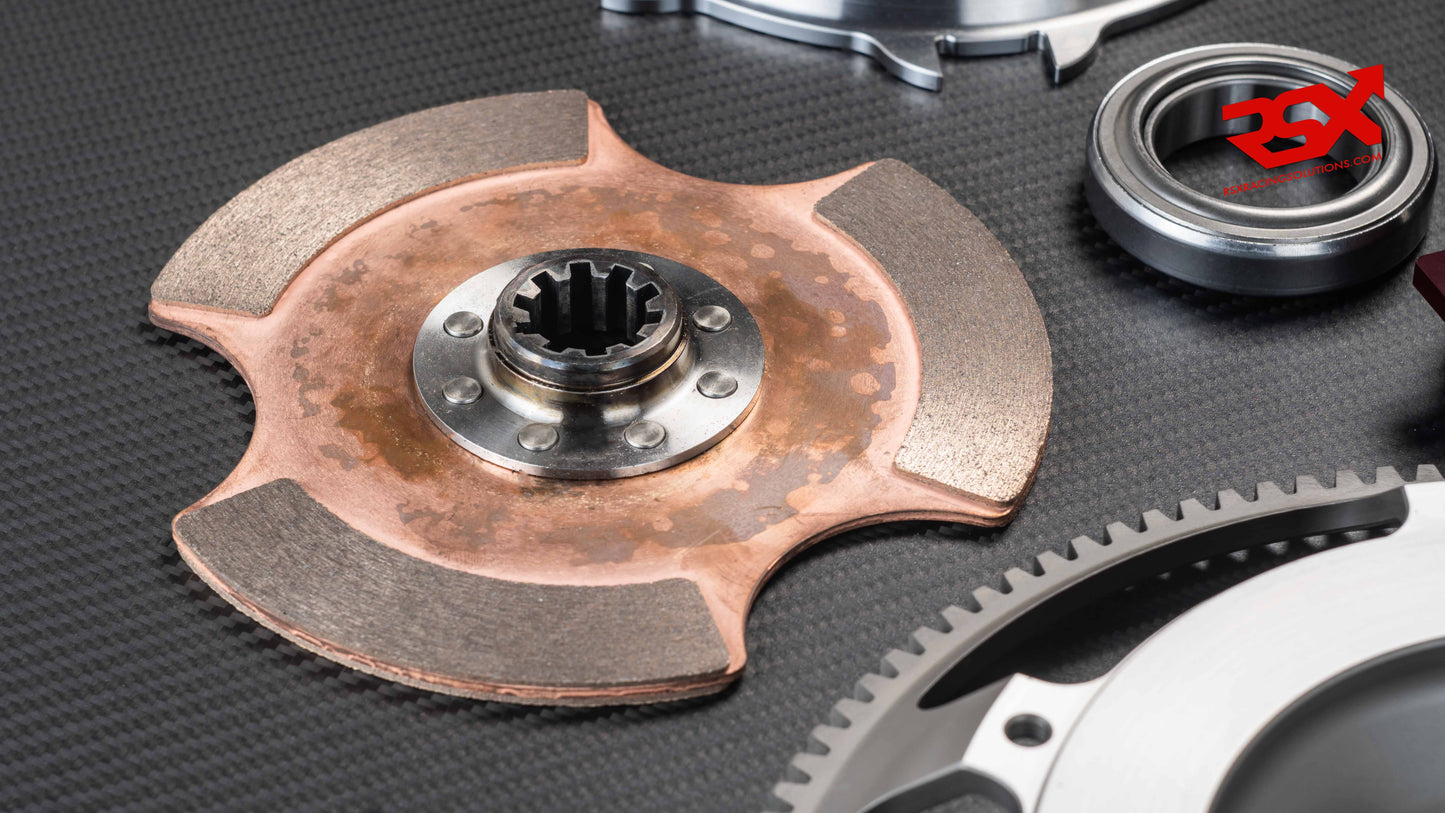

Sintered Clutch Discs — Ø184 mm (7.25")

• Material: Proprietary blend of sintered metal compounds, engineered with precise manufacturing tolerances
• Standard version design: Three large friction pads for optimal engagement and reliability.
• Spline: 10T x 29 mm & 10T x 35 mm (other spline options available upon request)
• Hub: Machined from forged chromoly steel and induction hardened for maximum strength and wear resistance
• Customization: Available on request (e.g. custom spline)

Clutch release bearing + specific aluminum support

• Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
• Aluminum support: AL6061-T6 with hard anodize finish for a lightweight yet strong component. Available in two sizes, one specific for 10T x 29 mm mainshafts and a second version for the 10T x 35 mm mainshafts.

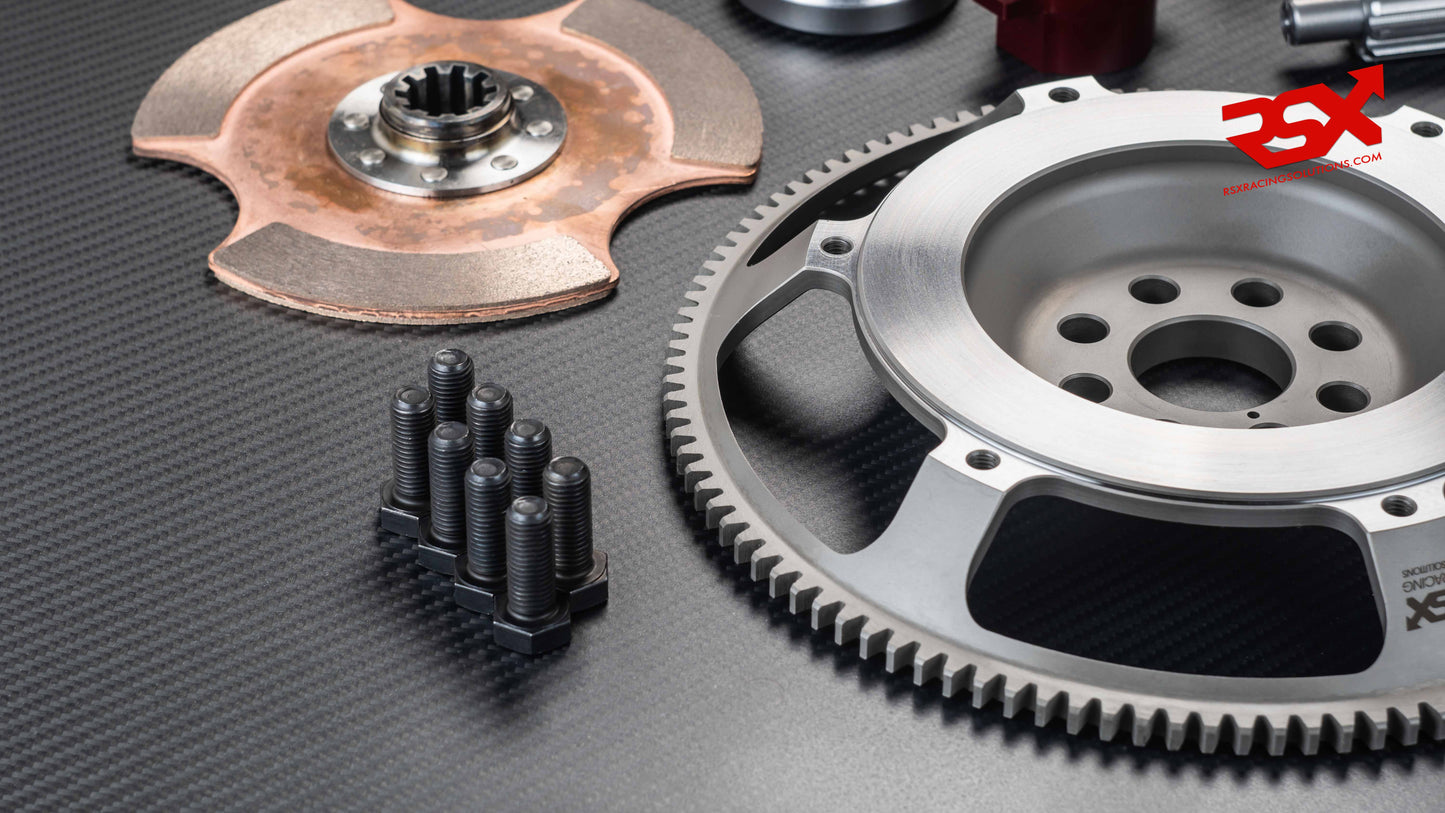

Flywheel to crankshaft bolts :

• Set of 8 pcs – Steel, Grade 12.9

Clutch alignment tool:

• Designed to match the exact geometry of your transmission input shaft and pilot bearing to ensure perfect clutch disc alignment during installation.

 Key Features & Benefits

✔ Twin-disc version rated over 1,000 hp / 1,200 Nm depending on specs

✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking

✔ Improved shifting at high RPM

✔ Long lifespan of friction components → low replacement cost

✔ Plug & Play → No modifications required

✔ Excellent Pedal Feel & Modulation

Depending on the modifications already made, an adjustment may be necessary.
