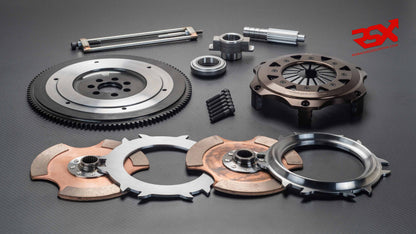

184mm Twin Disc Clutch Kit for Mitsubishi Lancer EVO X

184mm Twin Disc Clutch Kit for Mitsubishi Lancer EVO X

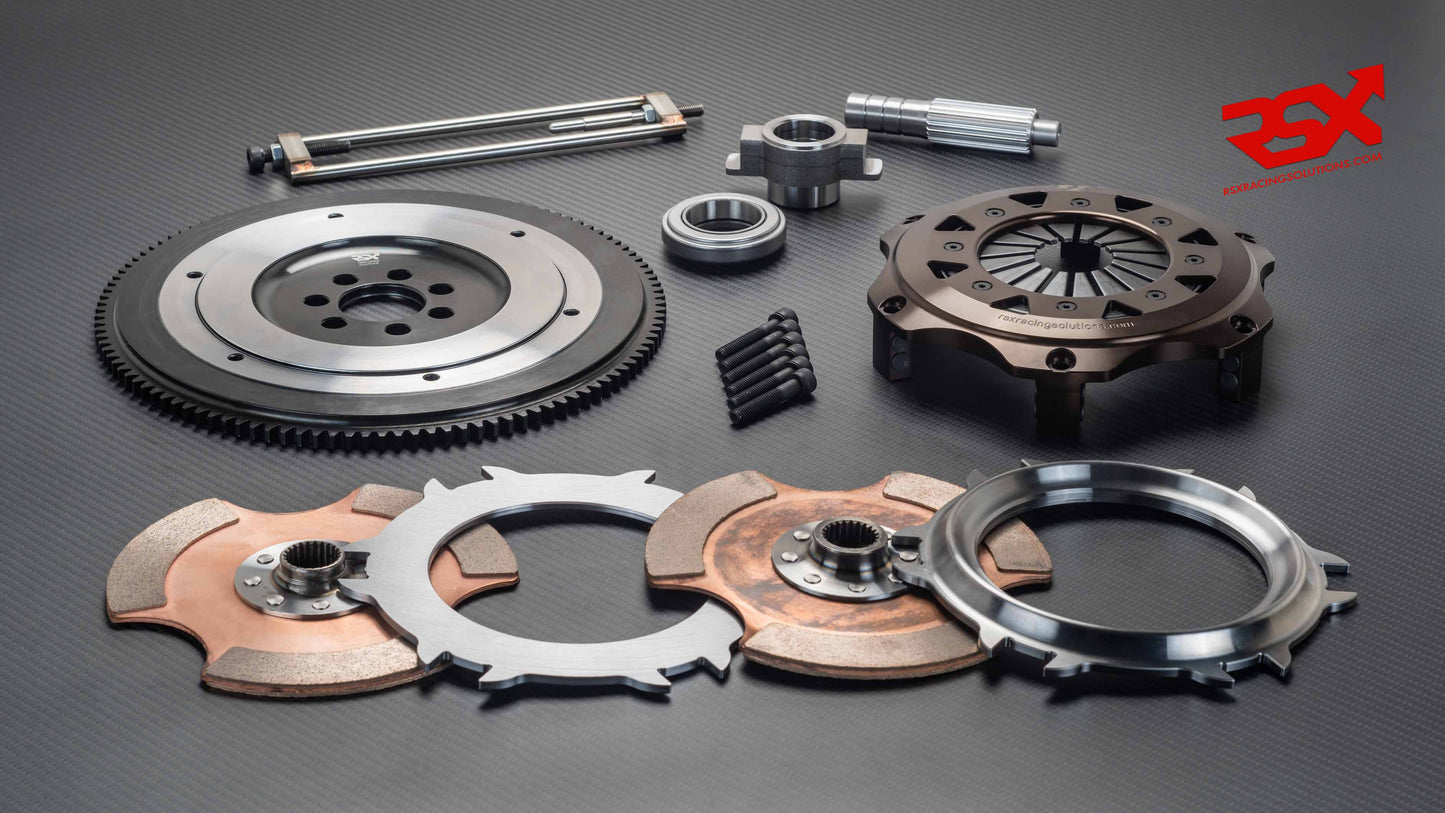

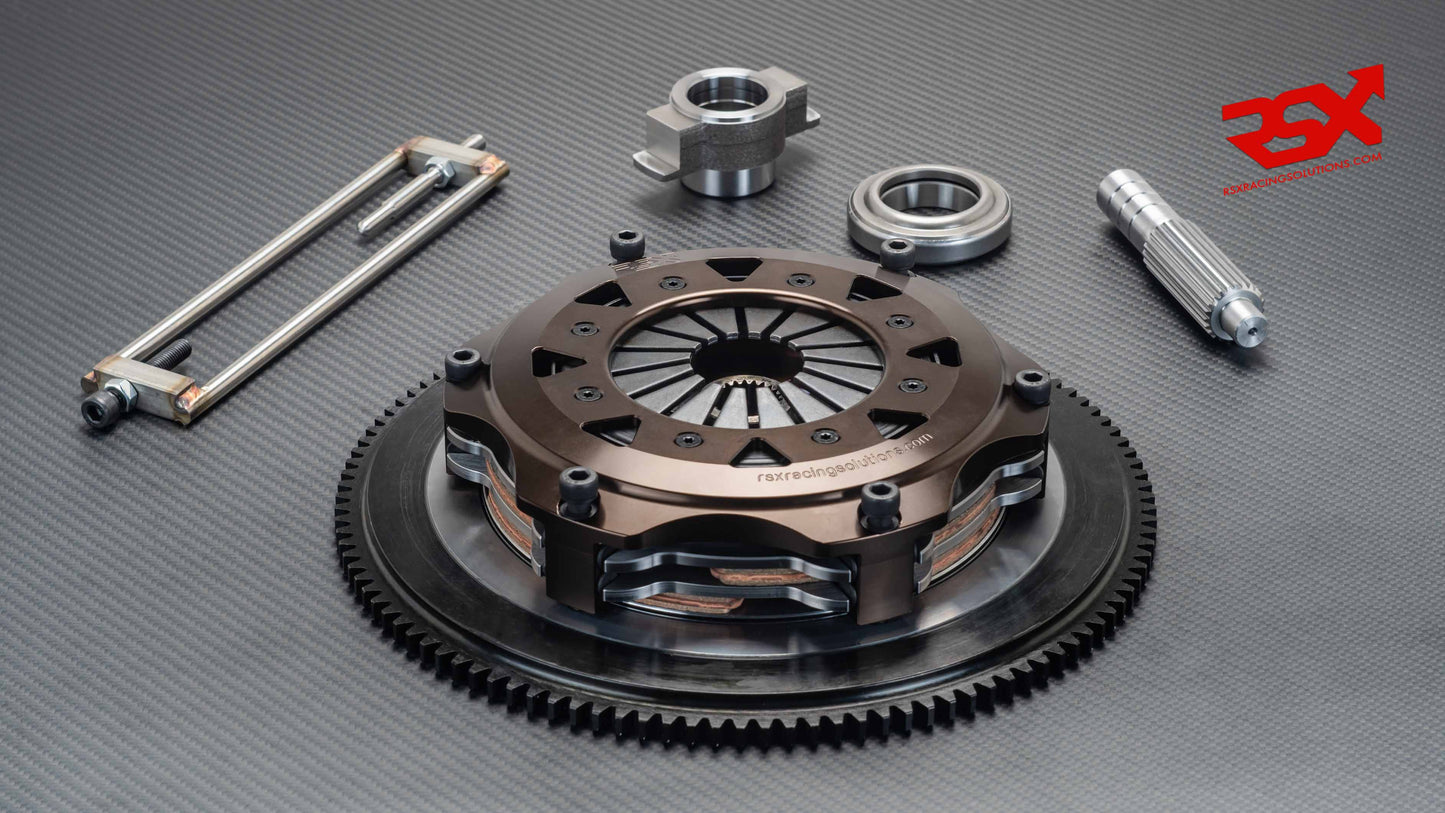

Kit Includes

✔ 184mm / 7.25" Twin-Disc Clutch (ultra-lightweight, only 4.20 kg)

✔ 184mm / 7.25" Lightweight Flywheel (4.3kg)

✔ Clutch release bearing set

✔ Pull to push converter

✔ Clutch disc alignment tool

 Component Features

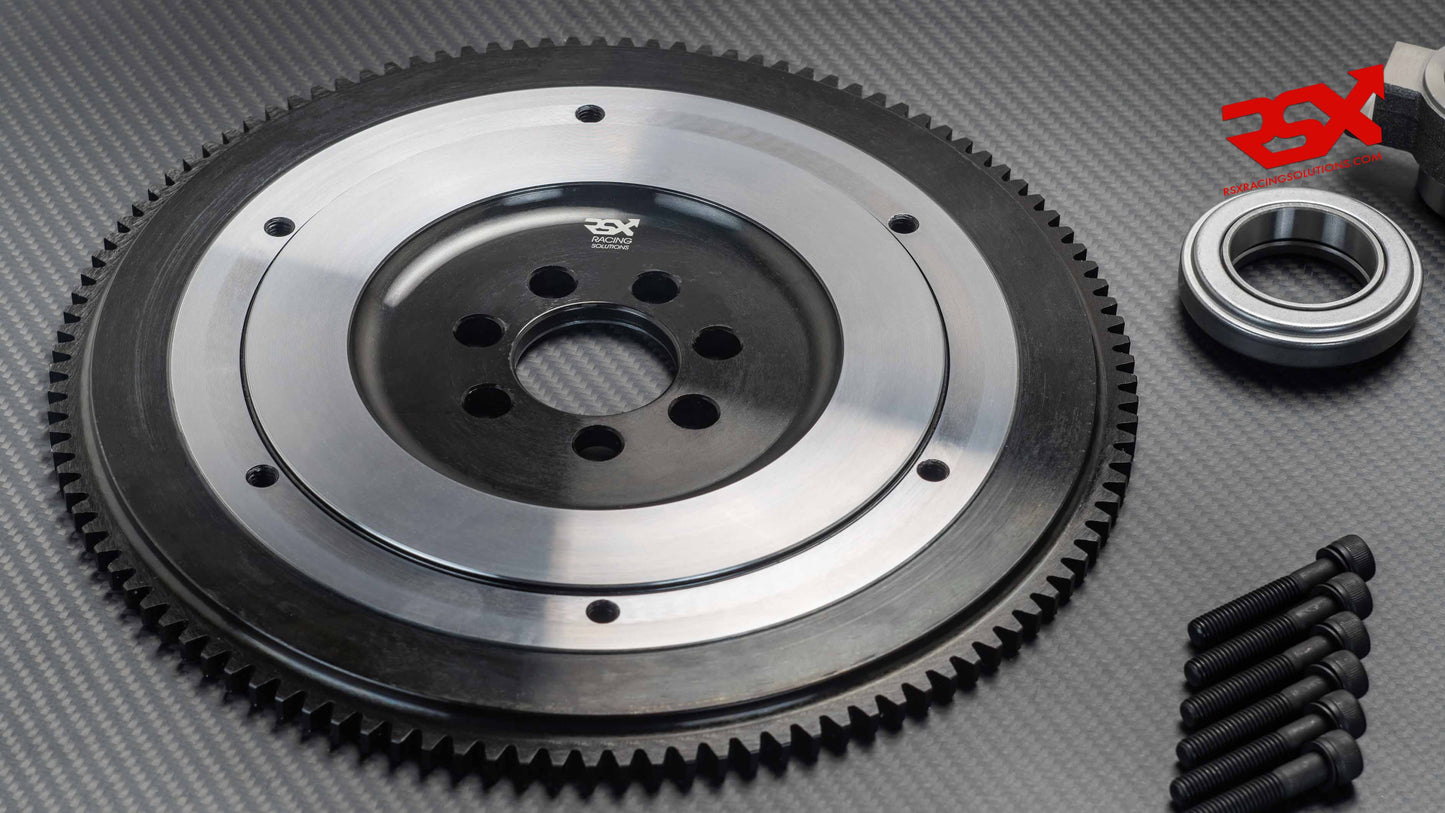

Flywheel

• Weight: only 4.3 kg

• Material: Forged CrMo steel, nitriding heat-treated

• Hardness: HRC 58–62 → over twice as hard as standard flywheels
  → Prevents wear on starter ring gear in high-compression engines

• Longevity: High surface hardness = extended service life & reliability

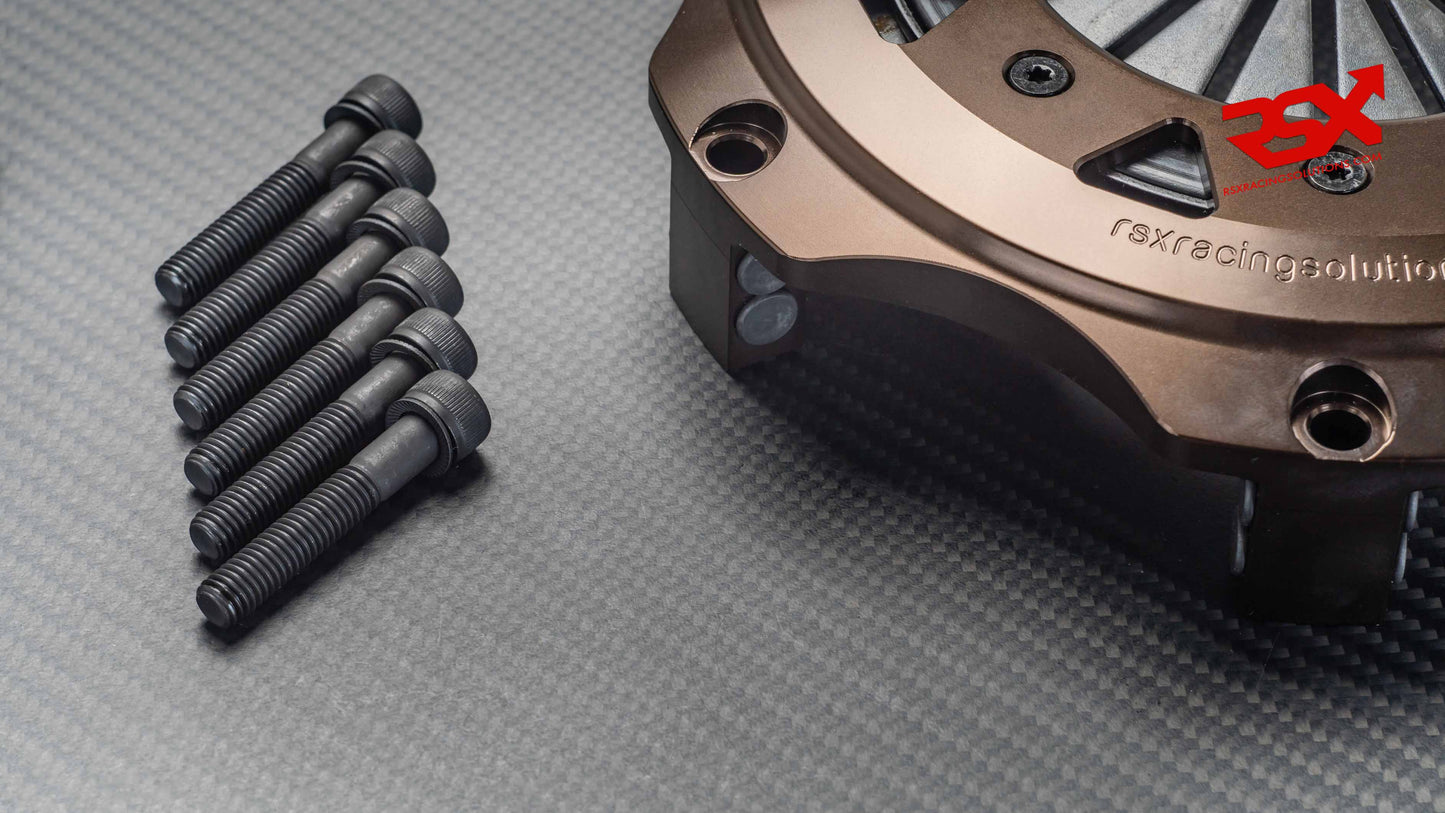

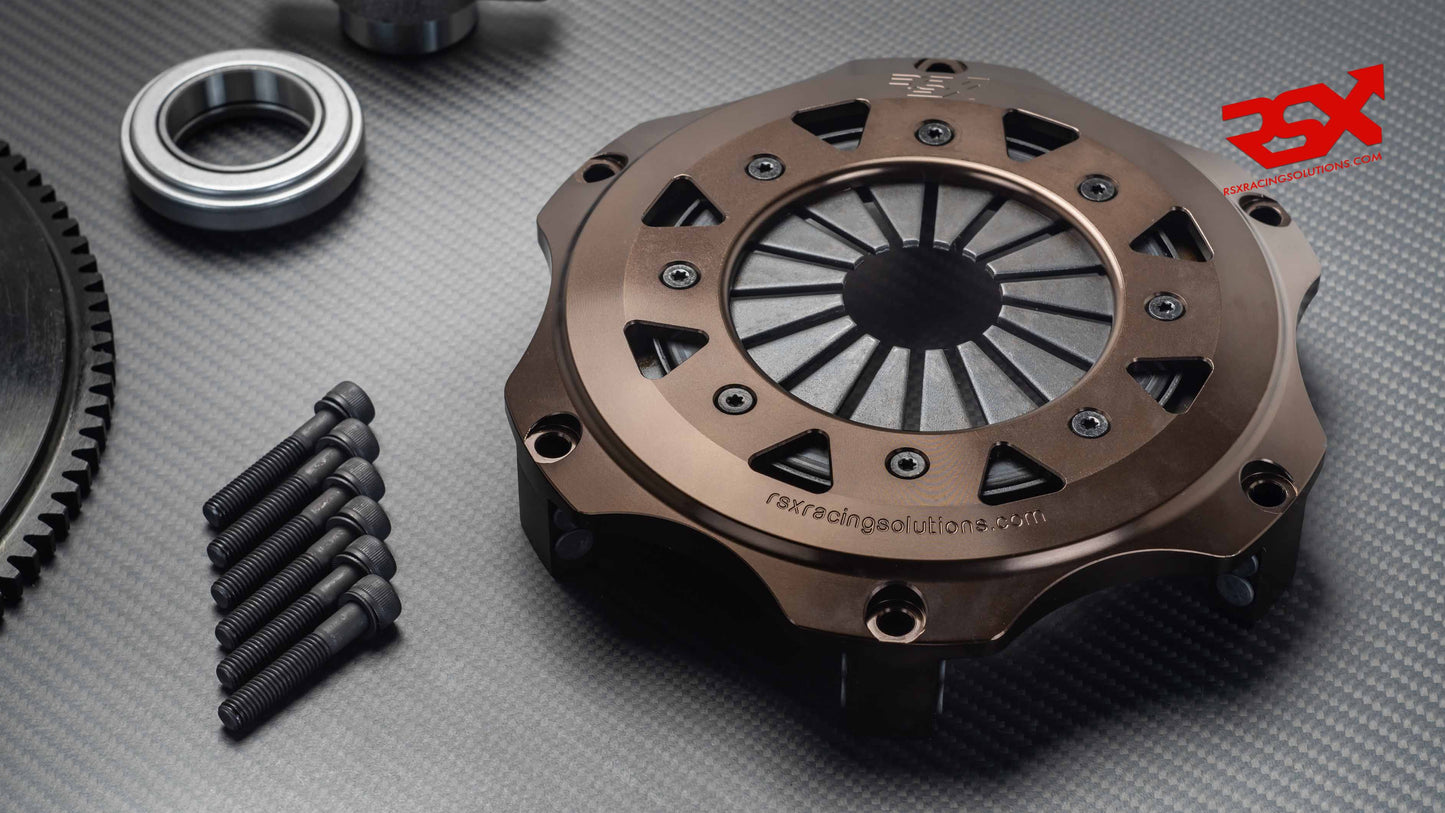

Clutch Cover

• Material: Forged 6061-T6 aluminum, hard anodized

• Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and durable surface for the clutch cover legs, pressure, and floater plates.

Top/Pressure & Floating Plates

• Material: Forged chromoly steel, cryogenically treated (in some applications)

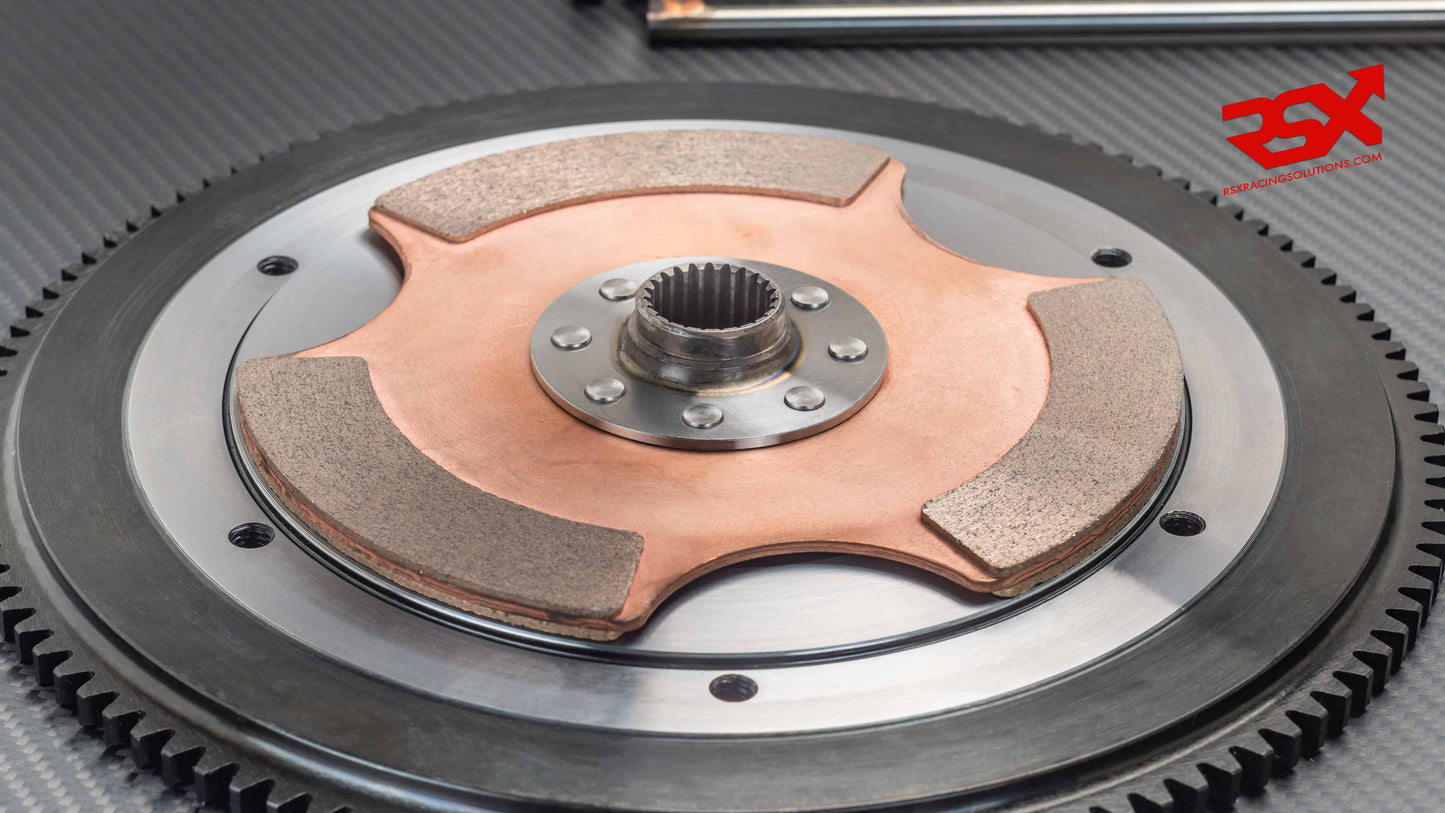

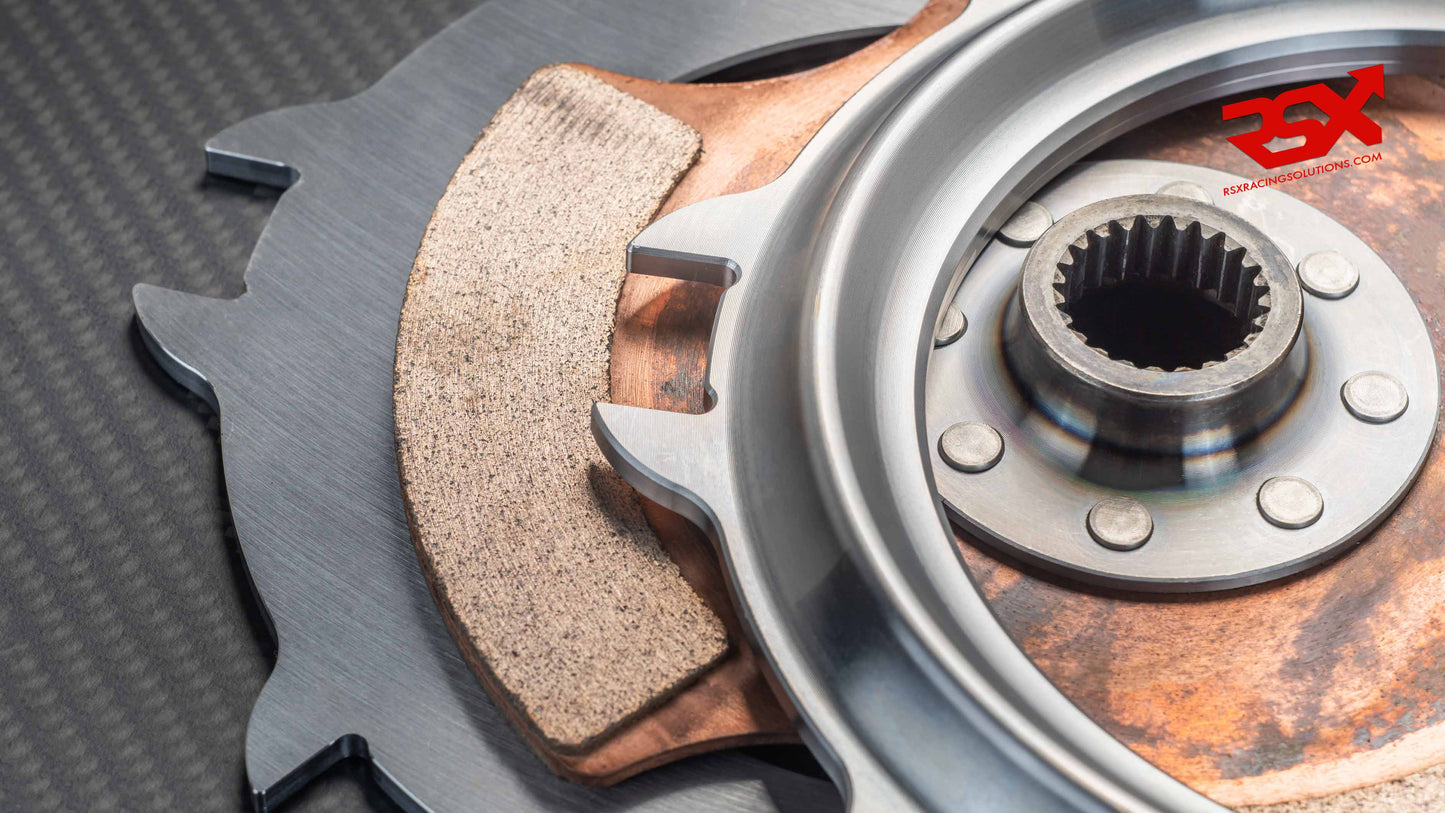

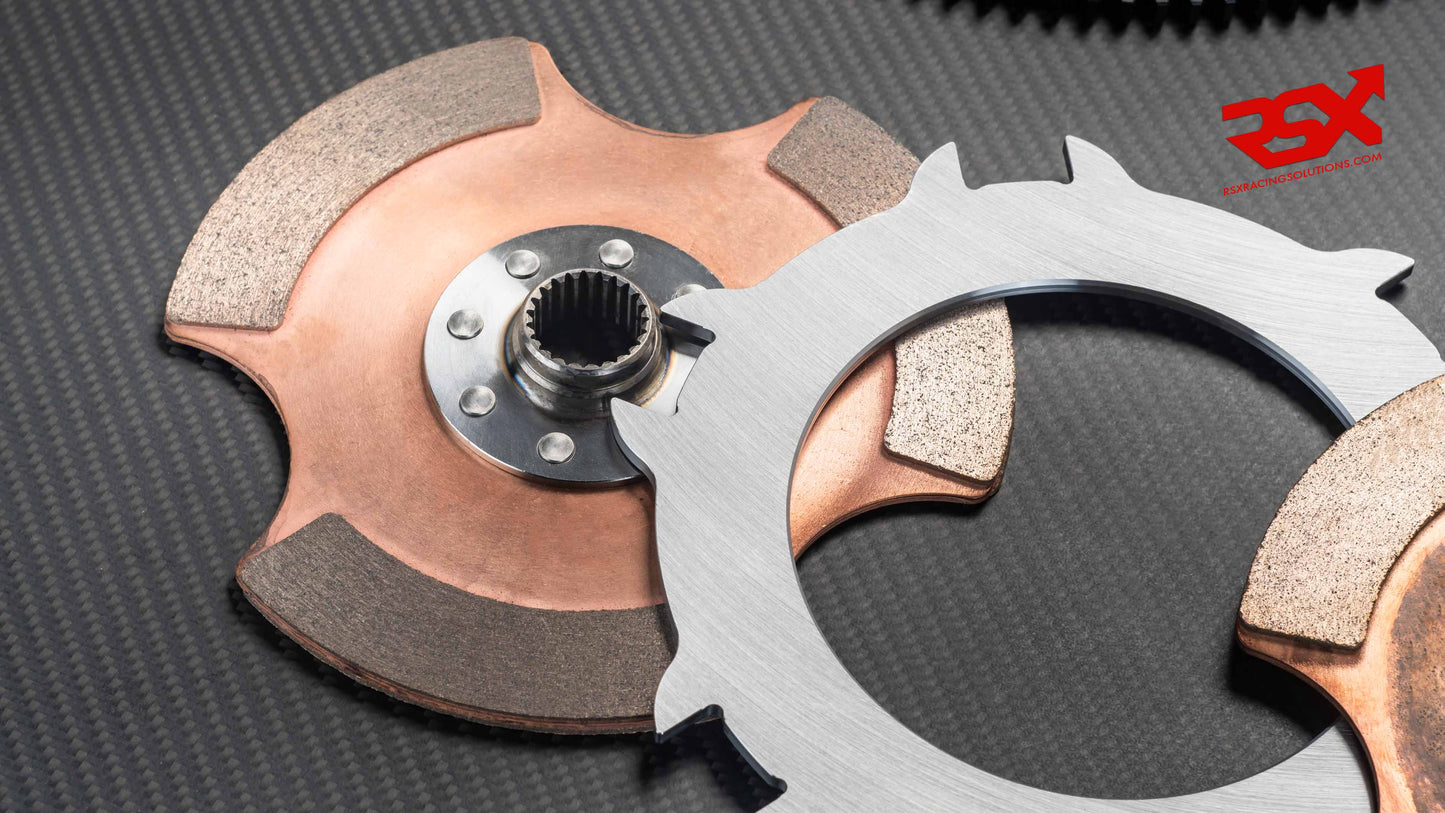

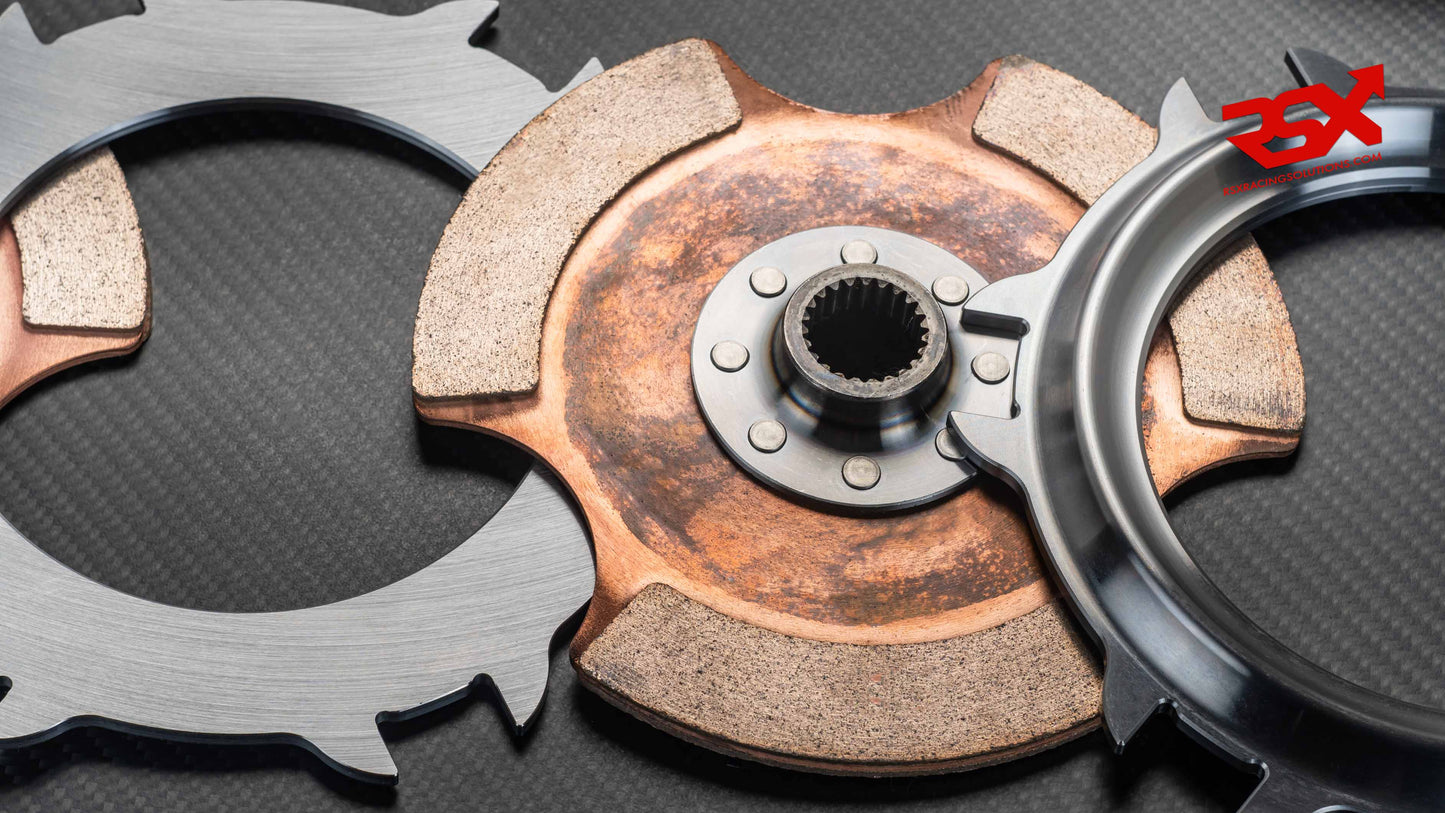

Sintered Clutch Discs — Ø184 mm (7.25")

• Material: Proprietary blend of sintered metal compounds, engineered with precise manufacturing tolerances
• Standard version design: Three large friction pads for optimal engagement and reliability.
• Hub: Machined from forged chromoly steel and induction hardened for maximum strength and wear resistance
• Customization: Available on request (e.g. custom spline)

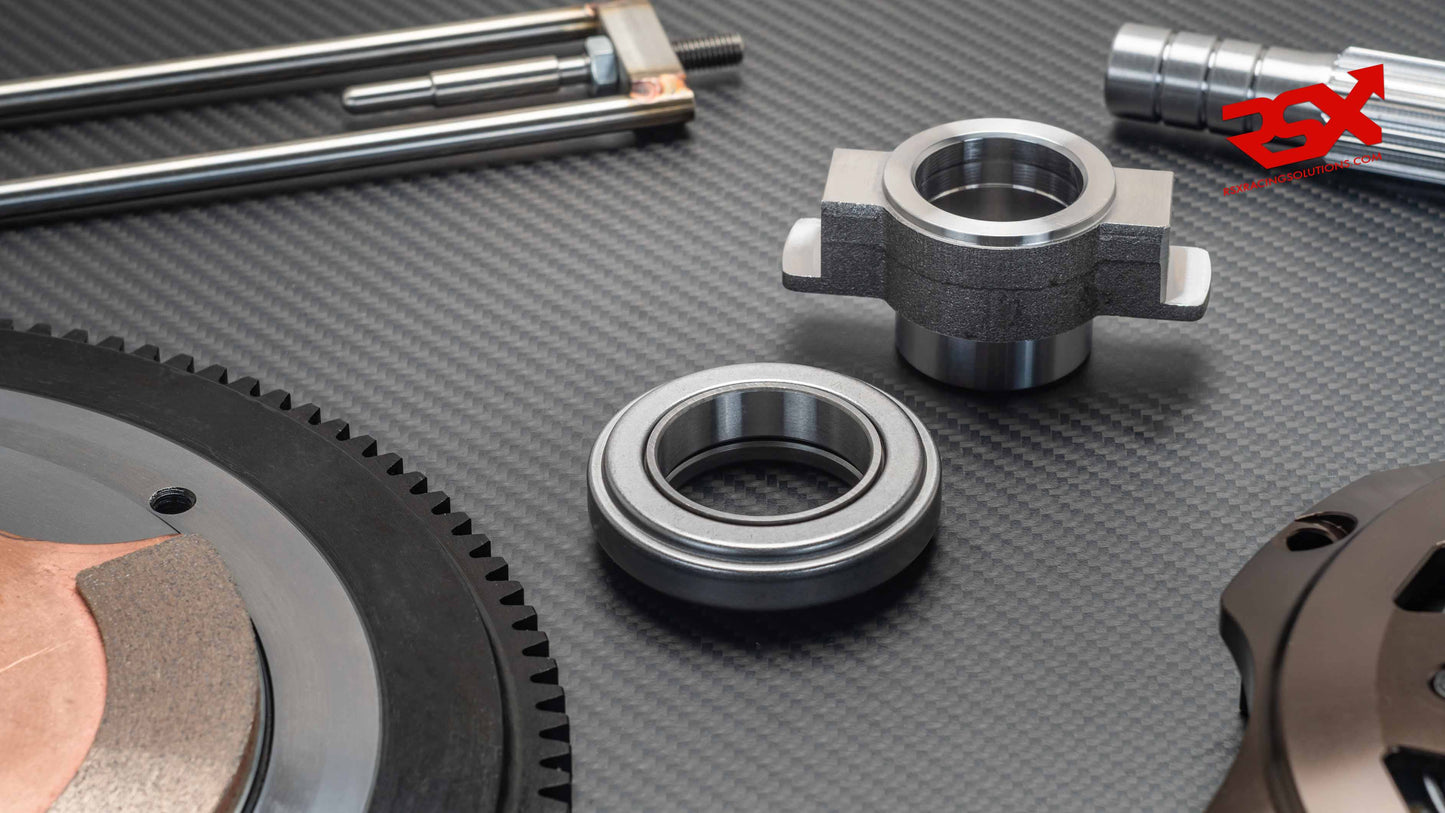

Clutch release bearing + specific aluminum support

• Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
• Specific support

Clutch alignment tool:

• Designed to match the exact geometry of your transmission input shaft and pilot bearing to ensure perfect clutch disc alignment during installation.

 Key Features & Benefits

✔ Twin-disc version rated over 1,000 hp / 1,200 Nm depending on specs

✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking

✔ Improved shifting at high RPM

✔ Long lifespan of friction components → low replacement cost

✔ Plug & Play → No modifications required

✔ Excellent Pedal Feel & Modulation

If you need additional information, customization options, or help choosing the best configuration, let us know!
