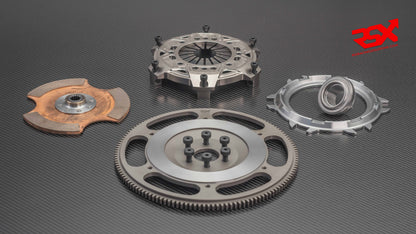

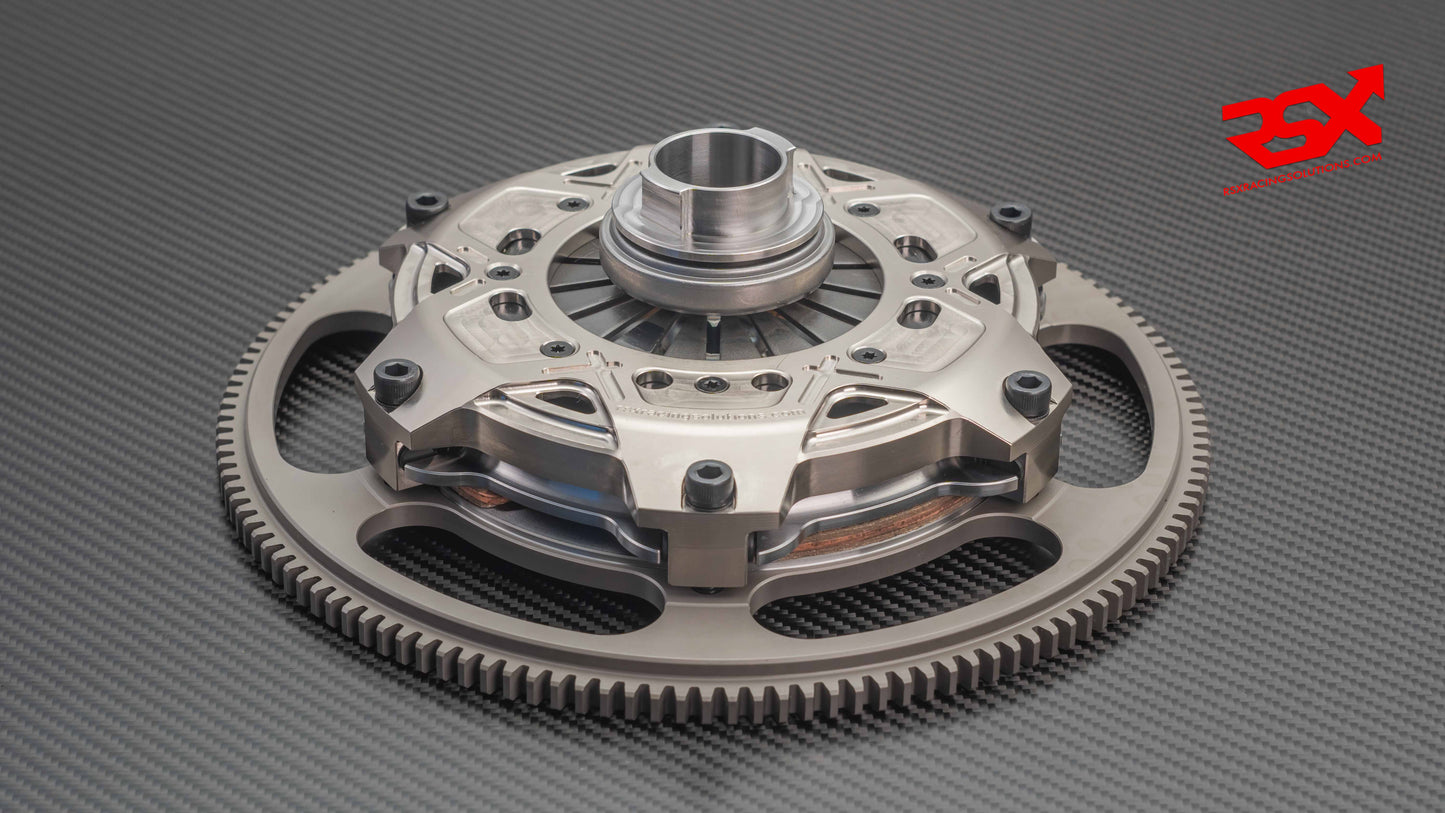

184mm (7.25") Single-Plate Clutch Kit & Flywheel for Opel Corsa A GSI / Vauxhall Nova GSI

Applications

This clutch kit with flywheel is designed for the Opel Corsa A GSI 1.6L 8v and Vauxhall Nova GSI 1.6L 8v, with the following engine codes:

• E16SE (1988-1992)
• C16SEI (1989-1992)
• C16SE (1992-1993)

Additionally, it may also be compatible with other Opel engines, including:

• C16XE (1.6L 16v) – Found in the Corsa B GSI.
• X16XE (1.6L 16v) – Found in the Corsa B GSI and Tigra A.
• C16SEL (1.6L 16v) – Found in the Astra C.

If your vehicle is equipped with any of the compatible engines listed above, feel free to contact us—we’ll be happy to assist you in verifying the measurements and fitment.

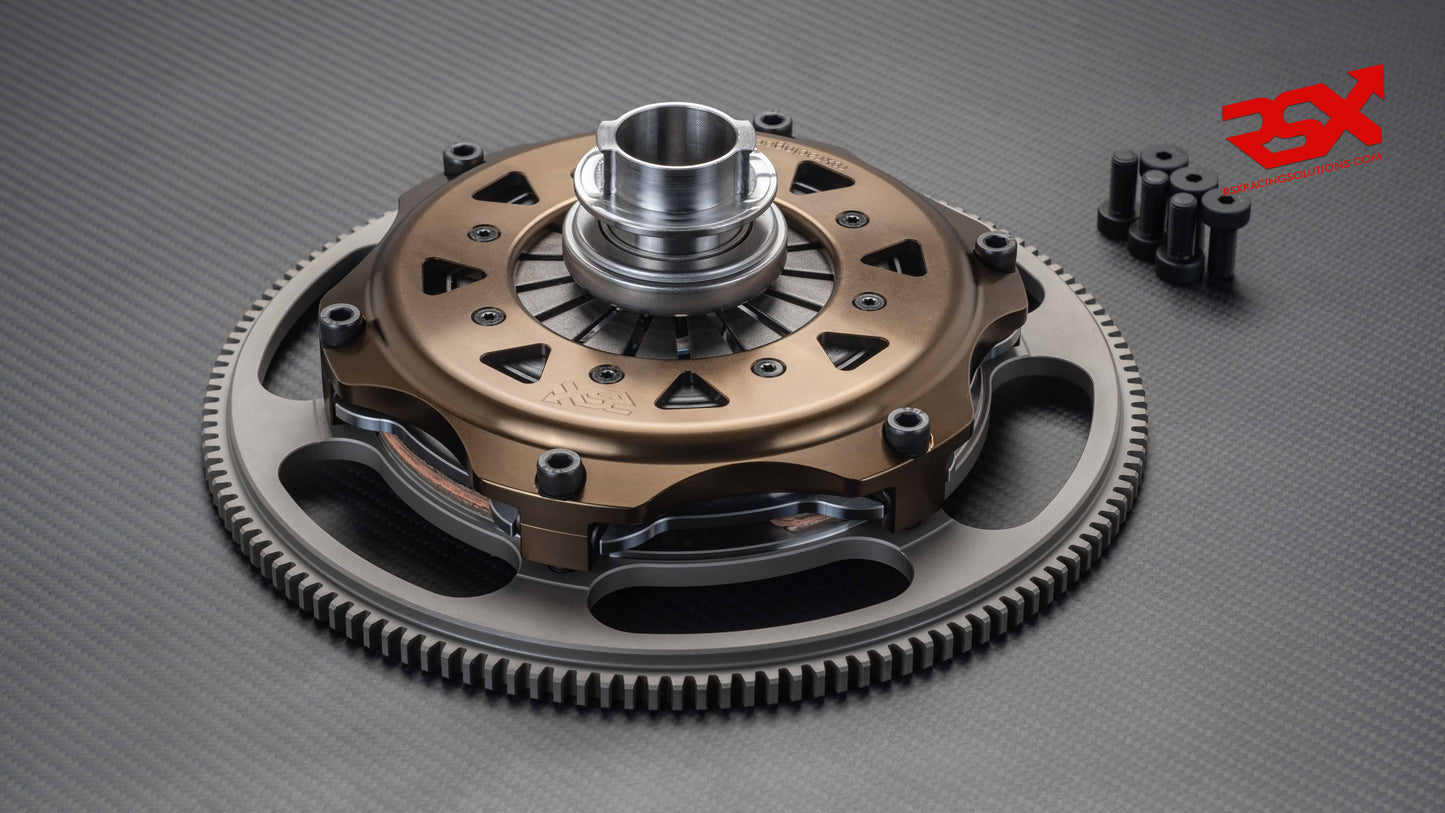

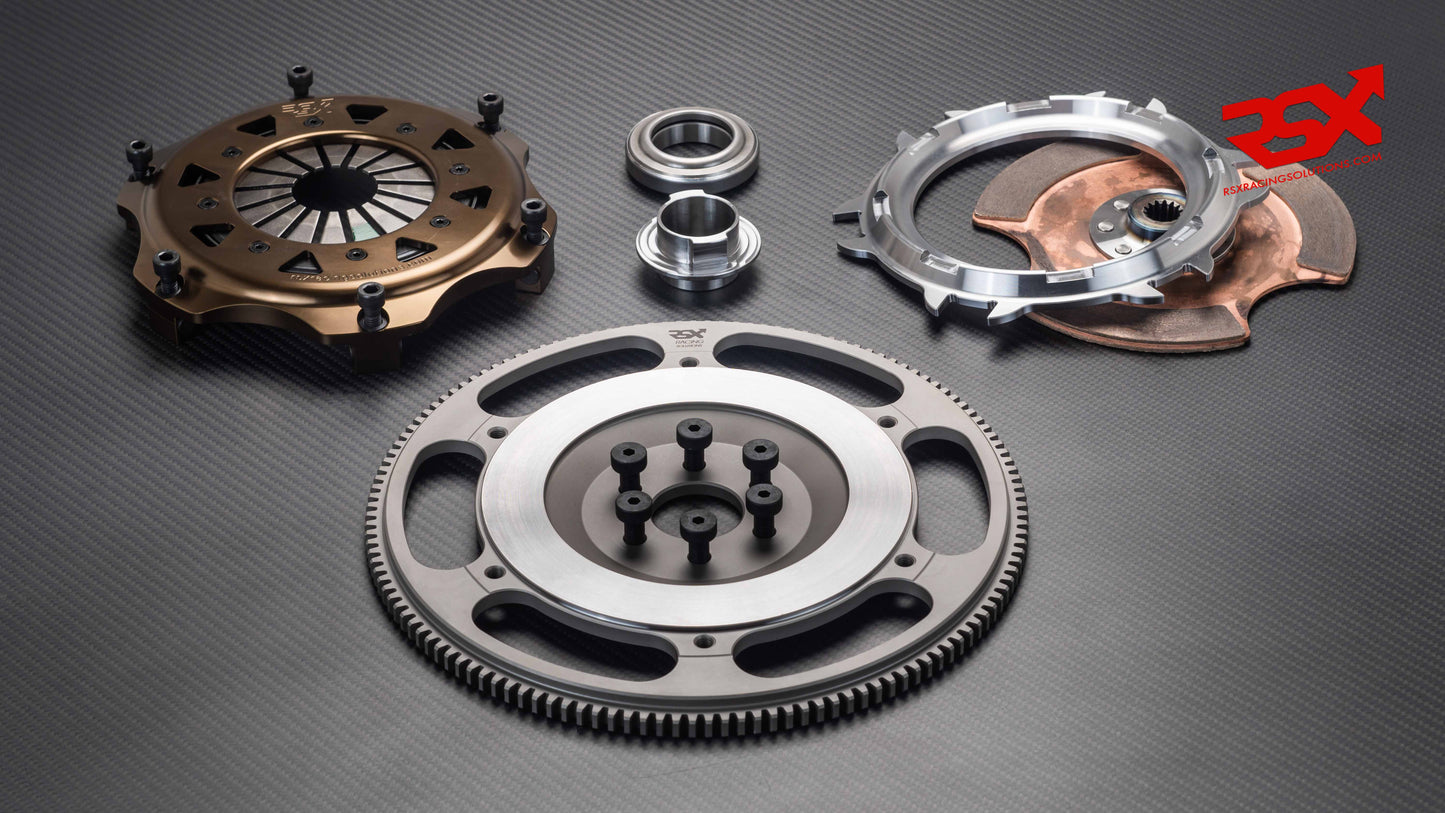

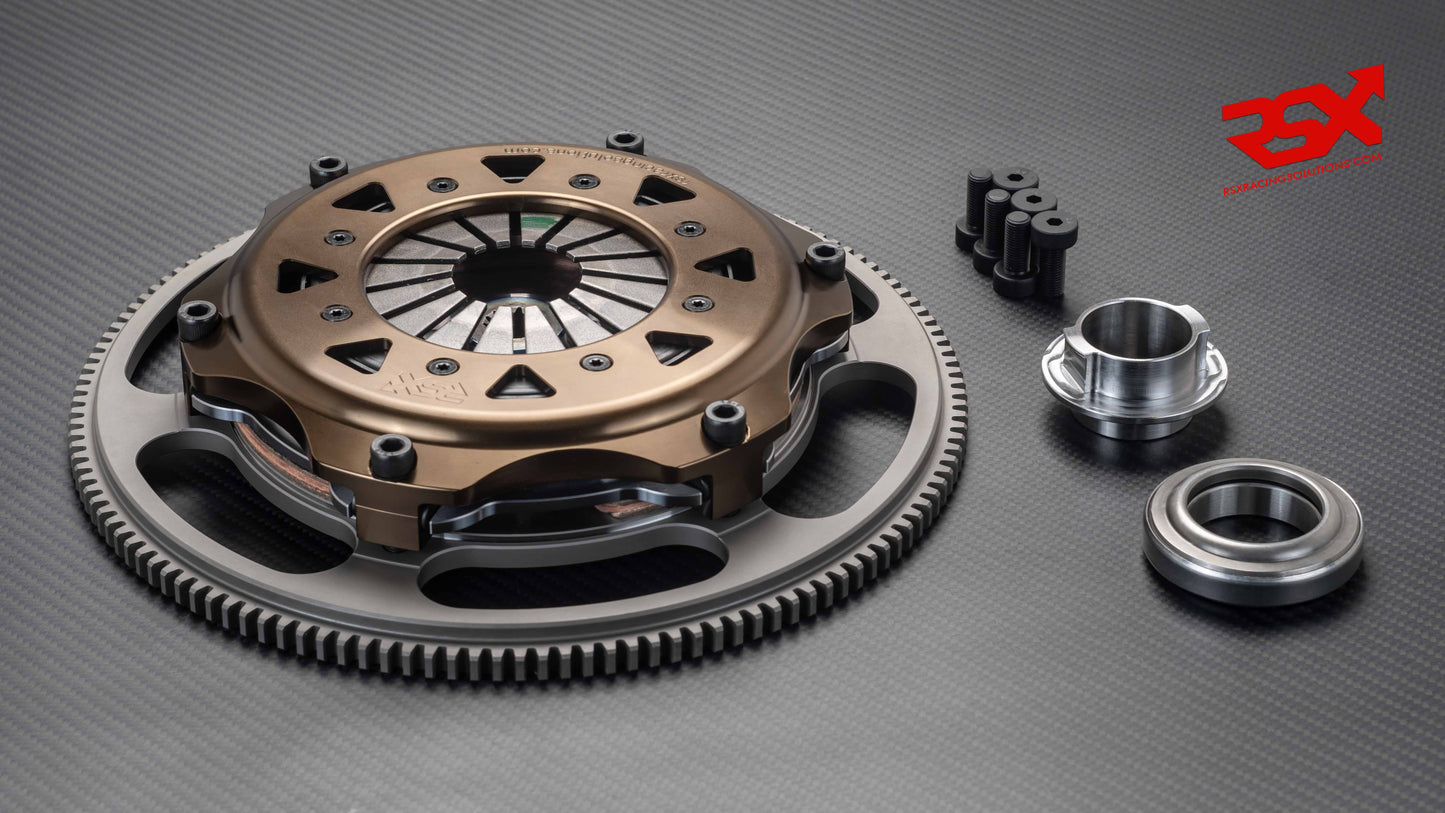

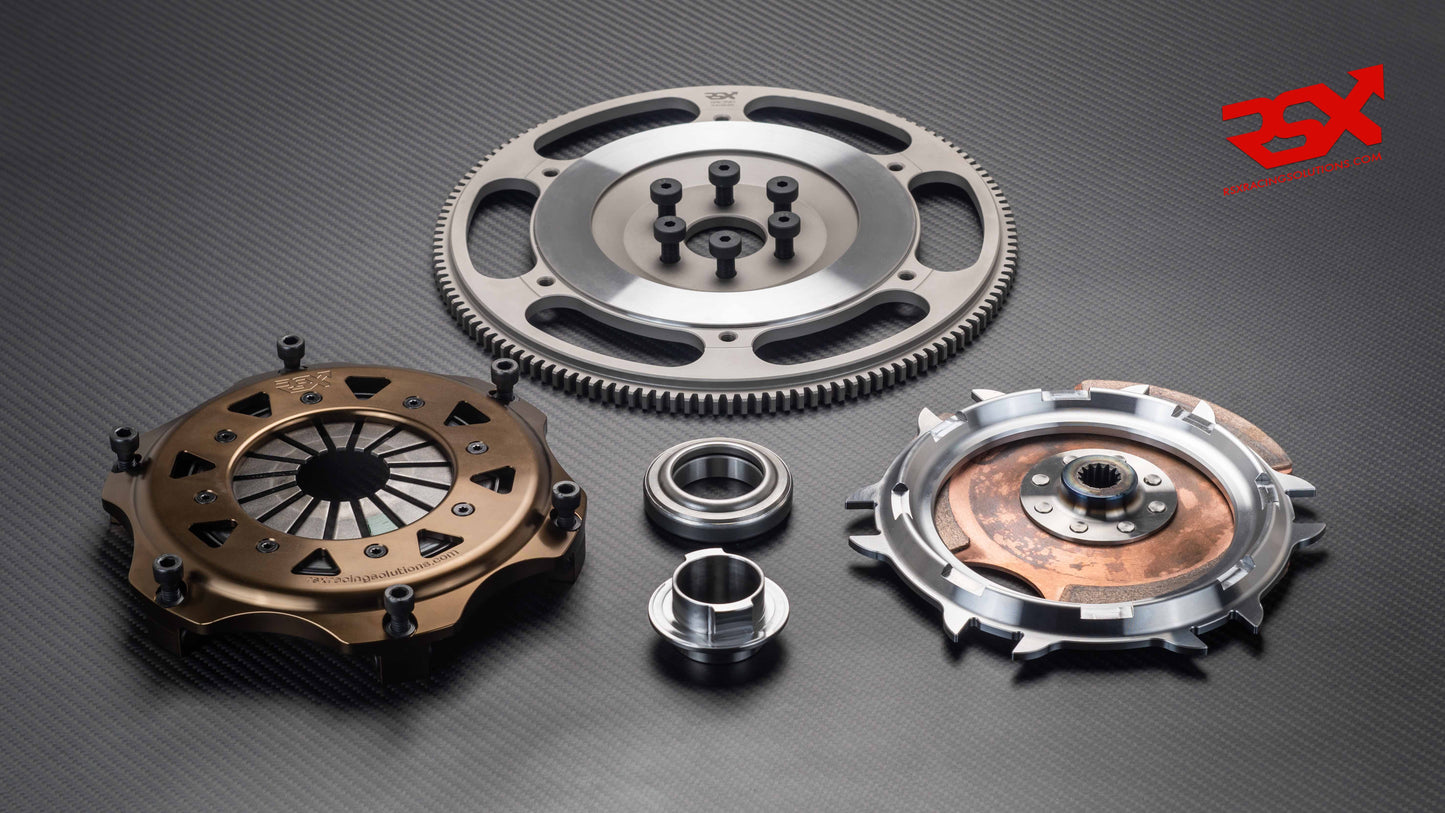

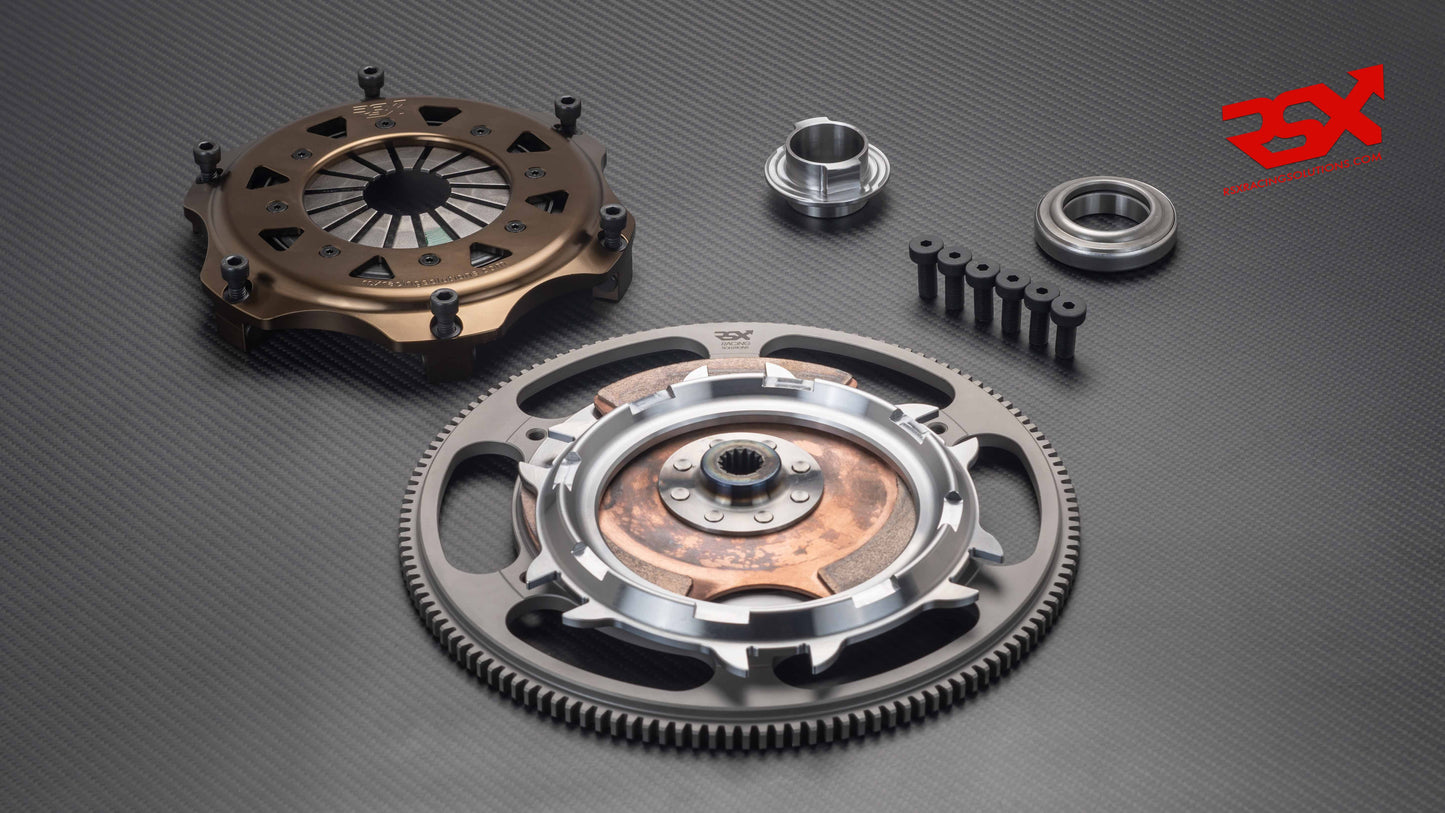

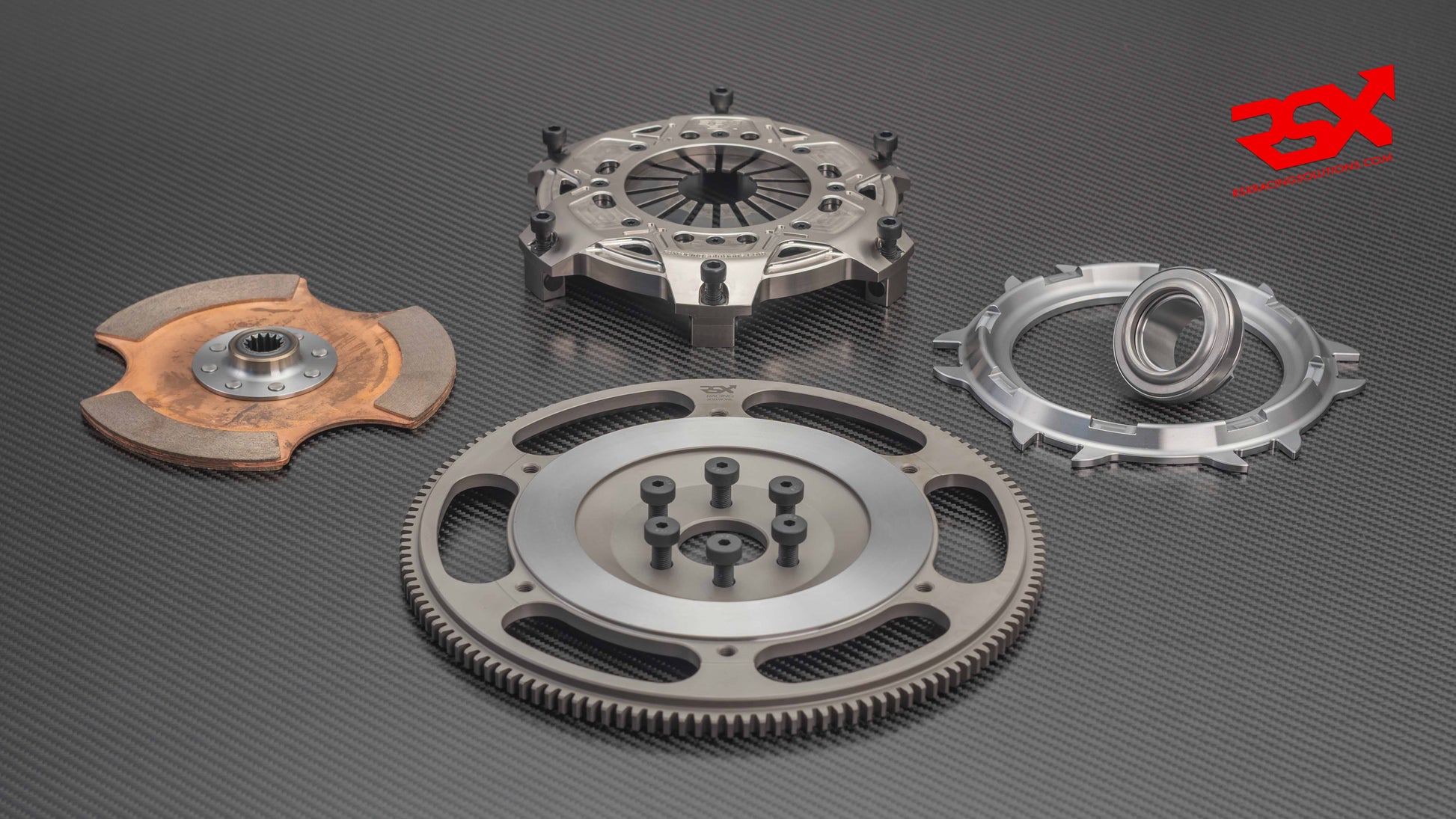

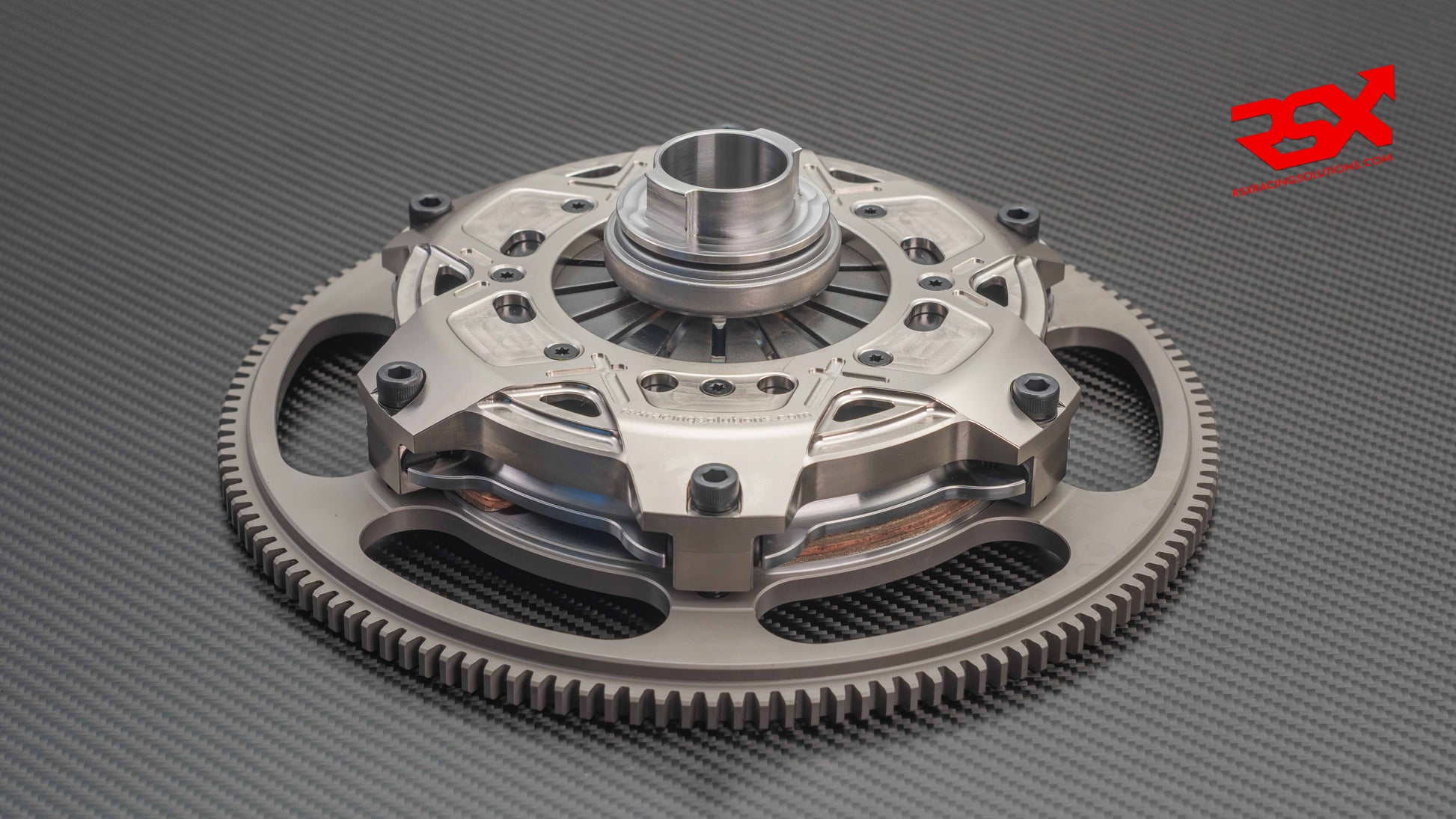

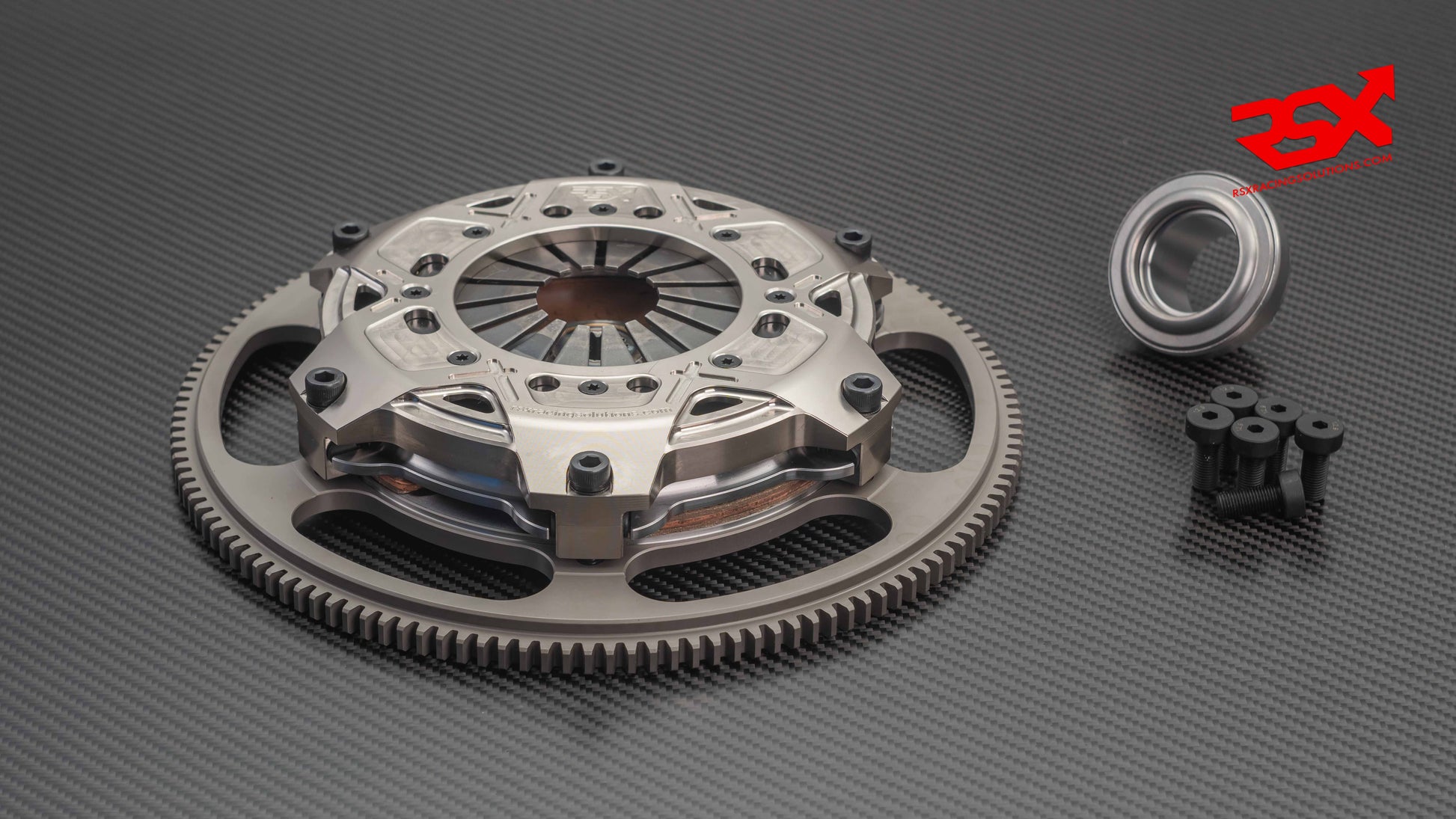

Kit Includes

✔ 184mm / 7.25" Single-Disc Clutch Kit (lightweight, only 2.85 kg)
✔ 184mm / 7.25" Lightweight Flywheel (2.90 kg)

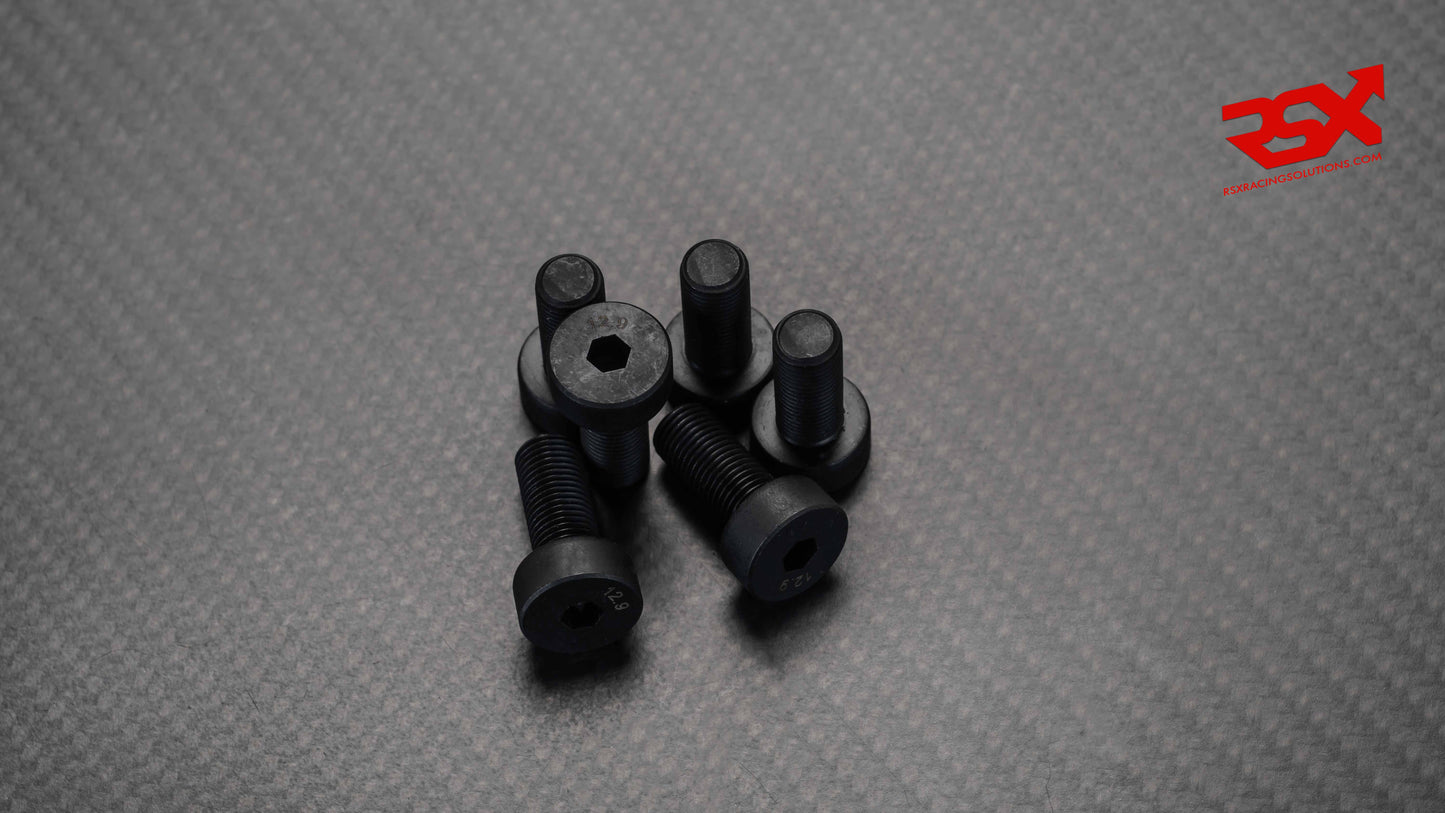

✔ Crankshaft-Flywheel 12.9 bolts M9x1.00-21mm (set of 6 pcs)

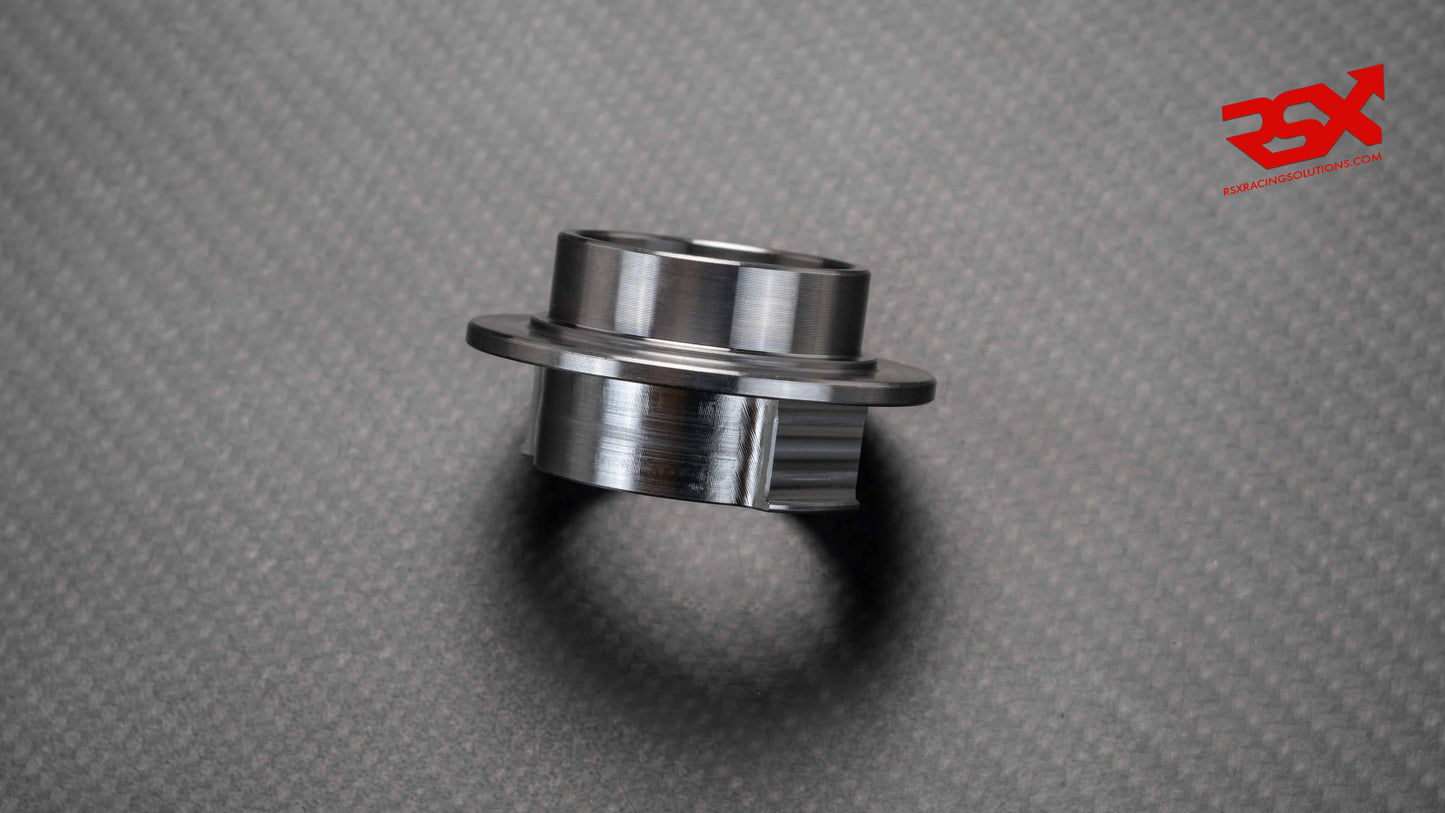

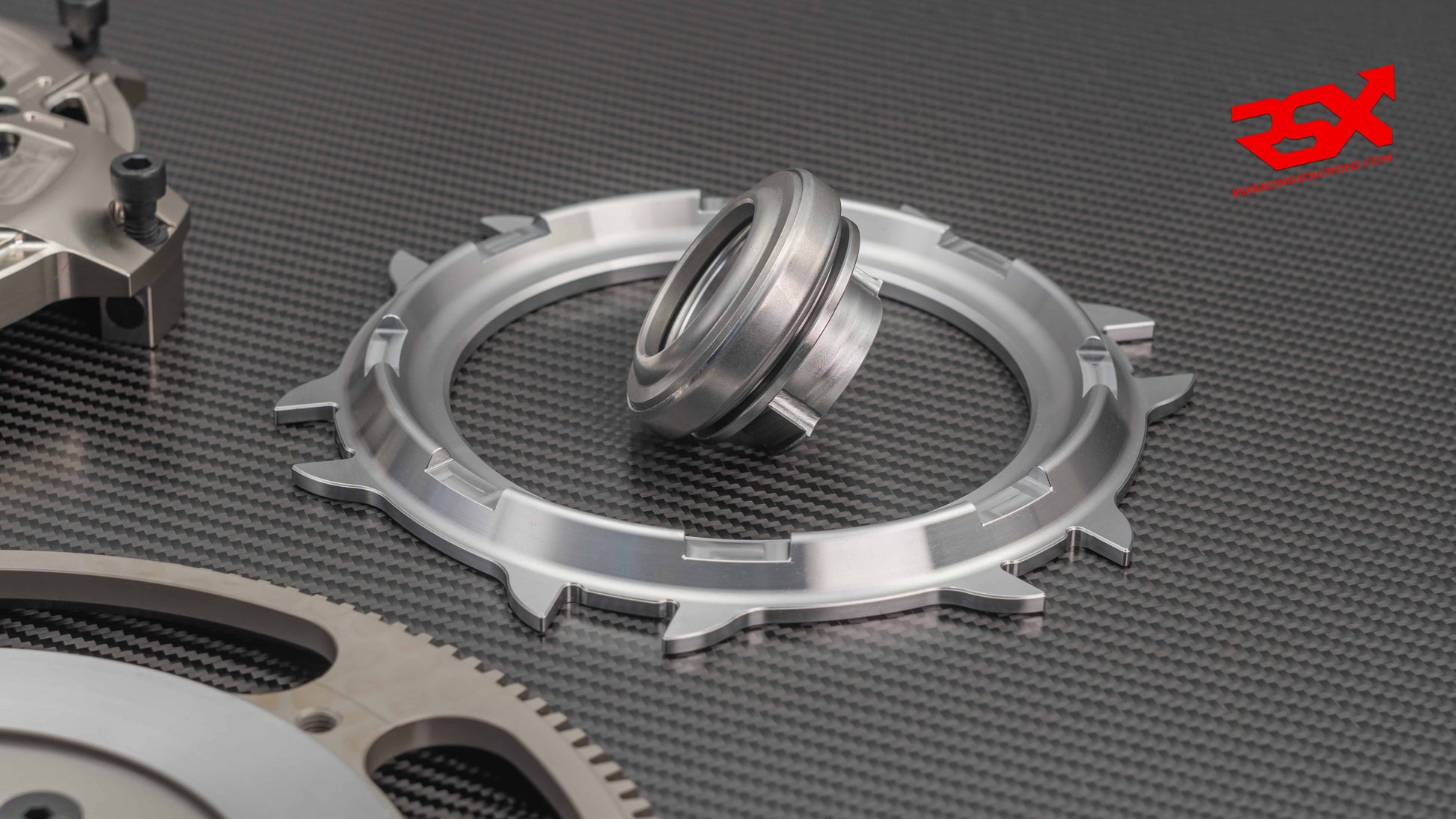

✔ Specific clutch release bearing set (metal racing bearing and support)

Clutch Kit – Component Features & Specifications

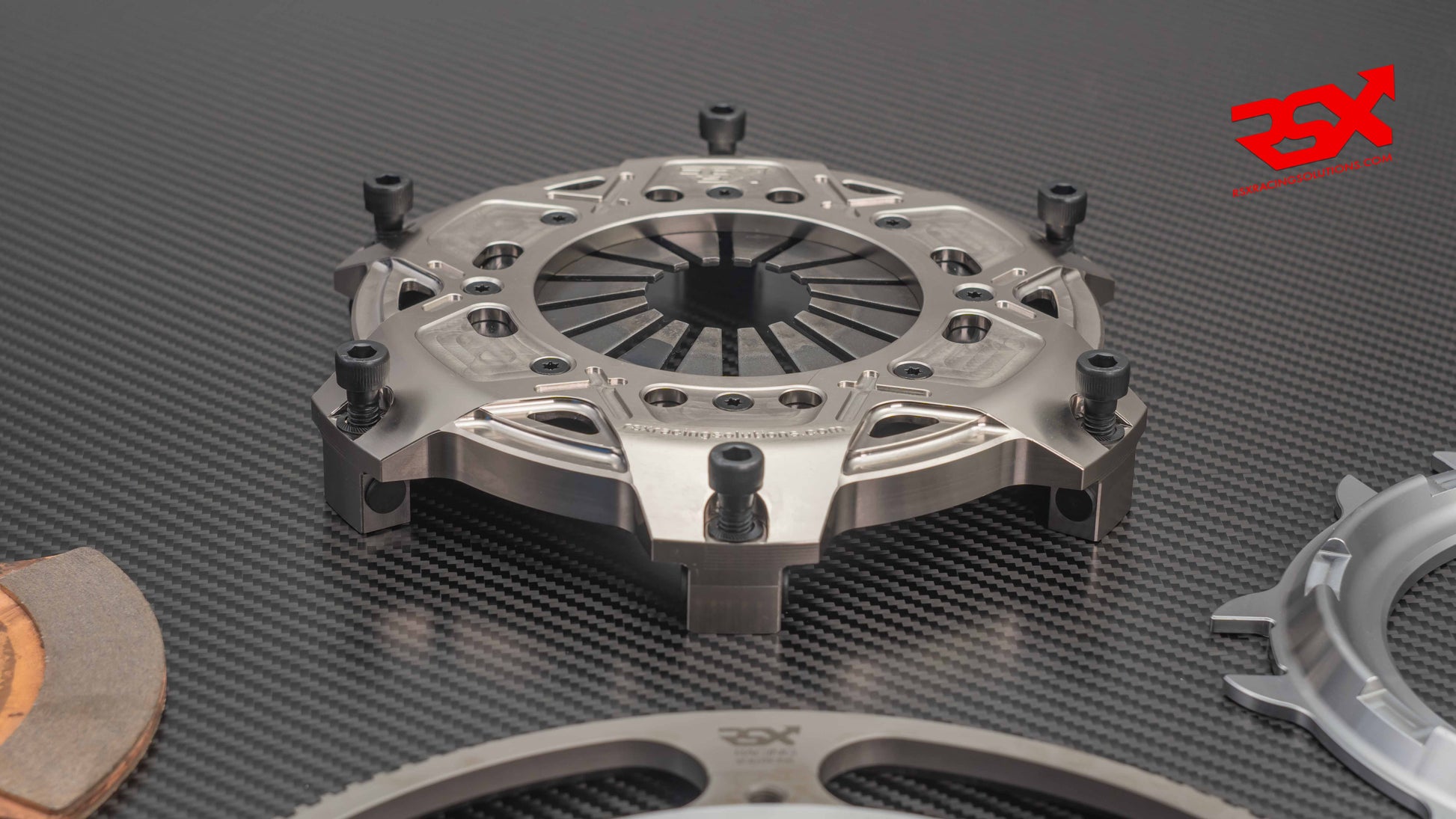

Single-Plate 184mm (7.25") Clutch Cover

✅ Material: Forged 6061-T6 aluminum with electroless plating coating for:
✔ Enhanced hardness & wear resistance
✔ Improved corrosion resistance

✅ Clutch cover legs equipped with metal rivets for increased durability.

✅ Chromium-vanadium alloy steel diaphragm with special heat treatment, offering:
✔ Superior strength & elasticity
✔ High heat resistance & excellent wear durability

Top/Pressure Plate

✅ Material: Forged chromoly steel, ensuring maximum performance & longevity.
✅ Cryogenic treatment for increased strength & durability under high loads.

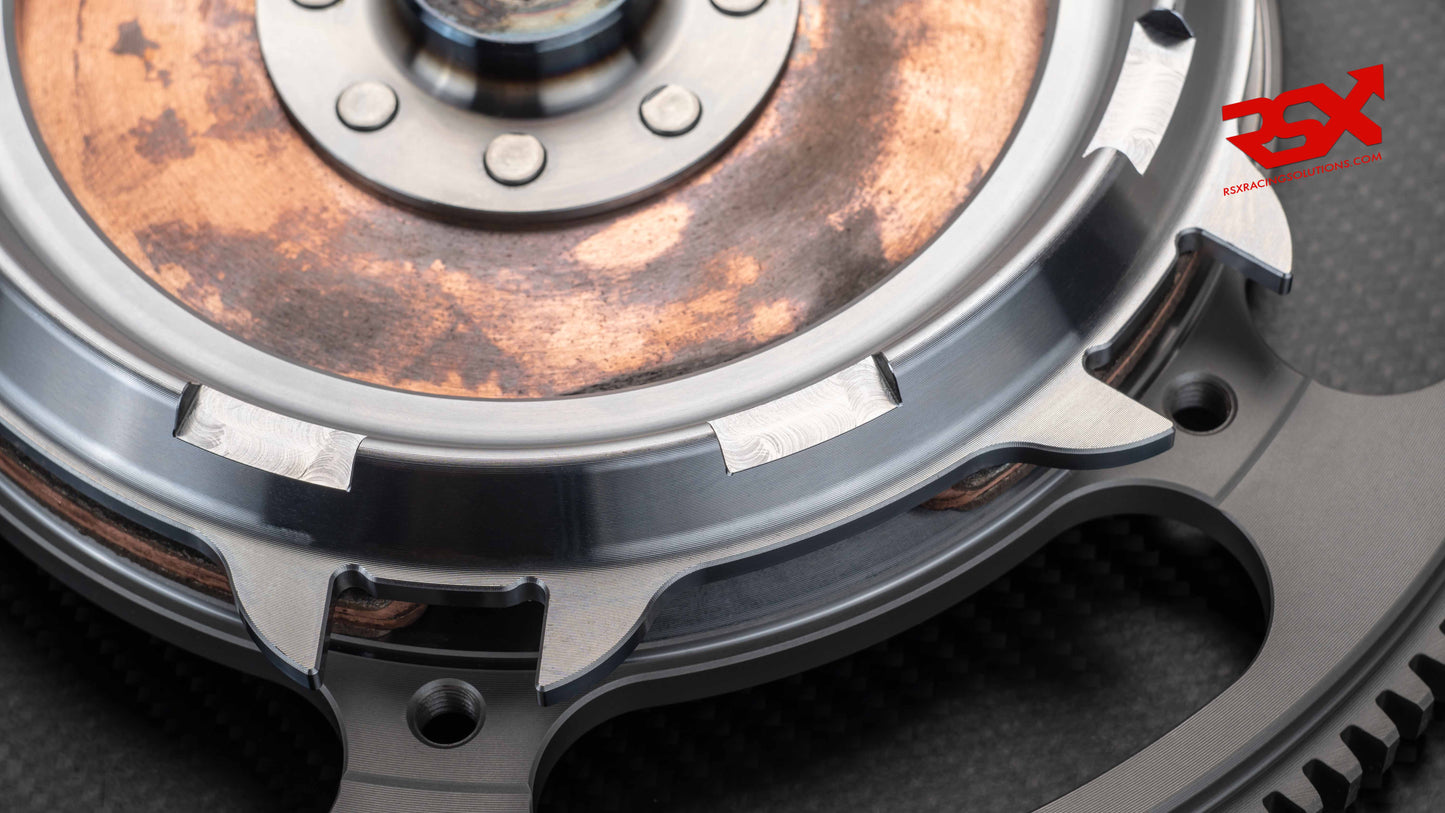

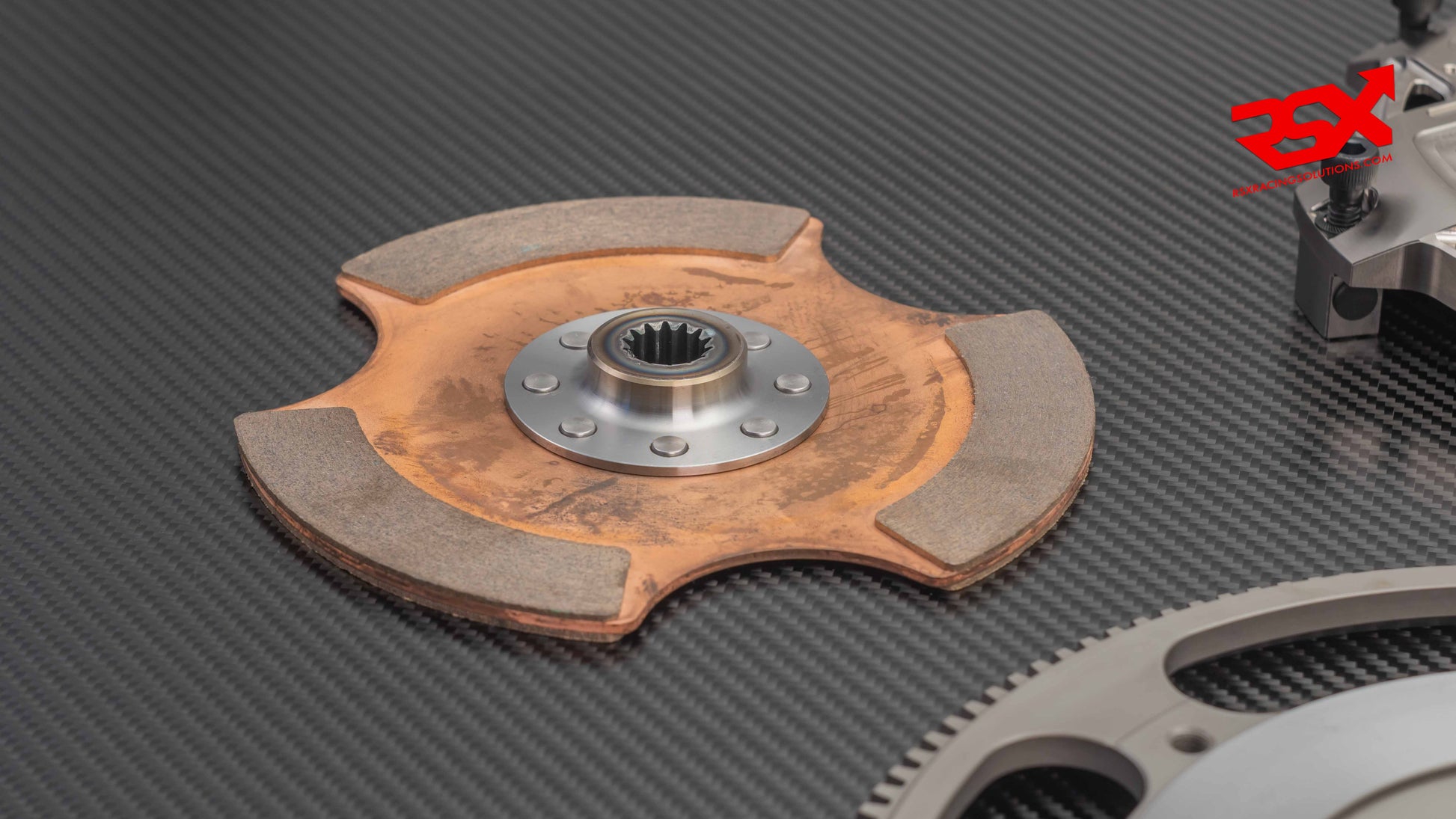

Clutch Disc

✅ Sintered friction material with our proprietary blend of sintered metal compounds.
✅ Optimized for:
✔ Exceptional durability & heat resistance
✔ High torque capacity

✅ Forged chromoly steel hubs with induction hardening and 19.6mm x 14T spline. (Custom spline options available upon request.)

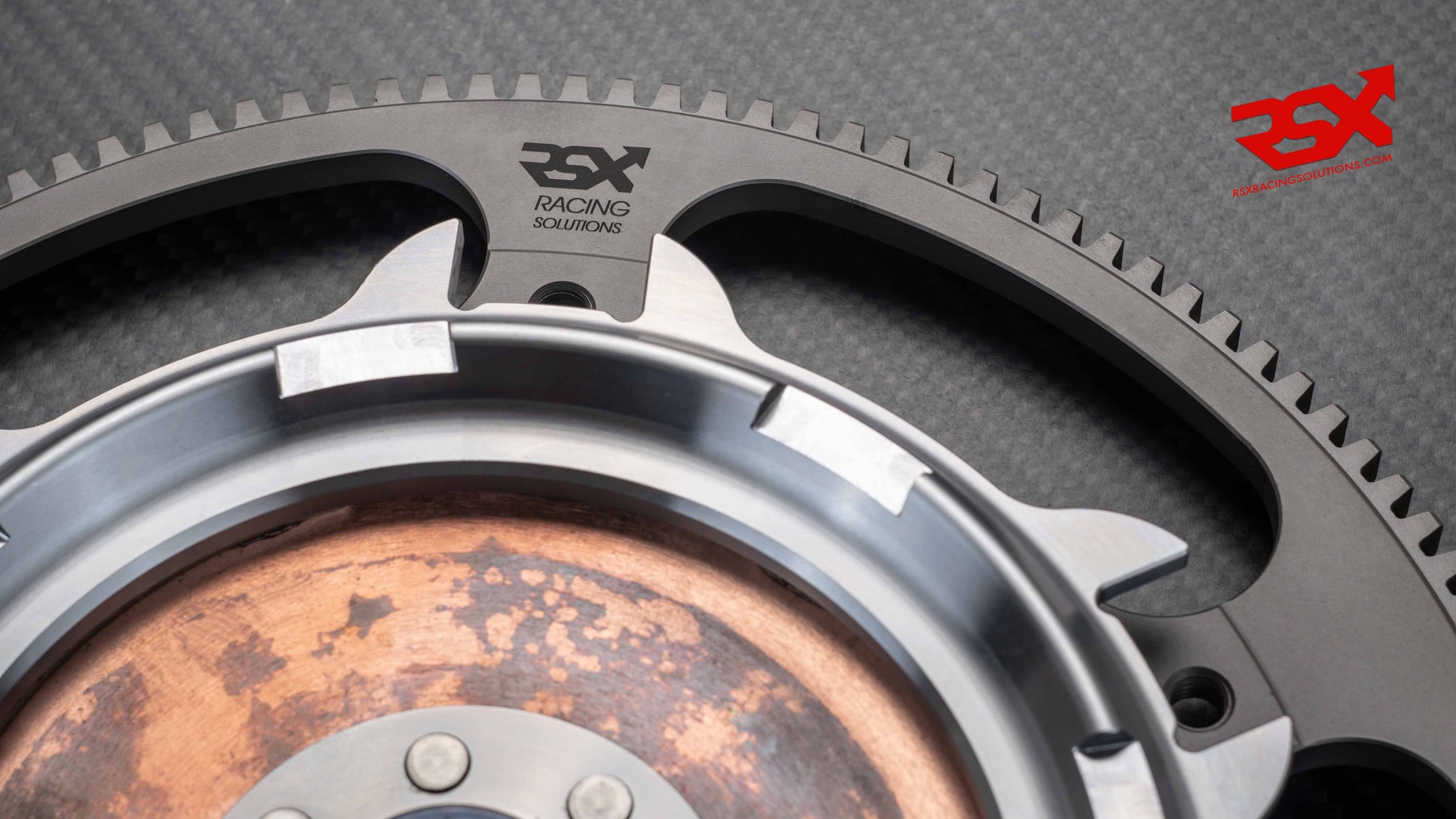

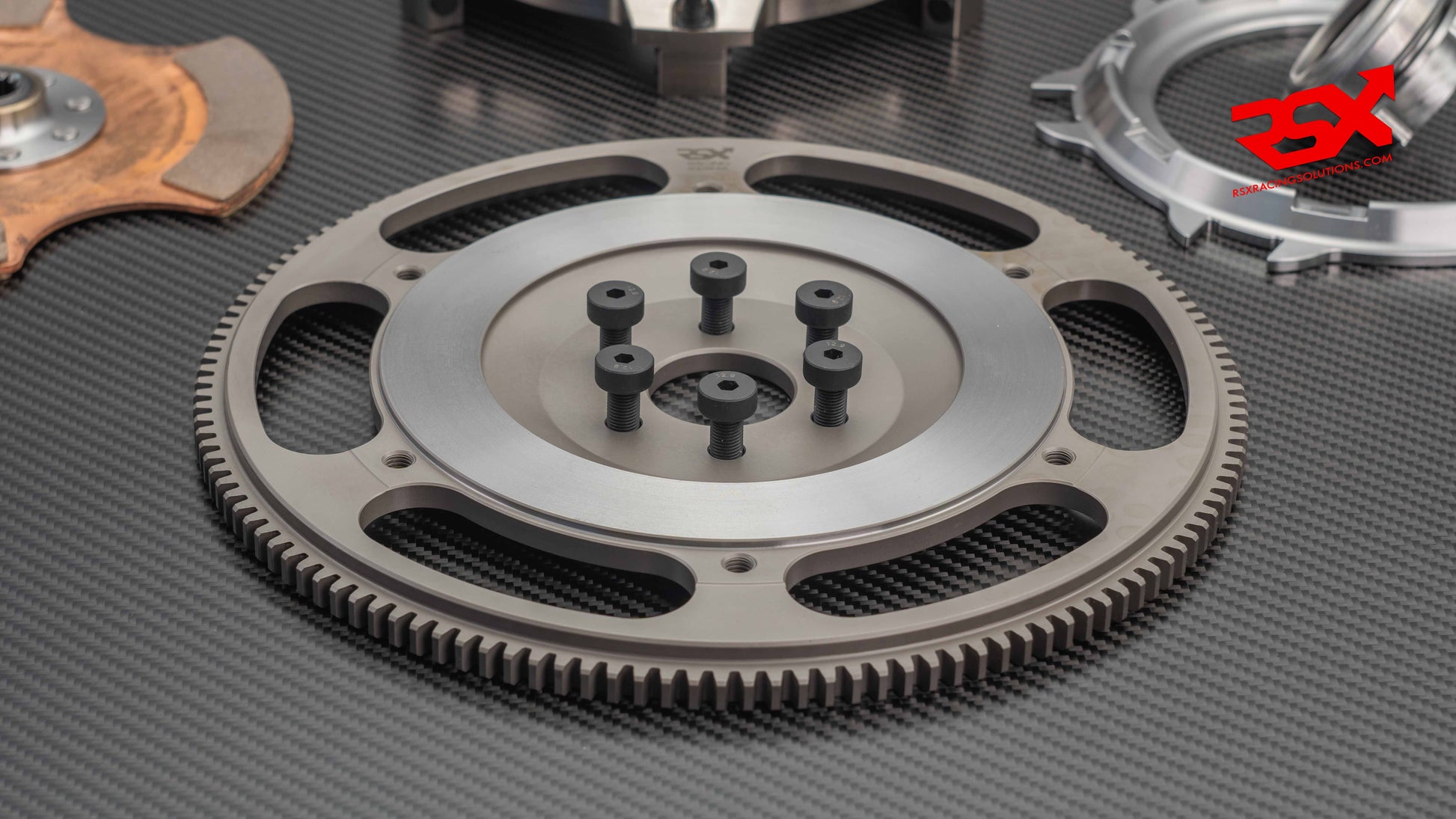

Ultra-Lightweight 2.90 kg Flywheel

✅ Designed for 184mm step-type racing clutches
✅ Material: Forged CrMo steel, subjected to specialized heat treatment (nitriding), achieving a surface hardness of 60 HRC—twice the hardness of standard polished or machined flywheels.

Why does this matter?

⚠ Many flywheels wear quickly, especially the starter motor ring gear, when used in high-compression engines.
⚠ A higher HRC value means increased resistance to wear, ensuring longer service life & greater reliability.

Note: Our flywheels are virtually unbreakable, highly resistant to wear, and come with a 1-year warranty for motorsport use against material or manufacturing defects—with no mileage limit!

KEY FEATURES & BENEFITS

✔ Single-disc clutch supports over 400 hp and 450 Nm, depending on clutch disc & diaphragm specifications.

✔ Significant weight reduction compared to the OEM flywheel & clutch kit, resulting in:
    ✔ Faster acceleration
    ✔ Improved throttle response
    ✔ Better handling & braking

✔ Smoother and enhanced gear shifting at high RPMs

✔ Extended lifespan of friction components with low replacement cost

✔ Full Plug & Play system → No modifications required

Warranty

One-Year Motorsport Warranty

To demonstrate our commitment to quality and reliability, we offer a 1-year motorsport warranty covering material or manufacturing defects across our entire range of racing clutch kits.

🚀 Optimized for maximum durability, performance, and reliability in motorsports.

📞 Contact us for more information or installation assistance.
