Ø 184mm (7.25") Single-Disc Race Clutch Kit Peugeot-Citröen XU Engines
Ø 184mm (7.25") Single-Disc Race Clutch Kit Peugeot-Citröen XU Engines
SKU:210601668
Weight - 6.05kg
In stock
Couldn't load pickup availability
APPLICATIONS
Peugeot / Citroën models equipped with XU family engine like XU10J4, XU10J4RS found in:
- Peugeot 306 XSi, S16 & GTI-6
- Citroën Xsara VTS 2.0 16v
- Citroen ZX 2.0 16v
- It can also be mounted in the rest of Peugeot / Citroen models with XU engines from 1.6L to 2.0L, such as Peugeot 205, 309, 405, and Citroën Visa, ZX and more.
DESCRIPTION

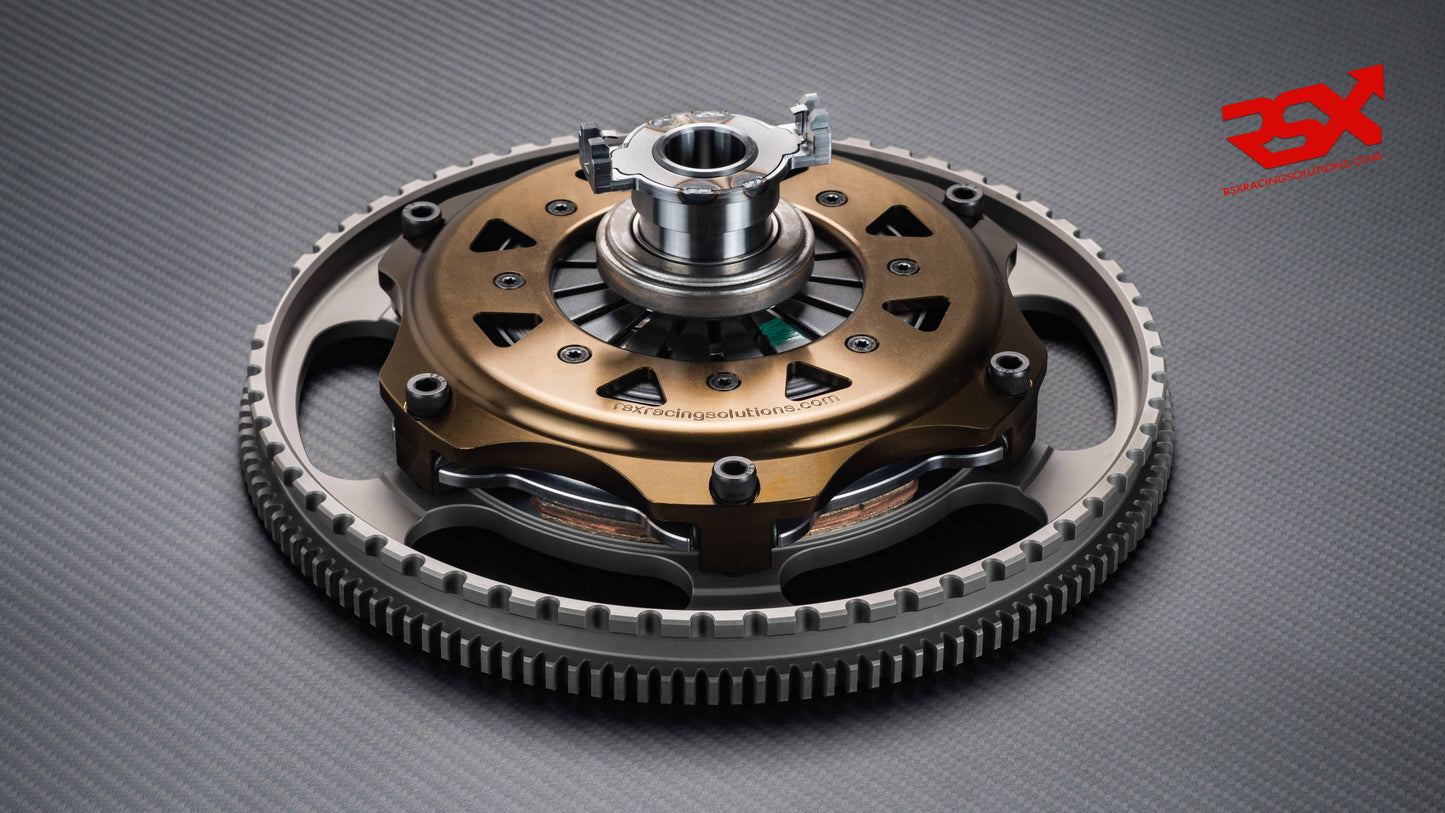

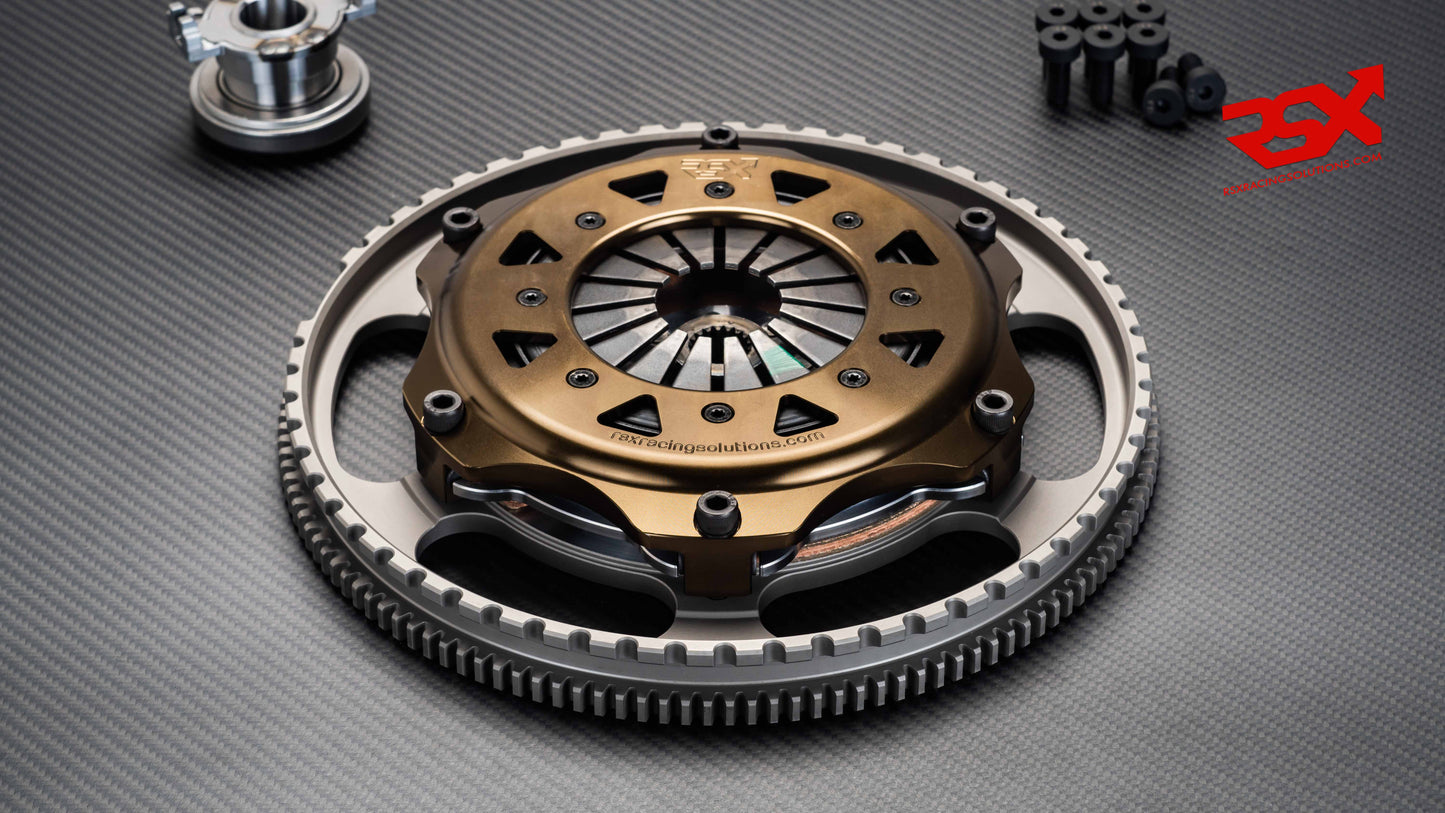

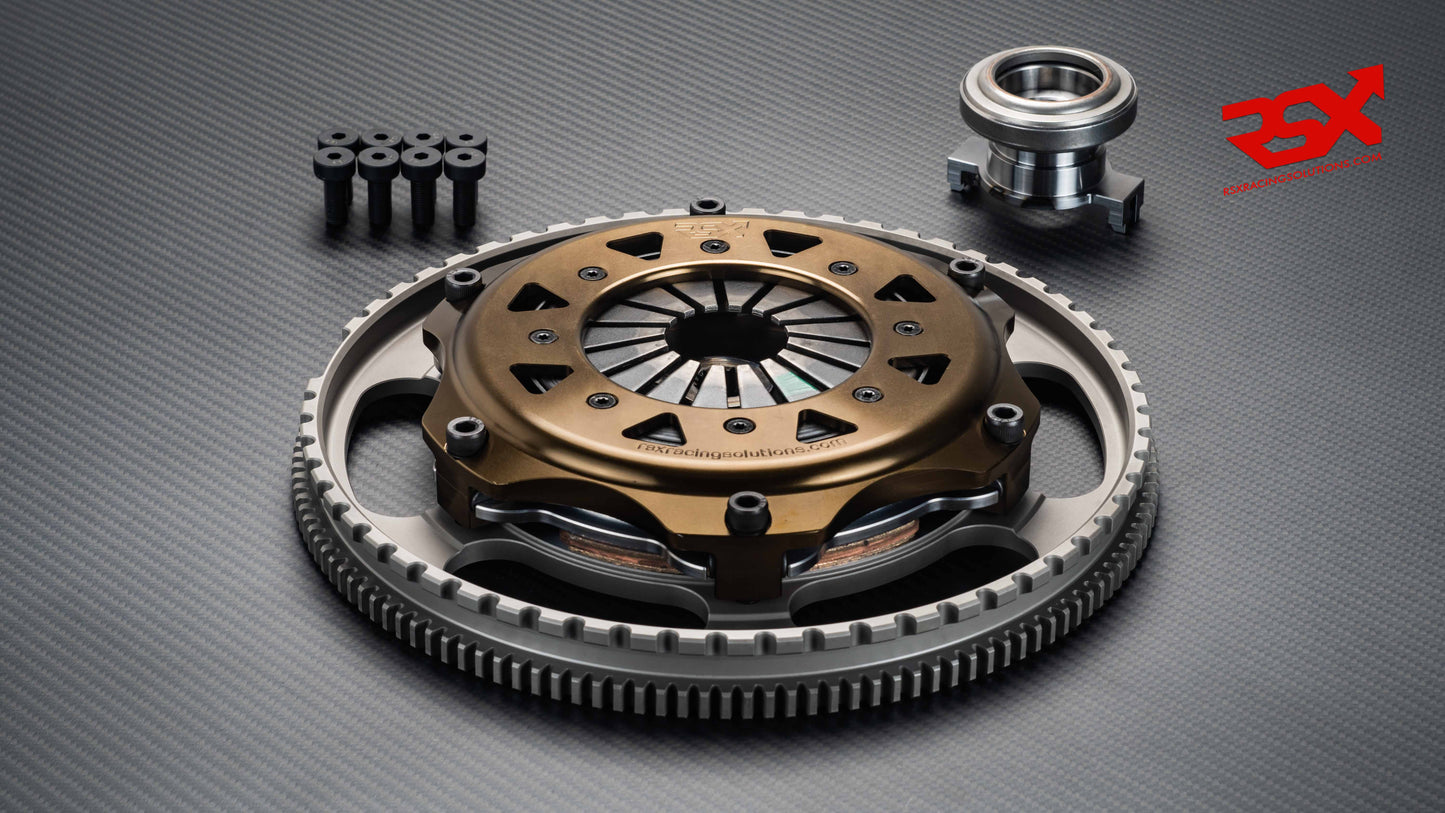

Ultra-lightweight Ø 184mm (7.25") Single-disc clutch kit, with a total assembly weight just 6.00 kg (flywheel + clutch kit).
Suitable for all types of motorsport and racing disciplines, including rally, circuit racing, hillclimb, drag racing, autocross, rallycross, and more.

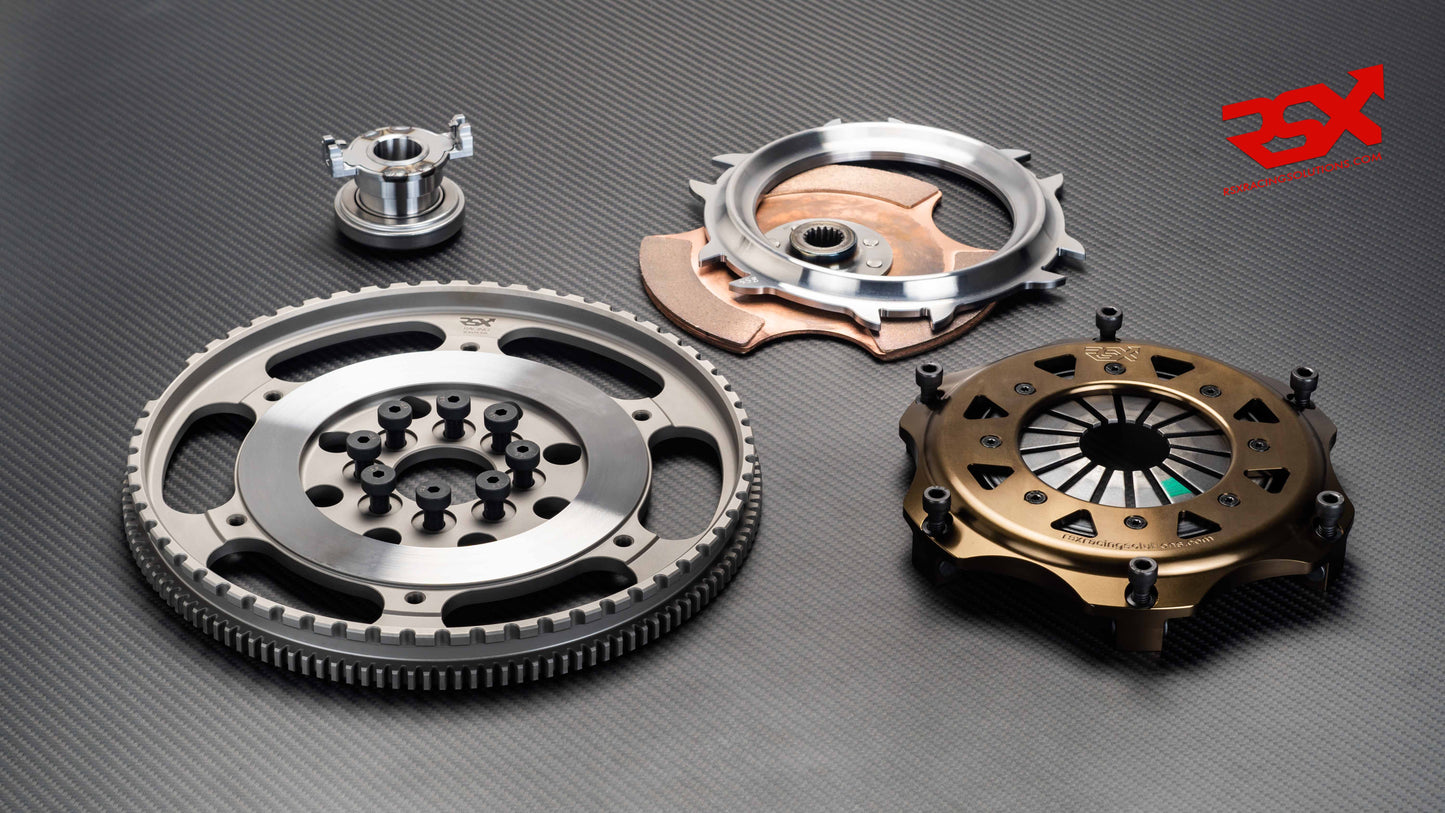

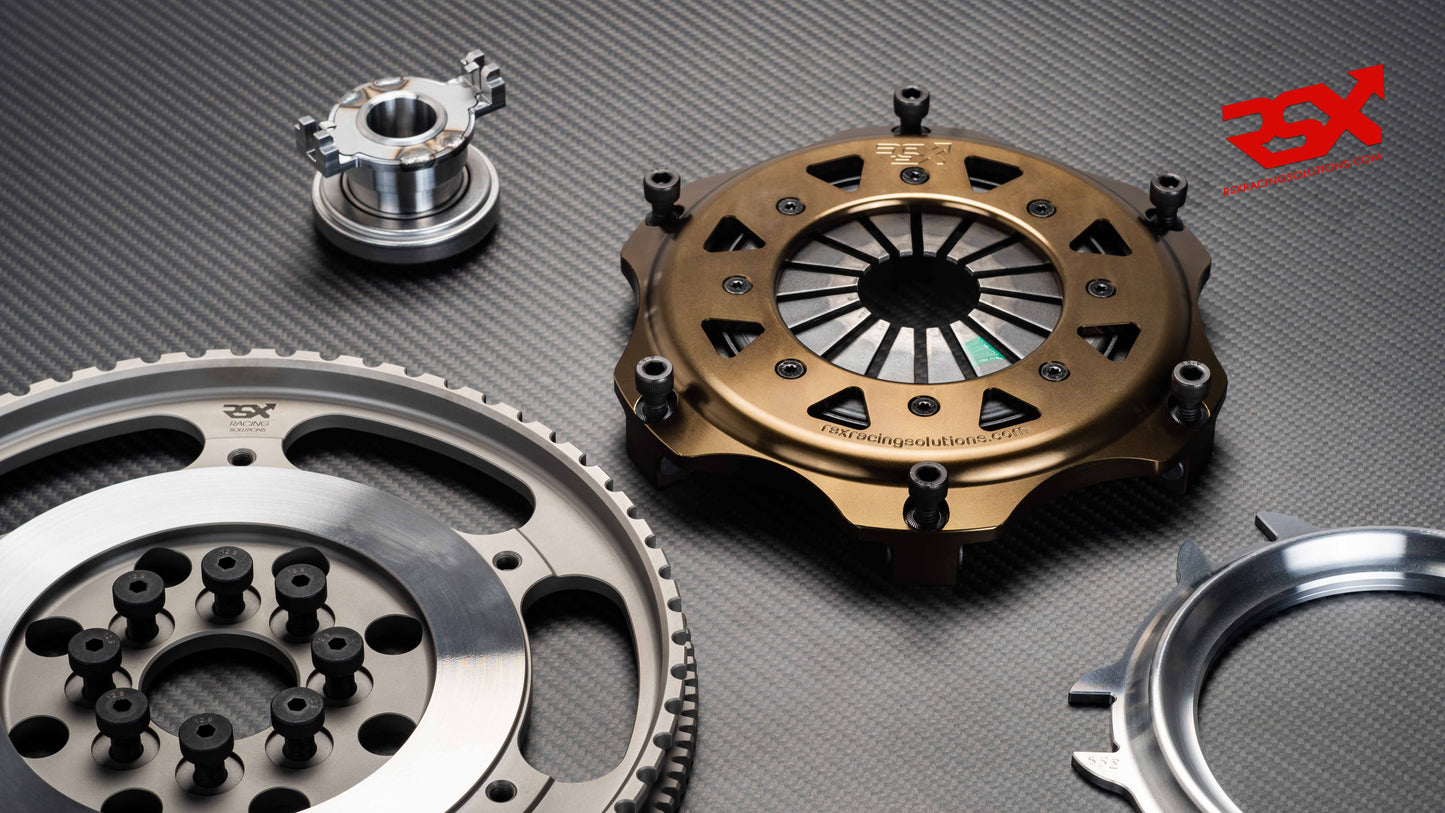

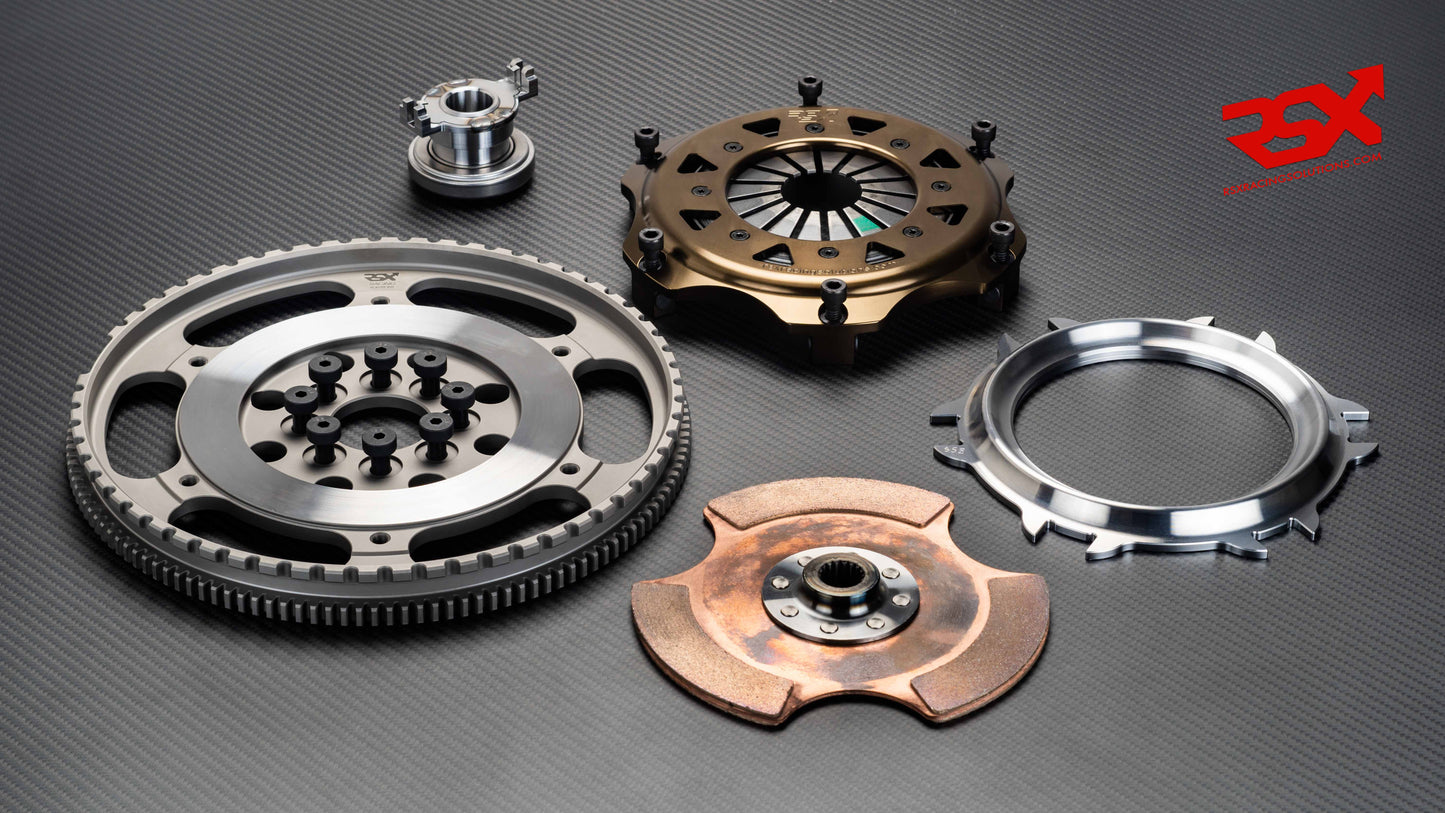

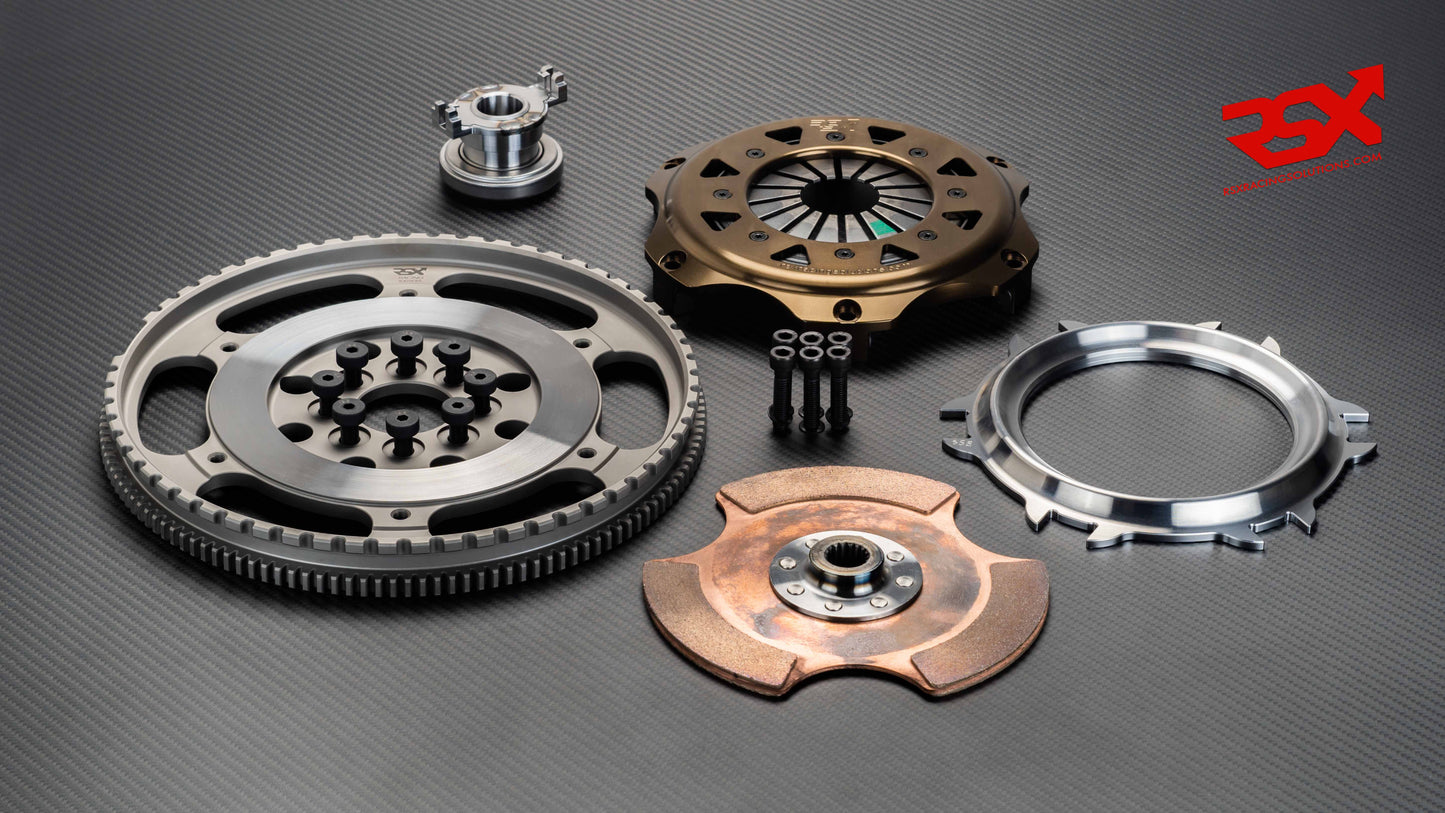

KIT INCLUDES
✔ 184 mm / 7.25" Single-Disc Racing Clutch Kit – Lightweight design, weighing only 2.80 kg.
✔ 184 mm / 7.25" Ultra-Lightweight Flywheel – Weighing only 3.20 kg.
✔ Racing Clutch Release Bearing Assembly – Heavy-duty metal racing bearing with a dedicated hard-anodised AL6061-T6 aluminium support.
✔ Flywheel-to-Crankshaft Mounting Bolts.
COMPONENTS & FEATURES

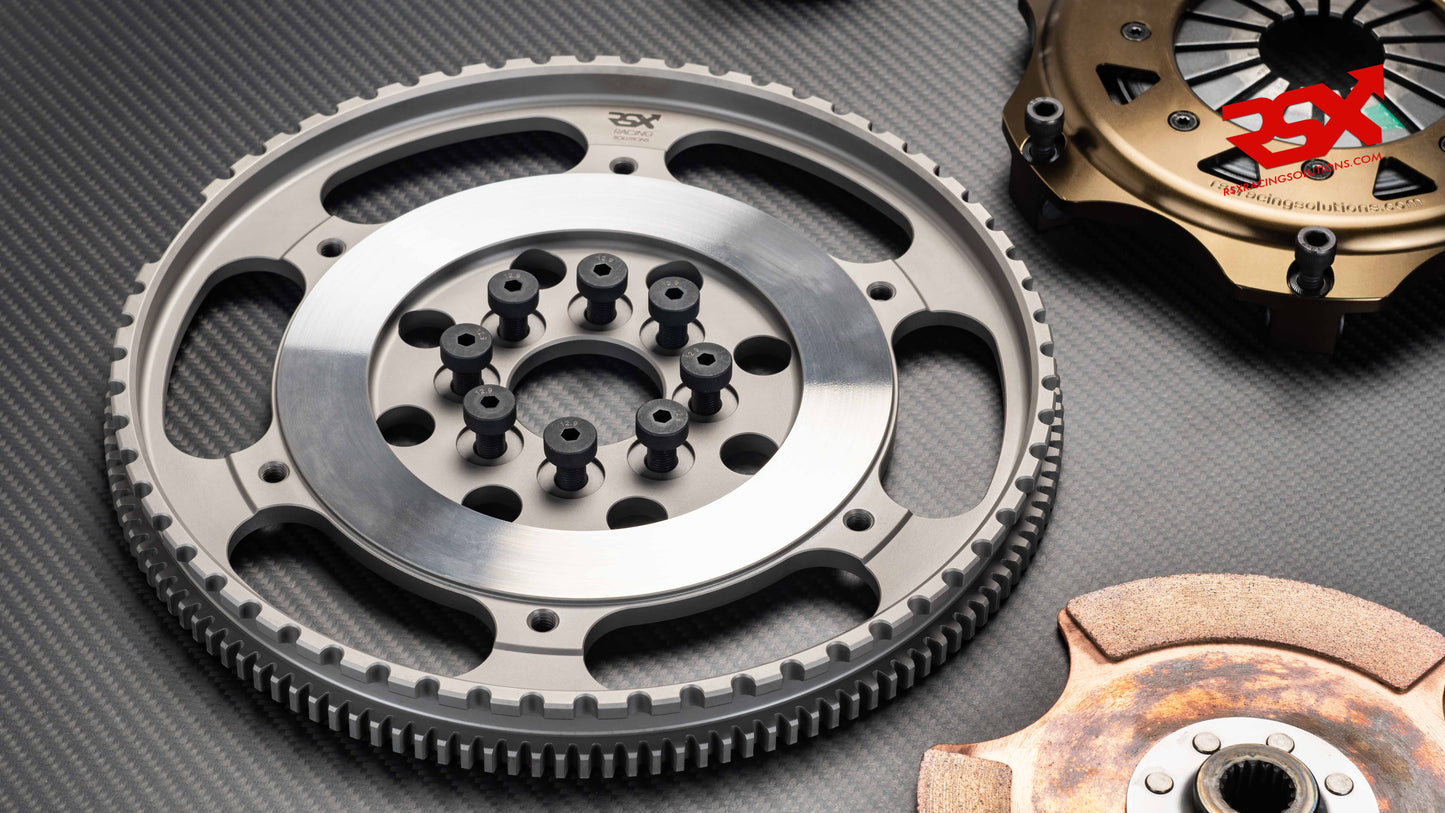

Flywheel
✅ Weight: 3.20kg
✅ High-Strength Forged Chromoly Steel (CrMo) – Unlike conventional racing flywheels manufactured from standard machined steel, our flywheels are made from high-strength forged chromoly steel and undergo a specialised nitriding heat treatment, achieving an exceptional 58–62 HRC surface hardness. This combination delivers superior mechanical strength, increased resistance to wear and deformation, and outstanding long-term durability, even under the most demanding motorsport conditions.
Why does this matter?
⚠️ Many conventional racing flywheels suffer from premature starter ring gear tooth wear, especially in high-compression engines.
Note: Our flywheels are virtually unbreakable, and come with a 1-year warranty for motorsport use against material or manufacturing defects—with no mileage limit!
CLUTCH COVER:
✅Material: Forged 6061-T6 aluminum with Electroless Plating Coating for:
- Enhanced hardness & wear resistance
-
Improved corrosion resistance
✅ The legs are equipped with metal rivets for increased durability.
✅ The tightening torque for the clutch cover to flywheel screws (M8x1.25 grade 12.9) is 40Nm.
TOP/PRESSURE PLATE:
✅ Material: Forged chromoly steel, ensuring maximum performance and longevity.

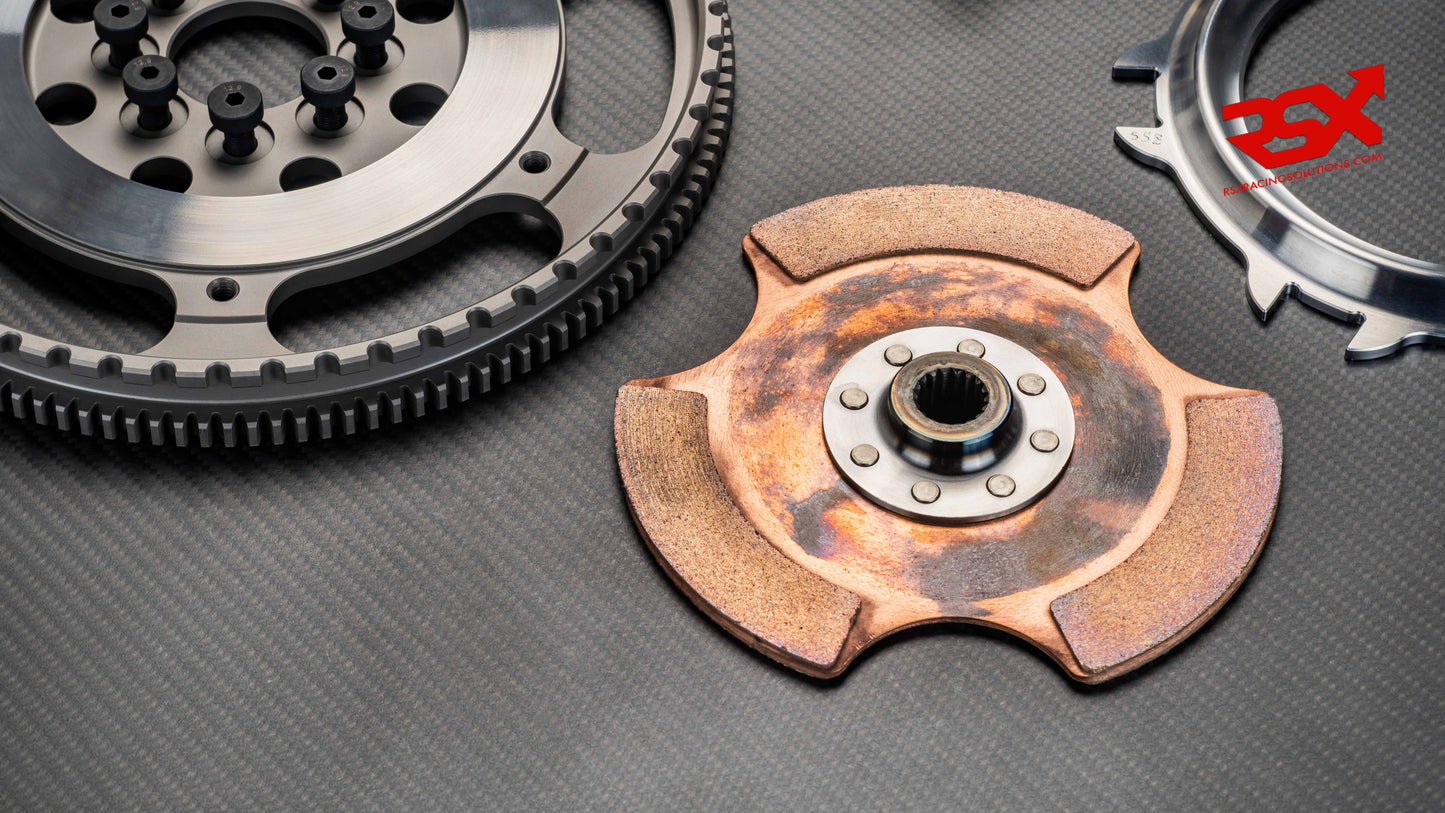

SINTERED CLUTCH DISC — Ø184 mm (7.25")
✅ Sintered friction material, manufactured using our proprietary blend of sintered metal compounds and engineered to tight manufacturing tolerances.
✅ Optimised for:
- Exceptional durability and heat resistance
- High torque capacity
✅ Forged chromoly steel hubs, featuring induction hardening for enhanced strength and durability.
✅ Standard clutch disc spline: 21 mm × 18T
Additional spline options available:
- 24.15 mm × 21T – Sman gearboxes
- Custom spline configurations available upon request
CLUTCH RELEASE BEARING + SPECIFIC ALUMINUM SUPPORT
✅ Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
✅ Aluminum support: AL6061-T6 with hard anodize finish for a lightweight yet strong component.
FLYWHEEL TO CRANKSHAFT BOLTS (set of 8 pcs)
✅ Specification: Bolts are manufactured from Grade 12.9 hardened steel, offering superior tensile strength and performance under extreme loads
KEY FEATURES & BENEFITS
✔ Rated for 400+ hp / 450+ Nm in single-disc configuration, depending on clutch setup (diaphragm spring pressure and clutch disc friction material).
✔ Significant weight reduction compared to OEM
→ Faster acceleration
→ Improved throttle response
→ Enhanced handling and braking performance
✔ Improved gear shifting at high RPM
✔ Extended friction component lifespan → Lower replacement costs
✔ Excellent clutch pedal feel and modulation
IMPORTANT NOTE:
Due to the nature of motorsport applications and potential variations between vehicles, minor modifications or adjustments may occasionally be required to ensure proper fitment and installation.
