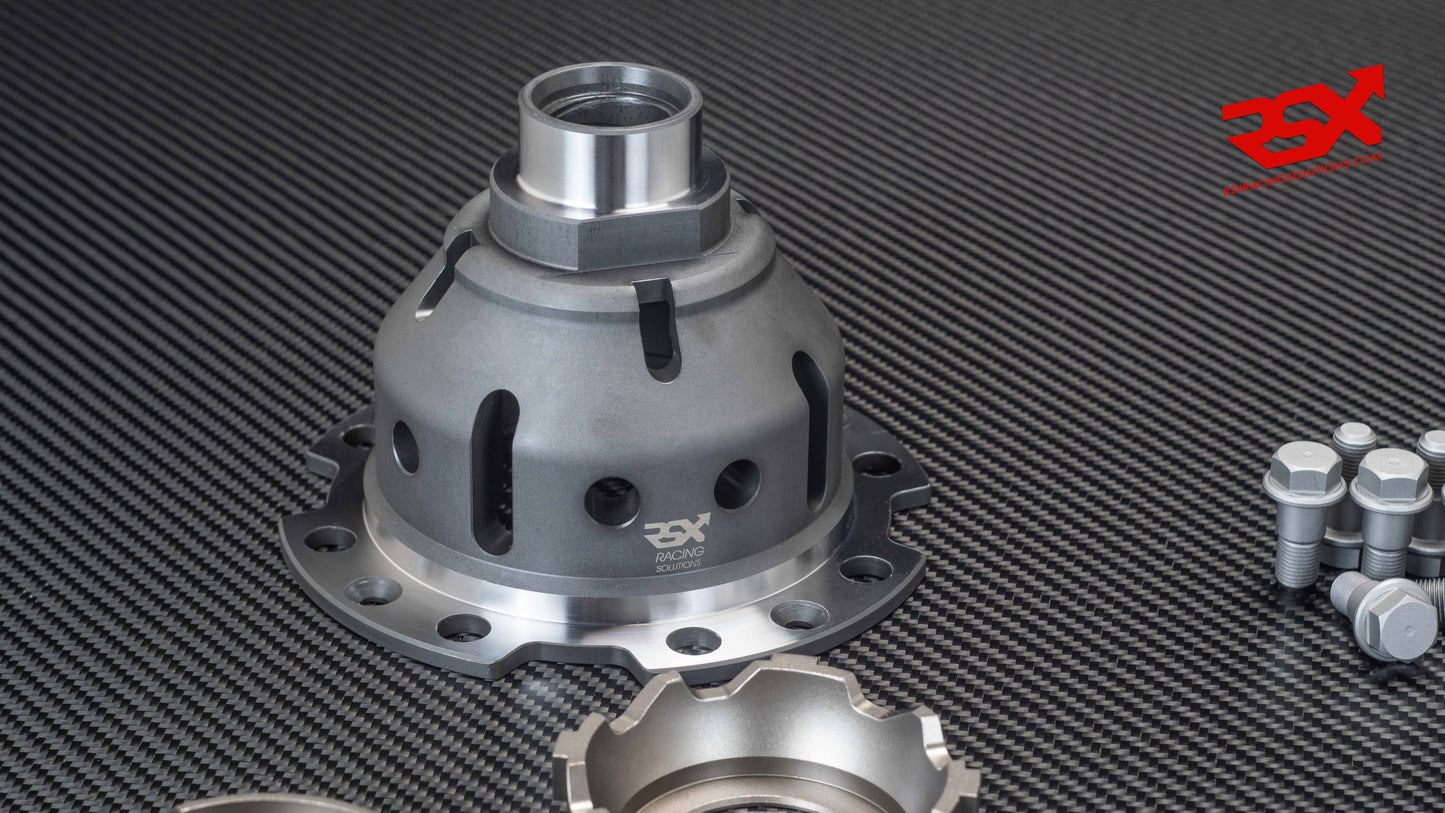

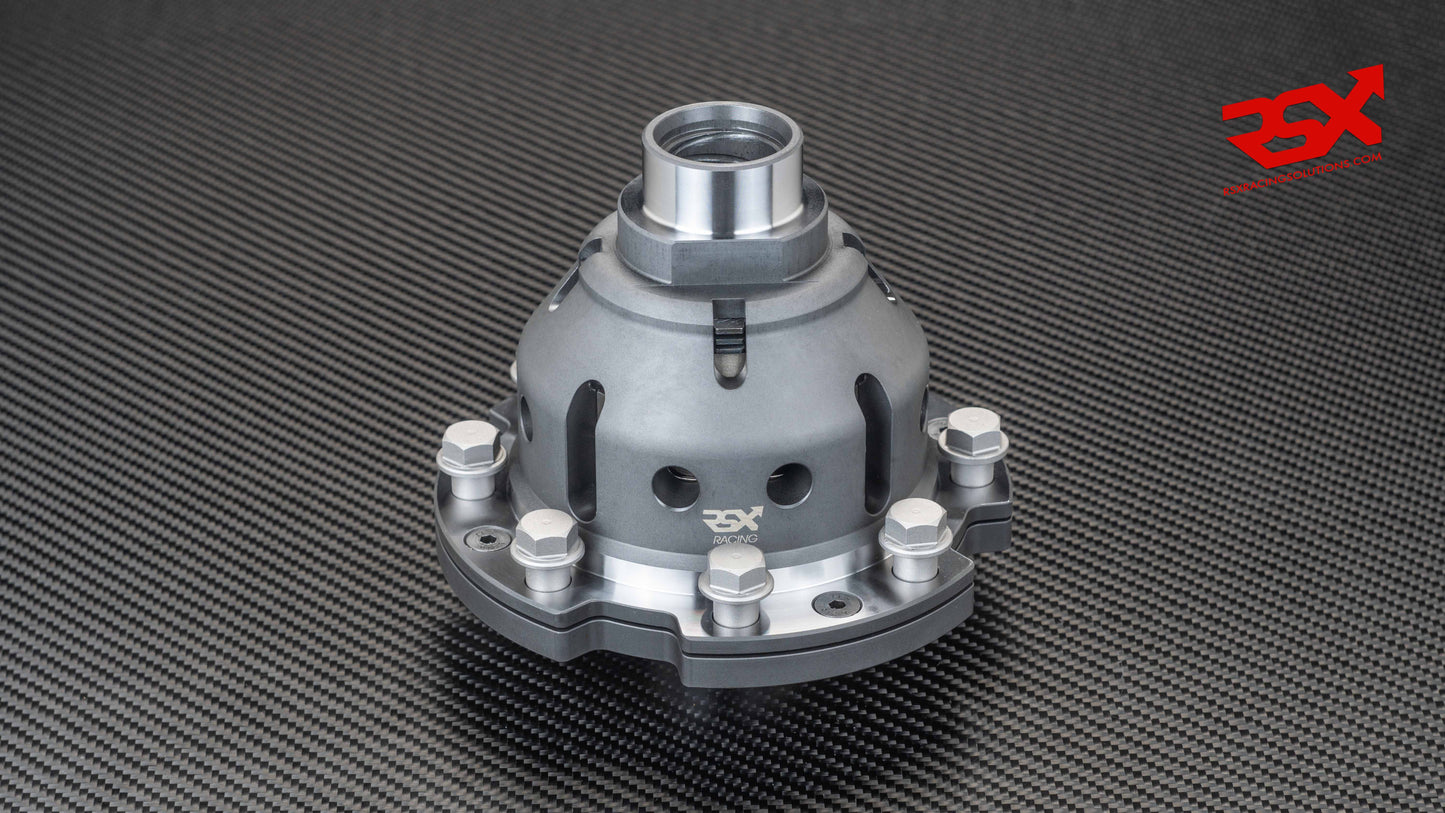

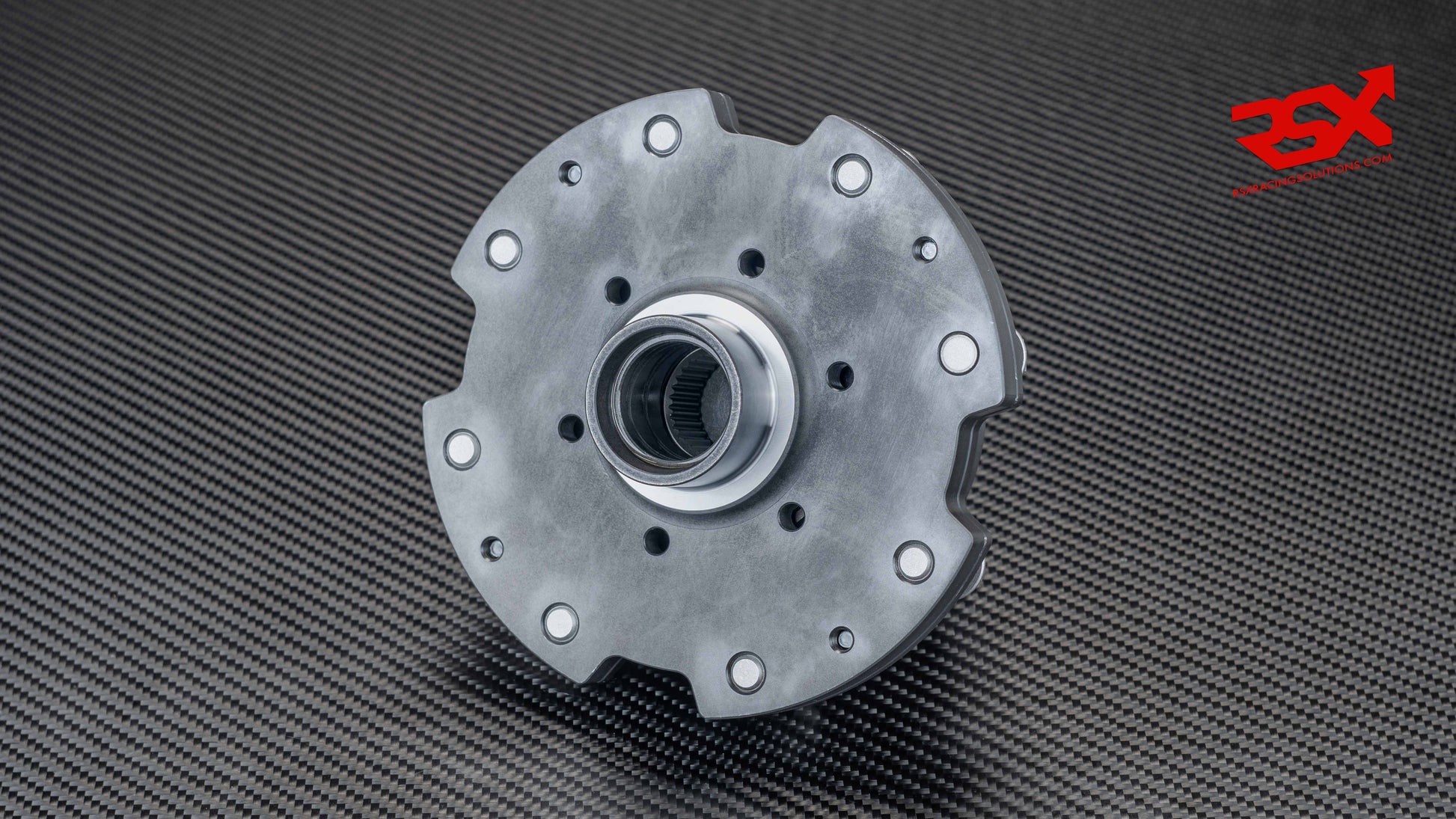

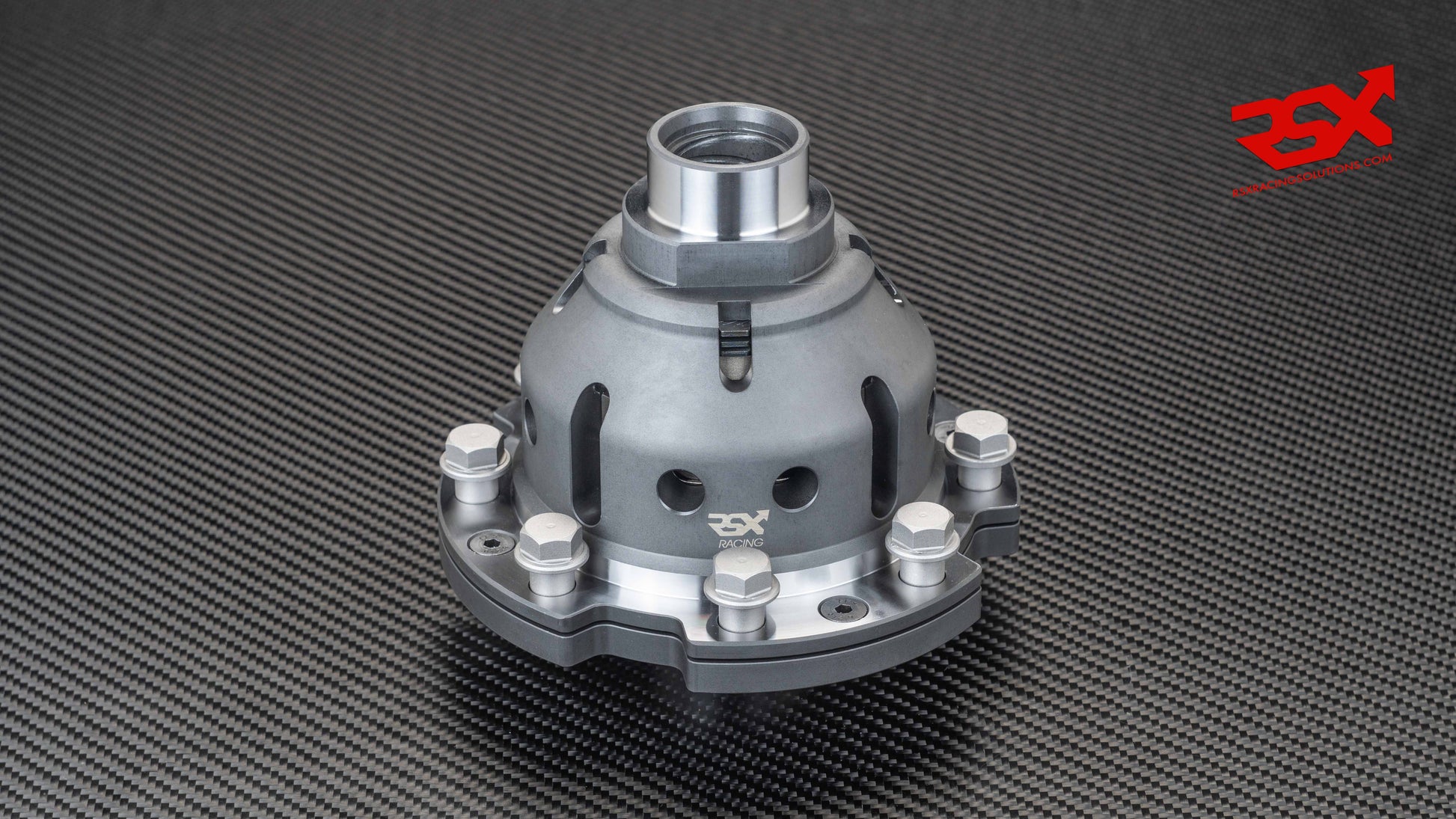

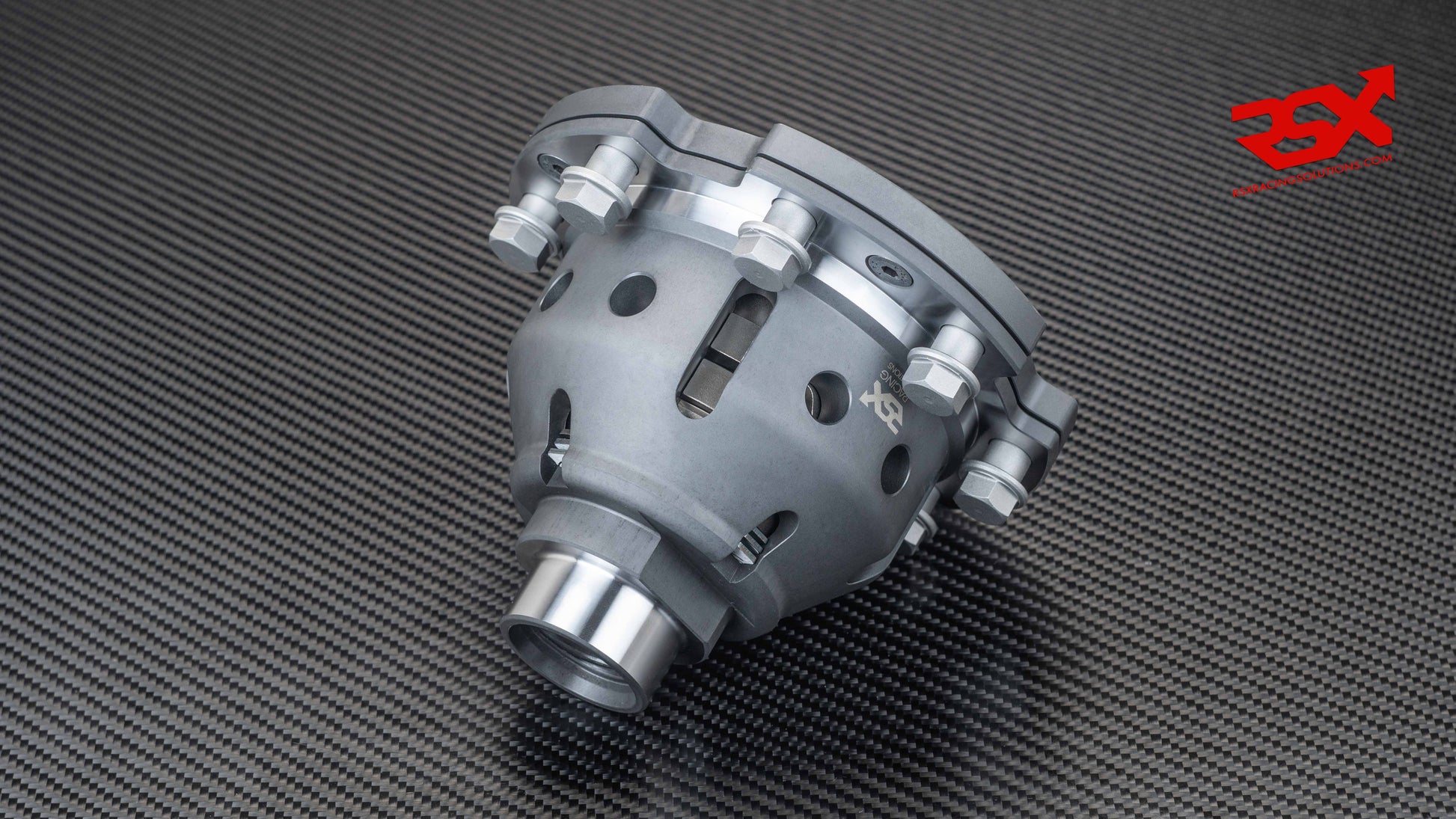

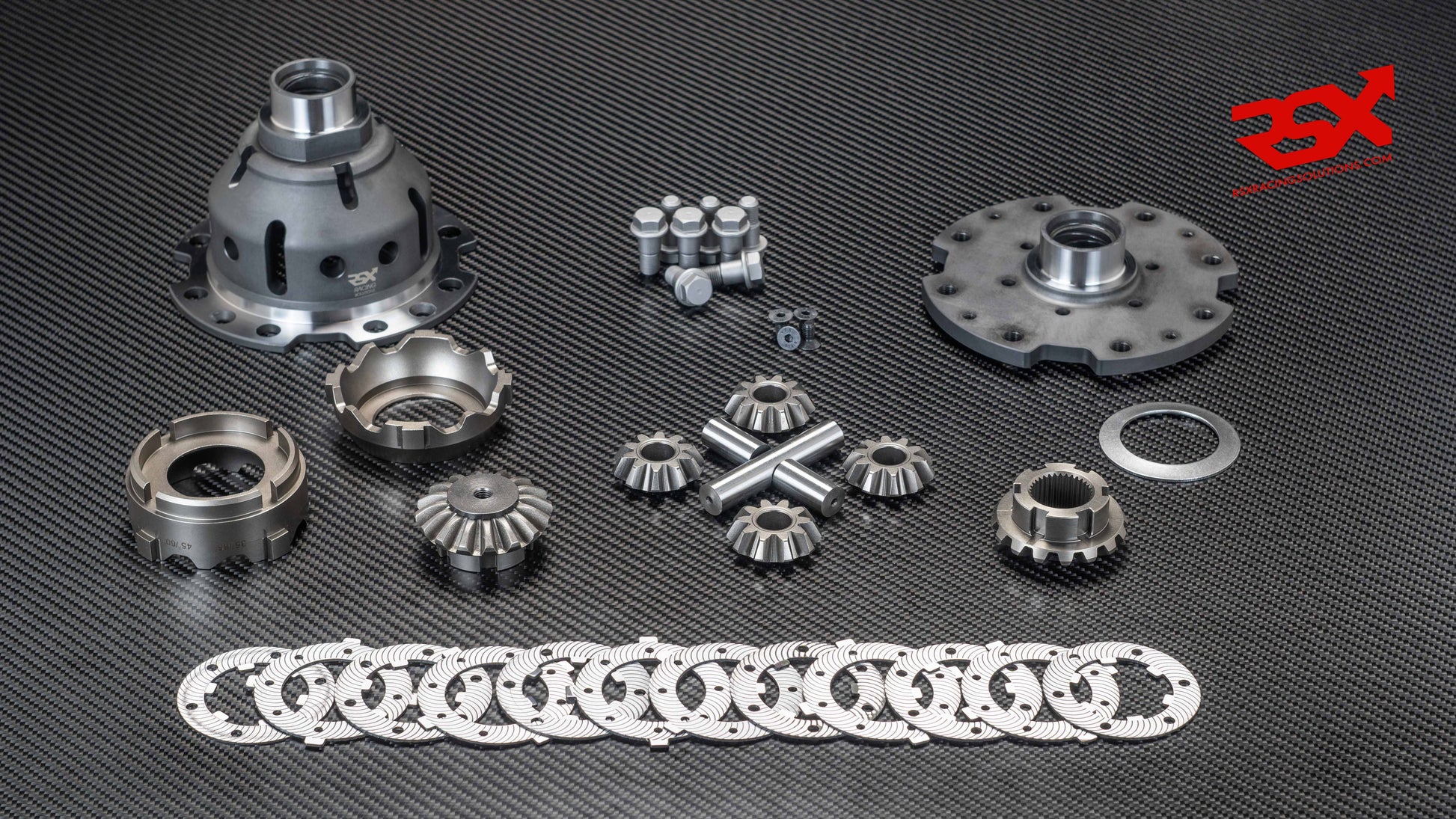

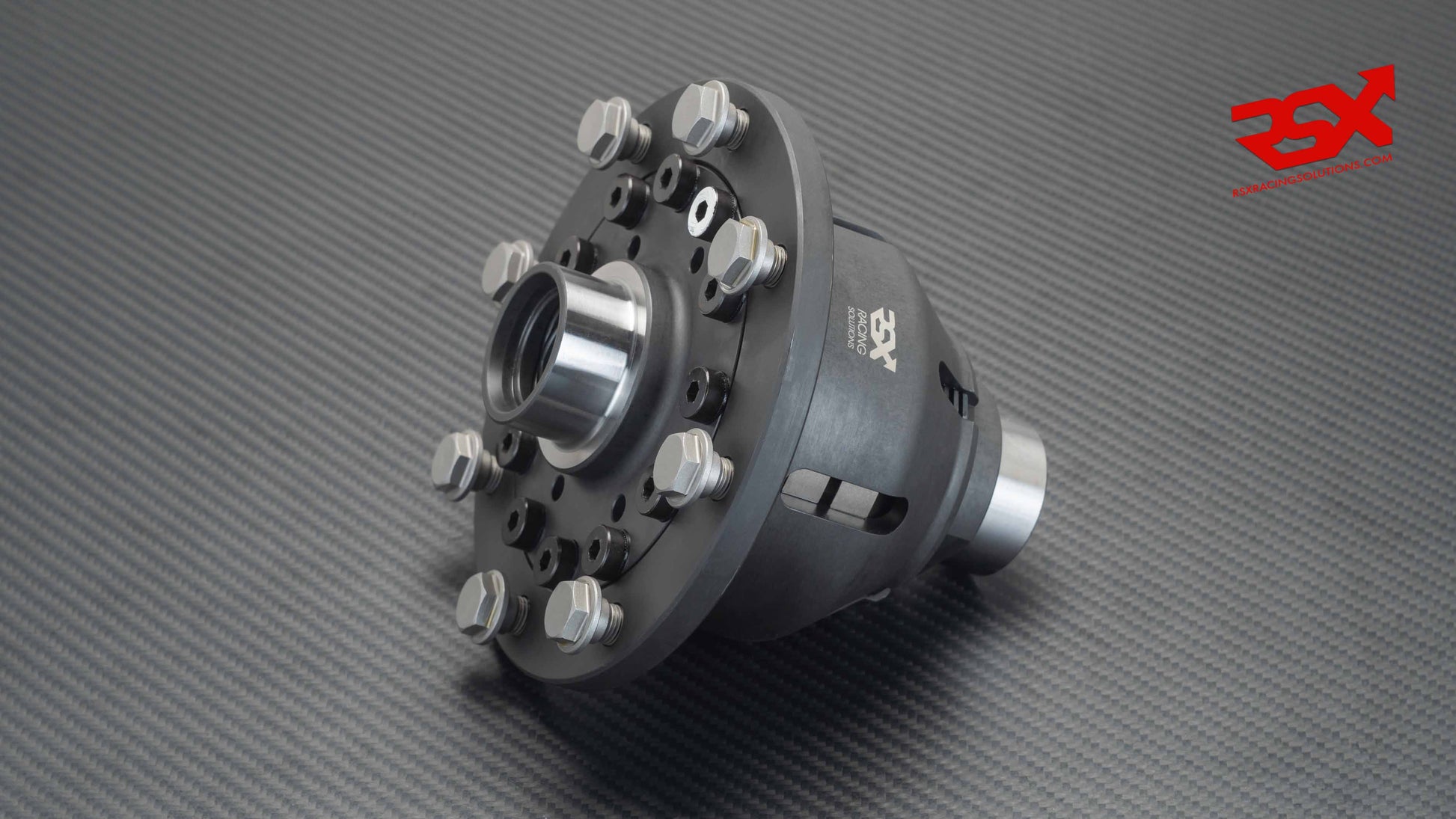

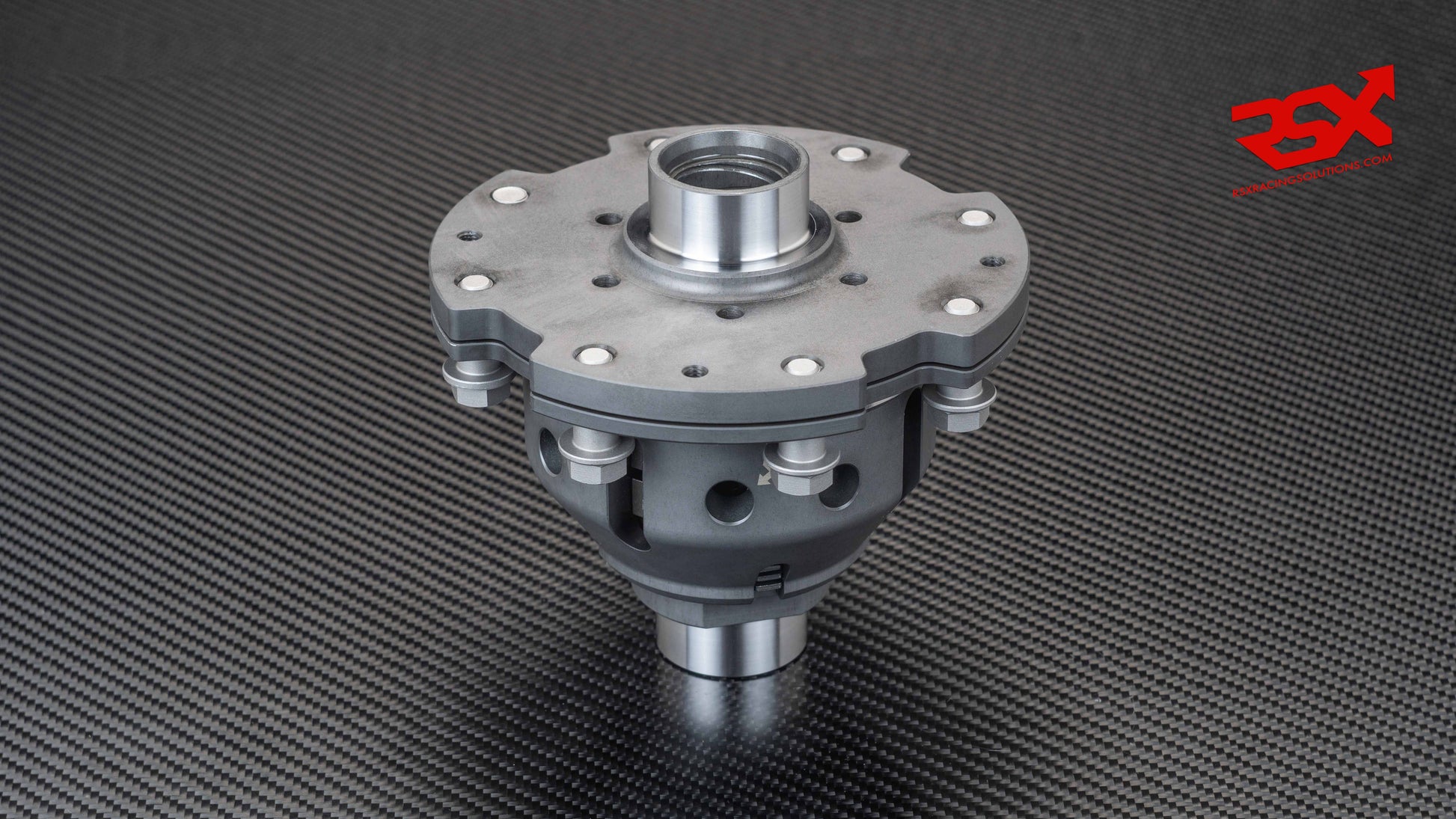

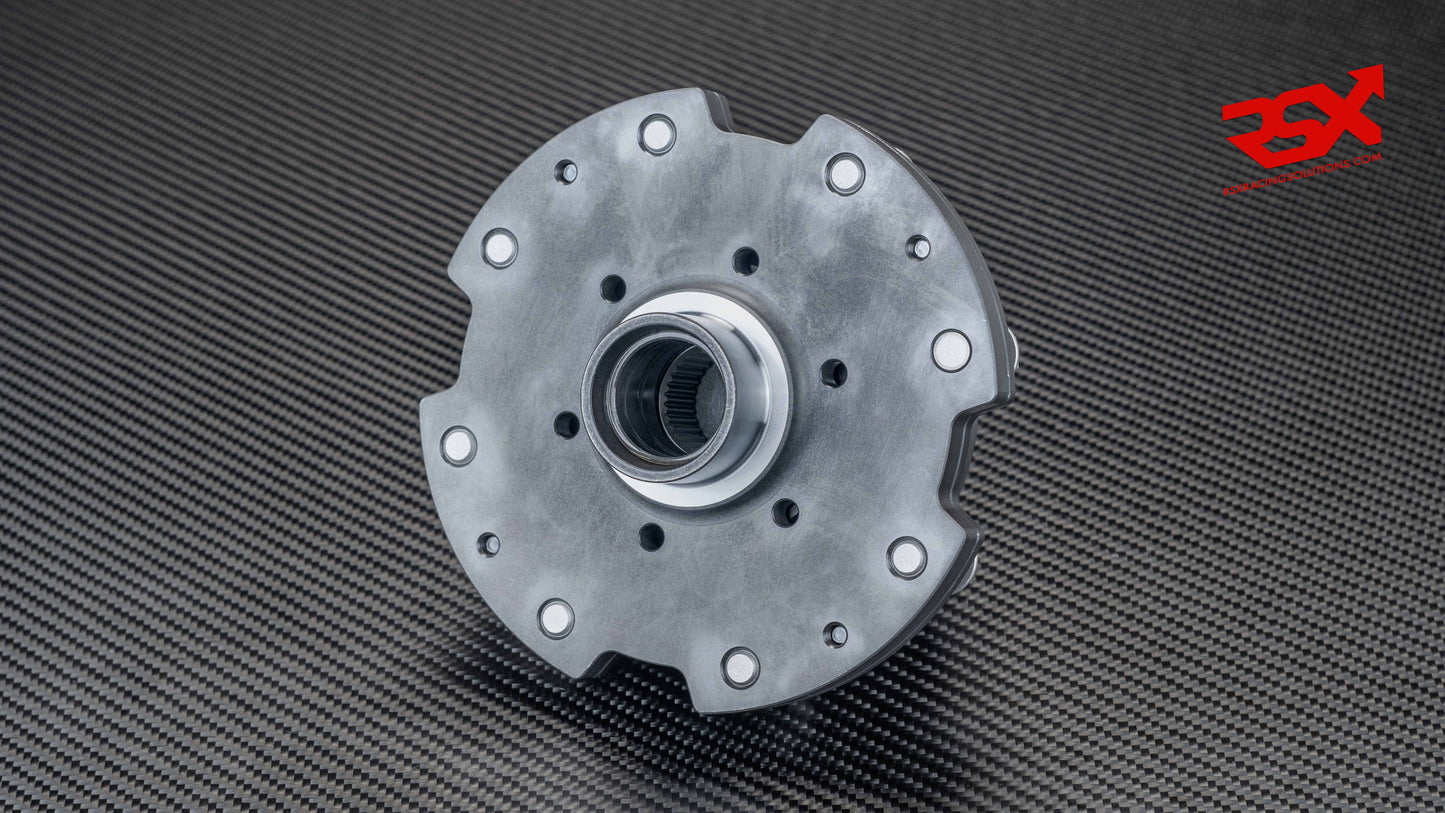

VAG (Volkswagen, Audi, Seat, Skoda) 02J 5-Speed Gearbox – Plate type LSD | Limited-slip differential
Our plate-type LSDs (Limited Slip Differentials) are manufactured from forged Nickel–Chromoly steel and undergo special heat treatments, such as Super Sub-Zero.
Additionally, they are subjected to surface enhancement treatments like shot peening and WPC, which increase both core and surface strength, improve wear resistance, and extend service life.
The combination of high-strength materials and these advanced treatments not only minimizes friction and enhances fatigue strength, but also contributes to a significant reduction in overall weight and improved internal lubrication, thanks to the use of large windows and multiple oil-flow holes.
As a result, our LSDs deliver exceptional durability — on average, they require no servicing during the first 2,000 km of special stages — along with stable and consistent performance.
Technical specifications:

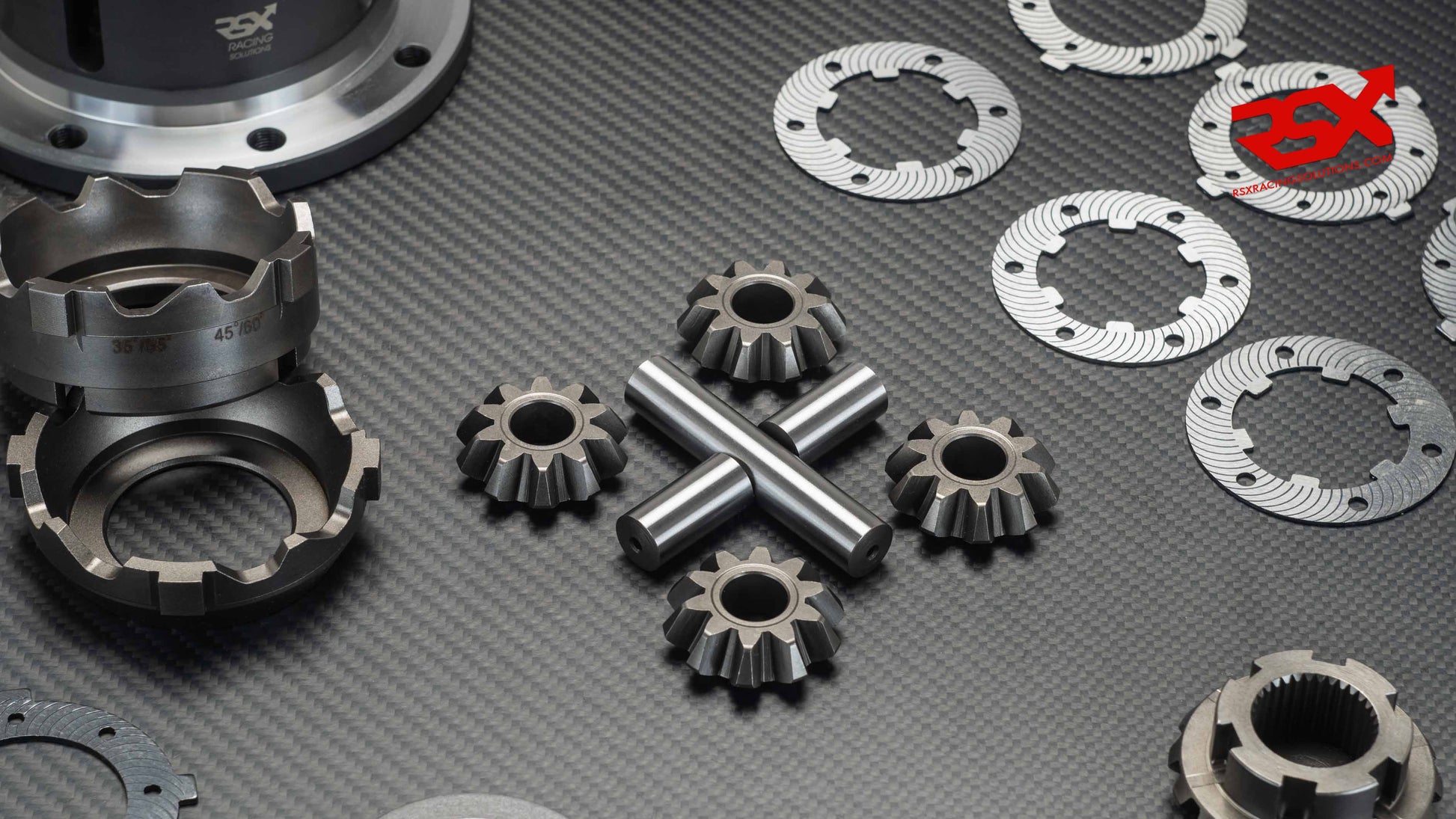

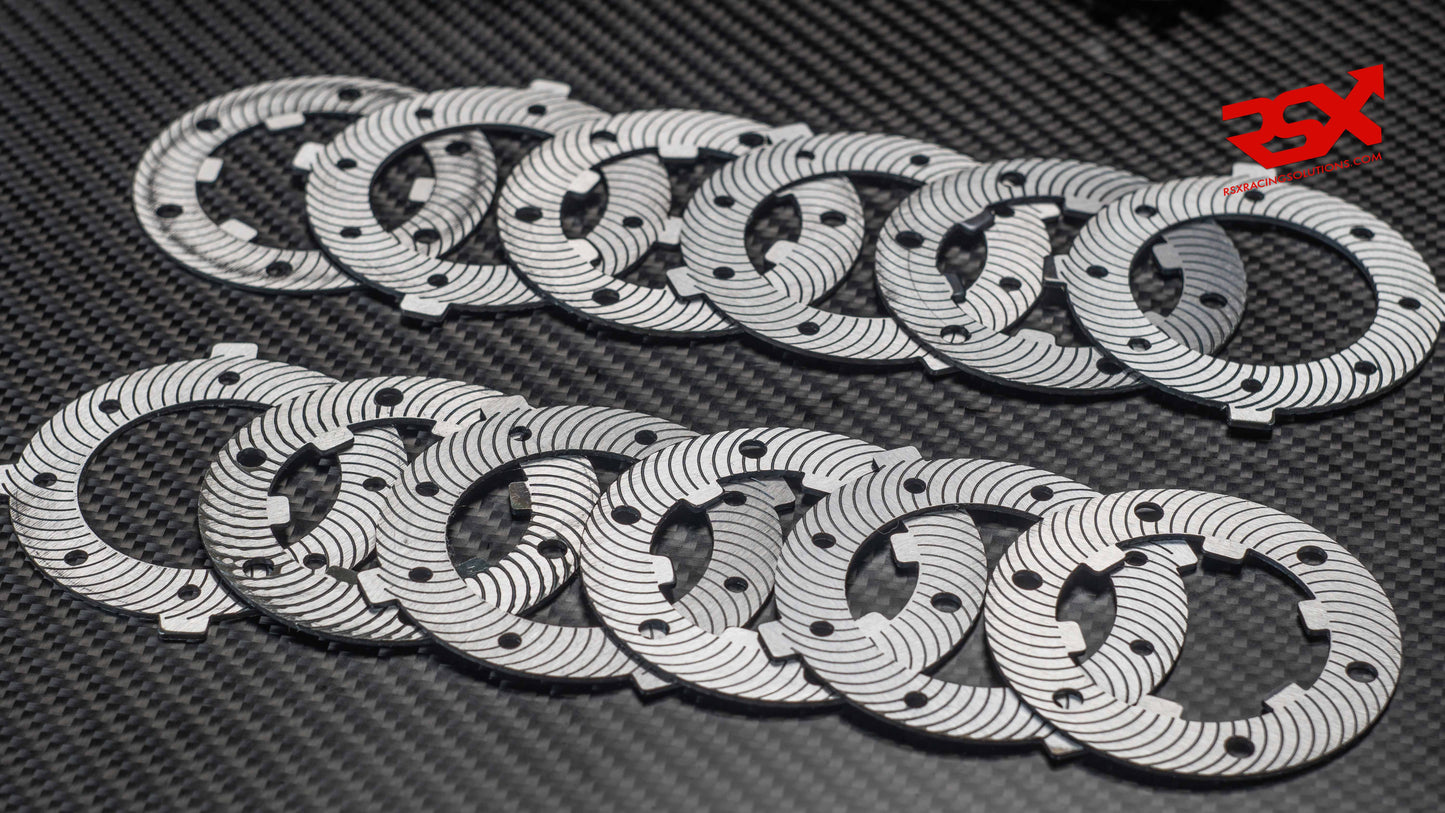

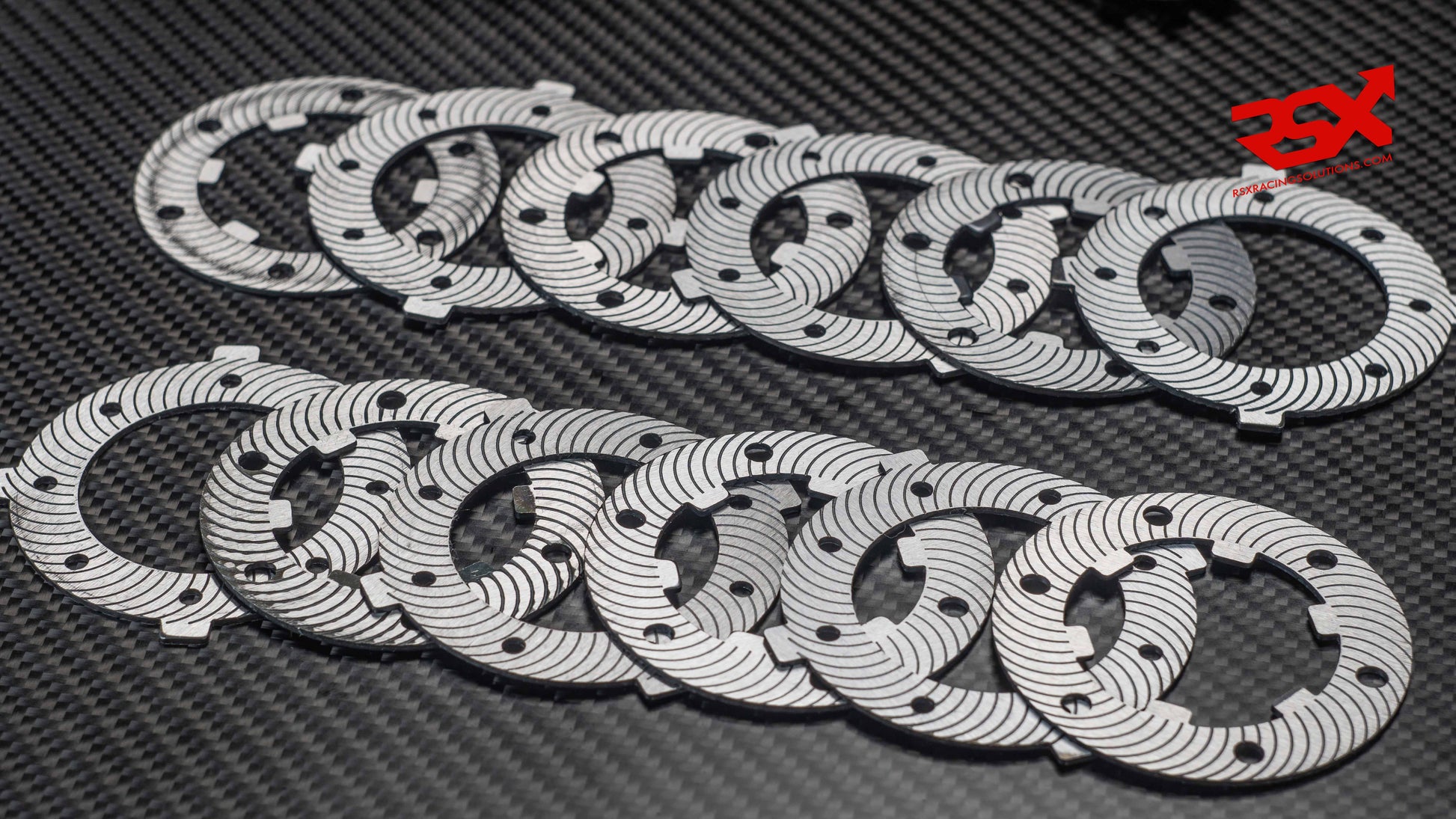

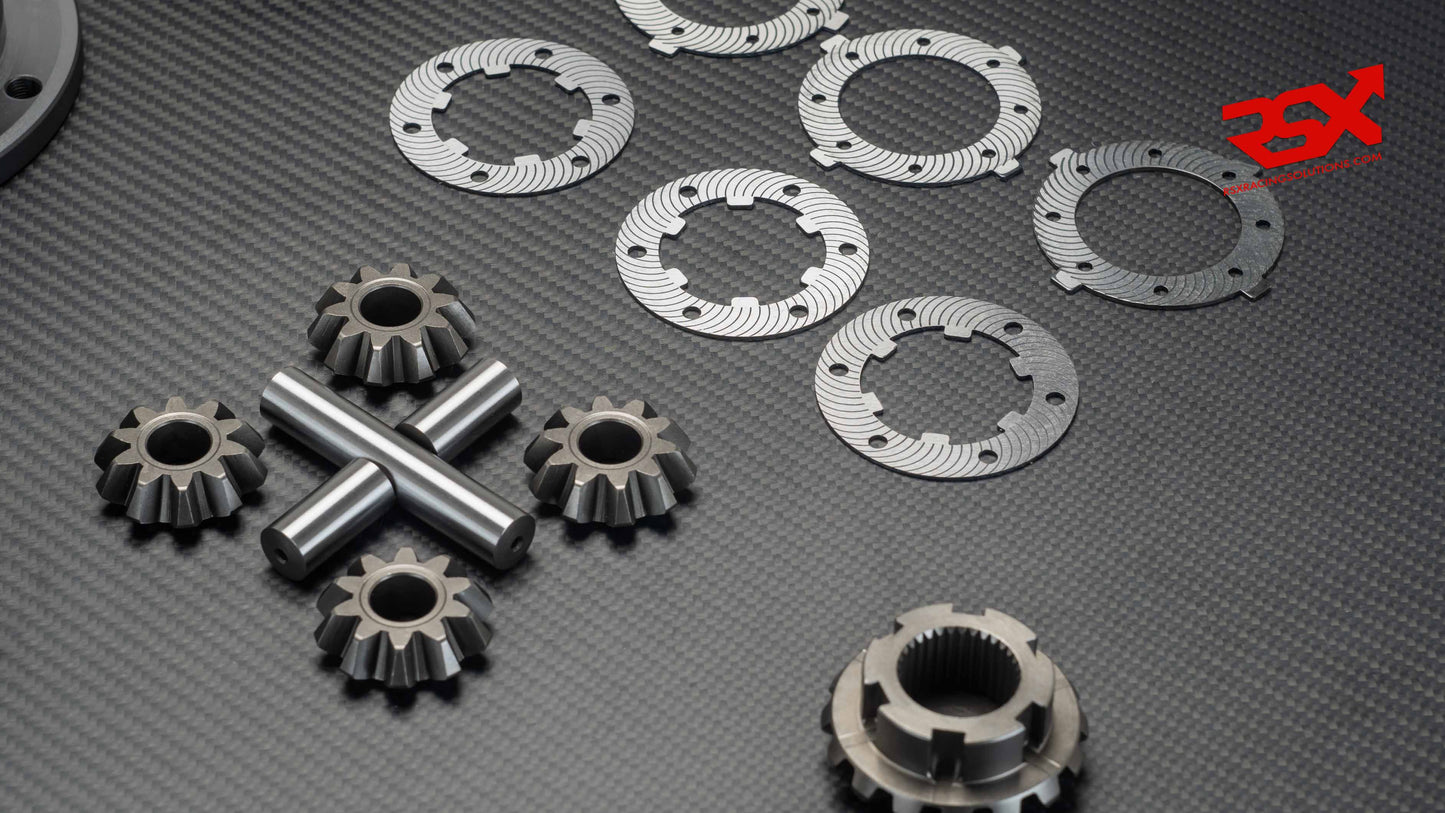

- Our plated LSDs are unique in the market for their 12-friction-plate configuration, while also being the lightest in their class at just 5.25 kg.
The result is superior traction, long-term preload stability, and reliable performance even under the extreme demands of endurance competition.

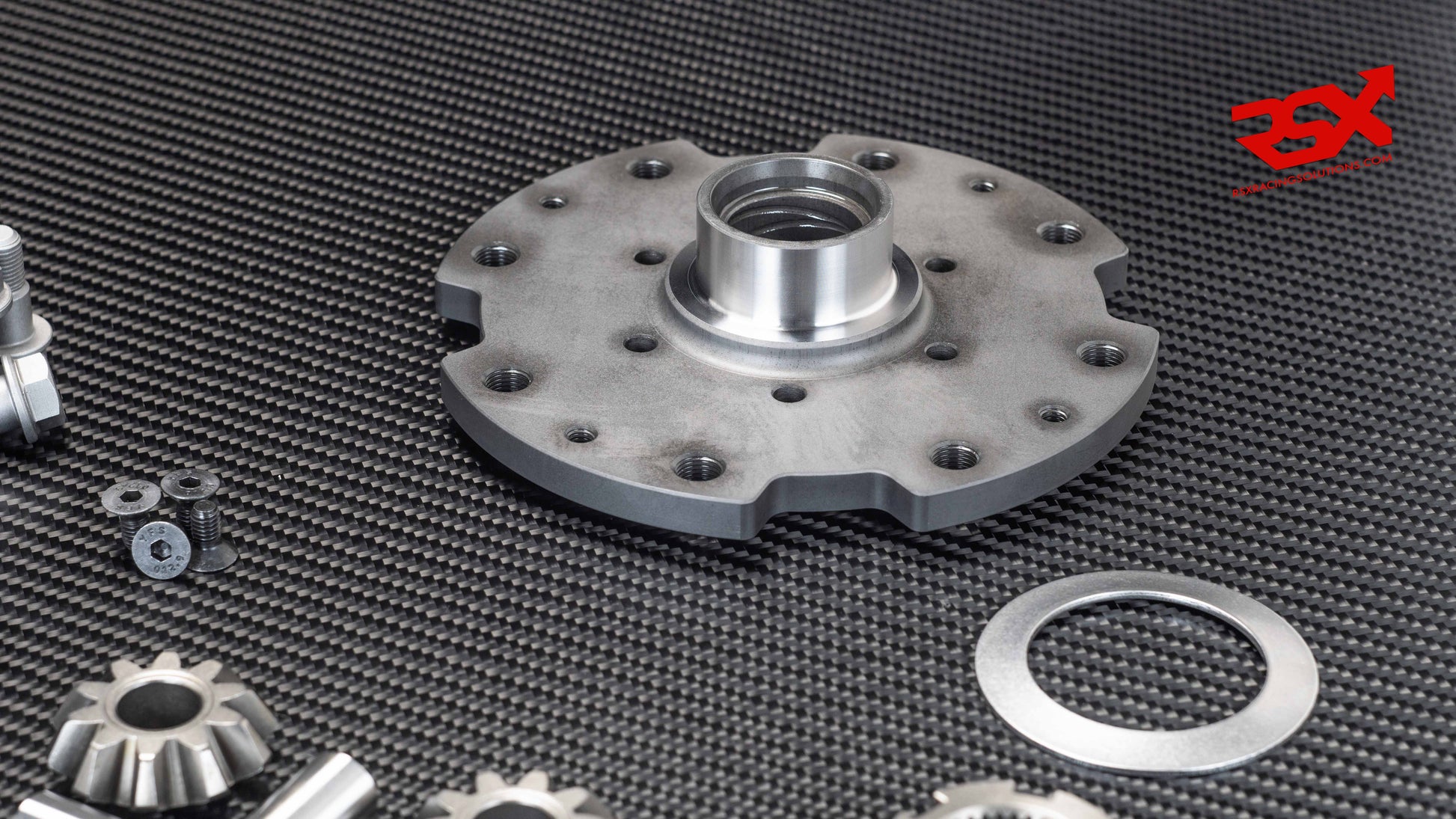

- A newly upgraded design featuring a much stronger cap ensures maximum reliability for turbocharged engines with high torque outputs, having been successfully tested in hill climb race cars exceeding 700 Nm.

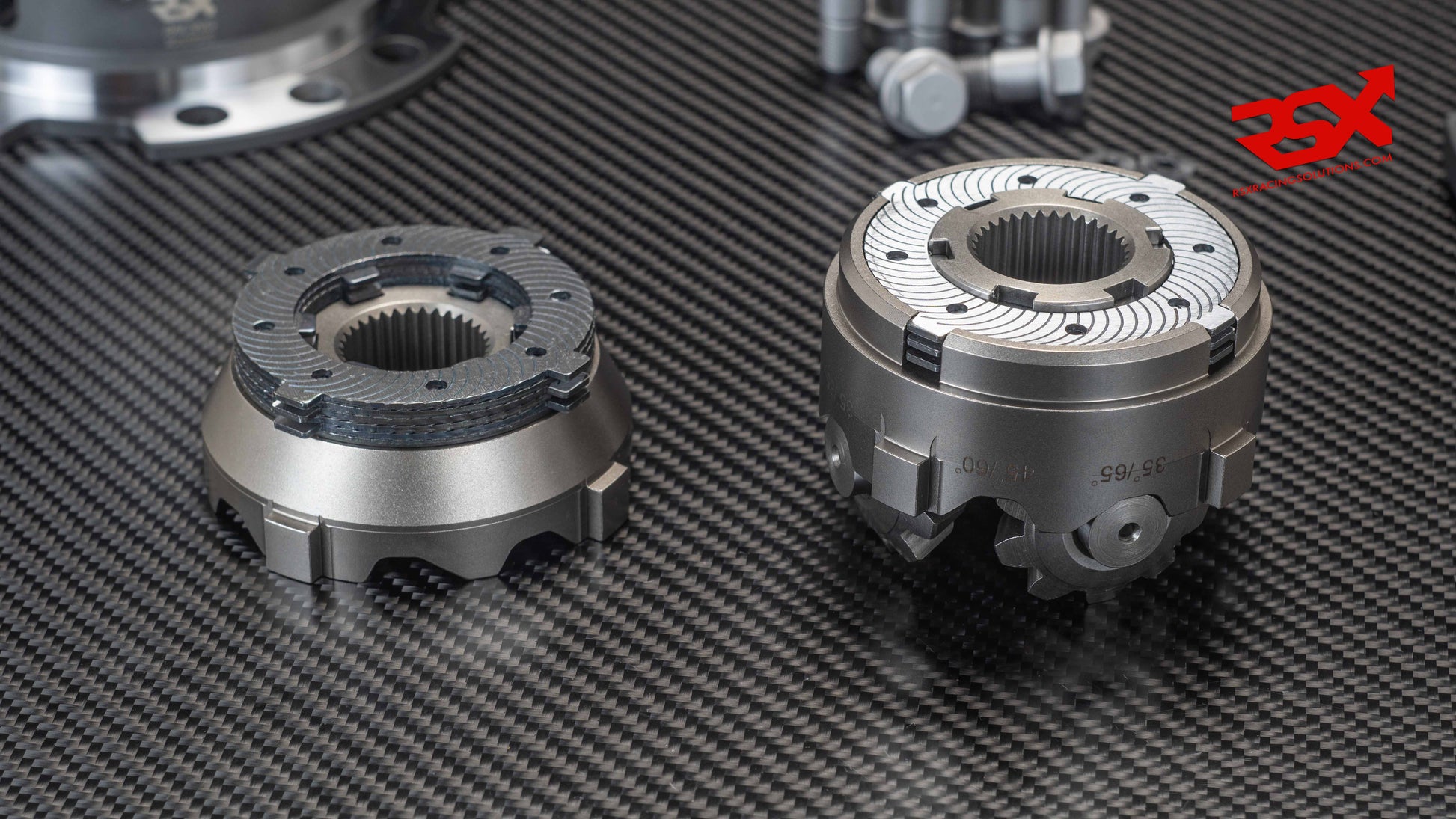

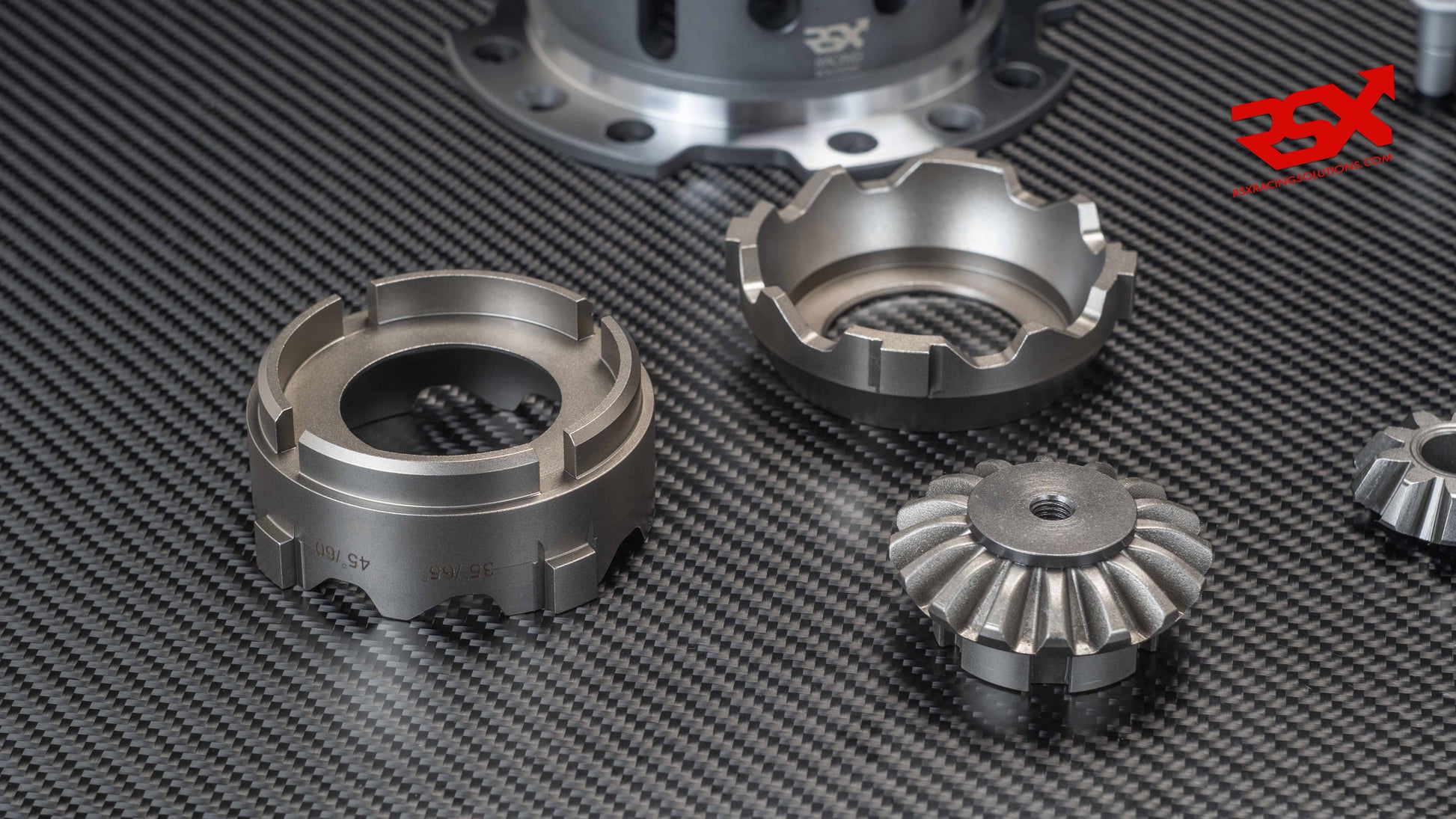

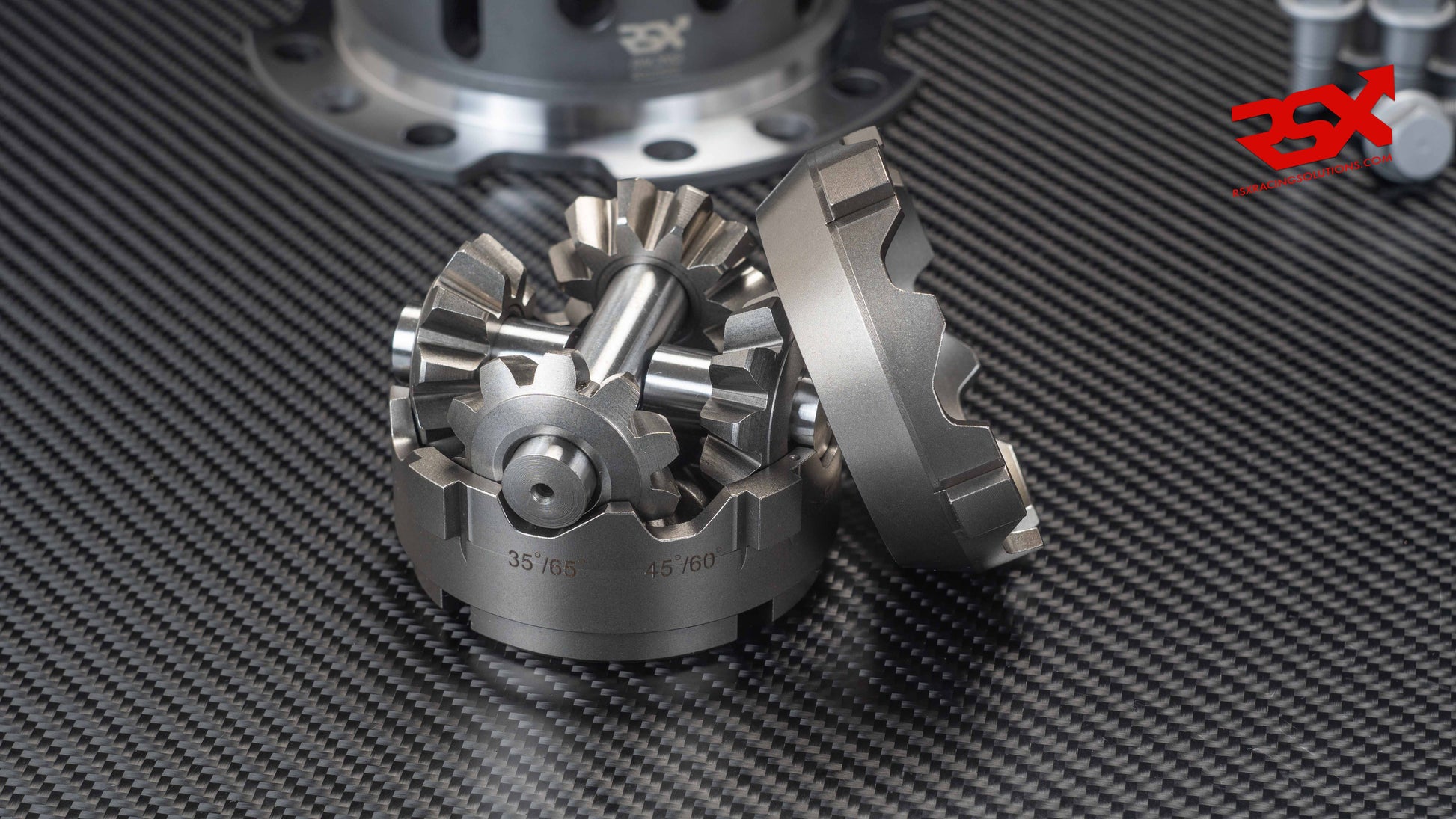

- As in all our plated LSDs, we use dual ramp bodies and our factory spec version on this application is the 35/65 & 40/85. Other ramp angles available upon request.
We include “free or charge” a set of ring gear / crown wheel bolts, made of high tensile steel grade 12.9, You could tighten the bolts supplied with our LSD to 75–80 Nm. We recommend applying a high-strength threadlocker, such as Loctite 271 (red) or, for maximum security, Loctite 270/2701 (green).
To demonstrate our commitment to quality and reliability, all our plate-type LSDs come with a 1-year motorsport warranty against material or manufacturing defects.
Extras included:

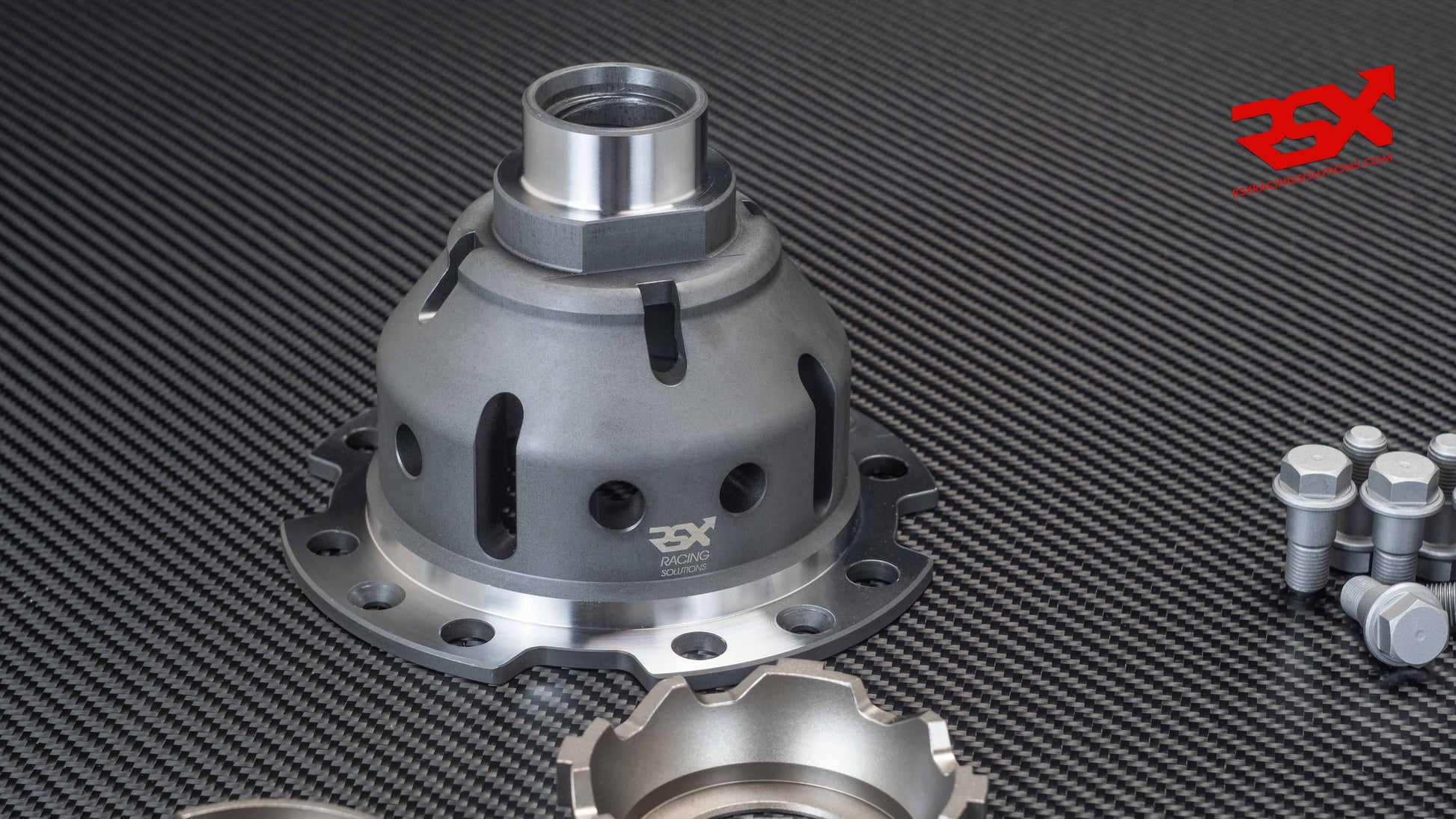

- A set of 8 pcs M10x1.0 high-grade 12.9 ring gear bolts is included .
The bolts supplied with our LSD must be tightened to 80 Nm and we recommend using a high-strength threadlocker, such as Loctite 271 (red) or — for maximum security — Loctite 270/2701 (green).
- An extra, thicker Belleville (conical) washer for users seeking increased preload, typically used when adjusting the differential from tarmac to gravel configuration.
This LSD is compatible with vehicles equipped with the following gearbox codes:
CZL, CZM, DBZ, DCL, DEA, DQY, DSF, DSG, DTA, DTK, DYN, DYP, DZC, DZL, DZQ, EBA, EBF, EBJ, EBN, EBP, EBQ, EBS, ECW, EFG, EGC, EGD, EGF, EGR, EGS, EGT, EGU, EGW, EGX, EGY, EHA, EHB, EHC, EHN, EKG, EKH, EKU, EKW, ELG, EMR, EMS, EMT, ENJ, ERS, ESP, EUH, EUQ, EVQ, EVR, EVS, EWW, EWX, EWY, EWZ, EXA, EXB, EXE, EYD, EZK, FBK, FBL, FBV, FBW, FBX, FBY, FCF, FCH, FCJ, FCK, FDS, FDU, GAX, JDH, JDJ, JDM, JDN, JDP, JDQ, JDR, JDS, JDU, JEG, JEH, JEJ, LCC, LKB, MZB, MZF, MZG, MZH, MZJ, DUE, DZF, EBD, EBM, EEA, EGV, EGZ, ESV, EWQ, EWU, EWV, EXD, GPK, GRJ, JDK, EDT, EWP, JDW
Important Reminder:
We recommend using gear oils with shockproof additives or friction modifiers, commonly labeled as "LS" (Limited Slip) gear oils, specifically for plate-type LSDs.
The most common SAE grade is 75W-140 LS and only with LS specifications if a plate-type LSD is installed.
It is also advisable to add gear oil directly to the LSD during installation into the gearbox. Please note that although we apply anti-rust oil during assembly at our factory, it does not provide lubrication.
