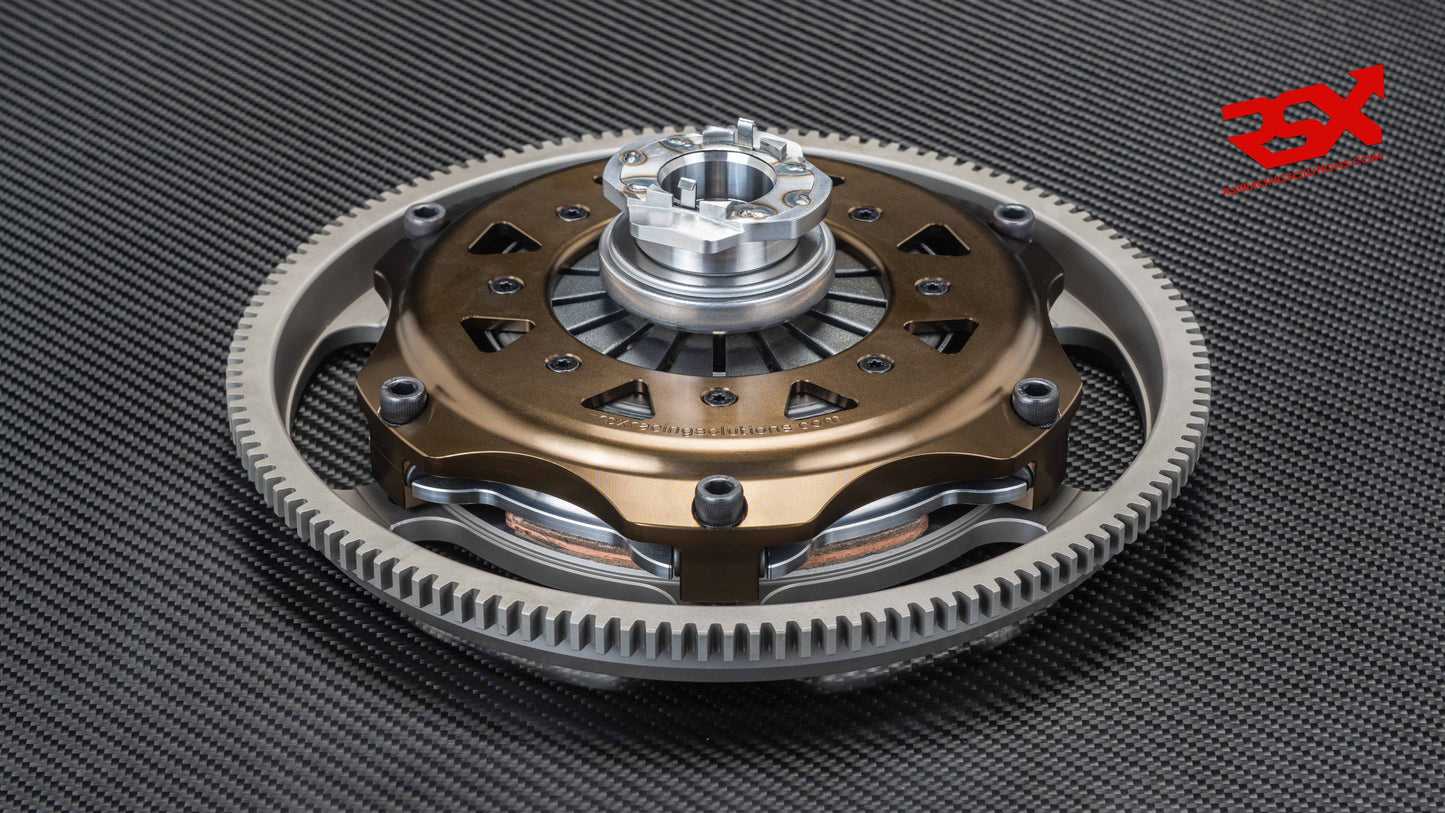

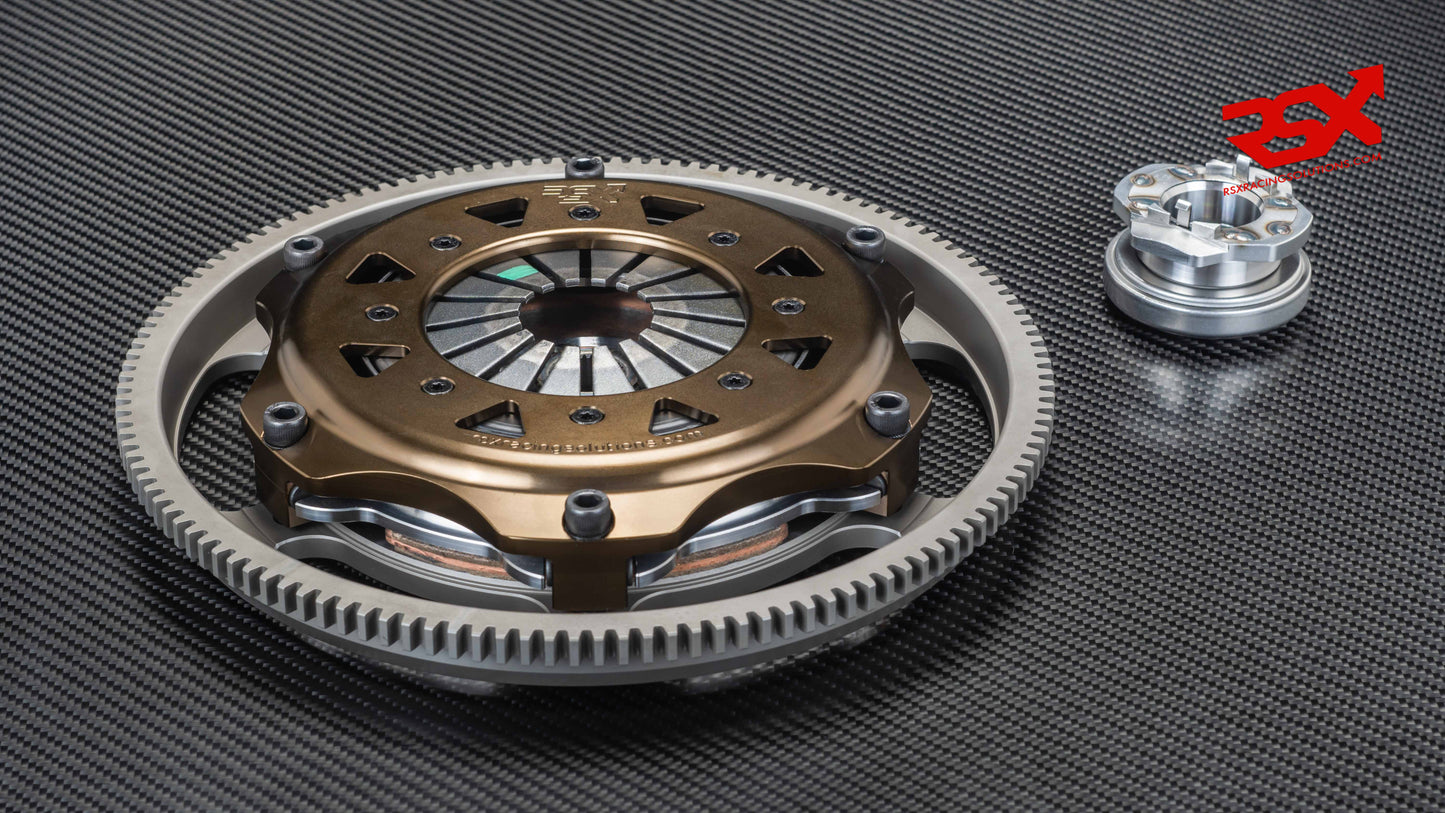

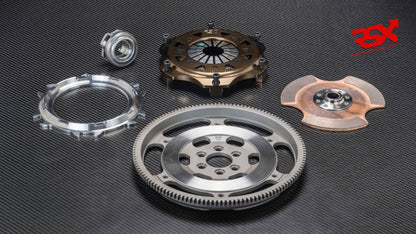

184mm Clutch Kit for VAG 1.8T/2.0 16V Engine

Ø184 mm (7.25") Clutch Kit for VAG 1.8T and 2.0 16v Engines with 5-speed 02A / 02J Gearboxes

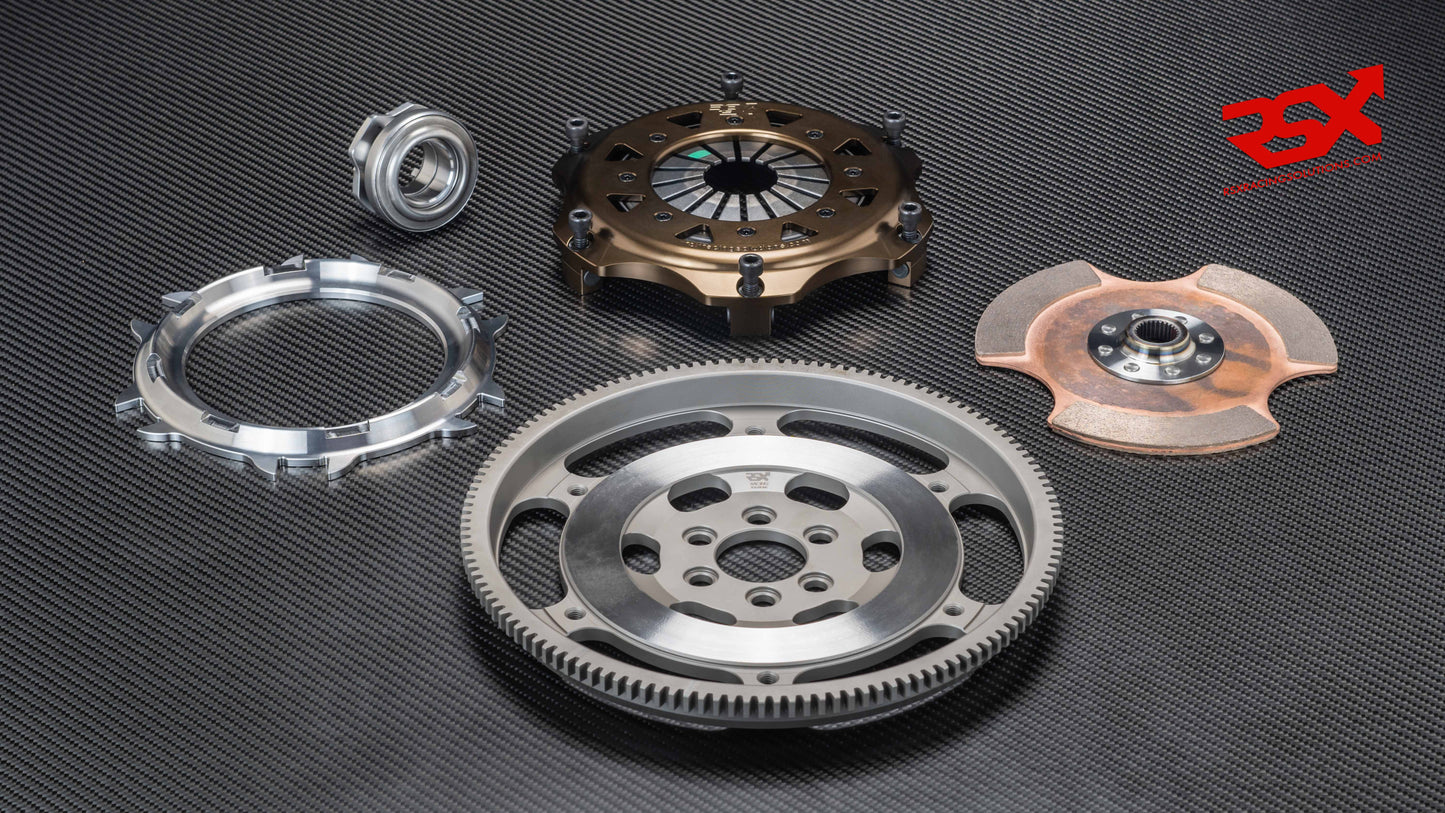

Kit Includes:

✔ 184mm / 7.25" Single Disc Clutch 2,80 kg)

✔ 184mm / 7.25" Ultra-lightweight Flywheel (2.95kg)

✔ Clutch release bearing set

Component Features

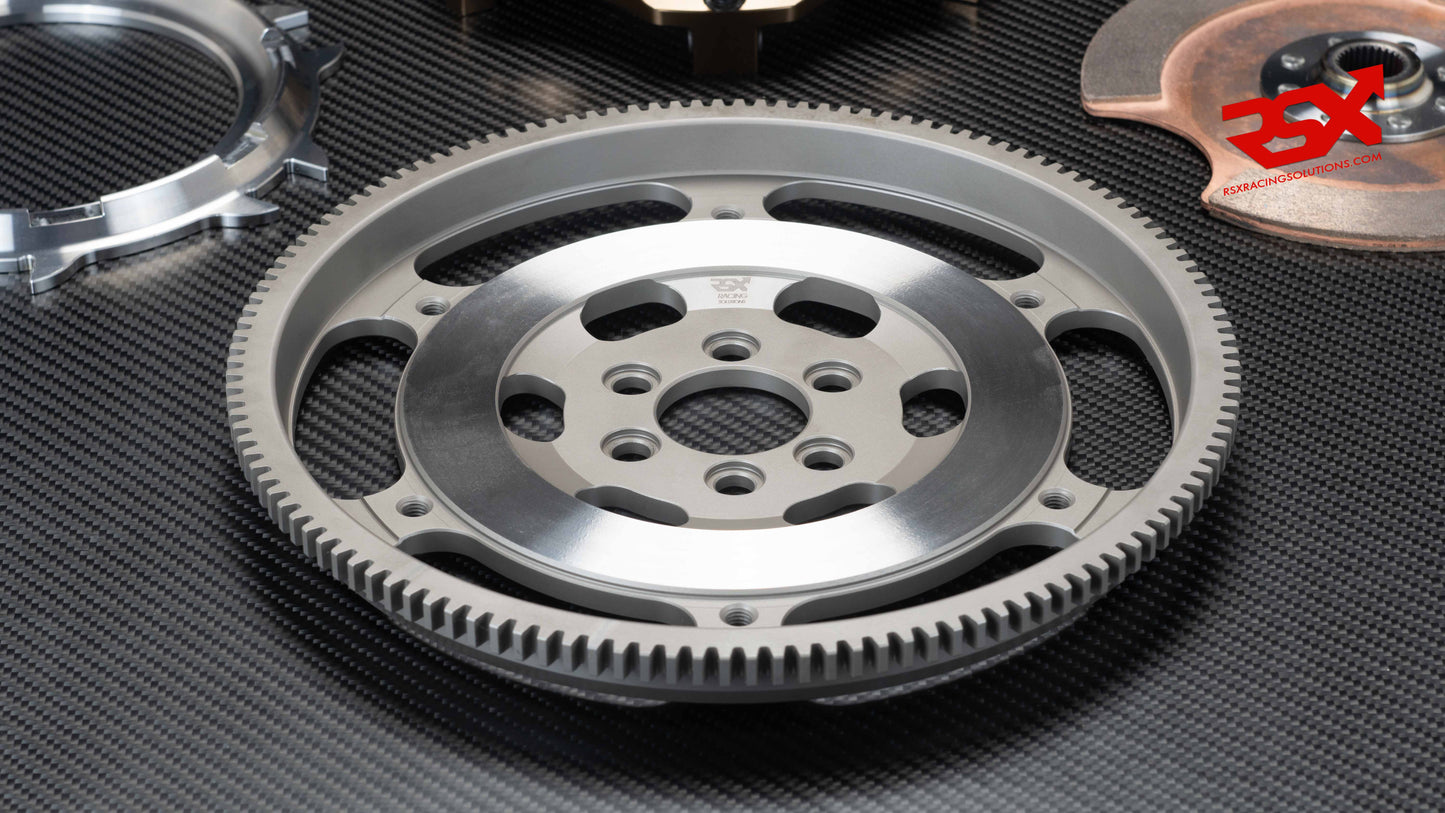

Flywheel

• Weight: only 2.95 kg
• Material: Forged CrMo steel, nitriding heat-treated
• Hardness: HRC 58–62 → over twice as hard as standard flywheels
  → Prevents wear on starter ring gear in high-compression engines
• Longevity: High surface hardness = extended service life & reliability

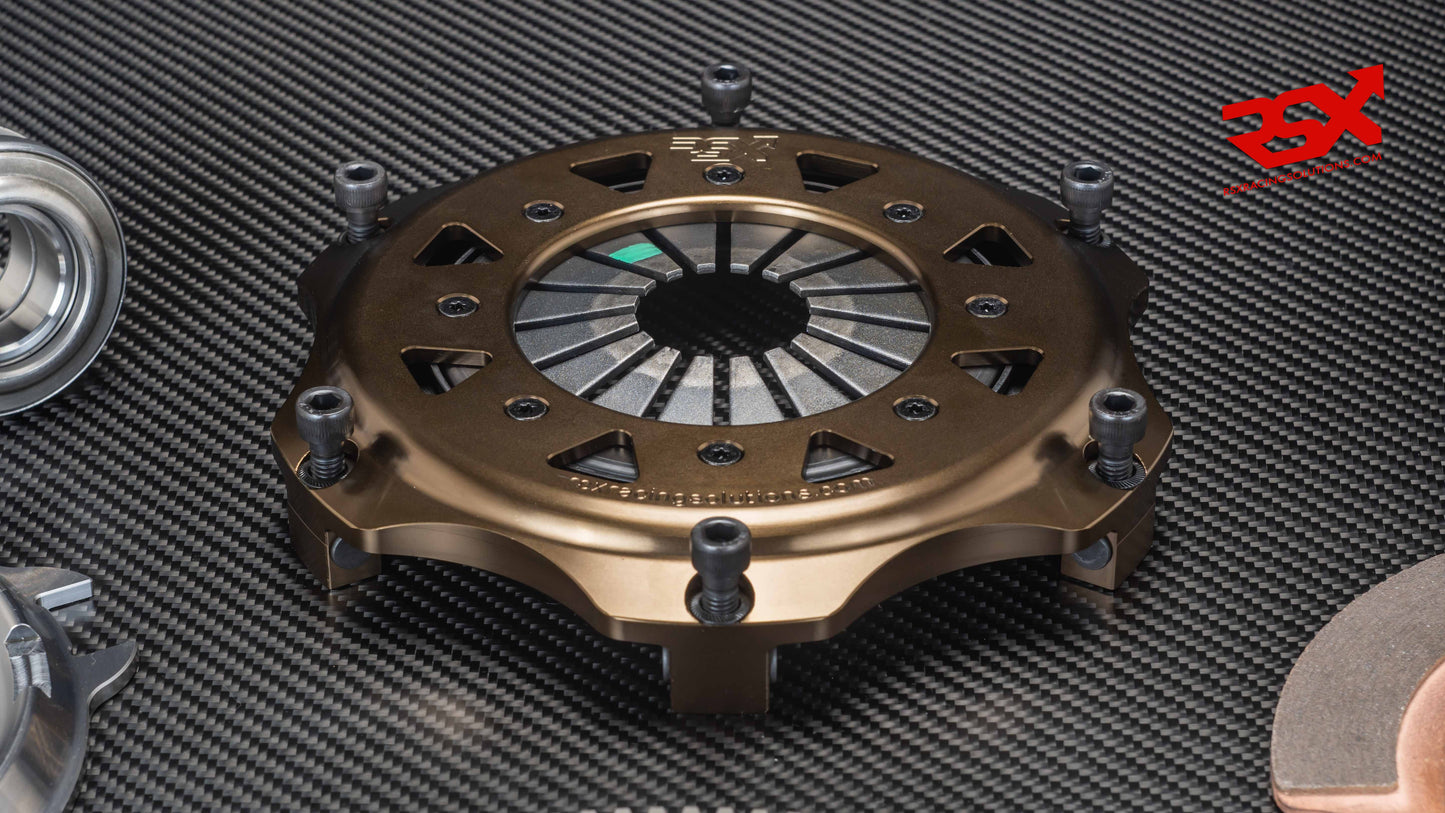

Clutch Cover

• Material: Forged 6061-T6 aluminum, hard anodized
• Construction: Steel-riveted legs for near-lifetime durability. Hardened steel thrust buttons/rivets offer a smooth and durable surface for the clutch cover legs, pressure, and floating plates.
• The tightening torque for the cover-to-flywheel bolts (M8x1.25, grade 12.9) is 41 Nm.

Top/Pressure Plate

• Material: Forged chromoly steel, cryogenically treated (in some applications)

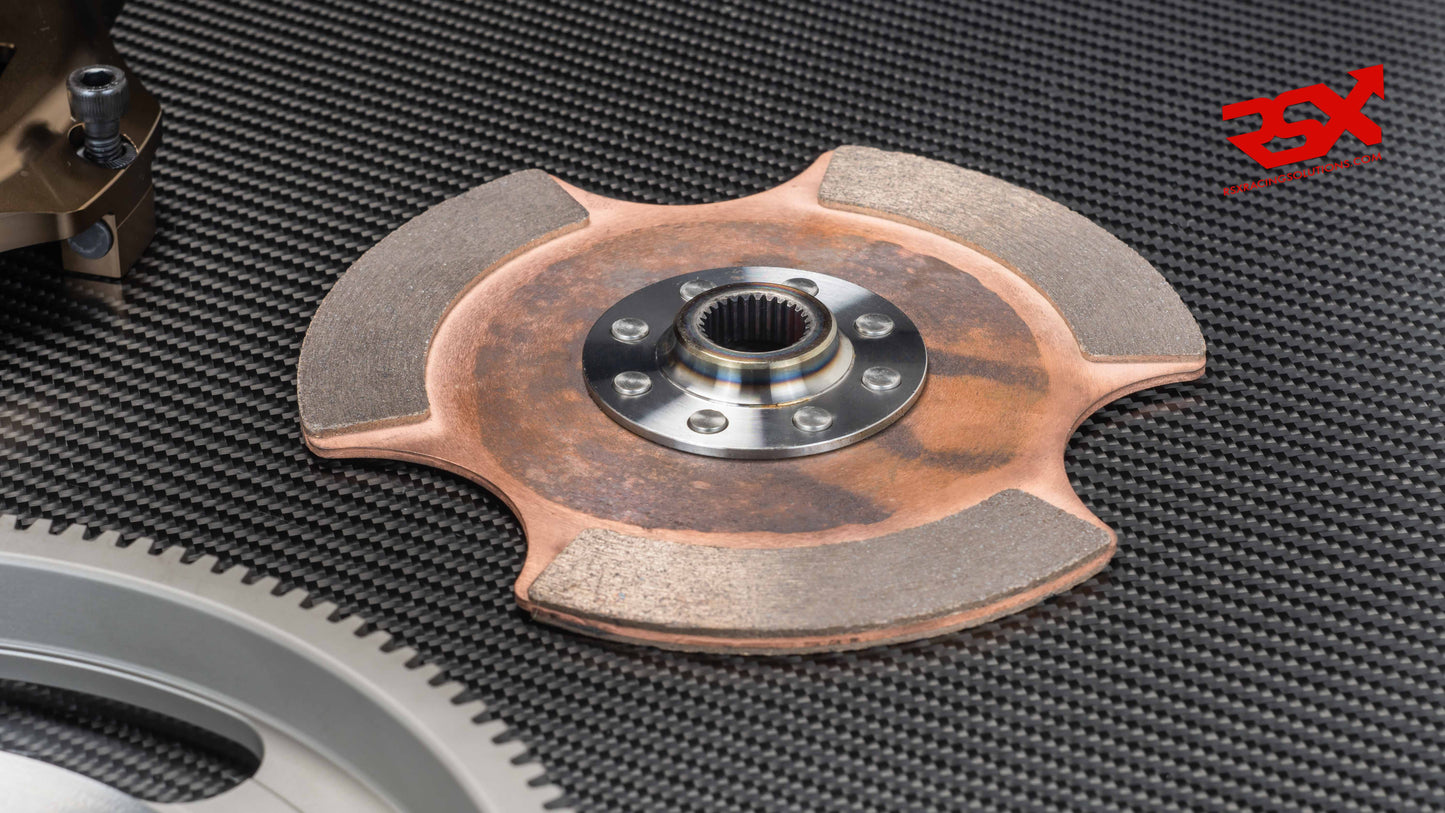

Sintered Clutch Disc — Ø184 mm (7.25")

• Material: Proprietary blend of sintered metal compounds, engineered with precise manufacturing tolerances
• Standard version design: Three large friction pads for optimal engagement and reliability.
• Hub: Machined from forged chromoly steel and induction hardened for maximum strength and wear resistance
• Customization: Available on request (e.g. custom spline)

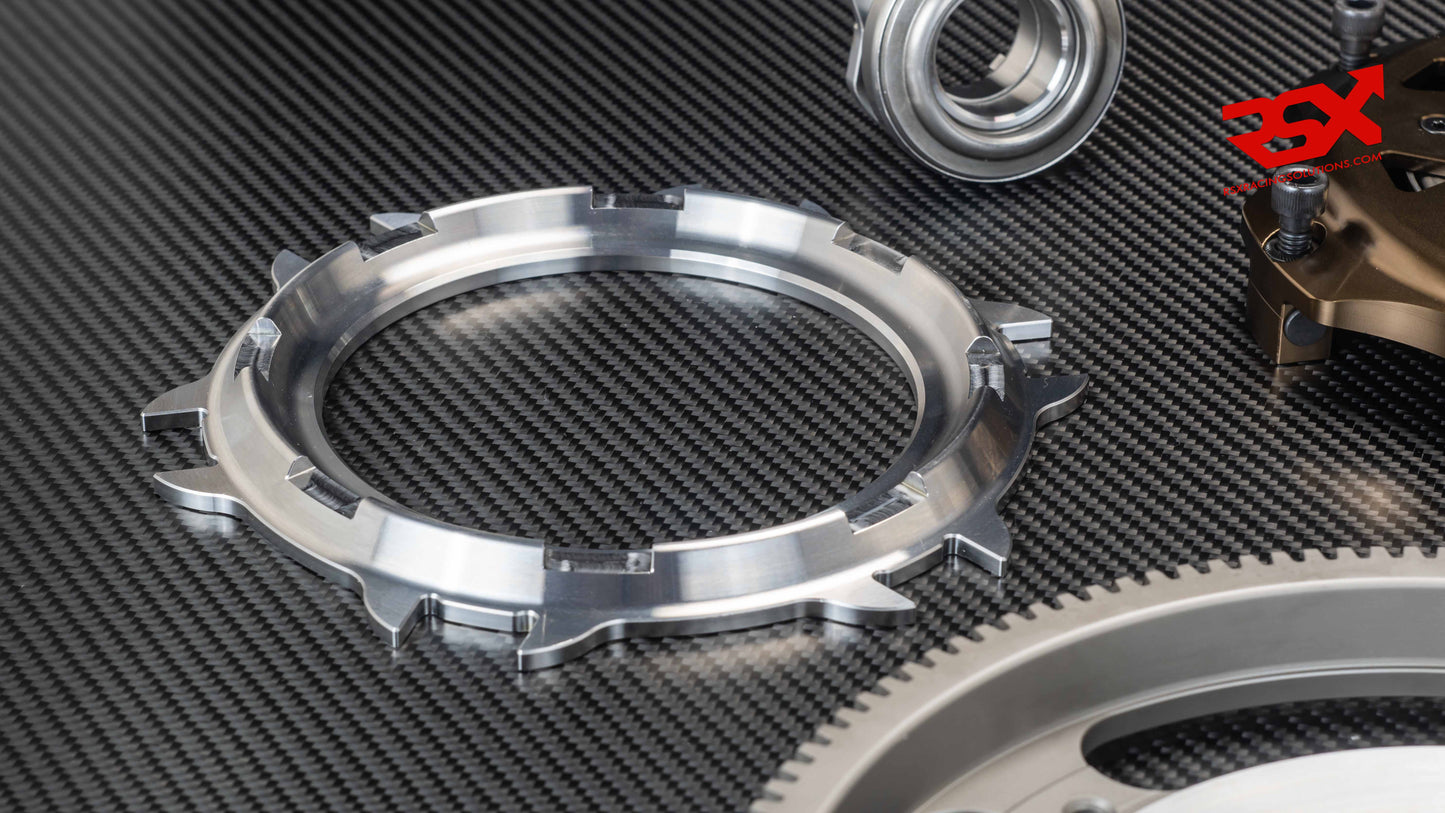

Clutch release bearing + specific aluminum support

• Bearing: racing-grade quality release bearing, essential for any race clutch to withstands extreme mechanical loads and high working temperatures
• Specific support

Key Features & Benefits

✔ Single disc version rated over 400hp / 450Nm depending on specs

✔ Significant weight reduction vs OEM
→ Faster acceleration
→ Better throttle response
→ Improved handling & braking

✔ Improved shifting at high RPM

✔ Long lifespan of friction components → low replacement cost

✔ Plug & Play → No modifications required

✔ Excellent Pedal Feel & Modulation

Depending on the modifications already made, an adjustment may be necessary.
