184mm Clutch Kit for Renault R5 GTT | single and twin-disc

RENAULT R5 GTT 184MM SINGLE AND TWIN-DISC CLUTCH KITS

Specifically developed for the Renault R5 GTT and includes:

• 184mm (7.25”) Lightweight Flywheel (3.05 kg)

Clutch options:

• Single-disc clutch → Capable of handling over 400 hp and 450 Nm, depending on the configuration. Weight: 2.80 kg

• Twin-disc clutch → Supports over 1,000 hp and 1,200 Nm of torque, depending on the configuration. Weight: 4.20 kg

• Clutch disc

• Custom Aluminum Spacer → Included in the single-disc clutch kit, this spacer sits behind the OE HRB. Combined with the Stick-up Adapter, it ensures the same working travel as the OE HRB



Improved Pedal Feel & Modulation →

• The spacer ensures the correct throw-out bearing travel

• The stick-up adapter allows proper seating of the release bearing against the diaphragm fingers, improving clutch pedal feedback

• The OE hydraulic release bearing’s flat fulcrum point often struggles to align with the flat diaphragm of racing clutch covers, leading to poor pedal feedback. Our Stick-up Adapter with a round fulcrum point significantly enhances pedal feel and modulation, which is crucial for a smooth launch on the starting line

Note:


The spacer is not required for the twin-disc version

COMPONENT FEATURES

Flywheel

✔ Weight: Just 3.05 kg

✔ Material: Forged CrMo steel, nitriding heat-treated
✔ Hardness: Achieves HRC 58~62, twice as hard as standard flywheels, preventing excessive wear (especially on the starter ring gear) in high-compression engines
✔ Longevity: The higher the HRC value, the more resistant the flywheel, leading to longer service life & reliability

Clutch Cover

✔ Material: Forged 6061-T6 aluminum, treated with hard anodizing for increased strength, durability, and scratch resistance
✔ Construction: Steel-riveted clutch cover legs for near-lifetime durability

Top/Pressure & Floating Plates

✔ Material: Forged chromoly steel, cryogenically treated in some applications for superior strength and longevity

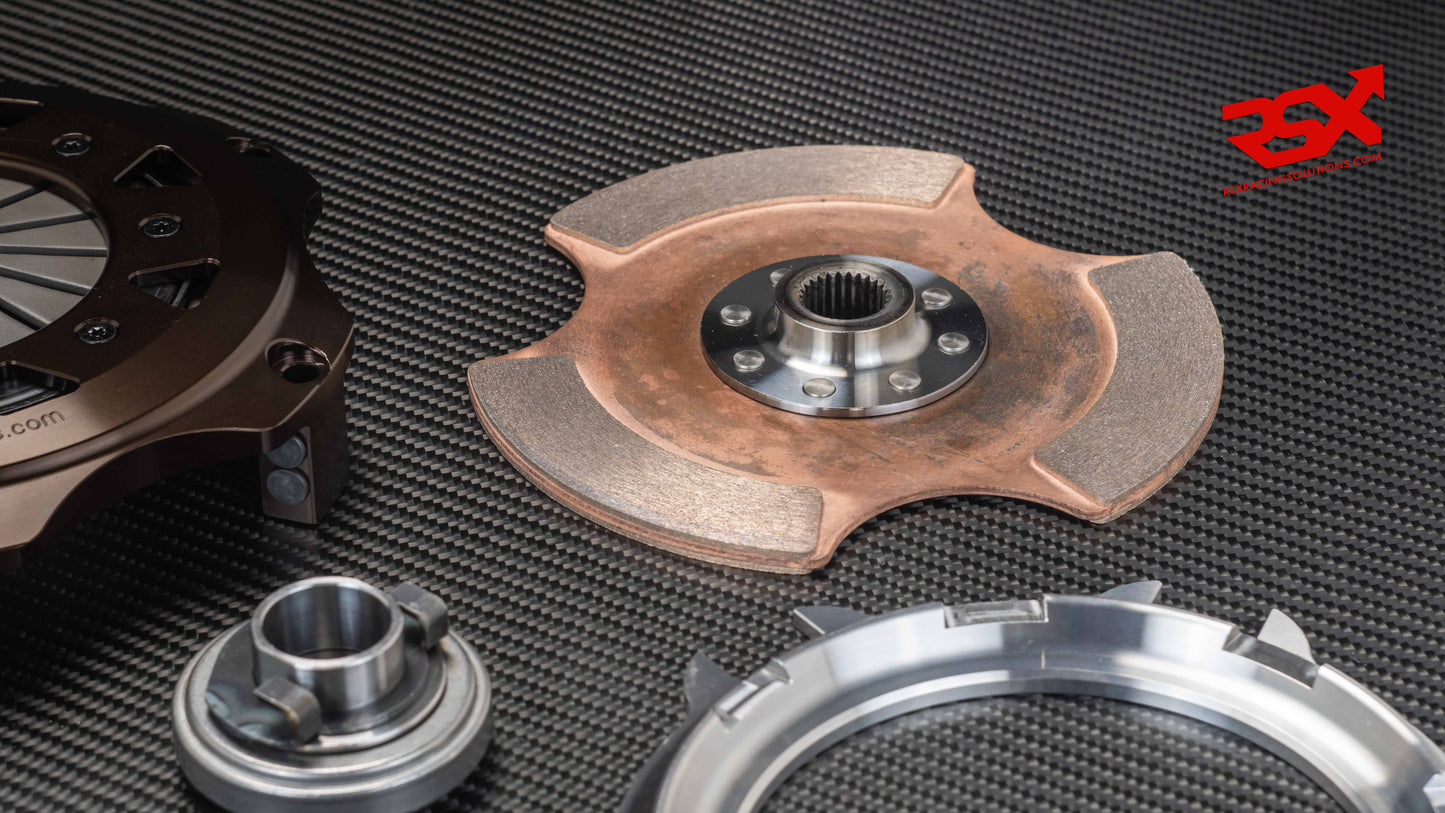

Clutch Discs

✔ Material: Sintered, with multiple design options
✔ Standard version: Features three large pads
✔ Customization: Custom splines available upon request

Aluminum Spacer & Stick-up Adapter

✔ Spacer: 6061-T6 aluminum, red hard-anodized finish
✔ Stick-up Adapter: Hardened steel with a 50-55 HRC rating for minimal wear and long-lasting performance

KEY FEATURES & BENEFITS

✔ Single disc supports over 400 hp and 450 Nm and over 1,000 hp and 1,200 Nm of torque for the Twin disc version (depending on clutch disc & diaphragm specs)
✔ Huge weight reduction compared to the OEM flywheel & clutch kit, resulting in:

✔ Enhanced gear shifting at high RPMs
✔ Extended lifespan of friction components with low replacement cost
✔ Full Plug & Play system → No modifications required
